Miniature Circuit Breakers
Technical Parameters
Rated current: 10,16,20,25,32,40,50,63A
Rated operating voltage: AC 230V
Rated residual operated current: 30mA
Breaking capacity: 4.5kA

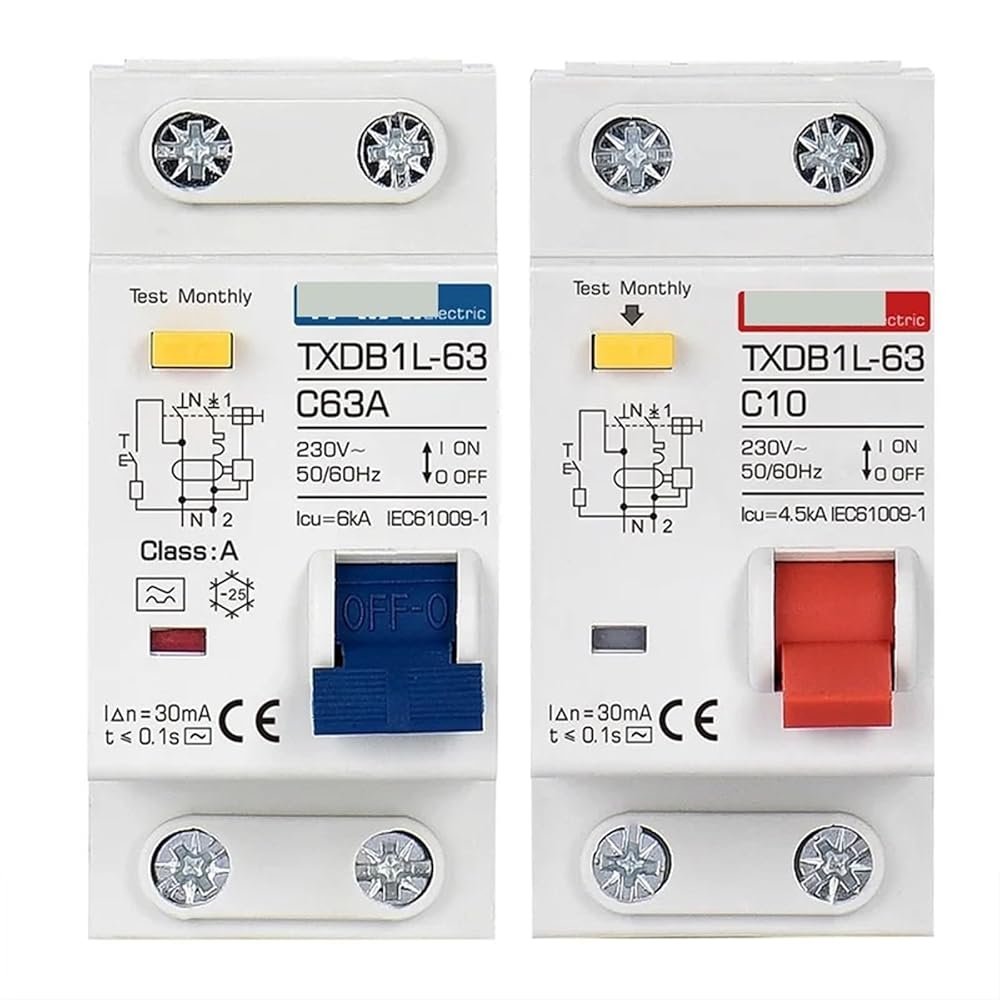

Trip indicator: TXDB1L electric leakage circuit breaker has residual current operated trip indicator window, when leakage fault trip, the window changes from colorless to red
Mechanical life: 8000 times
Electrical life: 2000 times
Wiring: 6 ~ 63A, can be connected to wires of 16mm 2; and below
Tripping characteristics: C-type curve, protection of conventional load and distribution cables, instantaneous trip range (5 ~ 10) In
==========
Type : Earth Leakage
Type : Circuit breaker
Model Number : TXDBL
Is Device : No
Rated Voltage : 220V
Rated voltage : AC220V-230V
Rated current : 10A 16A 20A 25A 32A 40A 50A 60A
Leakage operating current : 30mA
