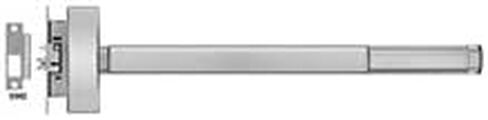

Apex 2300 Series Mortise Exit Device

For all types of single and double door applications.

Furnished standard for 1-3/4” thick, 3'-0” wide opening.
DEVICE - Covers ANSI A115.1 (Type 86) Mortise Lock preparation.
BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel.
CHASSIS - Investment Cast Steel, Zinc Dichromated.
DOGGING - 1/4” turn hex key dogging standard. NOT available on Fire Exit Hardware.
TOUCHBAR HEIGHT - 39-15/16” from floor standard.
HANDED -Field Reversible
Touchbar Assembly, Mortise Lock and Trim may be reversed in the field. For reversibility of complete device, mortise strike is required for the other hand.
UL LISTED - Panic and Fire Exit Hardware.
ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.

CYLINDERS - Mortise type, not furnished standard.
Exit Series - Handed
Fits doors machined per ANSI A115.1 (Type 86) Mortise
Lock preparation.
BACKSET - 2-3/4”.
CASE - Wrought Steel, Zinc Dichromate finish.
LOCK FRONT PLATE - 8” x 1-1/4” Bronze, Brass or Stainless Steel, pivots for beveled or square edged doors.
LATCHBOLT - Stainless Steel, Deadlocking, 3/4” throw, anti-friction.
GUARDBOLT - Stainless Steel, sliding type.

STRIKES - No. S982, handed curved lip strike furnished standard.
LOCK NO.
• M303: 01, 02 & 03 functions.
• M308: 05, 08, 14 & 15 functions.
• M310: 10 function.
