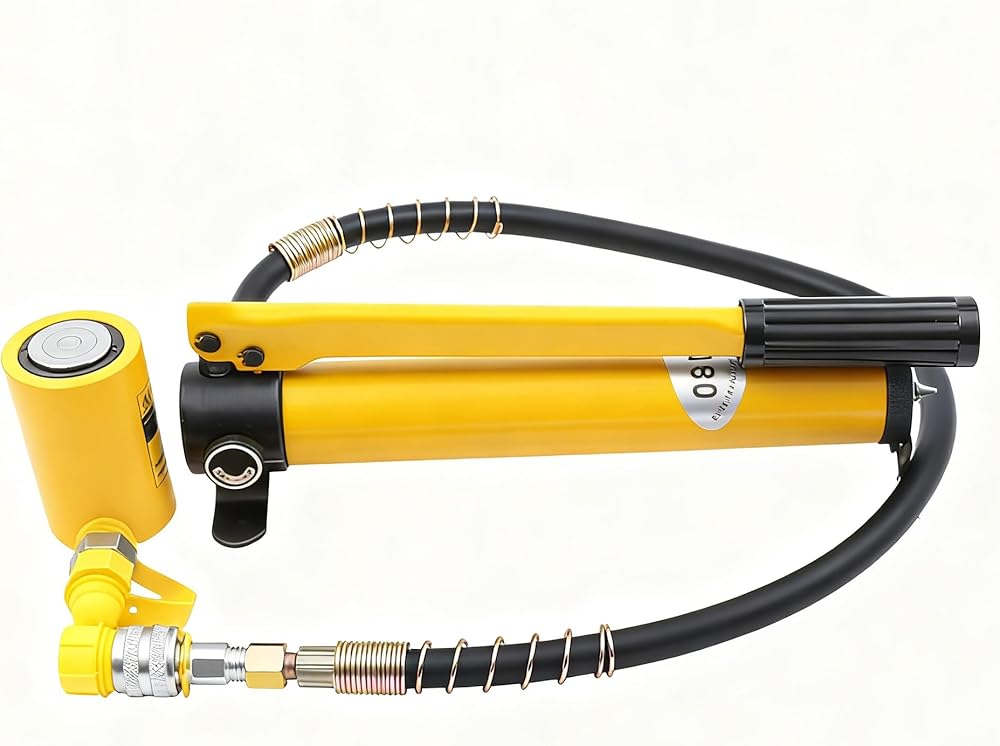

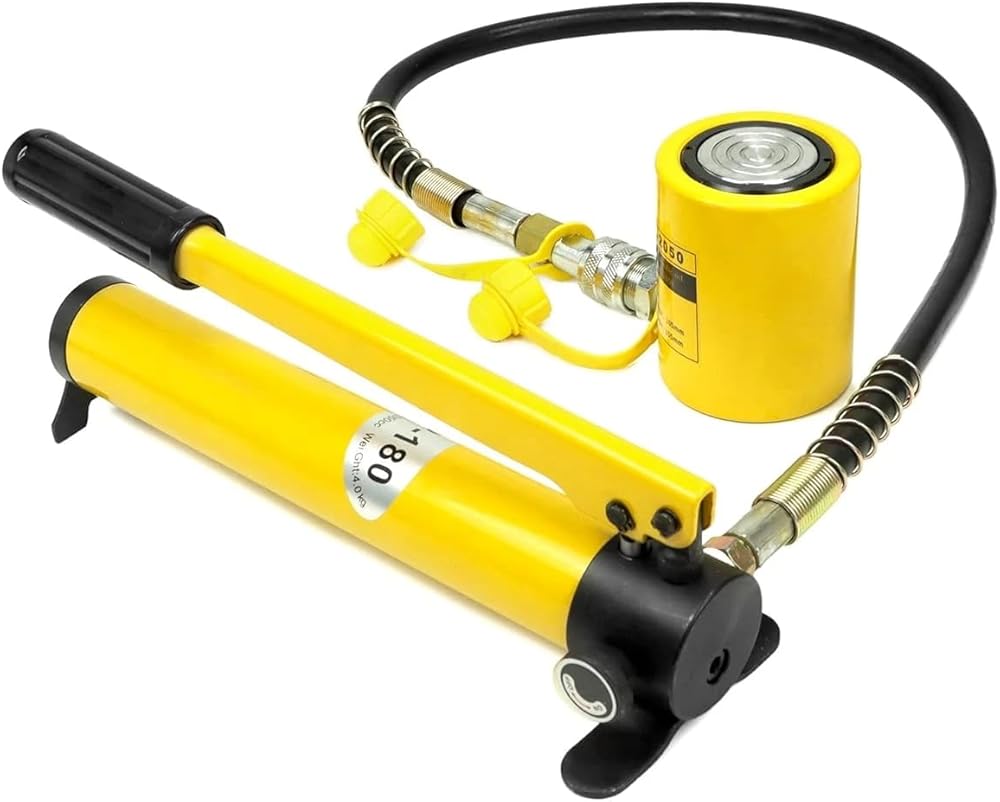

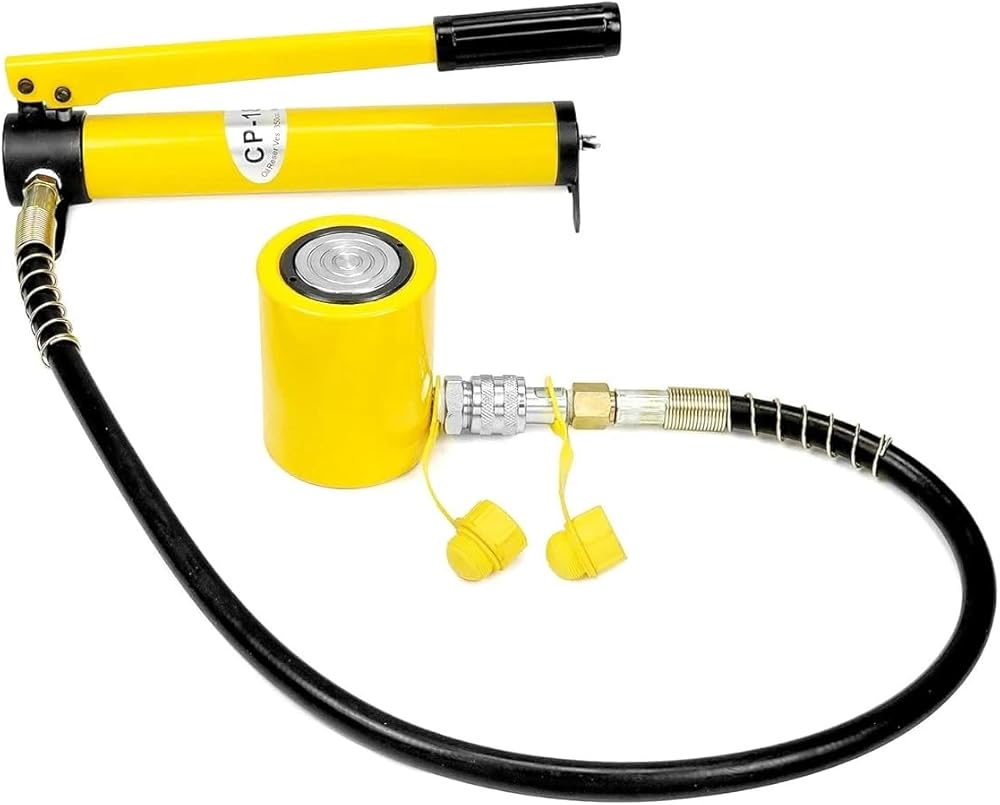

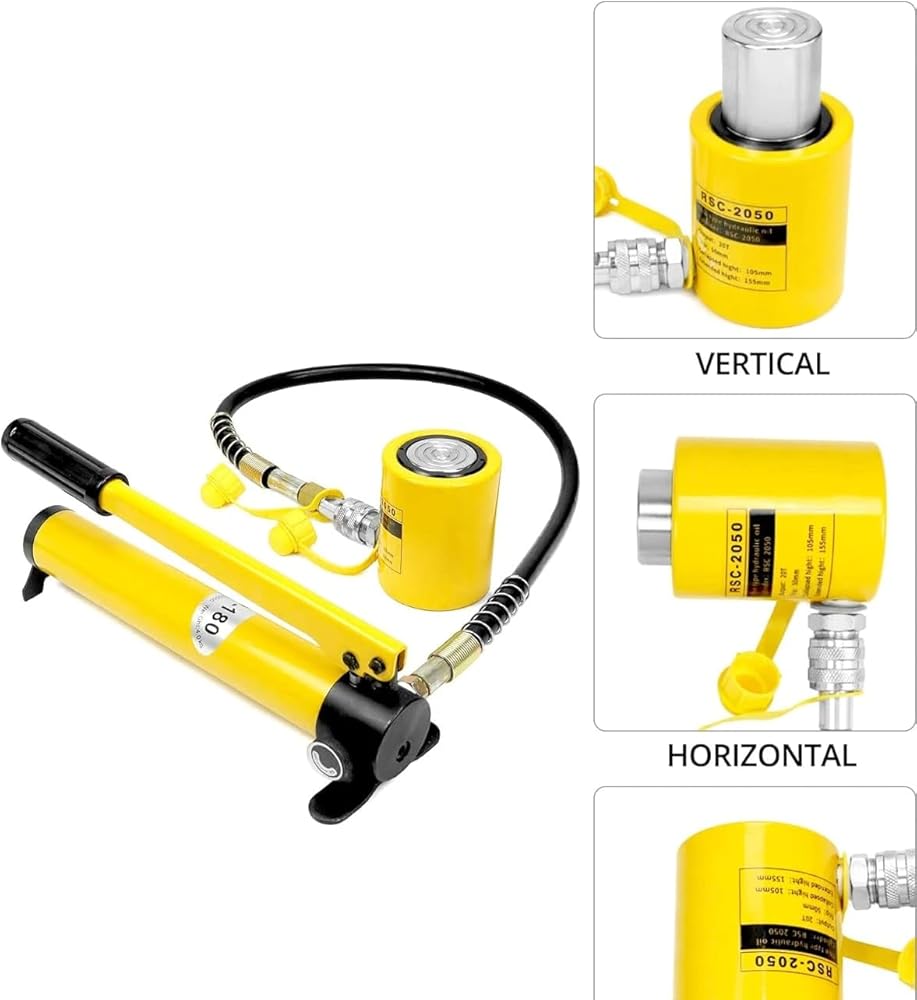

Manual Hydraulic Hand Pump CP-180, 10 Ton Hydraulic Cylinder Jack Single Acting 2 Inch 50mm Stroke Hydraulic Cylinder Ram

KWD 30.500
Brand
MAHOTUY
– 1 +

Special Features

  • Package Combination: 10T Jacks is available for CP-180 hydraulic pump, it has multiple functions such as lifting, jacking, shoveling and dismantling, and can be quickly installed with quick connectors.
  • Portable: This hydraulic cylinder is easy to carry, small in size, and has strong load-bearing capacity. It is particularly suitable for lifting and supporting work, with good sealing, no oil leakage, and comfortable use of anti slip handles.
  • Large Load Tonnage: The high hardness material of this jack makes it able to load a tonnage of 10T/22.46.22 lbs, which is large enough to lift many items to meet your work needs.
  • Strong and Durable: The jack and pump are made of high hardness and high-quality steel material with the sprayed surface treatment. This makes the item less prone to rust and very durable, with long service life.
  • Note: Due to the weight of the product, the cardboard box may be damaged during transportation, but it does not affect its use. Please do not mind

Description

Specifications
Color: Yellow + Black
Jack Model: RSC-1050
Pump Model: CP-180
Product Material: Steel
Oil Pipe Material: Rubber
Surface Treatment: Spraying
Spindle Surface Treatment: Chrome Plated
Jack Load Tonnage: 10T/22.46.22 lbs

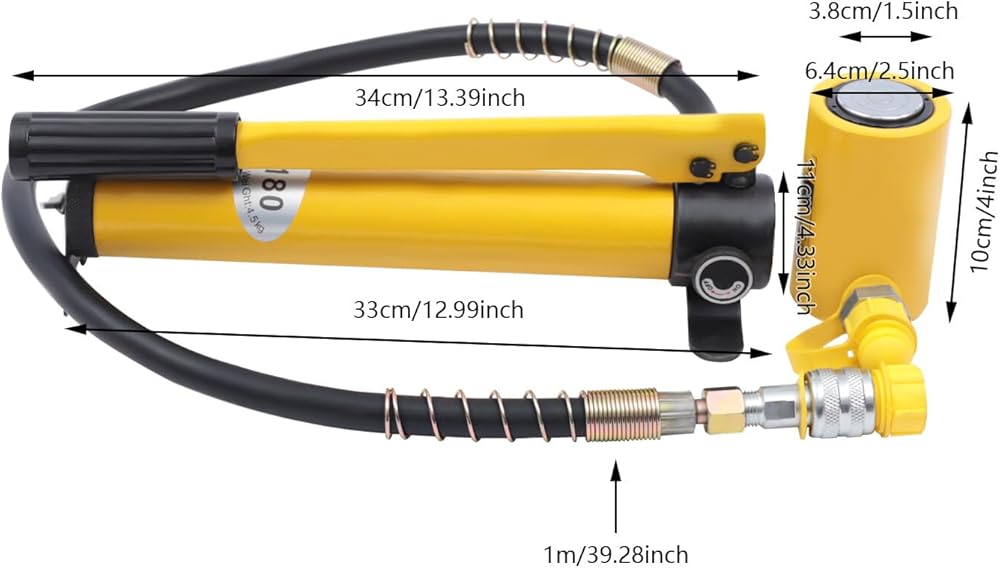

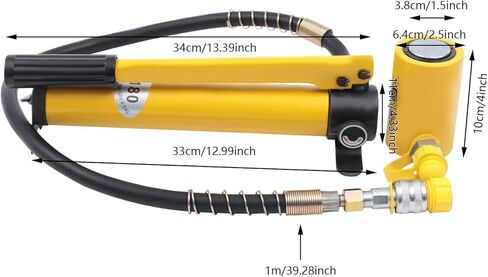

Jack Stroke: 5cm/1.97"
Jack Oil Storage Capacity: 72cc
Pump Max Pressure: 70 MPa
How to Use

Open the interface cover of the jack to connect with the pump's oil pipe interface and tighten the screw.
Turn the knob of the pump to OFF.

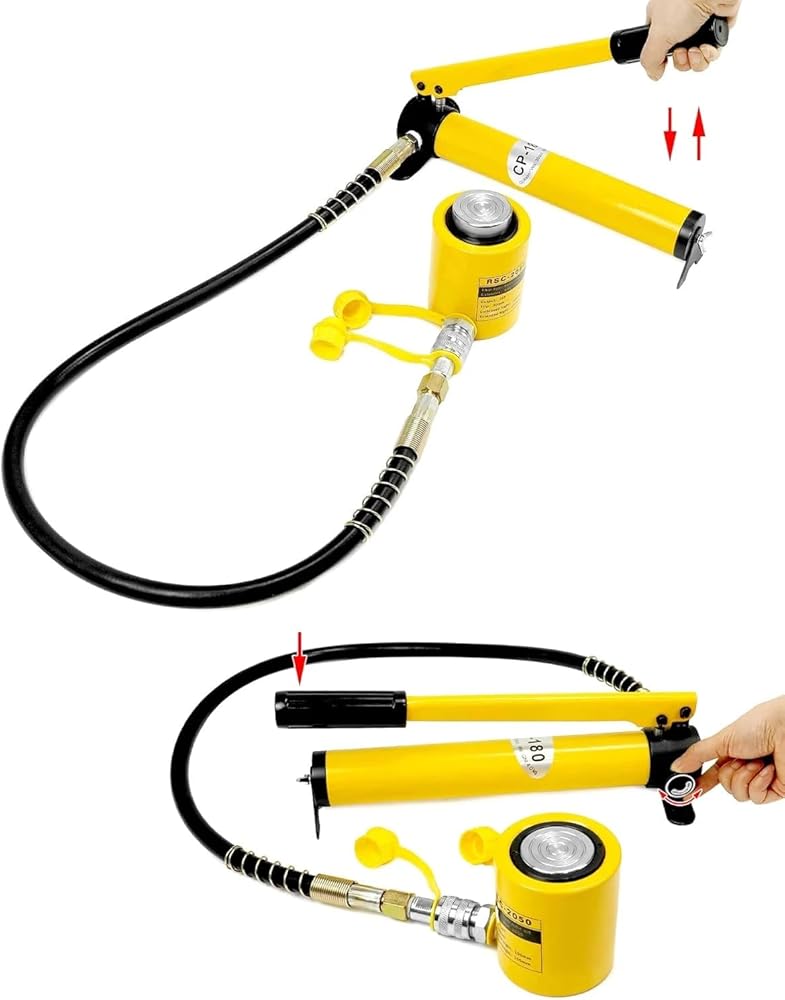

Place the jack under the object to be lifted and press the pump handle up and down to start working.
After the object is lifted, turn the knob to ON, and the jack will restart.

Notes

Please use this item on hard and flat ground.
Please do not exceed the load capacity of the jack.
Please stop immediately when you see the stop line.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
