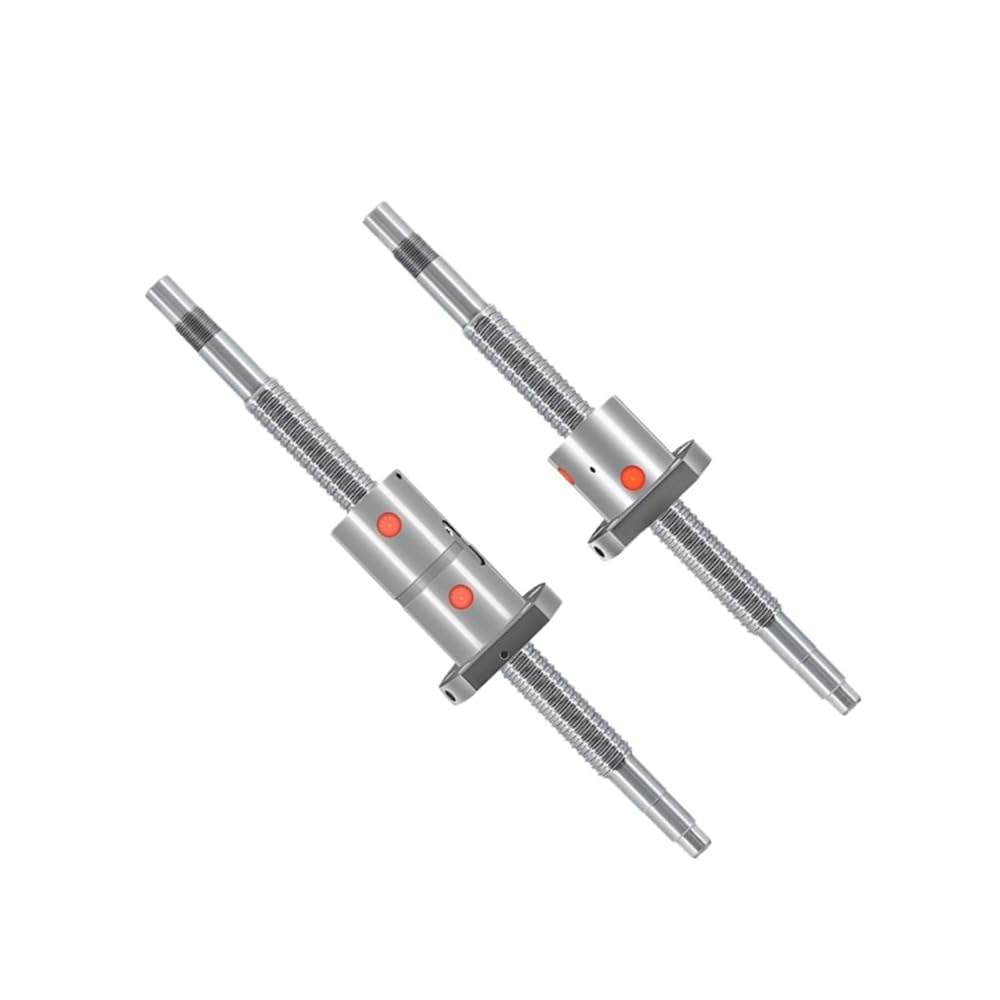

SFU3205 32 مم C7 طول المسمار الكروي 300-2500 مم مع صامولة كروية مفردة أو مزدوجة 5/10 مم الرصاص لجهاز التوجيه CNC ذو الحمل الثقيل (SFU3205 صامولة مفردة، 700 مم) in Kuwait

SFU3205 Single Nut 1500mm

KWD 109.500
ماركة
JILLICK
اللونSFU3205 الجوز واحد
مقاس1500 ملم
– 1 +

مميزات خاصة

  • Versatile Lead Options:Available with 5mm or 10mm lead, these ball screws cater to various CNC router requirements.
  • Precision Ground:Crafted from GCr15 steel, these ball screws offer precise movement and high-accuracy machining.
  • Double Nut Ball Screw|High Load Capacity:Designed for heavy load applications, SFU3205 ball screws support robust CNC router performance.
  • Compatible Nut Housing:Engineered to fit DSG32H nut housings, ensuring a secure and reliable connection for your CNC router.
  • Durable Material:Constructed from GCr15 steel, these ball screws withstand high temperatures up to 105℃

وصف

Packing Content
1 Pcs 32mm Diameter Ballscrew With Single/ Double Nut
End Machine According to BKBF25 Support
(the length on the option is the total length)
32mm Ballscrew
Model Number : SFU3205 SFU3210 DFU3205
Guide Width or Diameter : 32mm
Material : GCr15
Machined as Drawing : Support
Thread direction : Right Thread
Application : Cnc Machining Parts
Nut type : Single Nut / Double Nut
Lead : 5mm / 10mm
Length : 300-2500mm
Fit Support : BK25+BF25
Fit Nut Housing : DSG32H
Motor Connected Side Diameter : 20mm
Nut Length of SFU3205 : 52mm
Nut Length of SFU3210 : 90mm
Nut Length of DFU3205 : 102mm
