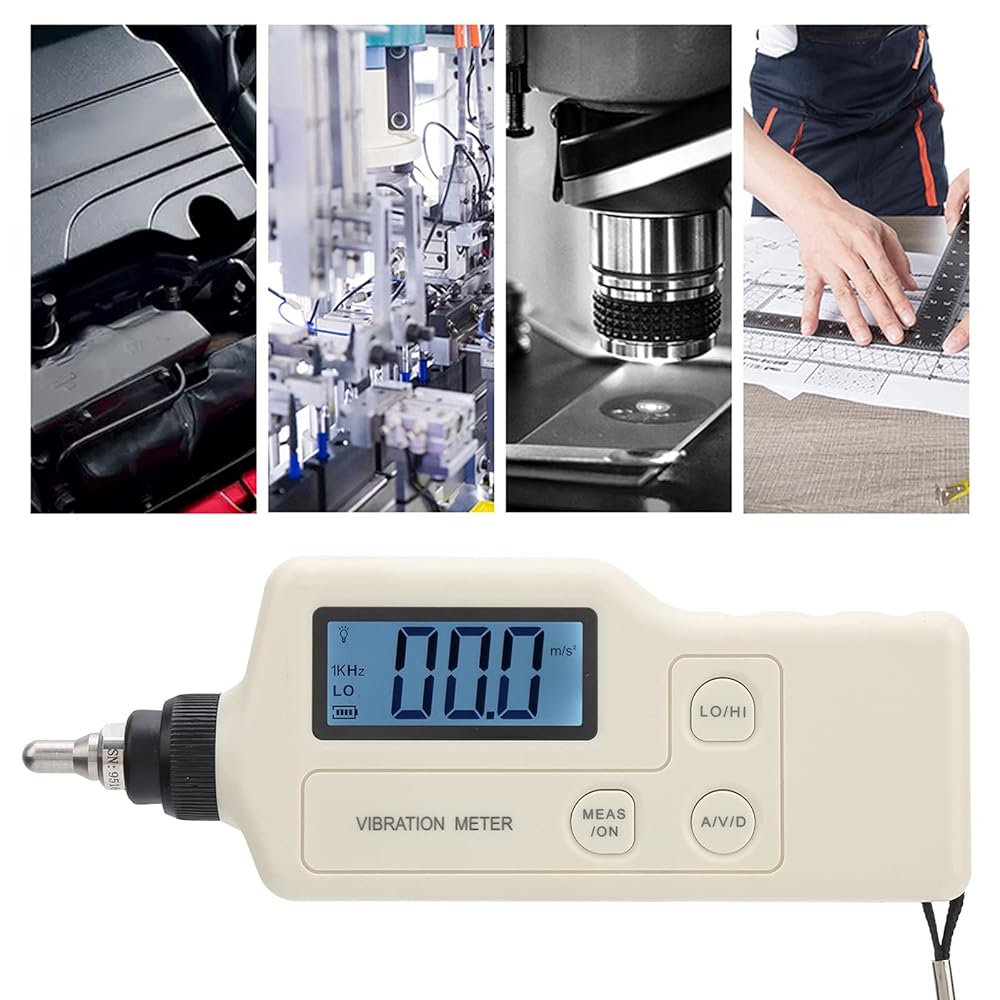

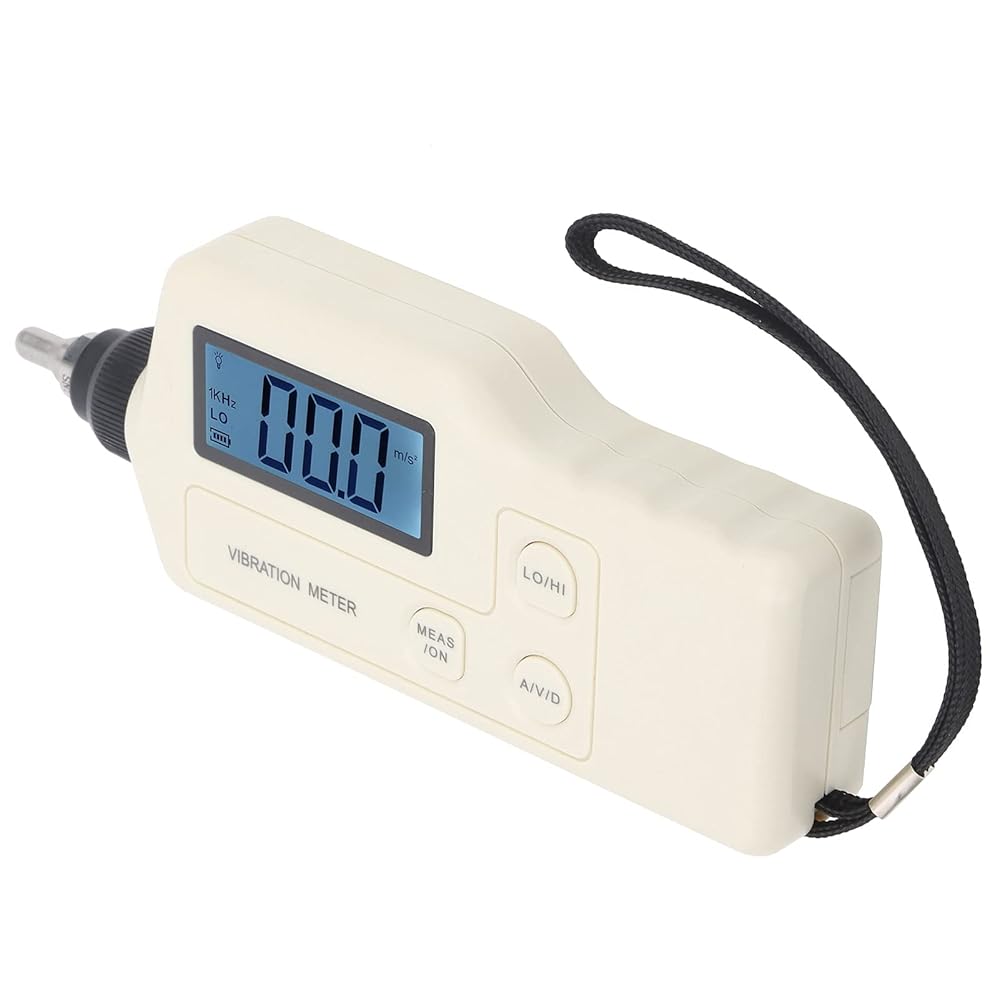

1. Easy to use, the structure is compact and portable for carrying along with the measurement.

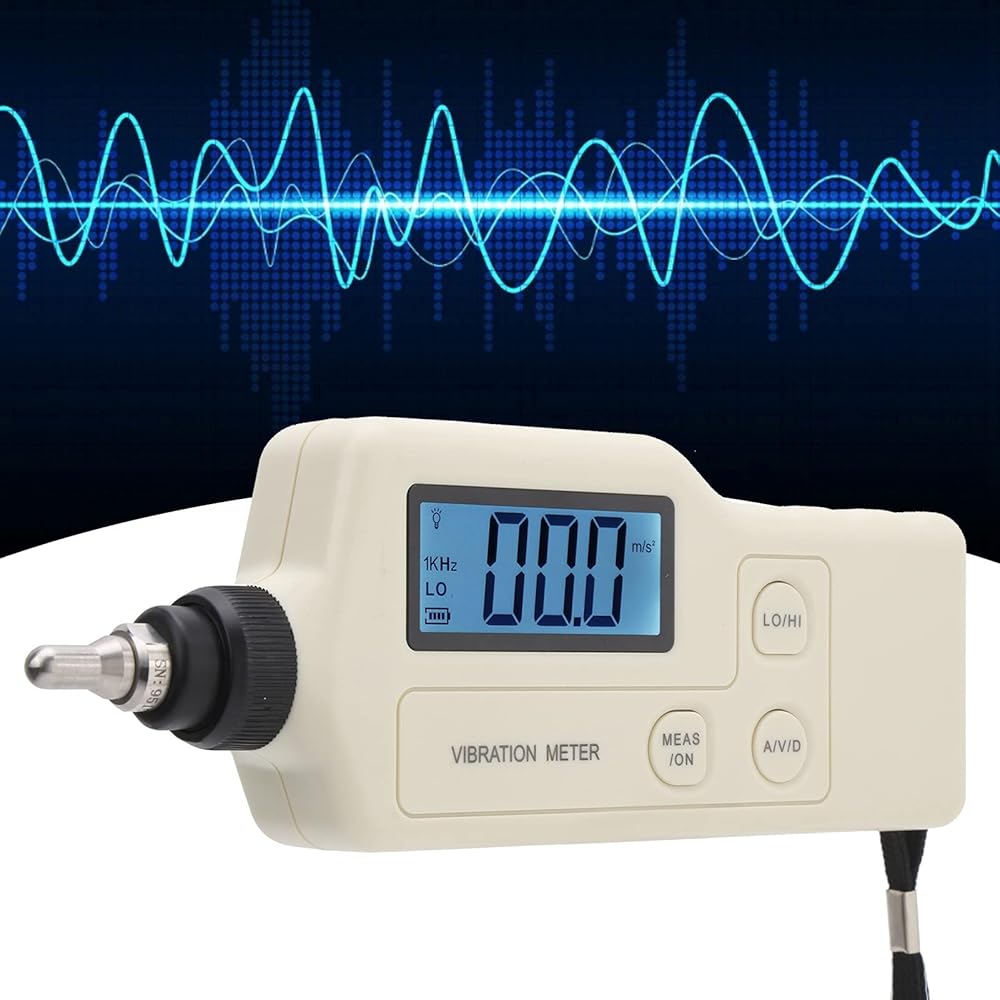

2. Large LCD digital display, visually displays the measurement value and status.
3. You can measure acceleration, speed and displacement and choose different vibration frequency characteristics.
4. Highly sensitive probe, accurate measurement, equipped with AC signal output interface.
5. With low battery indicator function, auto power off function, LCD backlight function.

Specification:

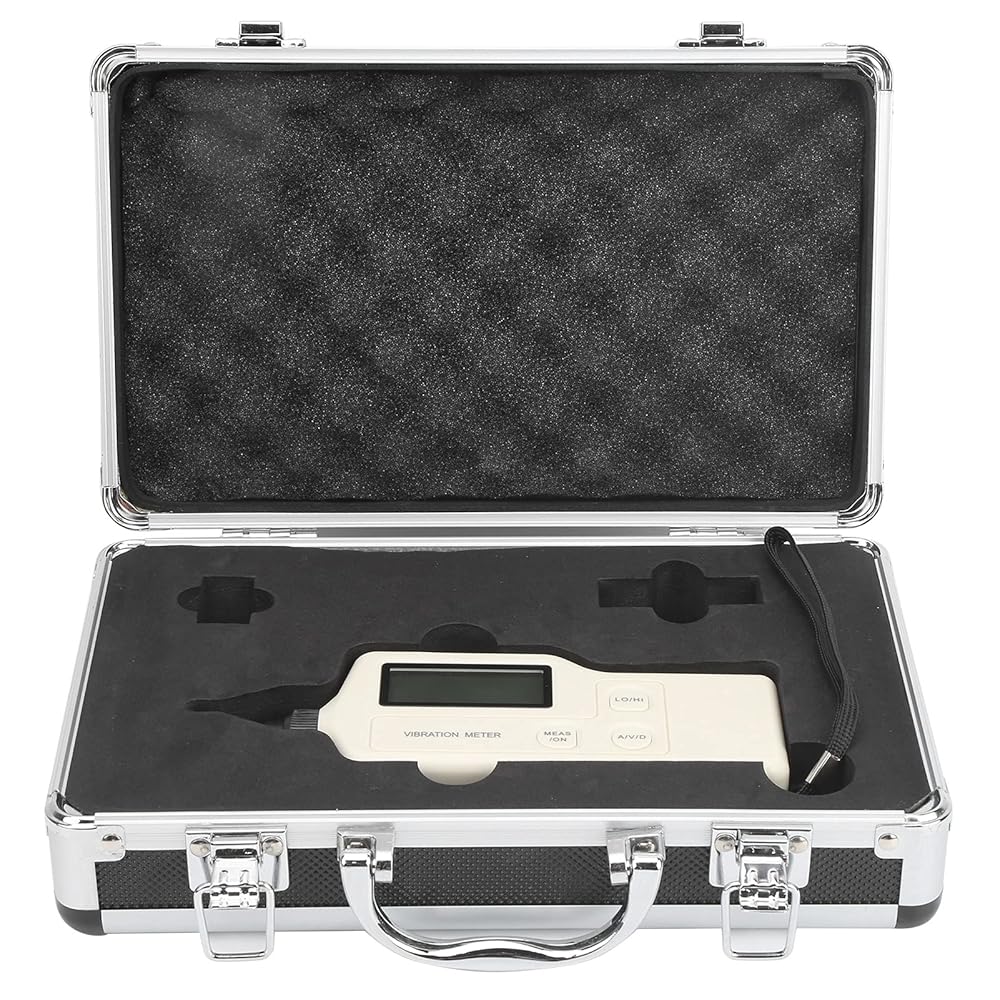

Item Type: Vibration Meter
Material: ABS
Color: as picture show
Acceleration measurement range: 0.1~200m/s peak
Speed measurement range: effective value from 0.1 to 199.9 s
Displacement measuring range: peak 0.001~2mm
Measurement error: ±5%±2 digits (i.e. 2 words)
LCD display: 3 and a half digit display
Acceleration measurement frequency range: 10Hz ~ 1KHz 1KHz ~ 15KHz
Speed measurement frequency range: 10Hz ~ 1KHz
Displacement measurement frequency range: 10Hz ~ 1KHz
Screen data replacement cycle: 1 second
Power supply: 1 x 9V alkaline battery (not included)

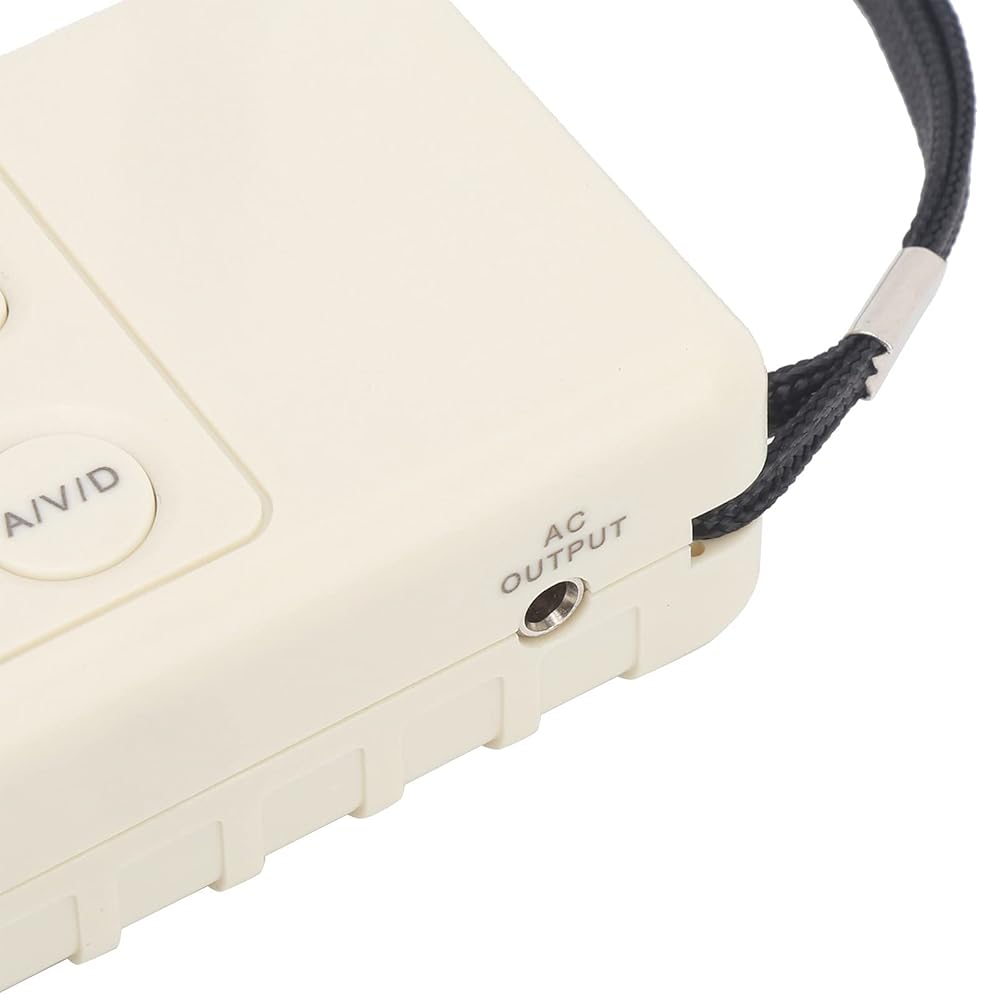

Data output: 2V Peak AC output (shows full range) Charging: 10kΩ or high impedance headphones can be connected
Standby current: ≤20μA
Working current: ≤25mA

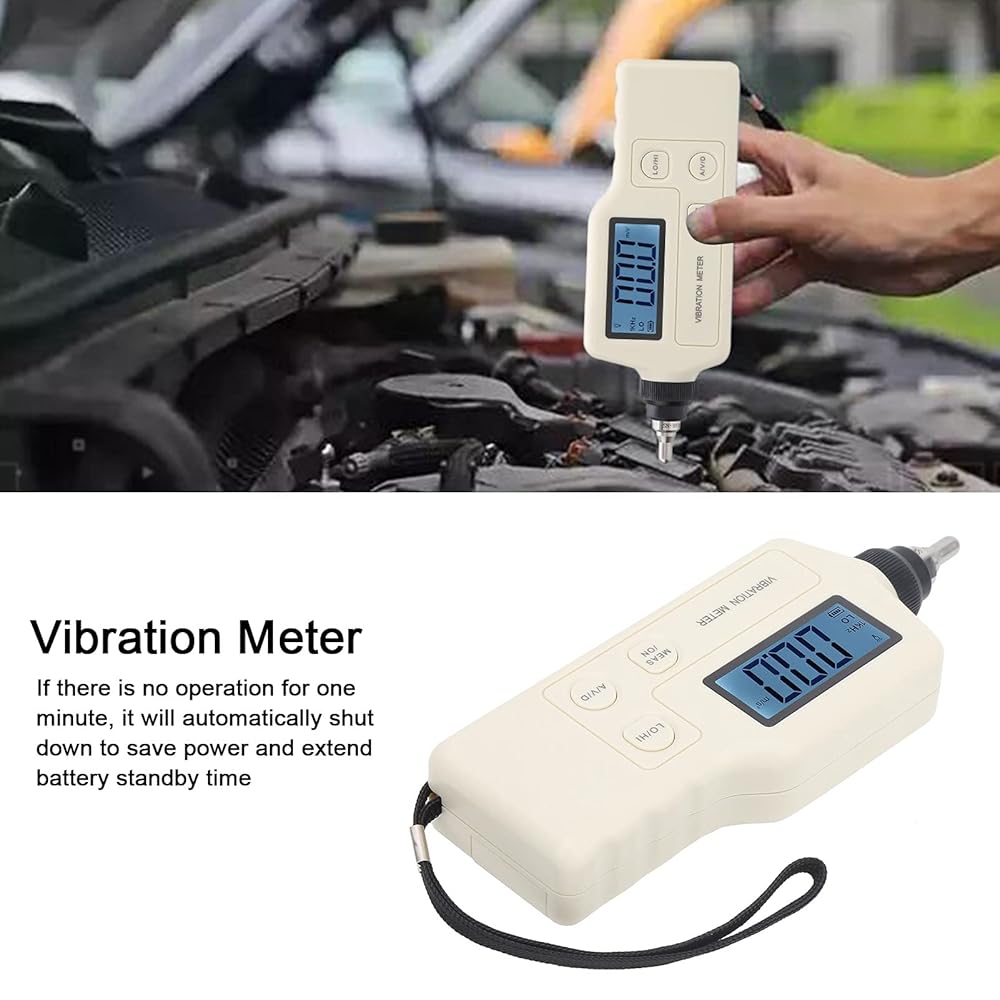

AUTO SHUT OFF FUNCTION - Auto shut off within one minute without operation
LCD backlight function: turns off after 7 seconds of inactivity
Operating temperature range: 0~40℃
Working Humidity Range: 30%~90%RH
How to use
Get the product, open the back cover power cover, install the battery, close
