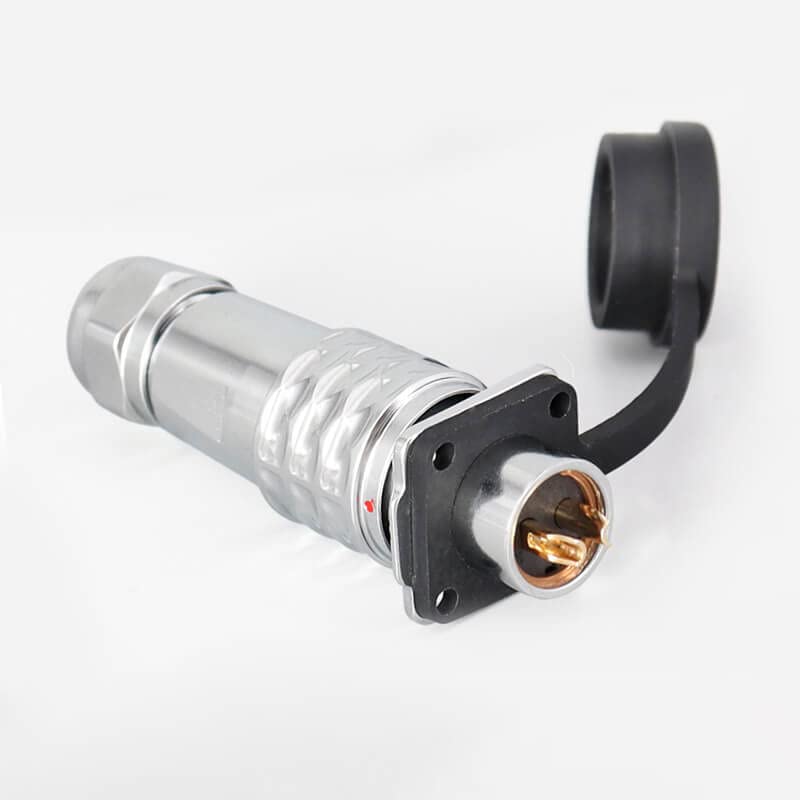

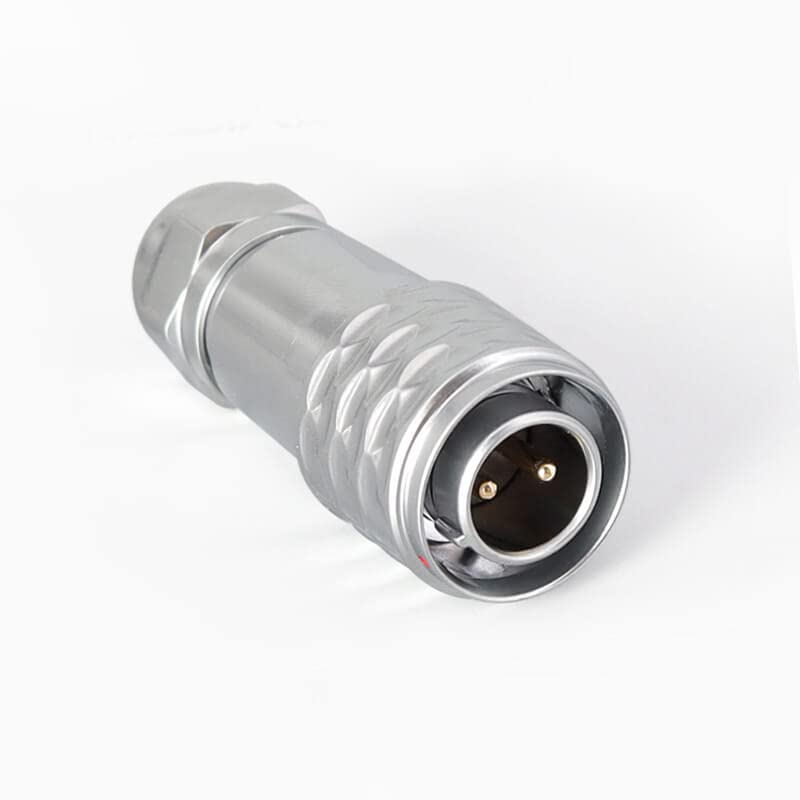

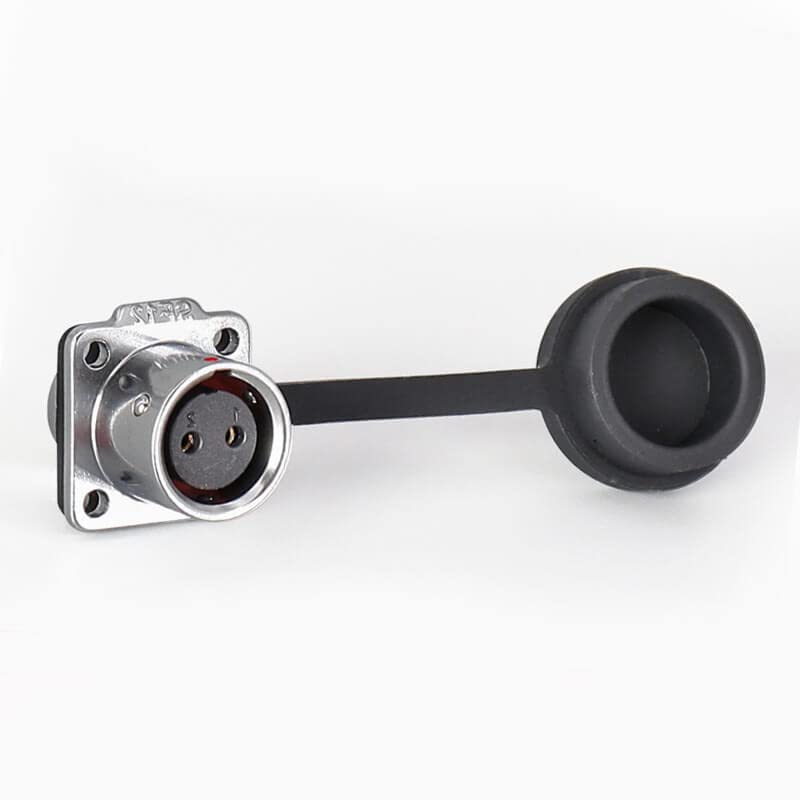

industrial plug
Product Parameter
Main Application :
Applications: used in aviation navigation computers communications anti-theft devices transportation machinery and electronics etc.
Electrical Characteristics
Rated current:25A (2 3 4 5pin）
Rated current:15A (6pin）
Rated current:10A (7pin）
Rated current:5A (8 9 10 12pin）
Rated voltage:500V
Ø1.00mm Center Contact Resistance
≤
5 mΩ(Milliohms max.)
Ø2.5mm Center Contact Resistance
≤
1 mΩ(Milliohms max.)
Ø1.5mm Center Contact Resistance
≤
2.5 mΩ(Milliohms max)
Ø2.0mm Center Contact Resistance
≤
2.5 mΩ(Milliohms max)
Insultation Resistance ≧2000 mΩ (Milliohms min.)
Mechanical Characteristics
Coupling: Push-pull Quick
Mating Durability: ≧500 cycles
Environmental Characteristics
Environmental Characteristics:-45℃~+85℃
Material:
Part
Material
Finish
Body
Copper chrome plating
Copper chrome plating
Center Contact Pin
Copper gold plating
Copper gold plating
Insulator
PPS
Black
Connection method： Push-pull Quick
SF6 options: 2 3 4 5 pin
SF12 options:2 3 4 5 6 7 9 Pin
SF20 option：2 3 4 5 6 7 9 10 12 pin
