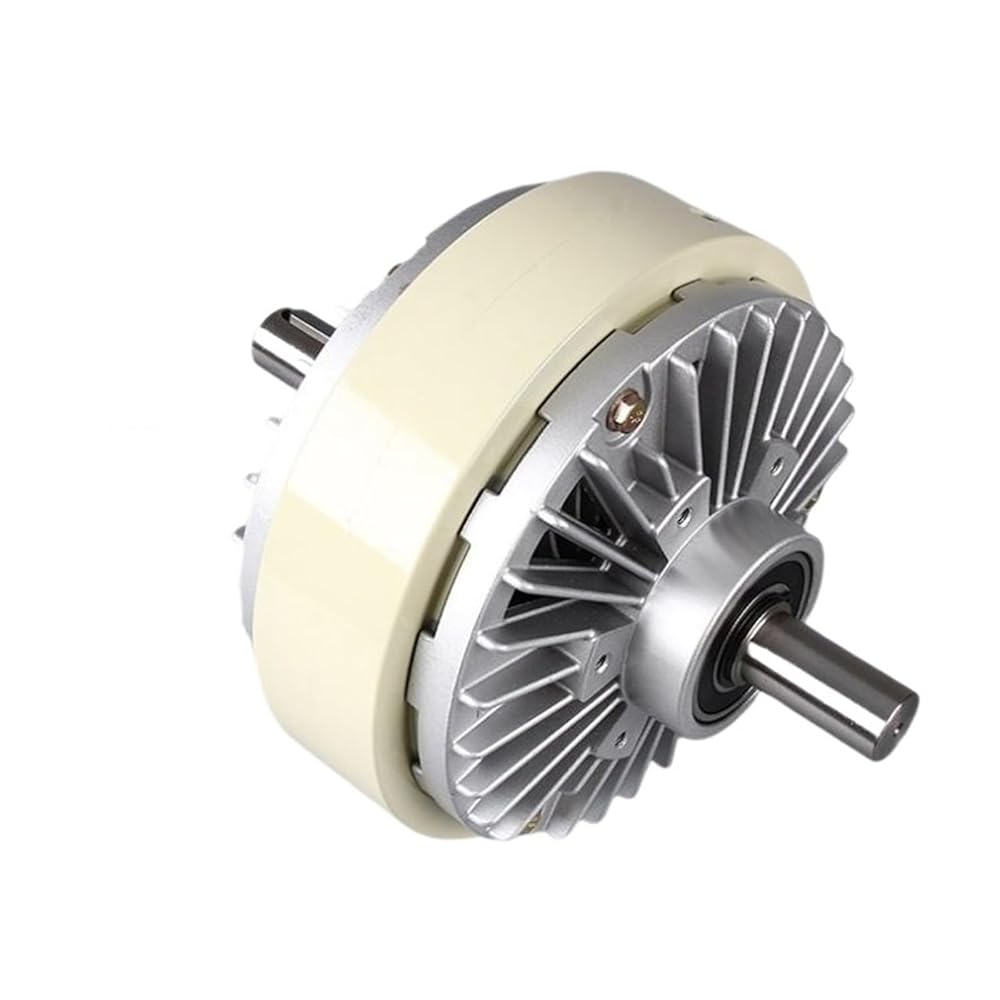

Double shaft/Hollow shaft Clutch
1*Hollow shaft/Double shaft Magnetic Powder Clutch
Double shaft/Hollow shaft Clutch-SJ-180A/TB-200S
1*Hollow shaft/Double shaft Magnetic Powder Clutch
1* Manual Tension Controller
Double shaft/Hollow shaft Clutch-KTC-812
1*Hollow shaft/Double shaft Magnetic Powder Clutch
1* Manual/Automatic Tension Controller
1* Hall Sensor
Double shaft/Hollow shaft Clutch-KDT-B-1000
1*Hollow shaft/Double shaft Magnetic Powder Clutch
1* Automatic tension controller
2* Pressure Sensor
1* Hall switch
SJ-180ASmall Tension Controller Parameters:
Model: SJ-180A
Input Voltage: DC24V
Output Voltage:DC24V
Out Current: 0~4A
Overall size: 96X69X32MM
Type: Manual controller / PLC / Potentiometer
TB-200S Tension Controller Parameters:
Input voltage: AC 180V-265V 50/60Hz
Output Voltage: DC0~24VOutput current: 0-3A
External Signal control: 0~10VDC or 0~5VDC (Switchable)
Precision: 0.01AType: Manual controller / PLC / PotentiometerOverall size: 160x100x70mm (width x height x depth)
Mounting size: 163x103x70mm (width x height x depth)
Installation methods: W all-mounted, floor-mounted, embedded
Control method: Manual adjustment of switching power supply
Output display: Digital display
Applicable machine: M agnetic powder brake, magnetic powder clutch
Auxiliary function:F ixed control current, short-current protectionWorking environment: Corrosive gas, dust, rainwater are not allowed
Working temperature: -10~50
Working humidity: Below 80%
KTC-812 Auto Tension ControllerParameters:Power Supply: 185V-265VAC 50/60Hz
Out Voltage: 0~24VDC
Output current:0-4A
External Signal control: 0~10VDC
Precision:0.01A
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade
Parameter characteristics:
Manual/automatic operation
Encoder or Hall switch can be connected
It can store the parameters of 9 different materials
Constant tension/taper tension control
Output 0 - 2 4 V/4 A, automatic overcurrent protection
All parameters and states of the automatic memory system
Adjustable magnetic powder brake/clutch torque compensation
KDT-B-1000 Auto Tension ControllerParameters:
Measuring range: 0-1000N
Measurement accuracy: less than 1N
Sampling speed: 100 milliseconds
Main output mode: DC 0-2A constant current output (adapted load impedance 8-12)
Auxiliary output: DC 0-5V (MAX 10MA) analog signal output
Dimensions: 245 × 155 × 140 (mm) (width × height × depth)
Installation size: 230 × 150 × 120 (mm) (width × height × depth)
Power source: AC 180-245V 50/60Hz
Features:
It consists of tension detector, high precision A/D, D/A converter and high performance single chip microcomputer.
It can be widely used in various occasions where precision measurement and control is required. It has flexible use and wide applicability.
LCD display can be displayed in Chinese or English
Automatic and manual switching is simple and convenient
Tension detector wiring is simple and convenient
Convenient parameter set
With double station axis output function
Material : Cast Iron
Model Number : FL-6/12/25/50/100-K/S
Origin : Mainland China
Certification : CE
Product type : magnetic clutch,electromagnetic clutch,centrifugal clutch,centrifugal clutch 25mm,tension controller,shaft for circular machine,Hydraulic motorcycle clutch,magnetic clutch 12v,magnetic levitation kit
