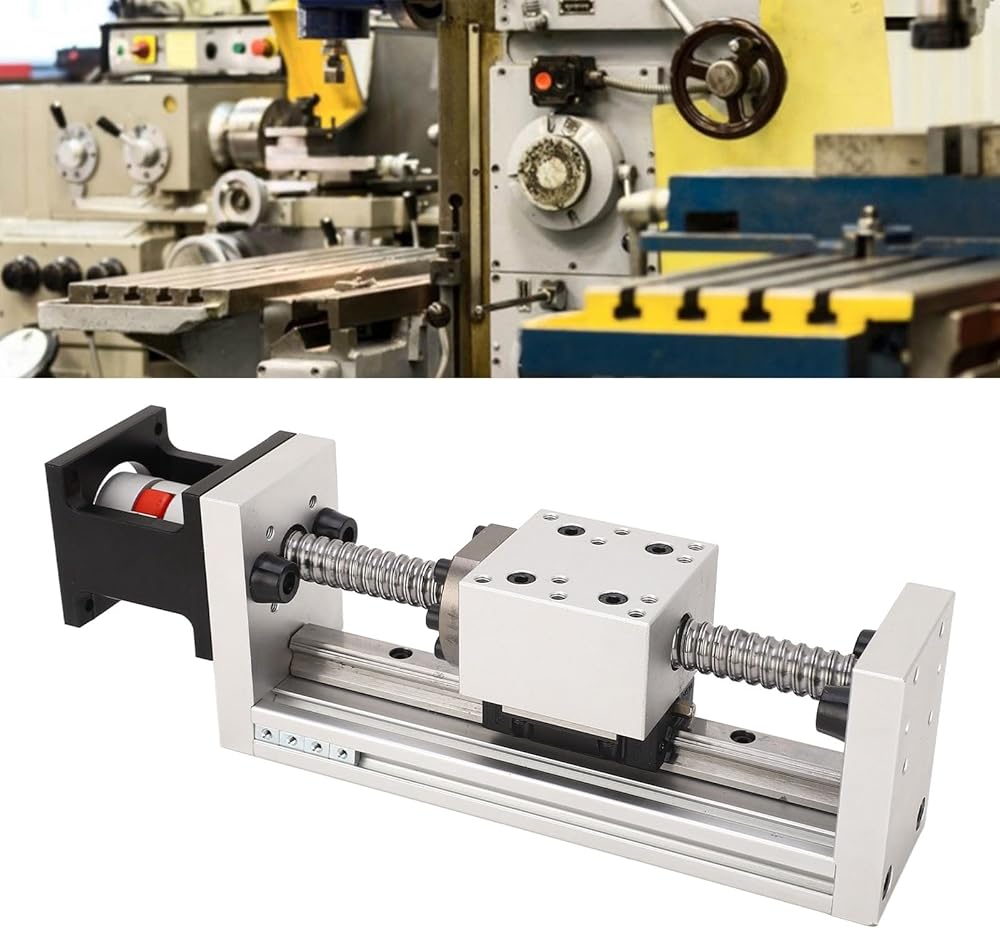

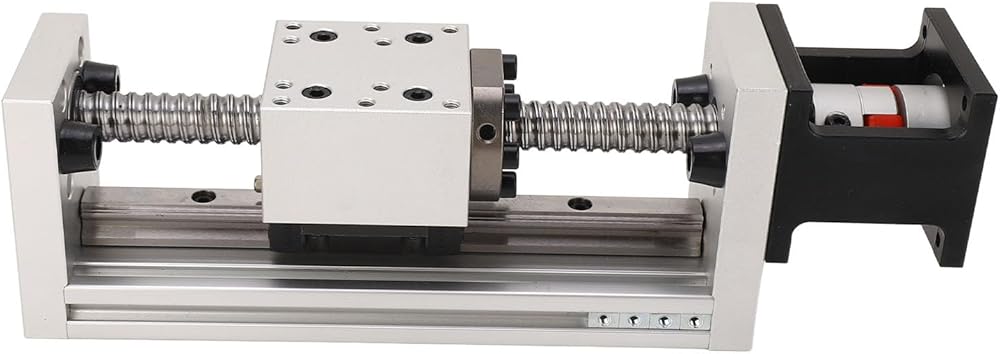

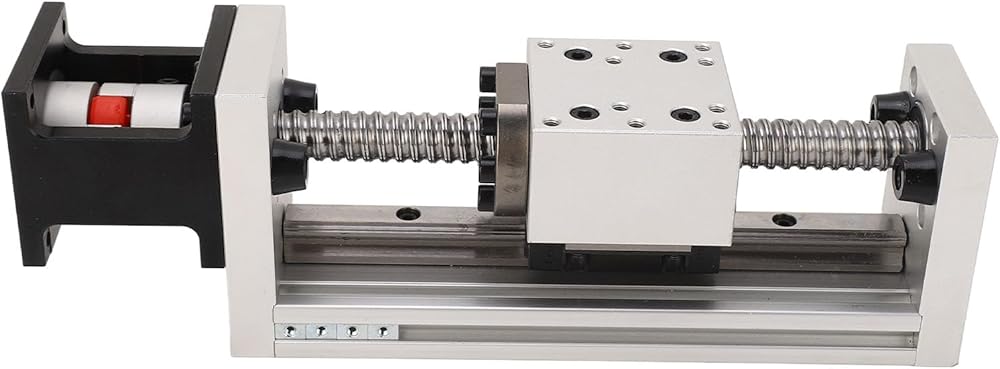

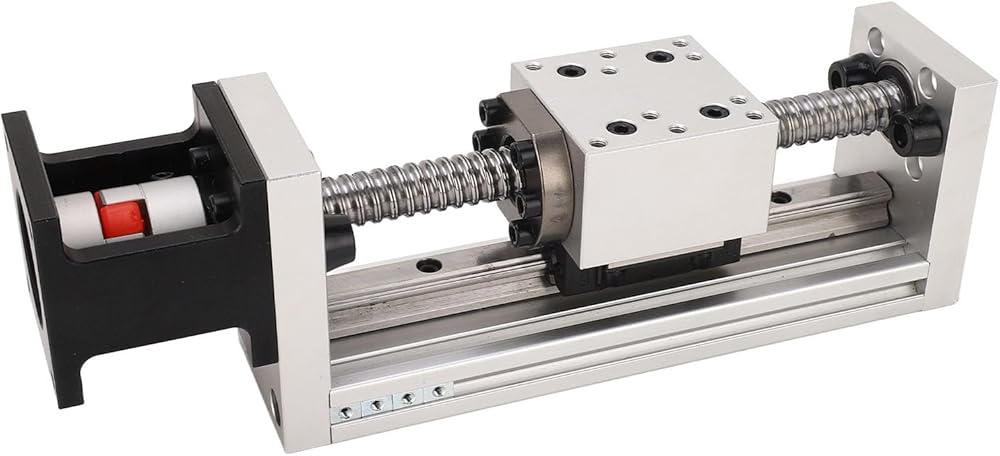

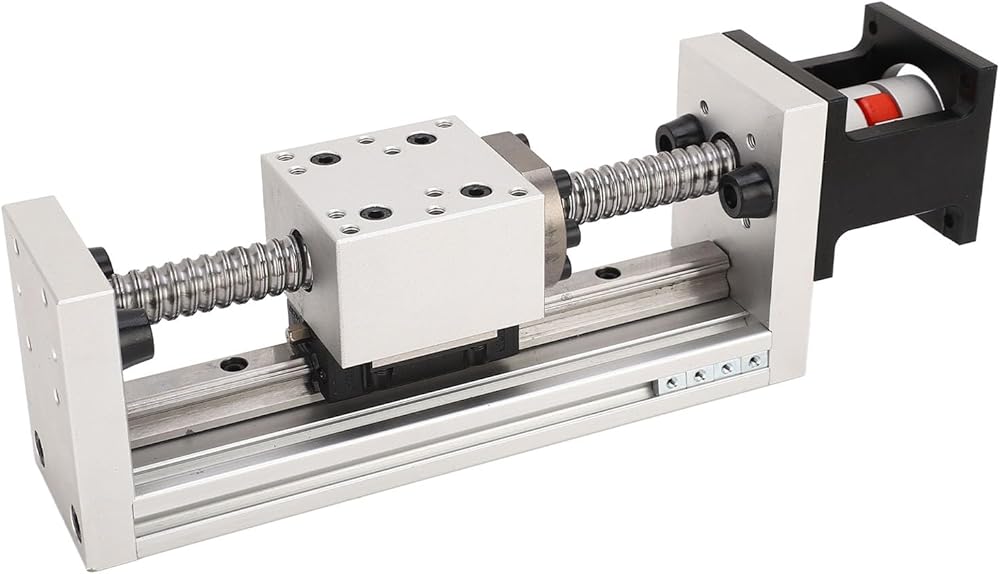

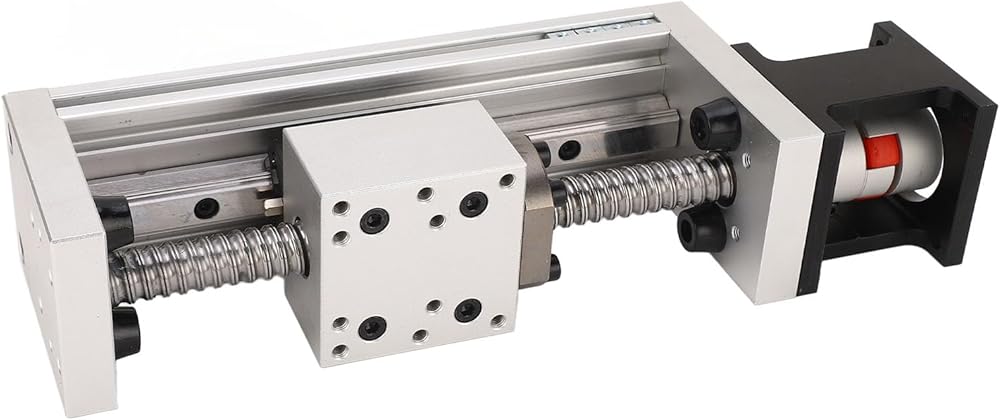

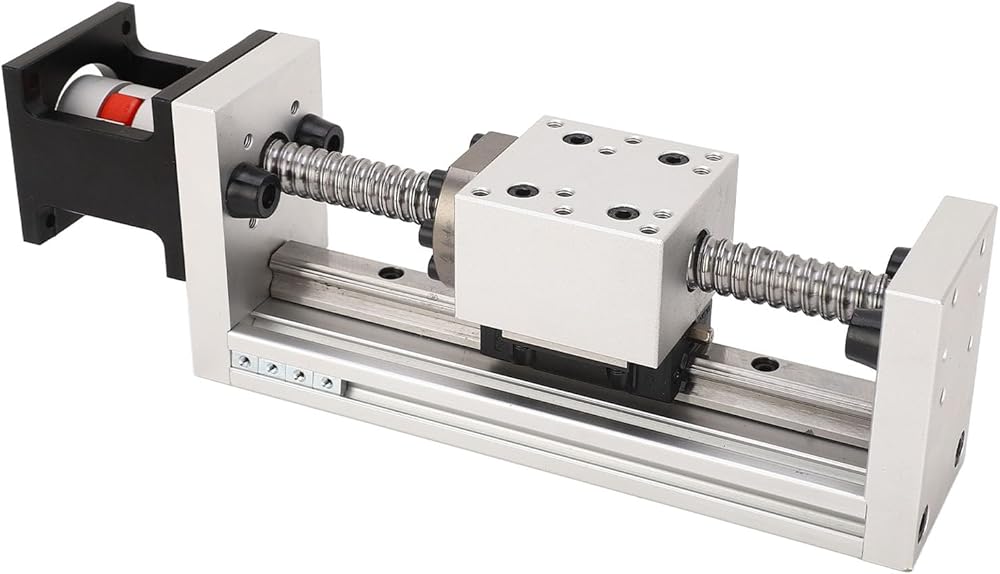

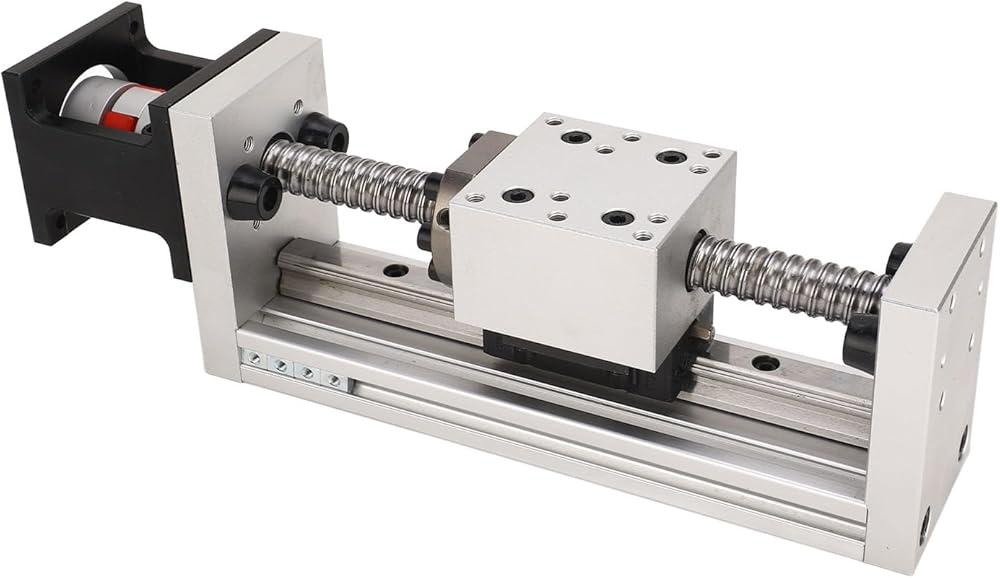

1.Single guide design: this ball screw sledge adopts a single guide design, which provides stable movement and low noise on the X, Y and Z axis.
2. Great Compatibility This ball recirculation sled is compatible with 57, 86 stepper motors and 100W, 200W, 300W, 400W servo motors.
3. Wide Range of Applications This ball screw slide is widely used in large automatic rotary equipment, CNC milling machines, testing equipment, optical measurement, fine adjustment of displacement, mechanical positioning, etc.
4.Good performance: this ball screw sledge offers the advantages of large horizontal and vertical loads, high positioning accuracy, high efficiency and good stability.
5. High Quality Bearing Steel Material This ball screw sledge is made of high quality bearing steel material, which is sturdy and durable.

Technical data:

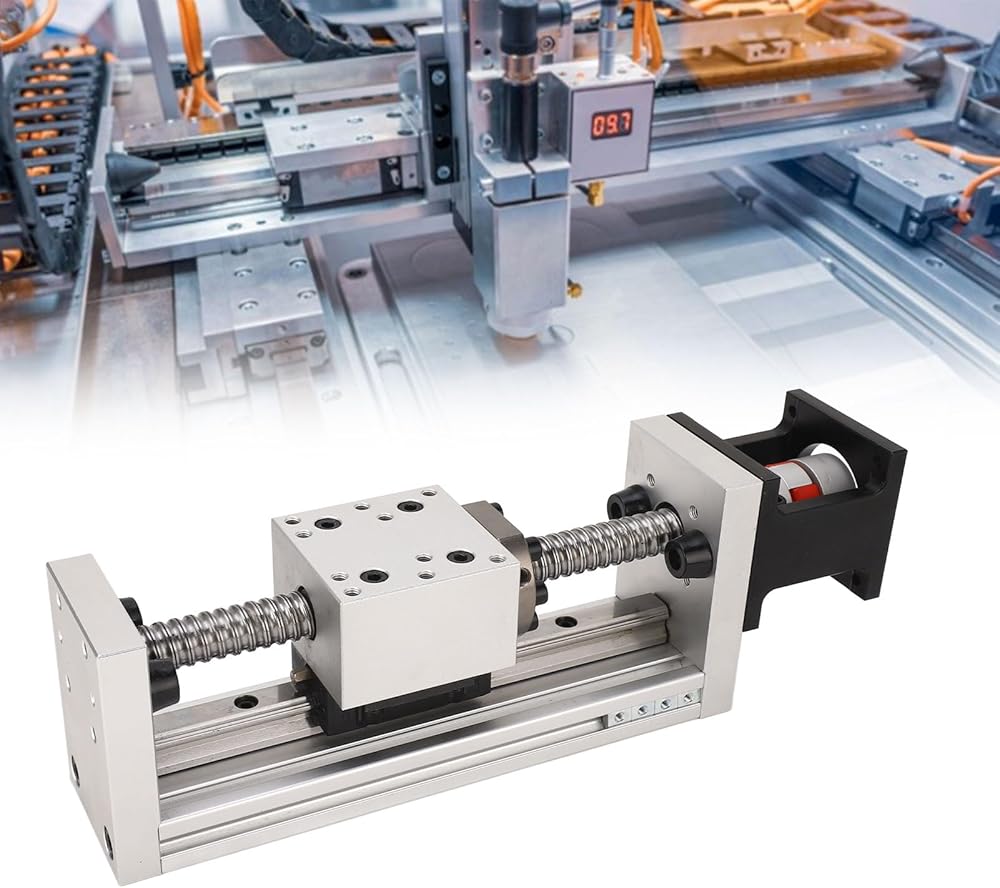

Item type: ball screw sliding table.
Linear guide: HGR15 x 1, HGW15 x 1 piece.
Stroke: approx. 10 mm 100 mm
Screw specifications: ball screw 1605
Positioning accuracy: ±0.03 mm.
Screw: T16.
Maximum speed: 800 mm/s.
Maximum discharge gravity: horizontal: approx. 40 kg/88.2 lbs, vertical: approx. 20 kg.

Package list:
1 sliding table with ball screw

Note:
No motor
