Single 5/16" (M8) MRBF Terminal Fuse Block,Marine Rated Battery Fuse (MRBF) Terminal Block, 300A Max, 58V DC Max, IP 66, Ignition Protected in Kuwait Single 5/16" (M8) MRBF Terminal Fuse Block,Marine Rated Battery Fuse (MRBF) Terminal Block, 300A Max, 58V DC Max, IP 66, Ignition Protected in Kuwait Single 5/16" (M8) MRBF Terminal Fuse Block,Marine Rated Battery Fuse (MRBF) Terminal Block, 300A Max, 58V DC Max, IP 66, Ignition Protected in Kuwait Single 5/16" (M8) MRBF Terminal Fuse Block,Marine Rated Battery Fuse (MRBF) Terminal Block, 300A Max, 58V DC Max, IP 66, Ignition Protected in Kuwait Single 5/16" (M8) MRBF Terminal Fuse Block,Marine Rated Battery Fuse (MRBF) Terminal Block, 300A Max, 58V DC Max, IP 66, Ignition Protected in Kuwait

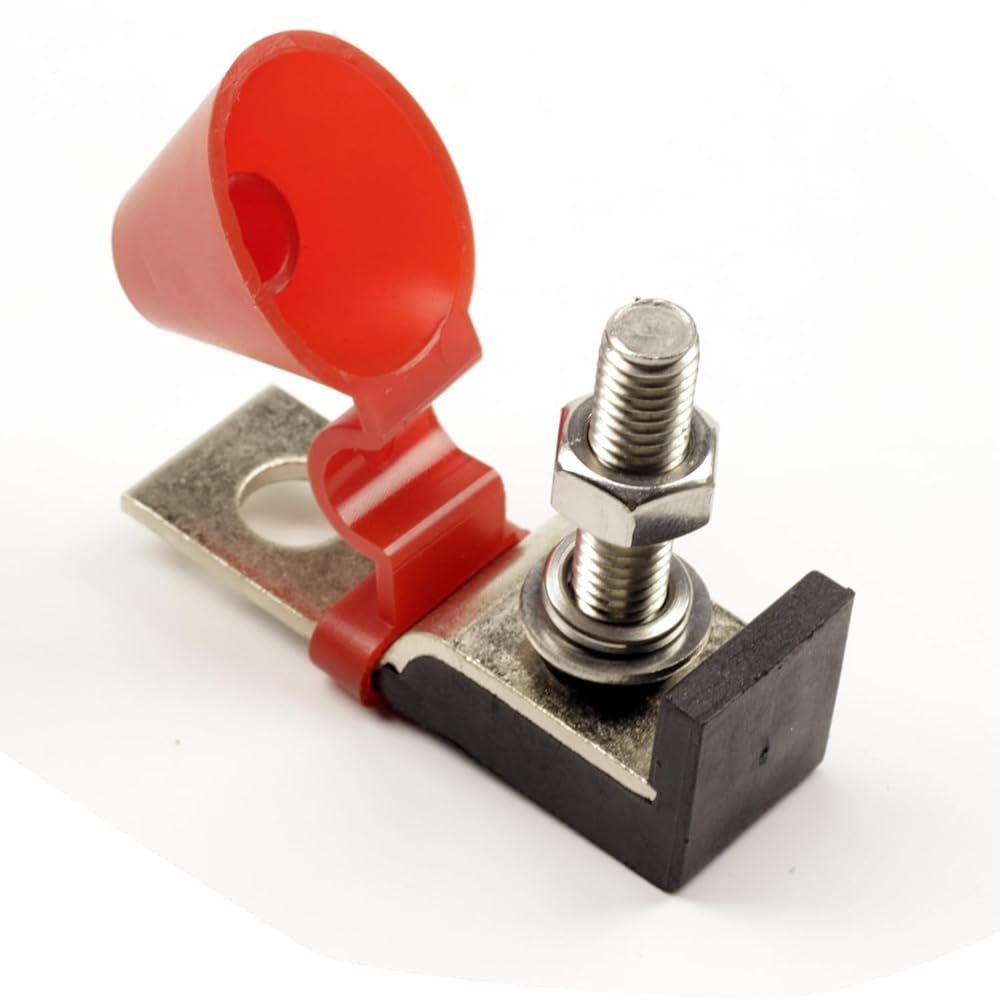

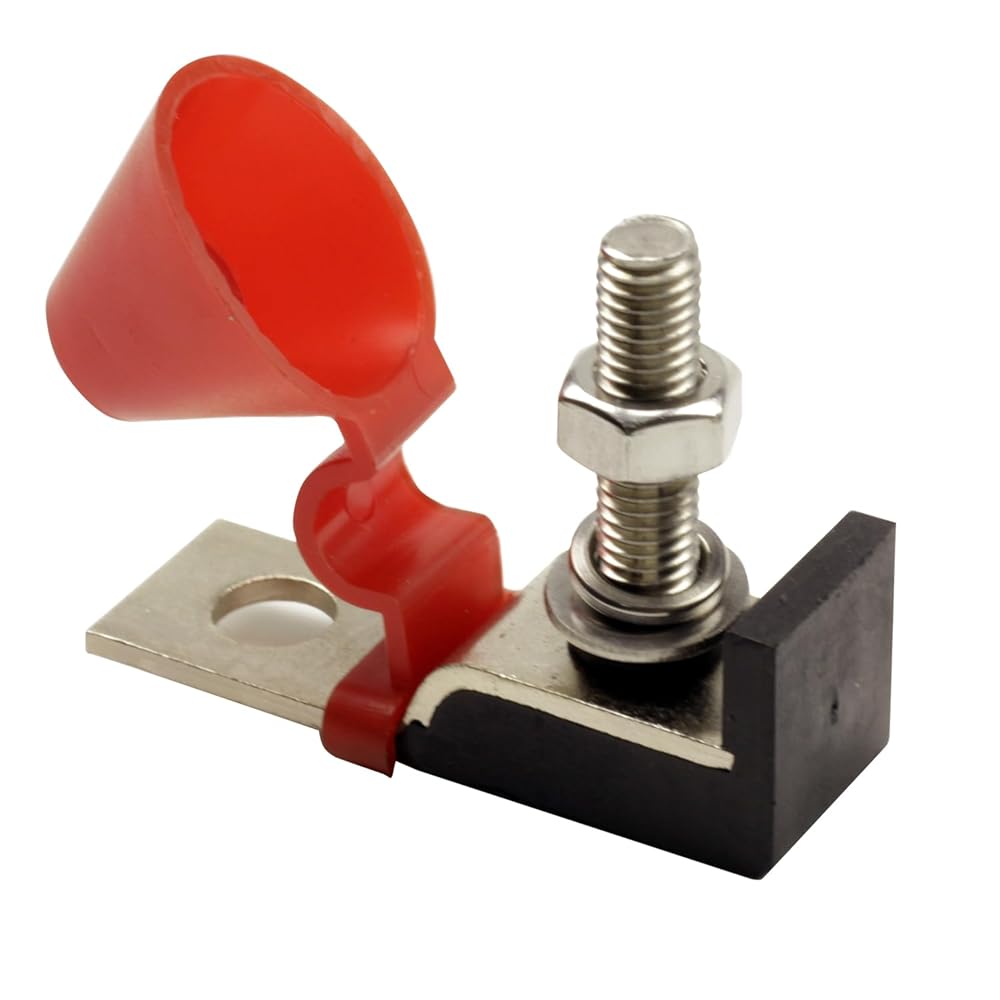

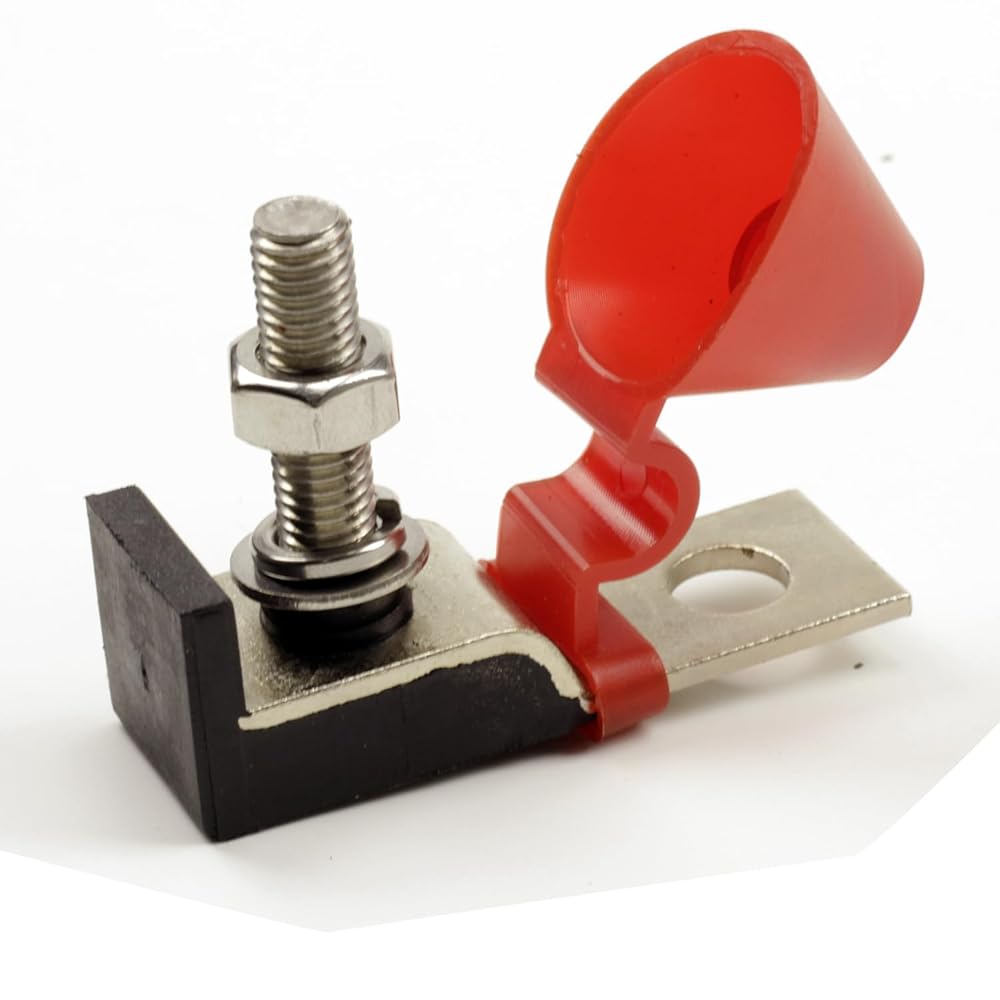

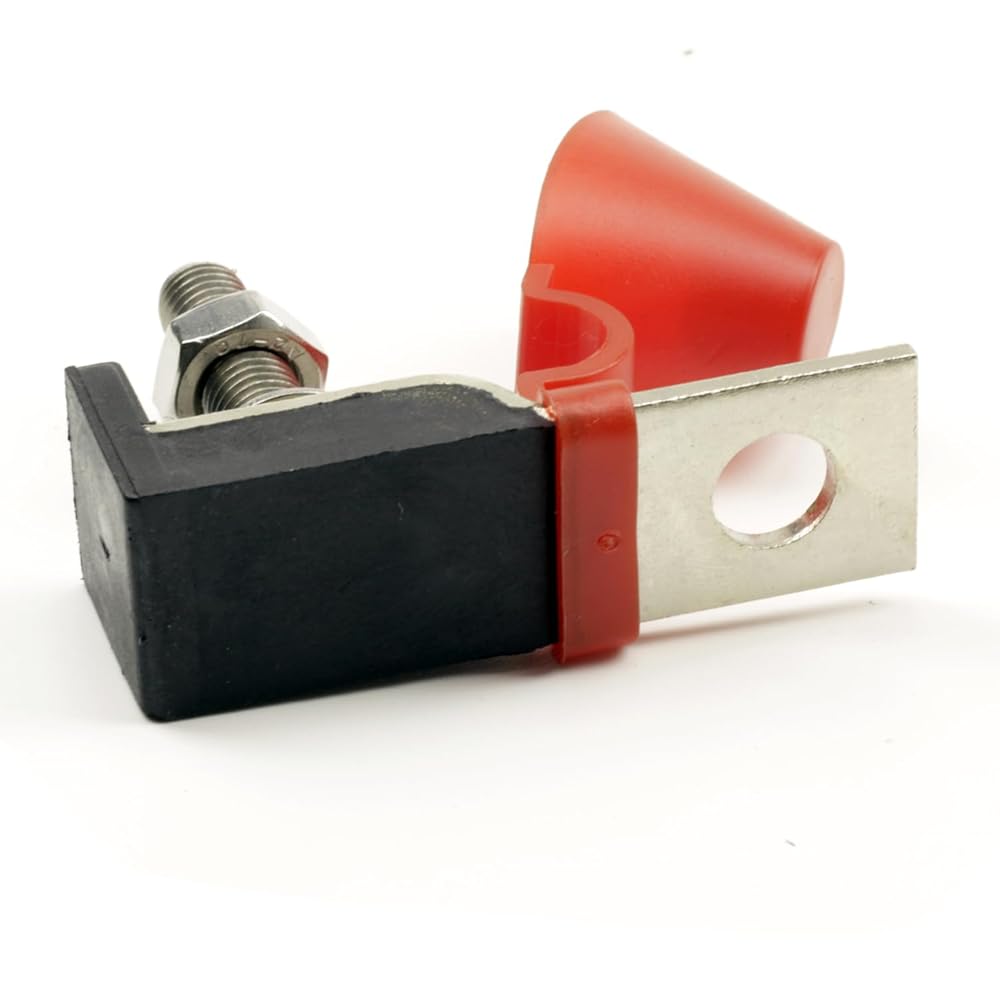

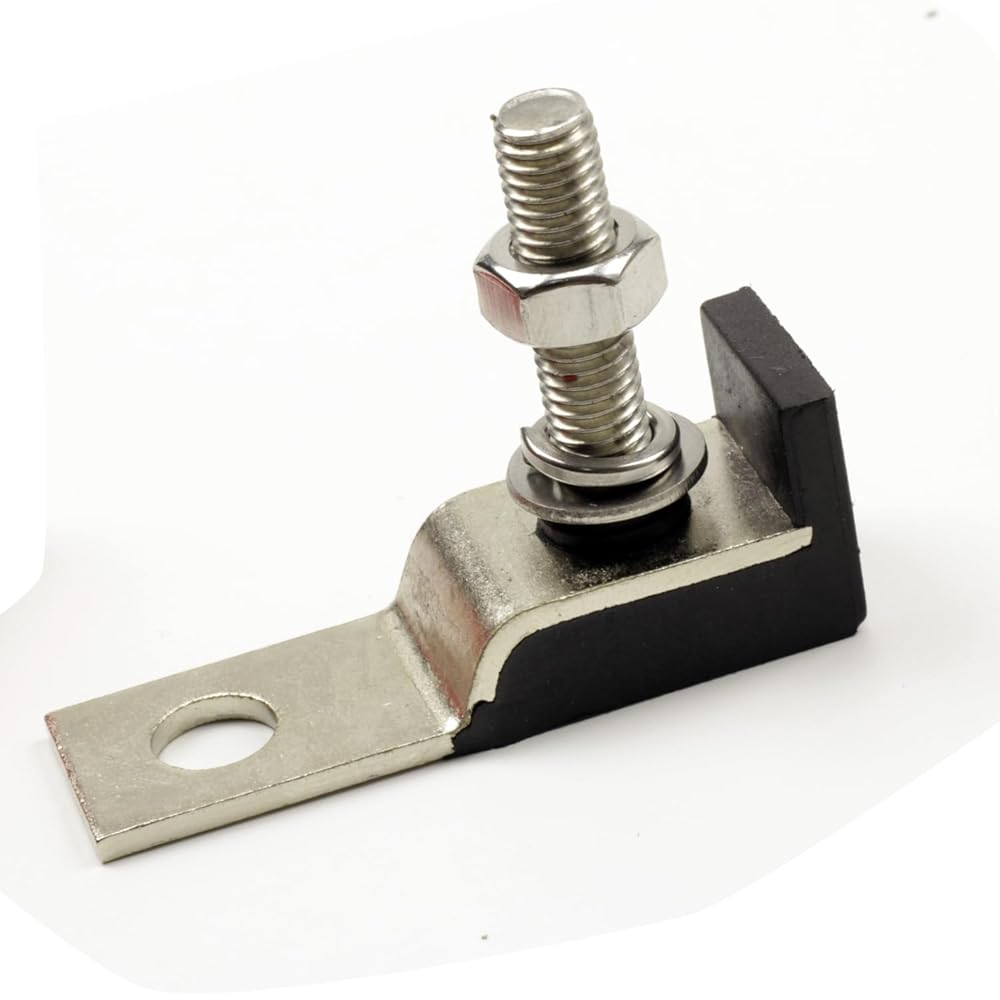

Single 5/16" (M8) MRBF Terminal Fuse Block,Marine Rated Battery Fuse (MRBF) Terminal Block, 300A Max, 58V DC Max, IP 66, Ignition Protected

KWD 4.500
Brand
JIAKUPA
– 1 +

Special Features

  • 58V TERMINAL FUSE BLOCK (Fuse NOT Included),Fuses Holder Stud Size: M8 (5/16"), Fuse Holder Mounting Hole: M10 (3/8")
  • MRBF Terminal Fuse Block Includes: (1) Single MRBF Terminal Fuse Block, (1) Red Insulator Cap, (1) Washer, (1) Lock Washer, (1) M8 Hex Nut
  • Compact, high-amp fuse appropriate for DC Main, inverters, windlass, and bow thruster circuit protection. Provides high current protection in tight space constraints. Ignition protected when used with MRBF Terminal Fuse Blocks. Isolated stud design uses standard M8 hardware and permits stacking of terminals.
  • IGNITION PROTECTED – Safe for installation aboard gasoline powered boats. IP66 – Protected against powerful water jets. 10,000 AIC at 14V DC satisfies ABYC requirements for DC Main circuit protection on large battery banks. [WARNING: Do not mount fuses directly on battery terminals. Must use with Terminal Fuse Blocks.]
  • Terminal Fuse Block Kit for Multiple Batteries Ignition Boat Truck RV Construction Vehicles

Description

Specification:
Single 5/16" MRBF Bracket Block (M8) - Single Mounting Hole
Working Voltage: DC 58V
Operating Amps: 300A per block
Fuses 30A - 300A
Size: M8.
Suitable for small open cockpit boats and other harsh environments.
Material: ABS
Waterproof: IP66
Fuses Holder Stud Size: M8 (5/16")
Fuse Holder Mounting Hole: M10 (3/8")
Fuse block only (Fuse NOT Included)
Isolated stud design uses standard M8 hardware and permits stacking of terminals.
10,000 AIC at 14V DC satisfies ABYC requirements for DC Main circuit protection on large battery banks.

Note:
Please allow 1mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
