The rinsing nozzle of the punching nozzle is a soft foam-like water stream, which improves the cleaning efficiency by 50% compared with ordinary eyewash nozzles.
specification:

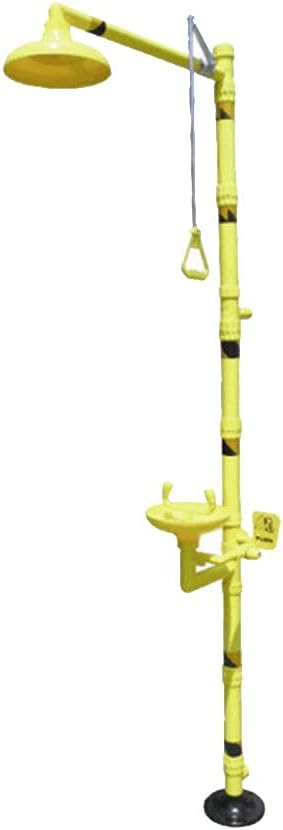

Name: Compound double mouth eyewash

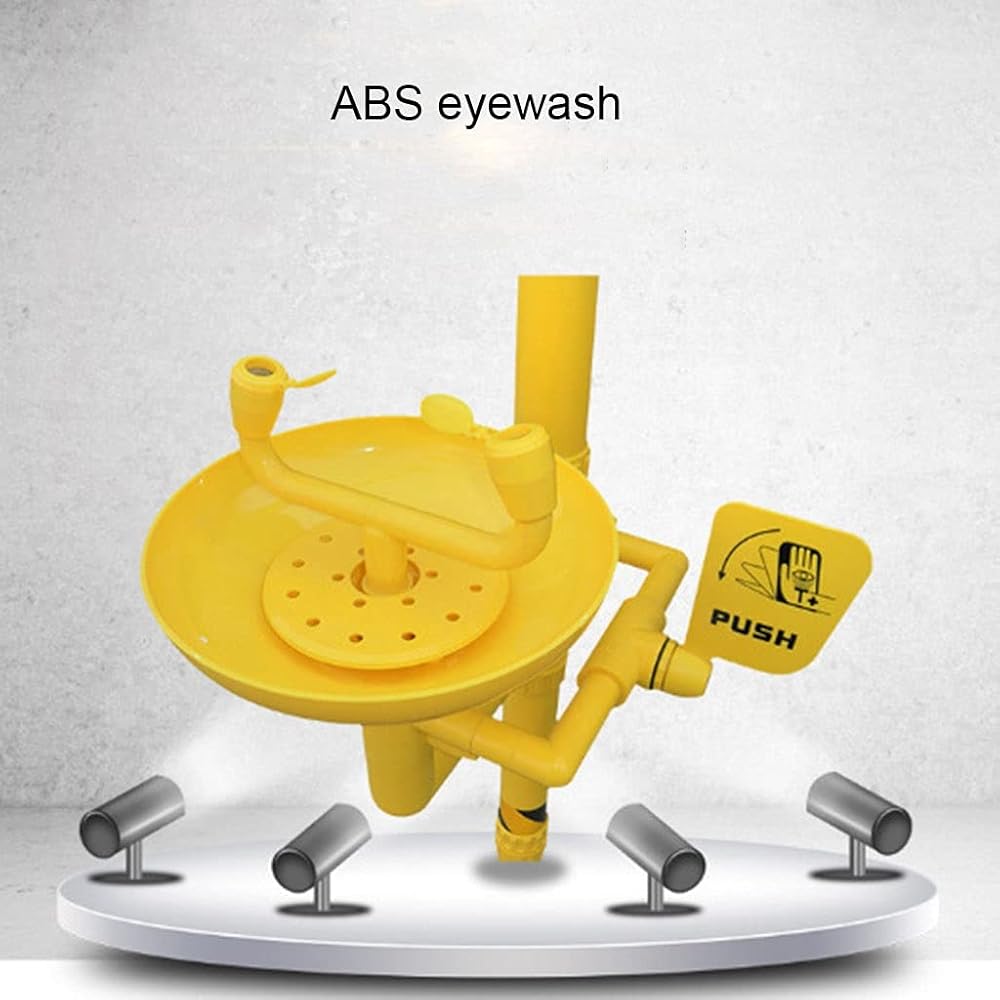

Material: ABS
Nozzle distance: manual
Features: emergency eye wash and body wash function
Water pressure: water pressure is greater than 0.25MpaG
Water flow: 12-18 liters/minute
Design pressure: 0.2-0.4Mpa
How to use:

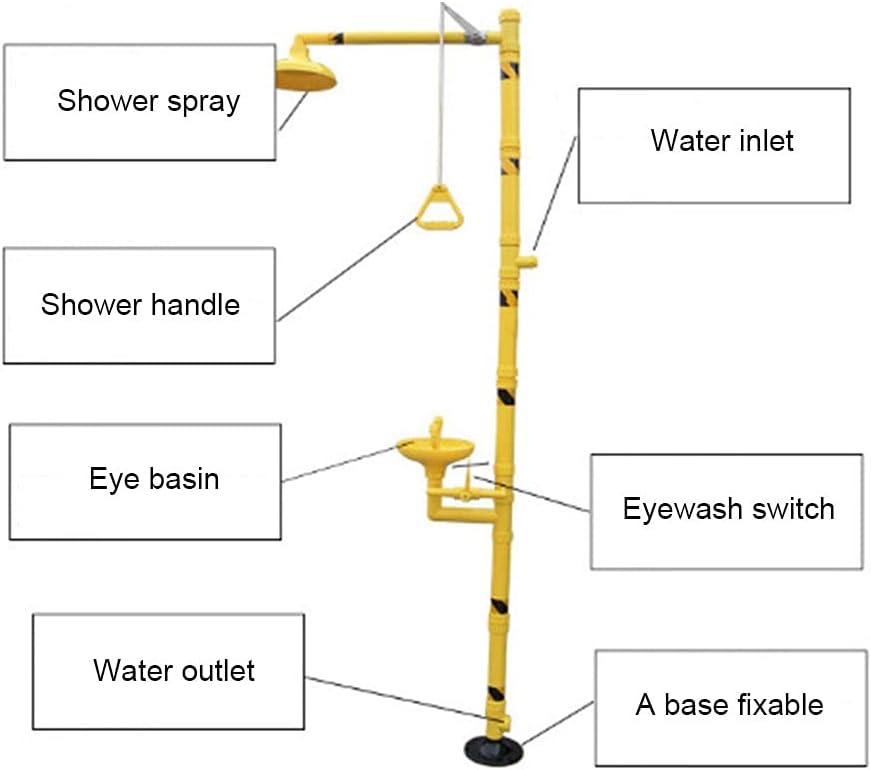

Before use, open the water inlet control valve

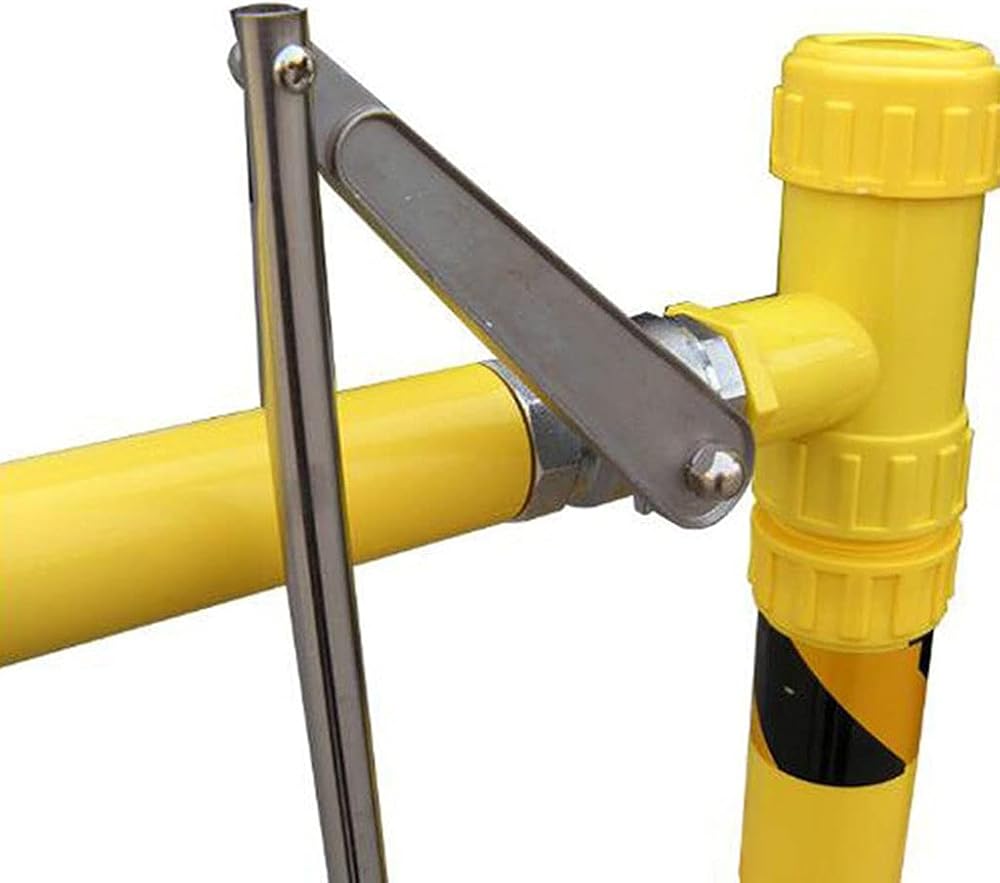

1. When you need to shower, please pull down the shower switch handle, the shower valve] opens (opening angle 90°), push up the shower switch handle, the shower valve closes. (The connecting rod of the ball valve is closed at 45° above the ball valve, and 45° at the bottom is open)

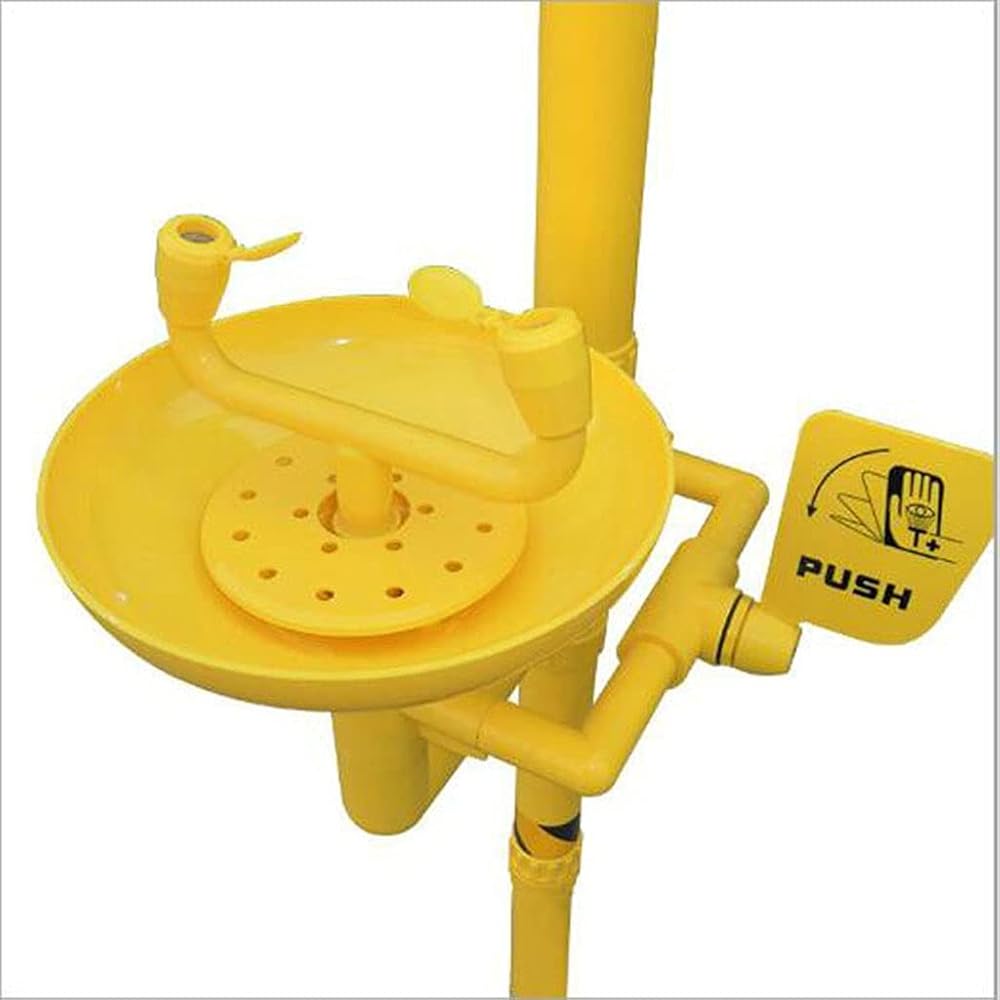

2. If you need to wash your eyes, please push the eyewash switch push plate clockwise to open the eyewash valve, and pull back the push plate counterclockwise to close the eyewash valve.
Recommendations for use:
1. This product is used in an environment above 0°C, if it is used below 0°C, pipe antifreeze maintenance is required;
2. Please rinse the water inlet pipe before installation;
3. It is recommended to install an inlet control valve on the inlet pipe. After use, close the water inlet control valve first, and then close the eyewash valve after the water in the main body is drained.
Package Contents:

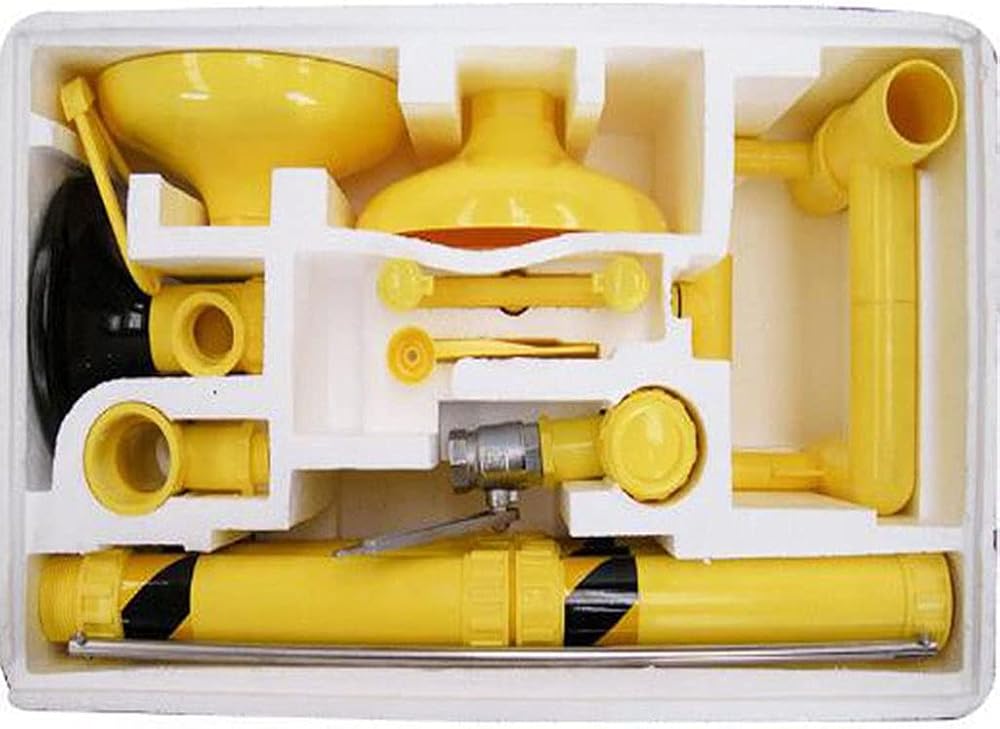

1 x Eyewash Station
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
