Special Features

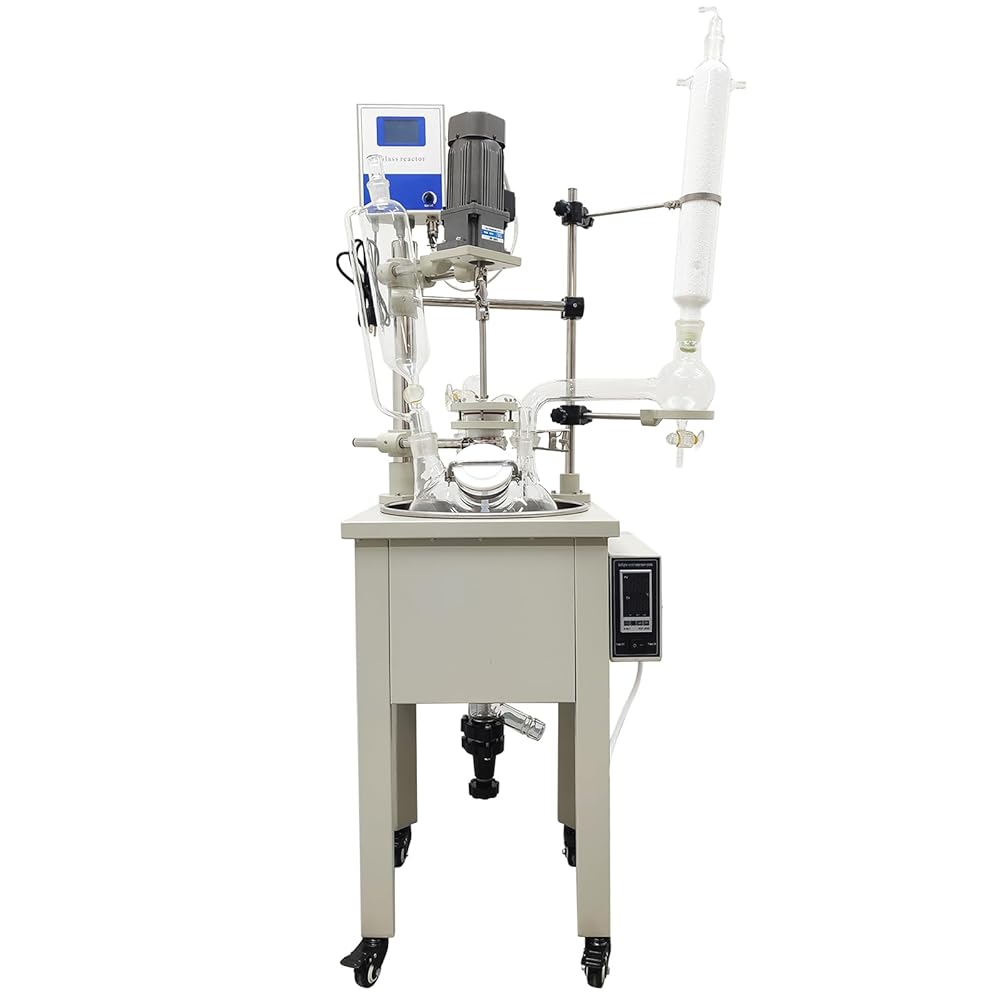

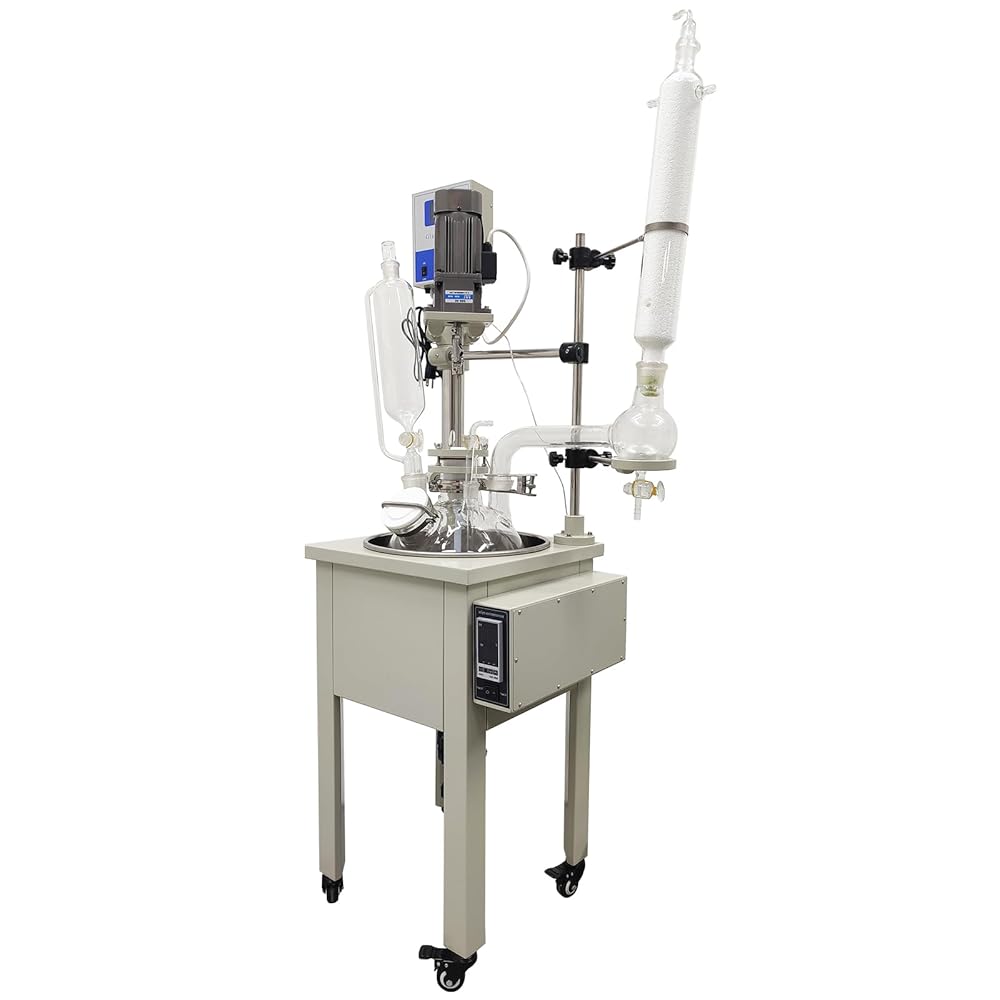

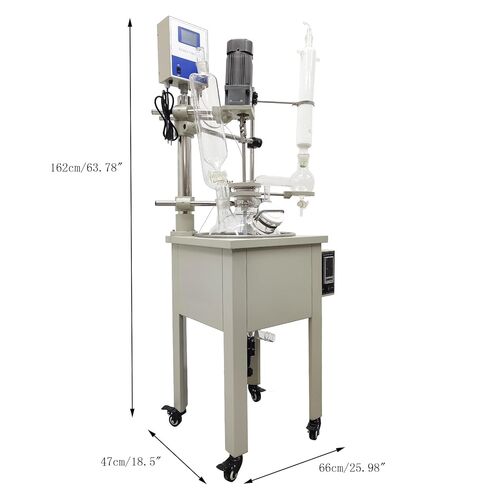

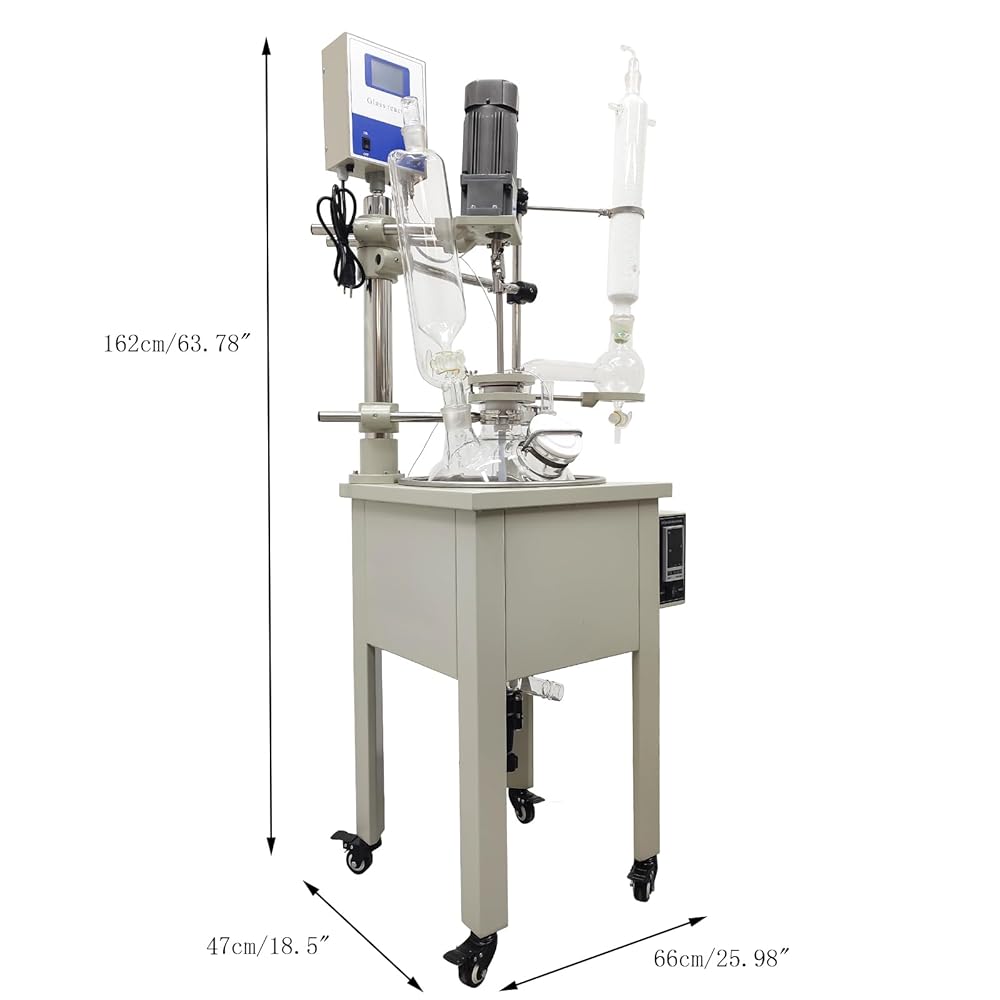

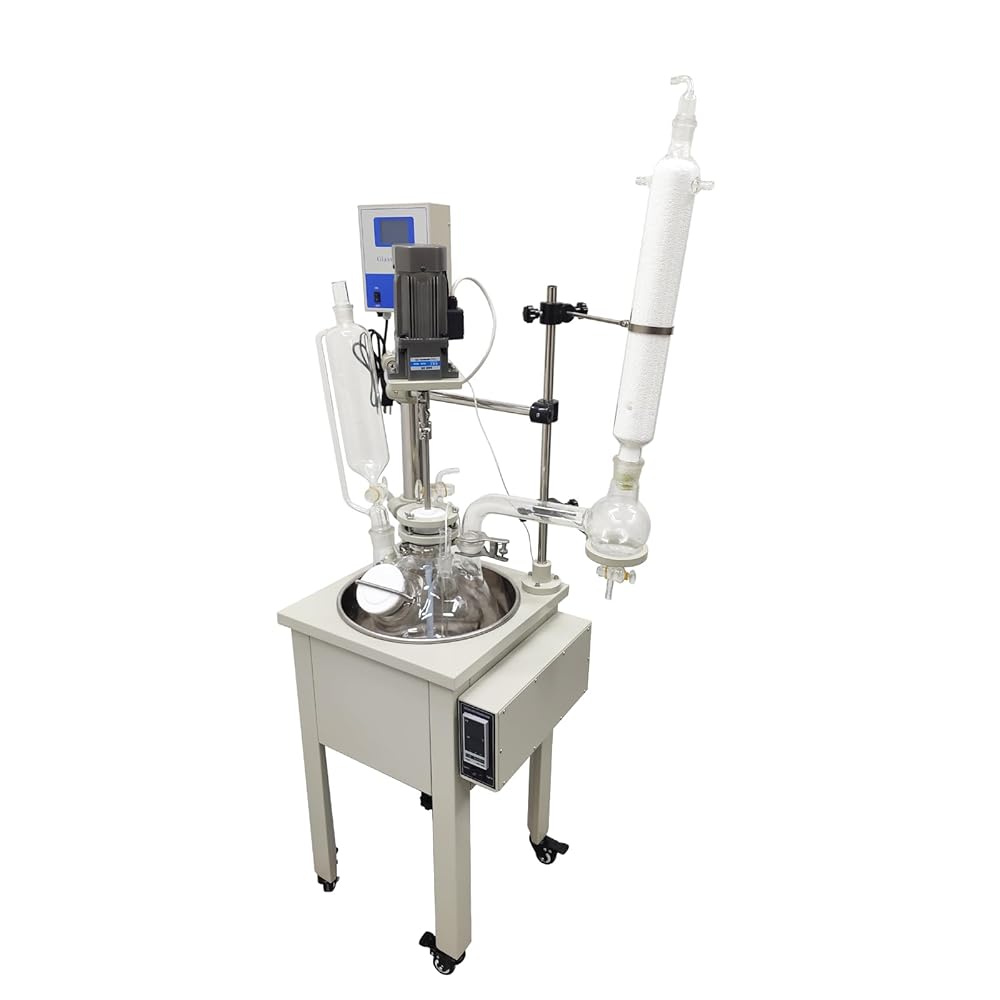

High-Quality Borosilicate Glass Construction: Features a 10L jacketed glass reactor made of high borosilicate glass with clear volume markings, offering excellent chemical stability, thermal resistance, and transparency for reliable lab observation.
Precise Temperature and Speed Control: Designed for consistent performance with an LCD digital display, 2000W heating bath compatible with water or oil, and adjustable stirring speed from 60 to 600 rpm for efficient lab reactions.
Advanced PTFE Sealing System: Includes PTFE mechanical seals that ensure leak-free operation and corrosion resistance, maintaining a vacuum level up to -0.098 MPa while preserving airtight integrity during extended use.

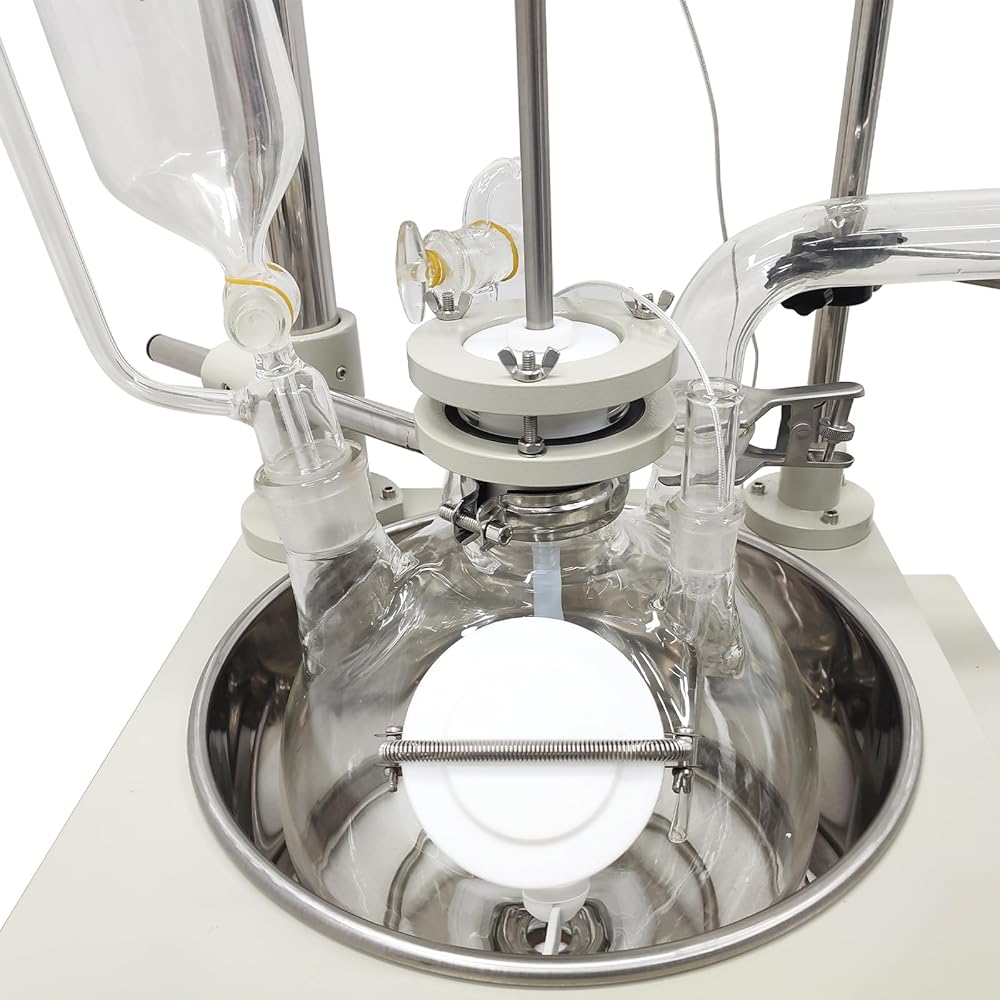

Optimized Feeding and Discharge Design: Equipped with a wide solid feeding port and PTFE-sealed cover for easy loading and cleaning, plus a bottom discharge valve with no dead zones for smooth release of liquids, concentrates, or fine solids.

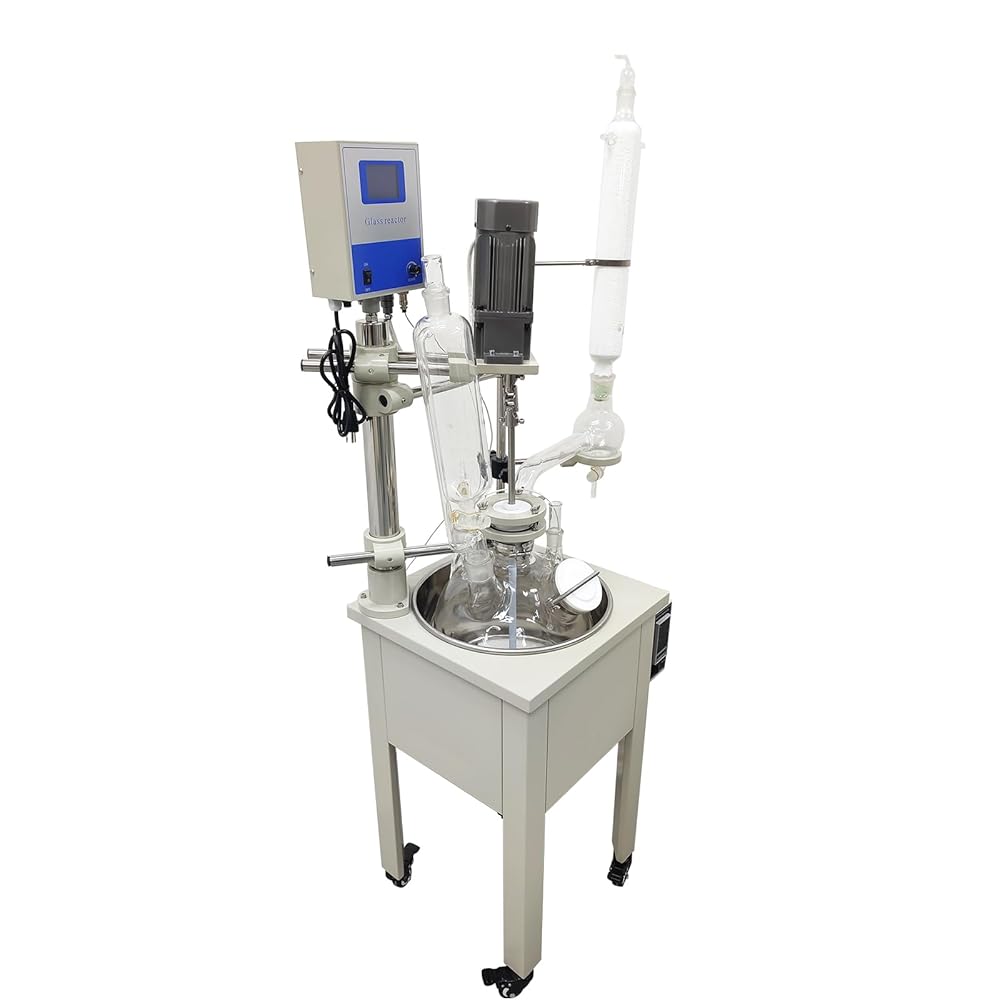

Mobile and Versatile Lab Reactor Setup: Built with locking casters for easy mobility and stable positioning, this lab jacketed reactor supports mixing, reaction, and distillation tasks across chemical, pharmaceutical, and educational applications.

Description

ATTENTIONS:
Due to its high power rating of 2000W, the Glass Reactor operates on a AC110V electrical supply and must be connected directly to a Electrical Miniature Circuit Breakers, at least 25A.
Parameters:

Power Supply: 110V 60Hz

Stirring power: 90W

Rotating speed: 60-600RPM

Heating power: 2000W

Heating range: RT-200℃±0.2℃

Interior material of the bath pot: 304 stainless steel

Reaction flask: 10L

Material of the reaction flask: GG17 (3.3) high borosilicate glass

Constant pressure funnel: 1.5L

Solid feeding inlet: Φ125mm

Diameter of the stirring rod: 12mm

Material of the stirring paddle: Anchor type stirring paddle, the 304 stainless steel rod is covered with a PTFE tube.
