ضغط المضخة اليدوية ومعاير الفراغ (النطاق: -13 إلى 435 رطل لكل بوصة مربعة) مع مقياس الضغط والفراغ (النطاق: -14 إلى 145 رطل لكل بوصة مربعة) لمختبرات المعايرة، ومعايرة أجهزة قياس الضغط | الموديل SK-2200-DPG
Model: SK-2200-DPG | Measuring Parameters: Pressure and Vacuum | Vacuum Range: Ambient to -0.9 Kg/Cm² (-13PSI) | Pressure Range: Ambient to 30 Kg/Cm² (30 Bar) 430 PSI | Material Of Construction: Aluminium and Stainless Steel; Weight Approx. 1.5 Kgs.
Master Gauge Range: -1 to 10 Bar / -14 to 145 PSI | Accuracy : ±0.5% | Case Size 2.5" (63mm) | Case Material ABS (IP64) | Rubber Boot Silicone rubber (IP65) | Connection: 1/4" NPT 304SS | Sensor: 316L welded, Piezo
Operation Mode : Continuous pressue reading | Response Time : ±3 Hz display refresh rate | Proof / Burst Pressure : 200% / 300% FS | Operating Temperature : 14°F to 122°F / -10°C to 50°C | Storage Temperature: -4°F to 167°F / -20°C to 75°C | LCD Display 2" x 3/4" (48mm x 16mm)
Operation Life 1 million cycles | Power Supply 2 x AAA battery (1.5V)(Not Included) | Battery Life 2yrs (auto shut-off mode) | Power Mode Auto or manual shut-off | Display Digits 4 digits to 5,000 psi | Pressure Unit Selection psi, bar, kg/cm², MPa

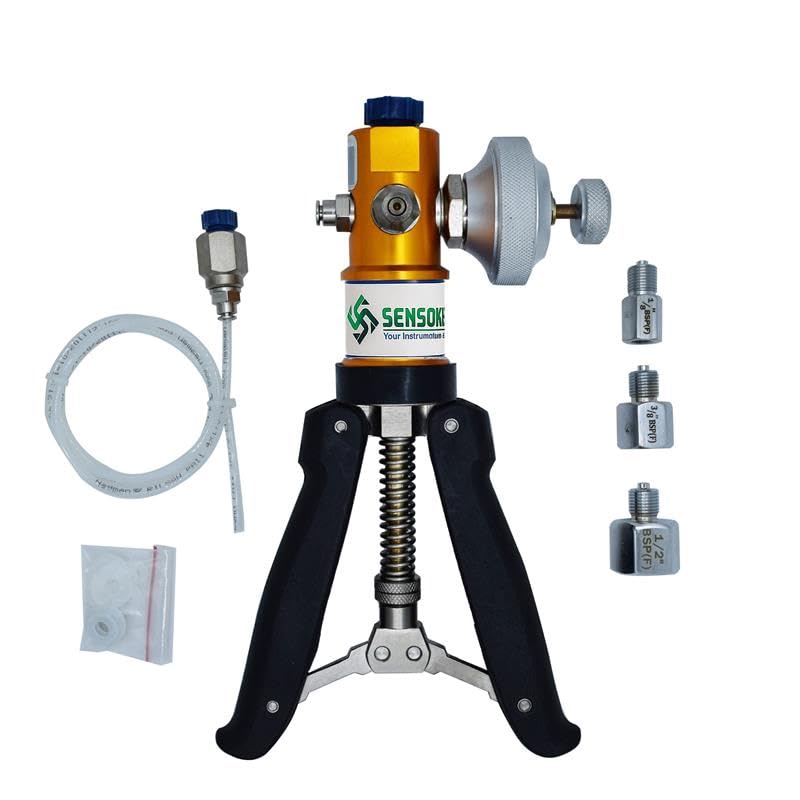

Supply Scope: 1 Unit of AI-DPI-2200 Pressure and Vacuum Calibrator, 1 Unit of Master Gauge (Range: -1 to 10 bar), 3 Nos Reducers (⅛ BSP(F)", ½ BSP(F)", ⅜" BSP(F) and Instruction Manual. | Applications: Calibration Labs, Field Calibration, Pressure Gauge Calibration, Pressure Transmitter Calibration.
وصف

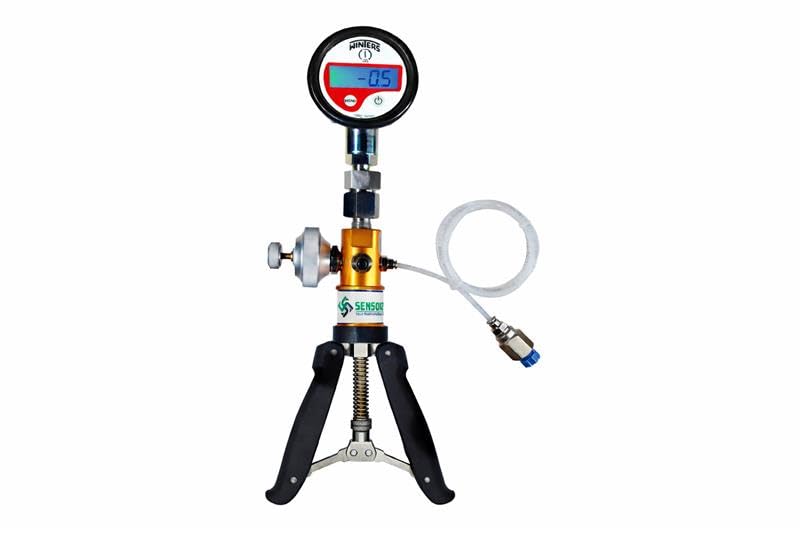

The SK-2200-DPG Hand Pump Pressure & Vacuum Calibrator is a precision-engineered calibration instrument designed for professionals who require reliable and stable pressure generation for testing and calibration of industrial instruments. This manual hand pump enables smooth generation of both pressure and vacuum, making it ideal for calibrating pressure gauges, transmitters, sensors, and process instruments. The included digital master gauge covers a wide measuring range from -1 to 10 bar with ±0.5% accuracy, ensuring dependable reference measurements. Built using high-quality aluminium and stainless steel components, the calibrator offers excellent durability and corrosion resistance. Leak-proof stainless steel fittings and a contamination-free design help maintain consistent performance over long-term use. Designed for safe operation up to 30 bar, the SK-2200-DPG is suitable for calibration laboratories, maintenance teams, and field service engineers. When not in use, proper storage helps protect internal sealing components and ensures extended service life.
