Model: SK-2200-DPG | Measuring Parameters: hand pump Pressure and Vacuum calibrator | Vacuum Range: Ambient to -0.9 Kg/Cm²
Pressure Range: Ambient to 30 Kg/Cm² (30 Bar) 435 PSI | Material Of Construction: Aluminium and Stainless Steel; Weight Approx. 1.5 Kgs.
Master Gauge Range: (-1 to 25 Bar) | Accuracy : ±0.5% | Case Size 2.5" (63mm) | Case Material ABS (IP64) | Rubber Boot Silicone rubber (IP65)
Operation Mode : Continuous pressue reading | Response Time : ±3 Hz display refresh rate | Proof / Burst Pressure : 200% / 300% FS | Operating Temperature : 14°F to 122°F / -10°C to 50°C | Storage Temperature: -4°F to 167°F / -20°C to 75°C | LCD Display 2" x 3/4" (48mm x 16mm) | Connection 1/4" NPT 304SS | Sensor 316L welded, Piezo
Operation Life 1 million cycles | Power Supply 2 x AAA battery (1.5V) | Battery Life 2yrs (auto shut-off mode) | Power Mode Auto or manual shut-off | Display Digits 4 digits to 5,000 psi | Pressure Unit Selection psi, bar, kg/cm², MPa

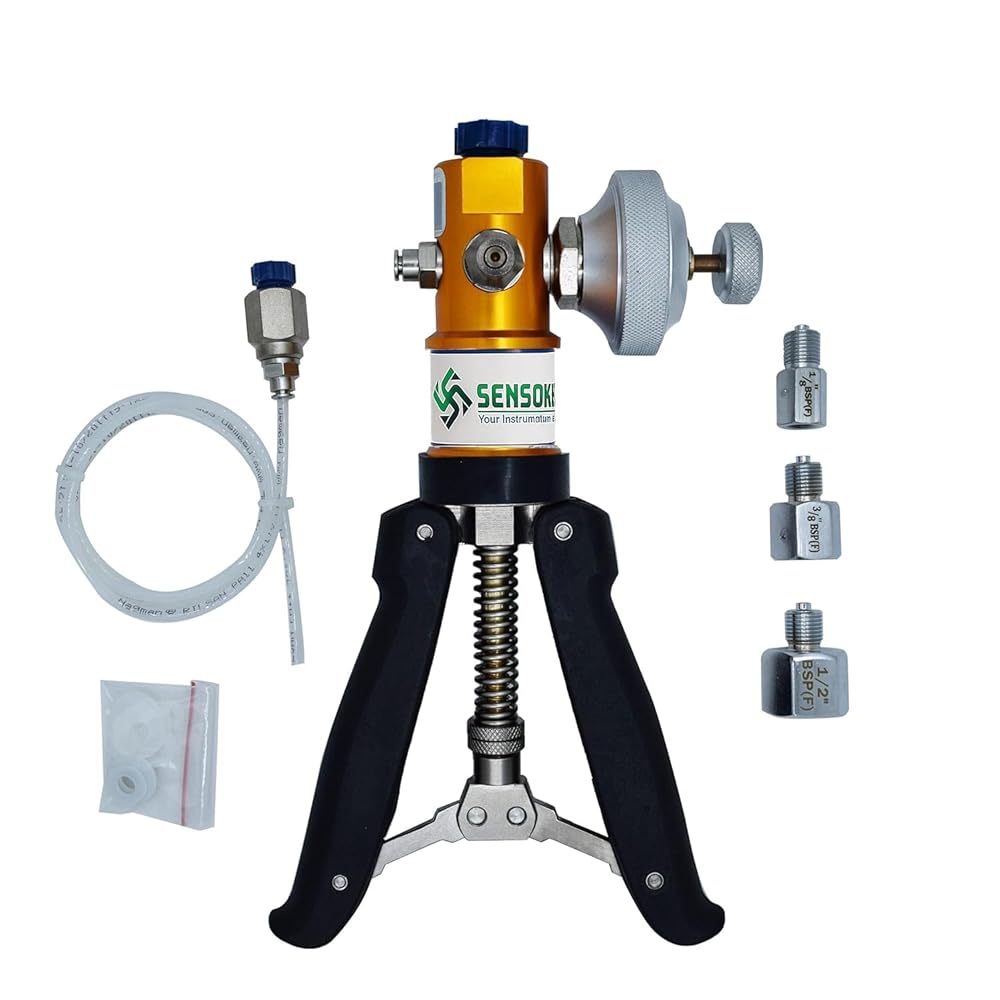

Supply Scope: 1 Unit of SK-2200-DPG Pressure and Vacuum Calibrator, 1 Unit of Master Gauge (Range: -1 to 25), 3 Nos Reducers (1/4", 1/2", 3/4") and Instruction Manual. | Applications: Calibration Labs, Field Calibration, Pressure Gauge Calibration, Pressure Transmitter Calibration.
وصف

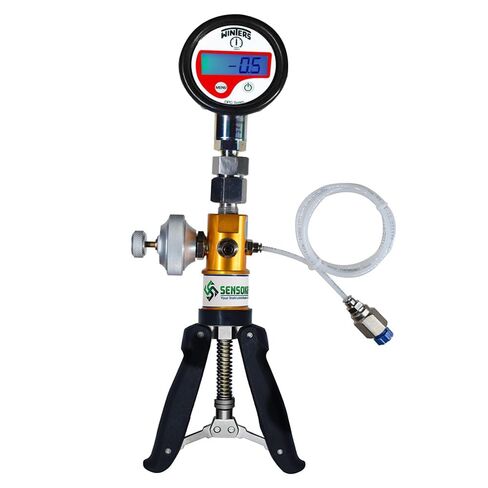

The Hand Pump Vacuum & Pressure Calibrator with Pressure and vacuum gauge is a precision-engineered instrument designed exclusively for professionals who require accurate and stable pressure for calibration of gauges, transmitters, sensors, and industrial instruments. Built with high-quality components and leak-proof stainless steel fittings, this calibrator ensures consistent performance in demanding environments. Its contamination-free design requires clean thread and inlet connections to maintain smooth operation and prevent blockages. The device is engineered for safe use up to 30 BAR, making it suitable for a wide range of industrial calibration applications. When not in use, the pump should be stored in an airtight container to protect critical internal components, particularly O-rings, ensuring long service life. Whether you're working in instrumentation, maintenance, or calibration labs, this hand pump delivers the accuracy and reliability your workflow demands.
