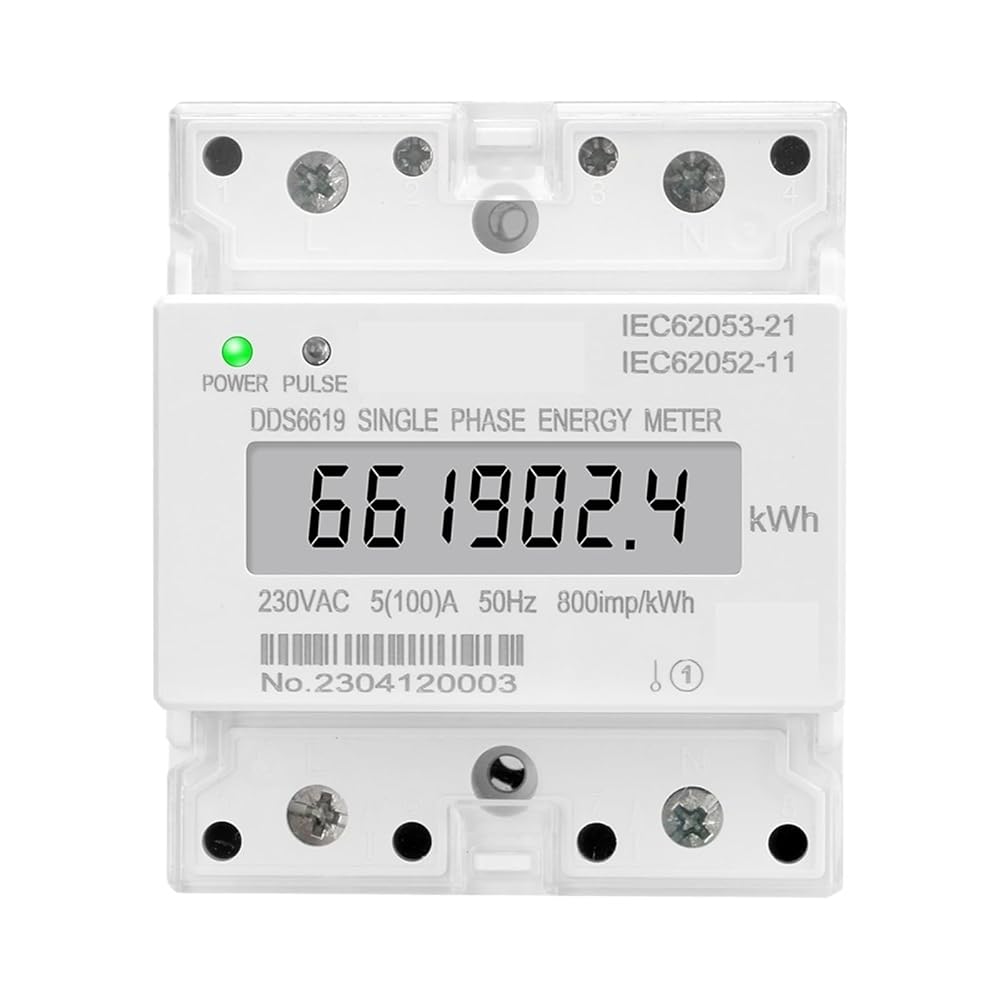

Electric Single Phase Two Wire AC 220V 100A Energy Meter kWh Counter Consumption Analog Electricity Wattmeter Household Din Rail
Parameters:
Rated current:5A
Maximum current: 100A
Pulse: 800imp / kwh
Pulse LED indicates working of meter. Pulse output with optical coupling isolation.
35mm DIN rail installation
Product advantages:
1. The traditional maximum current meter is 4 times the rated current, the product is smart meters, overload capacity
Up to 12 times the base reference current.
2. This product is measured by LCD digital power, no reset button, to avoid human tampering with the data!
Package will include:
1 pcs Energy meter DDS6619-023 or DDS6619-024
1 pcs English operation manual
DDS6619-023 type
DDS6619-024 type
Dimensions : 80*73*72 mm
Operating Temperature : -10 to 50
Output Voltage : 220V AC
Accuracy Class : 1
Measuring Energy Range : 99999.9
Phase : single phase
Model Number : DDS6619-023
Max Operating Current : 80A - 99A
Rated Voltage : 220V
Power Supply : AC
Display Type : Analog Only
DIY Supplies : Electrical
Model : DDS6619-023
Origin : Mainland China
Installation : 35mm DIN Rail
Rated current : 5A
Maximum current : 100A
Pulse : 800imp / kwh
