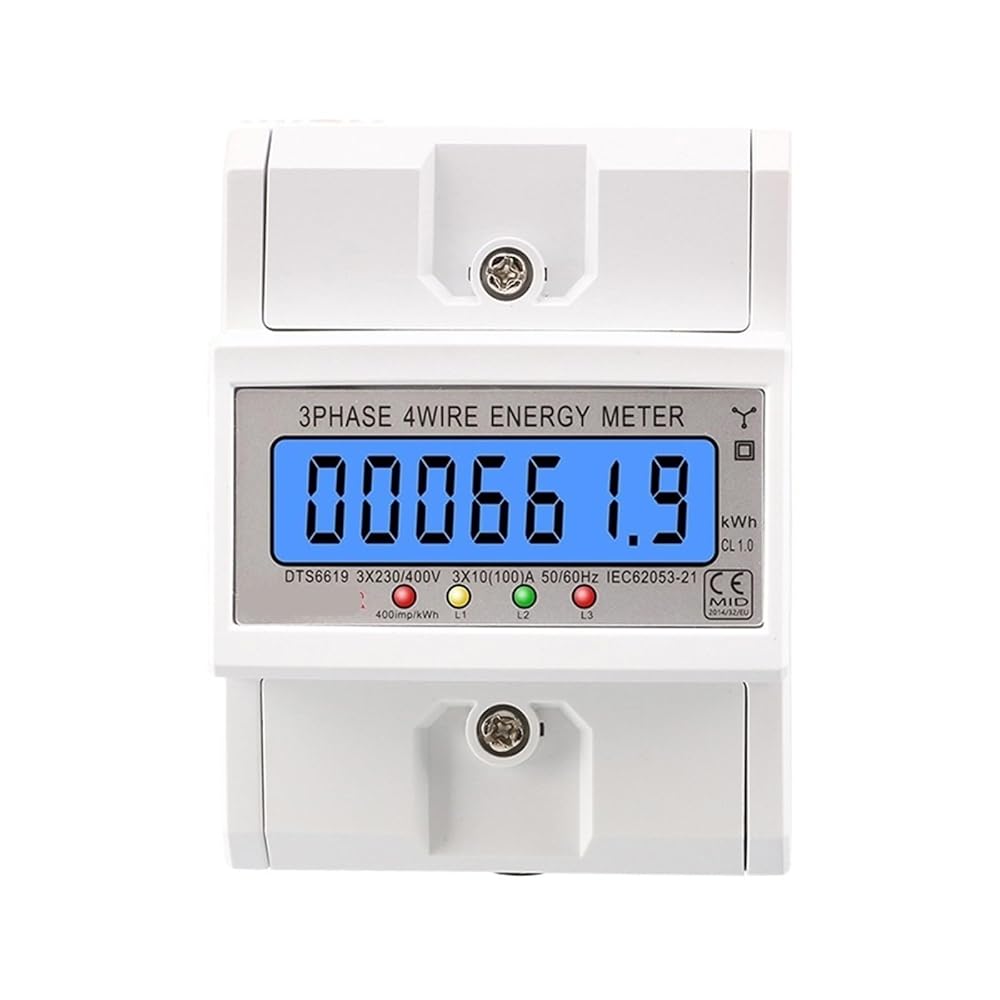

Din Rail 3 Phase 4 Wire Electronic Watt Power Consumption Energy Meter Wattmeter kWh 5-80A 380V AC 50Hz LCD Backlight Display
Descriptions:
The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active energy of the energy consumption. It features high reliability, small volume, lightweight, beautiful appearance, advanced technology, and 35mm DIN standard guide rail installation, etc.
Features:
6+2 digits LCD display shows the total power consumption.
It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide rail installation, etc.
It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life.
This table is suitable for the measurement of rated 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 °C ~ 55 °C, relative humidity is 95%, and in the air does not contain corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc.
Specifications:
Materiel: Metal + ABS
Reference Voltage: 3 X 220/380(V),3 X 230/400(V)
Reference Current: 3 X 10(100A)
Accuracy Level: 1.0
Rated : 50Hz
Constant Pulse: 400imp / kWh
Display: LCD 6 + 2
Power Consumption: 2W, 10VA
Starting Current: 0.004Ib
Operating Temperature: -20 ~ 55°C
Storage Temperature: 25 ~ 70°C
Operating Voltage: 0.9-1.1 Rated Voltage
Utmost Voltage: 0.8-1.15 Rated Voltage
Average Humidity Value of Year: 75%
Type: Three Phase Four Wire Electronic Type
Weight: 400g
Package will include:
1 pcs Energy meter
1 pcs English operation manual
Here are the pictures for DTS6619-018
Here are the pictures for DTS6619-020
Dimensions : 100*76*65mm
Operating Temperature : -20 to 55'C
Output Voltage : AC 3*220/380V 3*230/400V, 50/60HZ
Accuracy Class : 1
Measuring Energy Range : 999999.99 kWh
Phase : Three Phase
Model Number : DTS6619-018
Max Operating Current : 80A - 99A
Rated Voltage : 380V
Power Supply : AC
Display Type : LCD
DIY Supplies : Electrical
Model : DTS6619-018
Origin : Mainland China
Current : 100A
LCD Backlight : Yes
Display : Power Consumption
