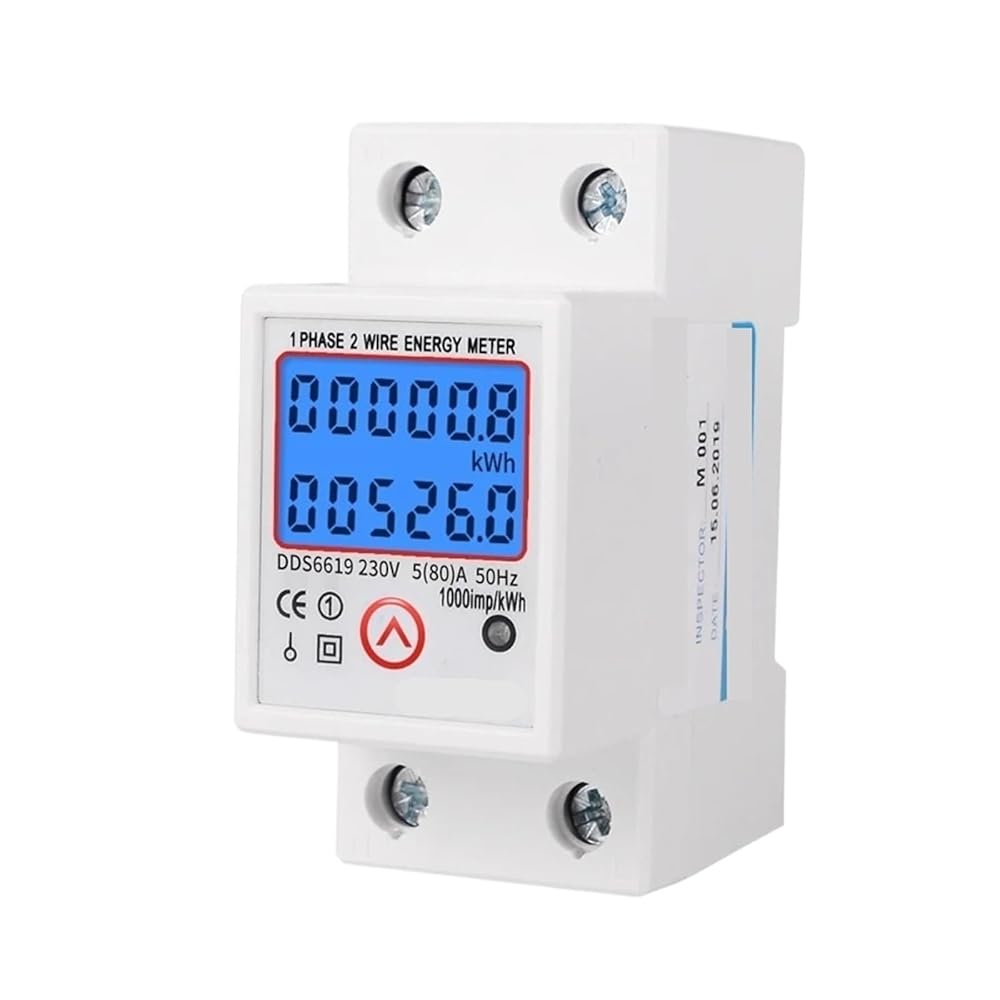

Din Rail Digital Single Phase Reset Zero Energy Meter kWh Voltage Current Power Consumption Meter Wattmeter Electricity 220V AC
Features:
Maximum current: 80A
Pulse: 1000imp / kwh
LCD display with Backlight
Pulse LED indicates working of meter.
35mm din rail installation
The meter is multifunctional display total Energy kWh, temporary Energy kWh, real Voltage, real Current, real Power by manual pressing.
Hold the button for 6 seconds to Reset the temporary kWh
NOTE: This Temporary kWh is available RESET to be Zero . The Total kWh can not be Reset.
Package included:
1 piece Energy meter
1 English instructions
Dimensions : 78*65*35 mm
Operating Temperature : -10 to 50'C
Output Voltage : 230V AC
Accuracy Class : 1
Measuring Energy Range : 99999.9
Phase : single phase
Model Number : DDS6619-526L
Max Operating Current : 50A - 79A
Rated Voltage : 220V
Power Supply : AC
Display Type : LCD
DIY Supplies : Electrical
Model : DDS6619-526L
Origin : Mainland China
Display 1 : total Energy kWh
Display 2 : temporary kWh
Display 3 : Voltage
Display 4 : Current
Display 5 : Power
Blacklight : Yes
Temporary kWh : can be RESET
Max. Rated Current : max 80A
