محرك تروس كهربائي 200 واط تيار مستمر 12 فولت 1800 دورة في الدقيقة 50 كيلو 40 كر من سبائك الصلب محرك تروس دودة مخفض علبة التروس عزم دوران عالي مع سرعة قفل ذاتي محرك كهربائي قوي قابل للتعديل in Kuwait

200 واط تيار مستمر 24 فولت

KWD 45

ماركة
DUTTIETY
وزن
9 kg
مقاس200 واط تيار مستمر 24 فولت
1 +

مميزات خاصة

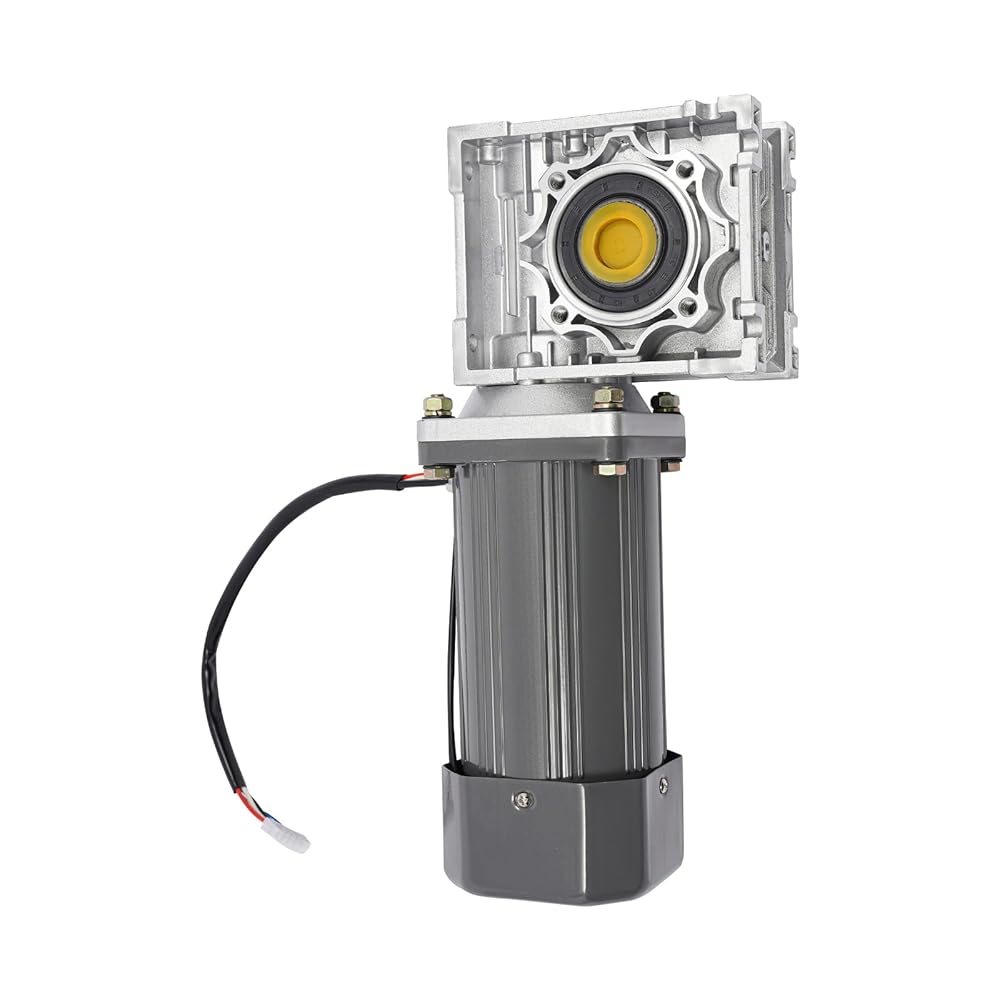

  • 【High-quality Material】: Gear Motor is made of high-quality die-cast aluminum alloy and 40Cr alloy steel, which is not easily rust, fracture, corrosion, or deformation, and has a long service life.
  • 【High Efficiency】: The motor with a large torque has a maximum rotation speed of 1800RPM and a reduction ratio of 50K, which can achieve the desired results and save you much time.
  • 【Stable Operation】: This Gear Motor uses full ball bearings, which have the characteristics of high torque, low vibration, and fast start, making it more stable to use.
  • 【Flexible Rotation】: By connecting the power cord of the motor in the forward/reverse direction, this product can be adjusted to rotate clockwise or counterclockwise, increasing its flexibility and extending its service life.
  • 【Safe Operation】: In the absence of power to the motor, the output hole is fixed and self-locked, making your operation safer.

وصف

Details
Smooth Surface: The smooth and burr-free surface allows you to safely install this product without hurting your hands.
Cap: The yellow cap can effectively protect the output bore when not in use, reducing friction and wear.

Specification
Model: DM09 12V 200W NMRV40, 50
Material: Die-cast Aluminum Alloy, 40Cr Alloy Steel
Process: Tempering Heat Treatment, Fine Machining, NitridationTechnique
Color: Silver
Motor Type: Brushed Pure Copper Motor
Input Voltage: DC12V
Current: 23A
Output power: 200W
Speed: 1800RPM
Rated Torque: 6.4kg/cm
Ratio: 1:50 (50K)
1-meter Noise: About 70dB(Actual Smaller)
Product Size: 9*9cm/3.54*3.54in
Output Hole Diameter: 18mm/0.71in
Package Size: 35*17*15cm/13.78*6.69*5.91in
Gross Weight: 10kg/22.05lbs
Net Weight: 9kg/19.84lbs

Package Included
1*200W Gear Motor

Notes
1. Please note that if you need to adjust the speed, you need to use it with a controller (not included). The motor itself does not have a built-in output shaft.
2. To ensure the heat dissipation of the product, please do not use it in a closed environment.
3. This product does not have waterproof properties, so please do not let it rely on damp environments or use it outdoors on rainy days.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
