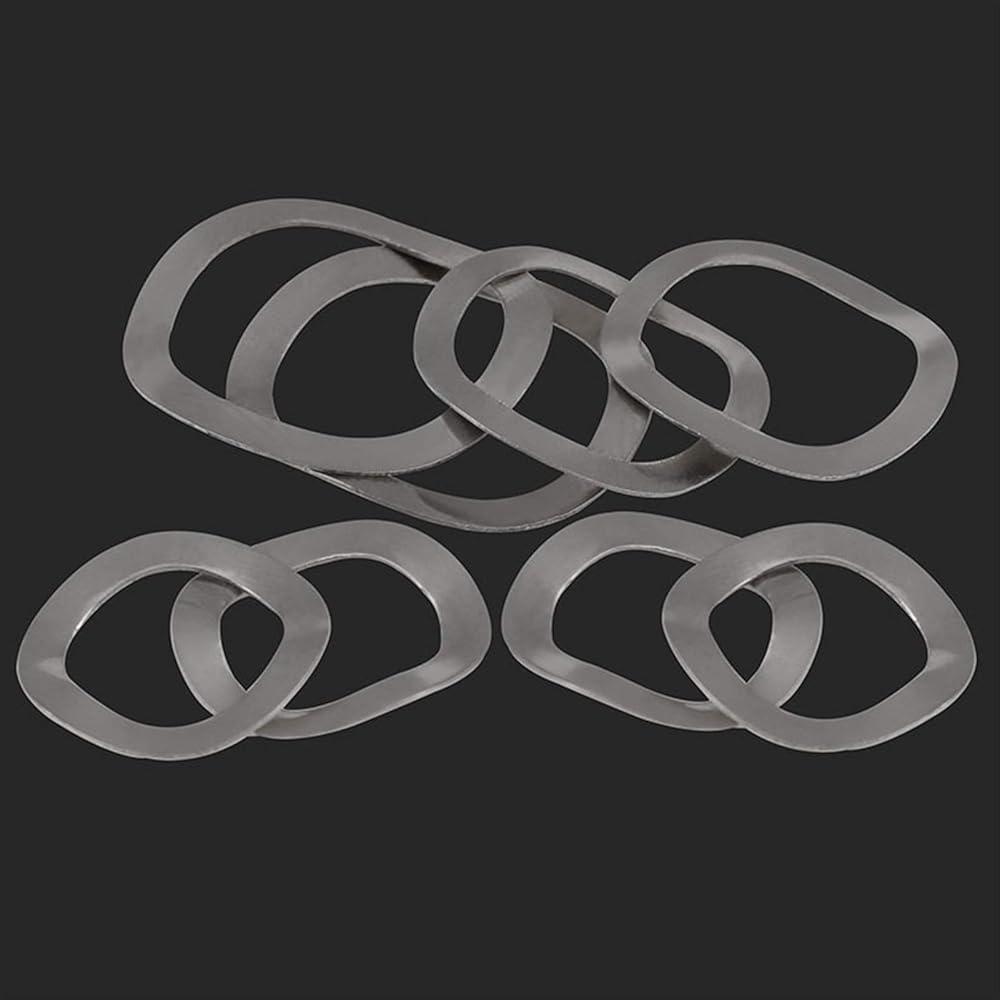

غسالات موجة، زنبرك ضغط 304 من الفولاذ المقاوم للصدأ ذو ثلاث حلقات مموجة مرنة in Kuwait

م23 × 29 × 0.3

KWD 24.500
ماركة
ZHAYUEOP
مقاسM23 × 29 × 0.3
– 1 +

مميزات خاصة

  • Name Waveform washe surface treatment Color
  • Wide range of applications: suitable for electronic communications, switches, hardware, batteries, fixtures, toys and a wide range of applications from household appliances to electrical equipment
  • Thanks to their unique wave structure, washers are able to generate effective elastic forces that absorb vibrations and shocks generated during the operation of machinery.
  • Perfect for electrical connections on household and commercial appliances, washers are normally used to distribute loads of threaded bolts, screws and nuts evenly as the fastener is tightened
  • In all environments, even in the face of temperature changes or constant vibration, the washers ensure that the bolt joints are always properly preloaded, thus increasing the and stability of the overall structure.

وصف

Name Waveform washe surface treatment Color
Standard Metric Packing instructions Plastic bags/cartons
size For example: M21 x 27 x 0.3 (internal diameter21mm s/iexternal diameter 27mm x thickness0.3mm)
5 characters minimum
The size of nuts, flat washers, retaining rings, etc. shall be subject to the diameter (thickness) of the matched screws.Unit: mm
bore size external diameter Free height h ∆. thickness
3 6 1 0.3
4 8 1.1 0.3
5 10 1.4 0.3
6 12 1-1.5 0.3
8 12 1.6 0.3
10 15 1.6 0.3
12 18 1.7 0.3
14 21 1.9 0.3
16 21 2 0.3
18 25 2.7 0.4
22 29 3 0.4
24 31 3.6 0.4
26 34 4 0.4
33 41 4 0.5
38 46 4.3 0.5
40 51 3.3 0.5
50 61 3.3 0.5
60 71 3.9 0.5
70 85 5.2 0.6
78 90 3.9 0.6
88 100 4.2 0.6
