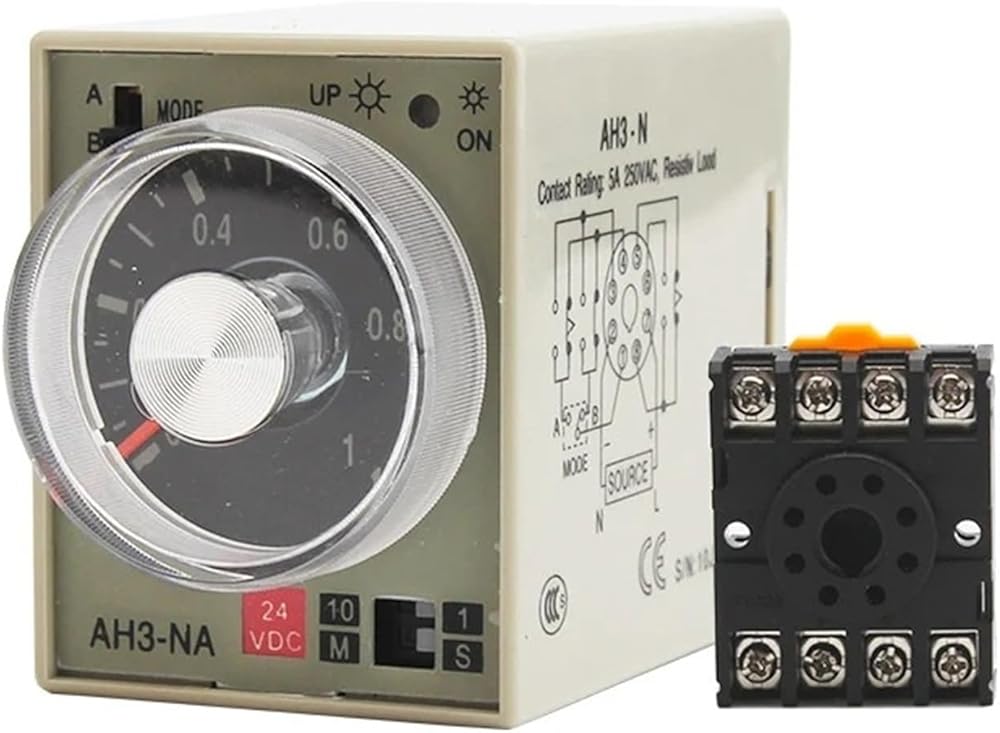

Time Relay AH3-NA/NB/NC/NE/ND 8 Pin 24V 110V 220V 380V Multi Range Electric Timer Adjustable Timer Relay
Dimensions: 50 * 40 * 57.5mm
Work: power delay
Delay Range: NA: 1S, 10S, 1M, 10M
NB: 3S, 30S, 3M, 30M
NC: 6S, 60S, 6M, 60M
ND: 1M, 10M, 1H, 10H
NE: 3M, 30M, 3H, 30H
Rated voltage: DC: 12,24,48V
AC: 110,220,380V 50 / 60HZ
Contact capacity: AC 250V 5A resistive
Contact Capacity: 5A contact form time limit 2C / time limit 1C 1C
Mode Switch: A: Two Sets of Time Limit B: One set of instantaneous, one set of time limit
Supporting Base: PF083A
Service Life: Mechanical: 5,000,000 Times, Electrical: 100,000 times (within rated capacity)
Use Ambient Temperature: -10 ~ + 50
==========
High-concerned chemical : None
Power Source : AC
Theory : Time Relay
Contact Load : Low Power
Model Number : AH3-N
Voltage : 240V
Origin : Mainland China
Certification : CE
Use : General Purpose
Protect Feature : Sealed
