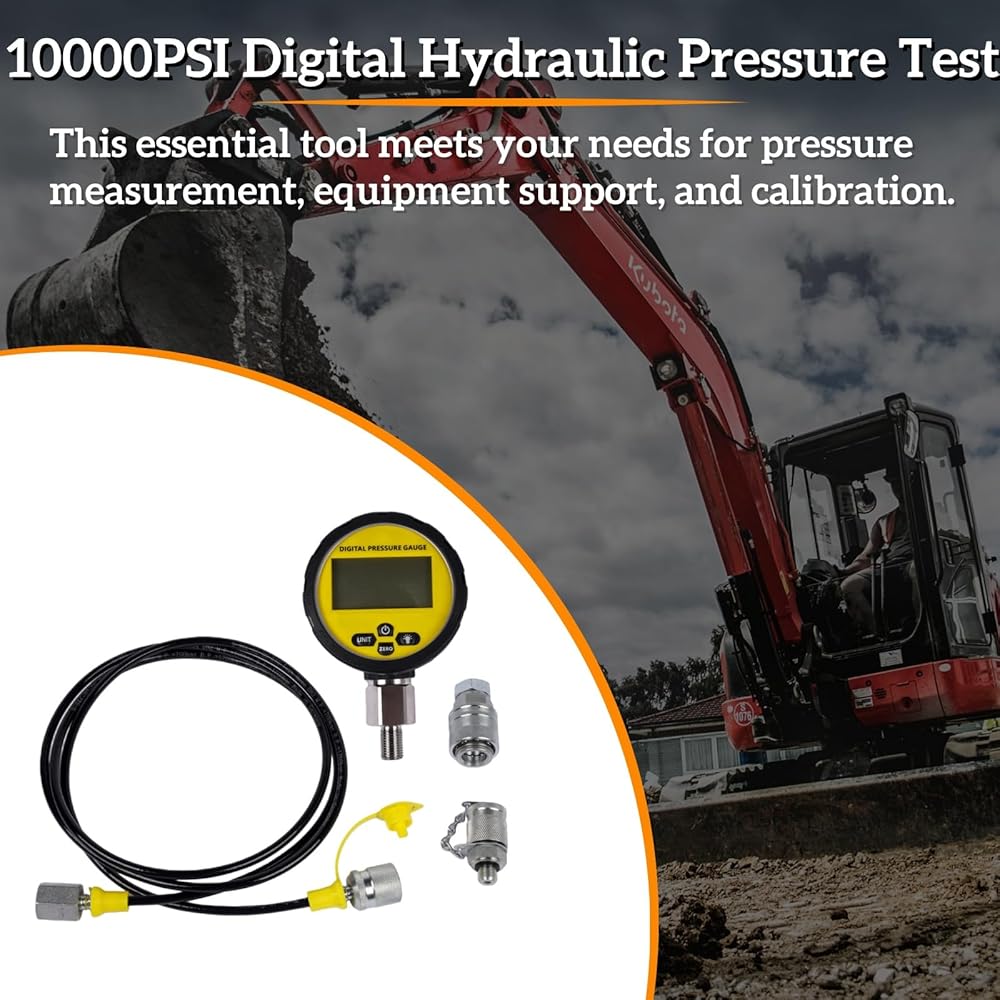

This kit is an essential tool for pressure measurement, equipment support, calibration, and similar applications. Featuring precise connections, flexible usage, simple operation, and convenient setup, it delivers reliable performance and safety, making it your optimal choice. The gauge features a yellow faceplate, with a hose length of 5.2 feet (1.6 m). One end has an M16*2 female thread, while the other end has a 1/4-inch NPT female thread.

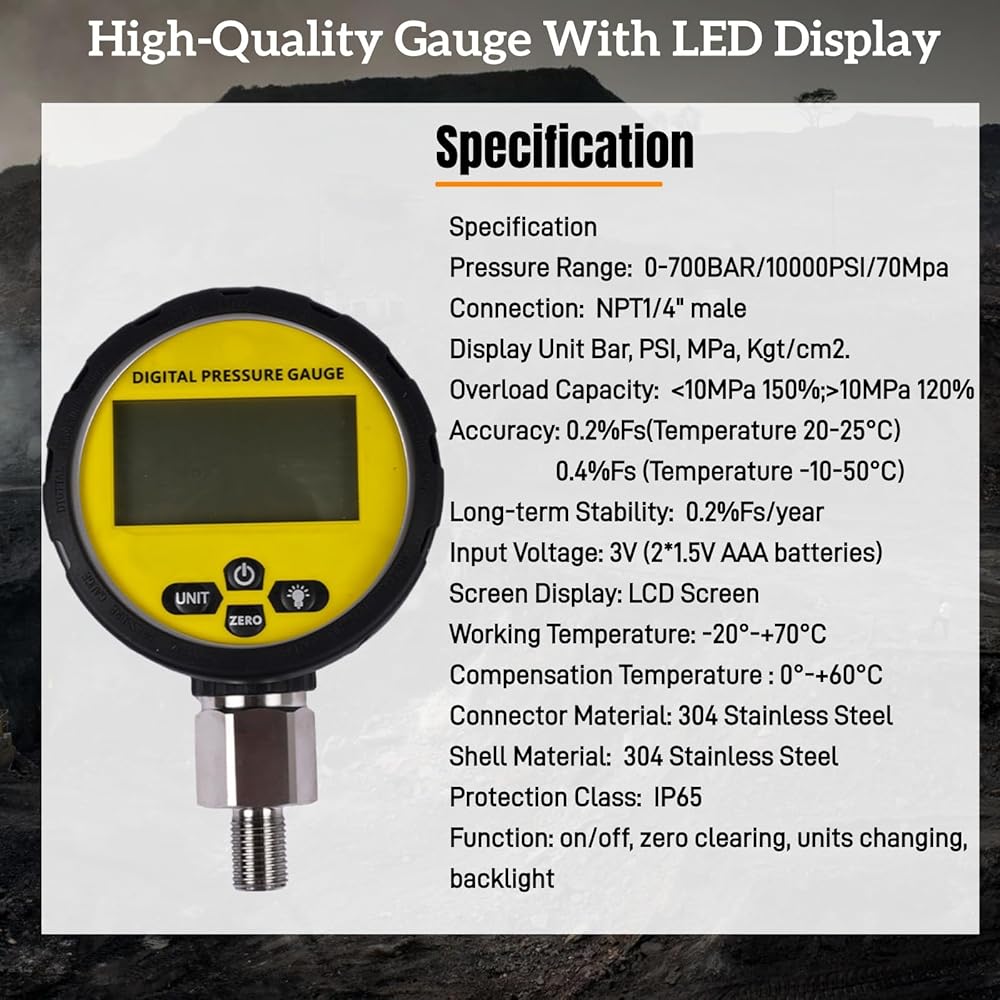

✦Specifics

Material: Steel, Acrylic, Polyurethane
Pressure Range: 0-700BAR/10000PS/70Mpa
Connection: NPT 1/4" male
Display Unit: Bar, PSI, MPa, Kgf/cm2.
Overload Capacity: 10MPa 120%
Accuracy: 0.2%FS (Temperature 20-25℃); 0.4%FS (Temperature -10-50℃)
Long-term Stability: 0.2%Fs/year
Input Voltage: 3V (2x 1.5V AAA batteries)
Sampling Rate: 3 Times/second
Screen Display: 4-digit LCD Screen
Working Temperature: -20℃-70℃
Compensation Temperature: 0℃-60℃
Connector Material: 304 Stainless Steel
Shell Material: 304 Stainless Steel
Protection Class: IP65
Thickness: 46mm (1.81 in.)
Outline Dimension: 80mm (3.15 in.)
Length: 125mm (4.92 in.)
Test Hose Length: 5.2FT (1.6m)
Function: on/off, zero clearing, units changing, backlight

✦Fit for the Following Models

Replacement for Excavators

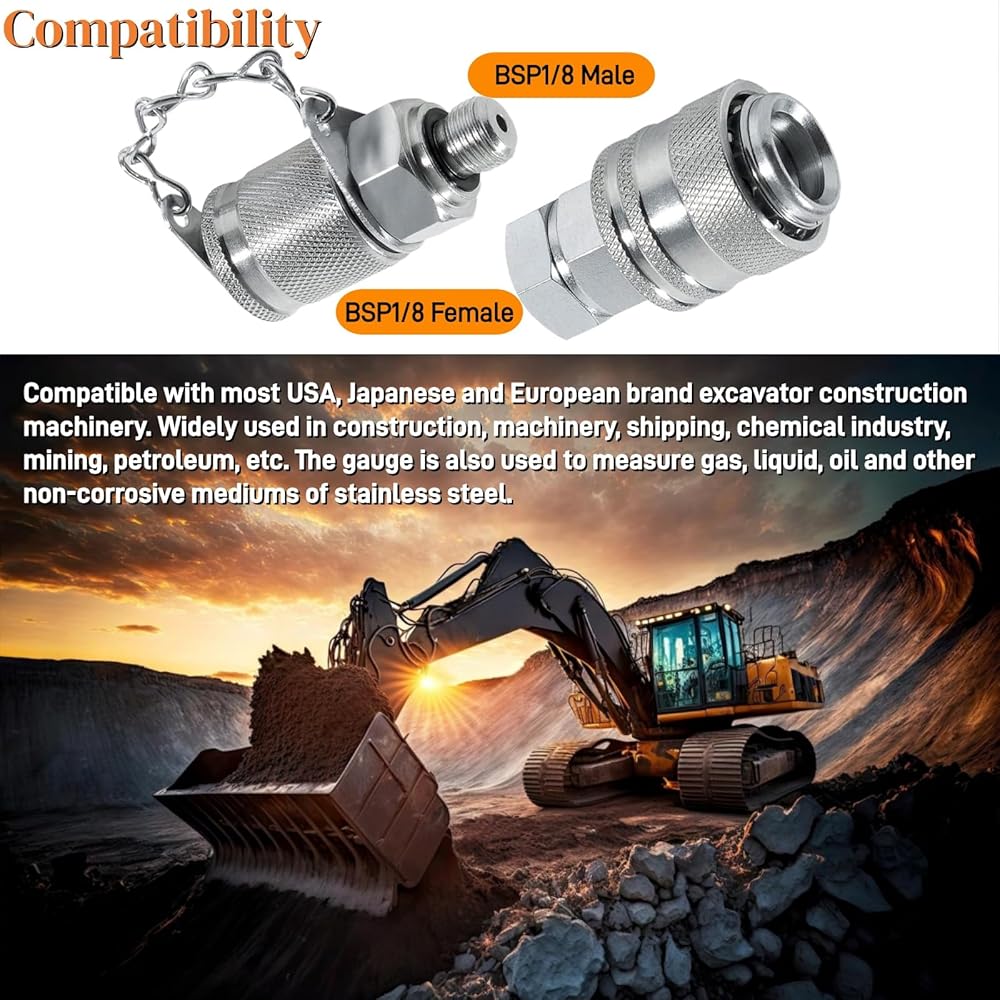

✦Exceptional Compatibility

Suitable for excavators and construction machinery from various brands, including most American brands. Widely used in construction, machinery, shipping, chemical, mining, petroleum, and other industries. It measures gases, liquids, oils, and other non-corrosive media in stainless steel materials.

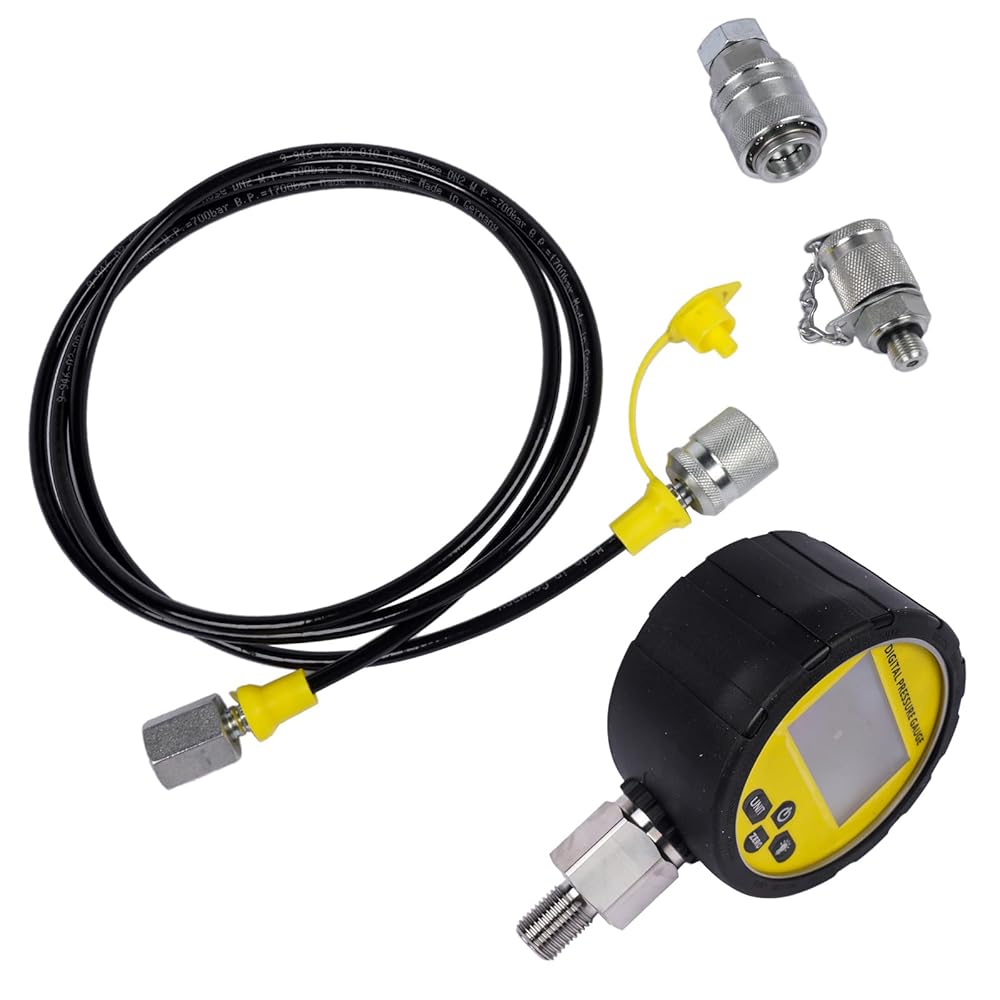

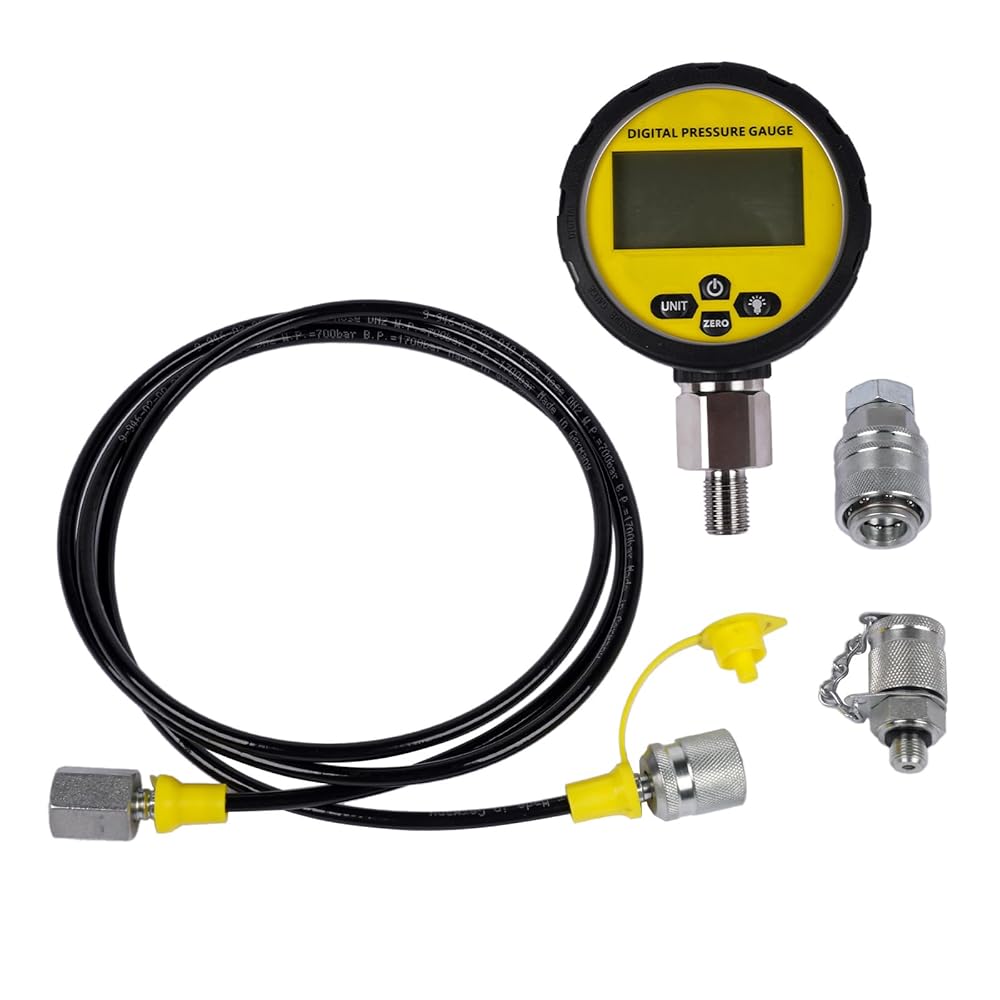

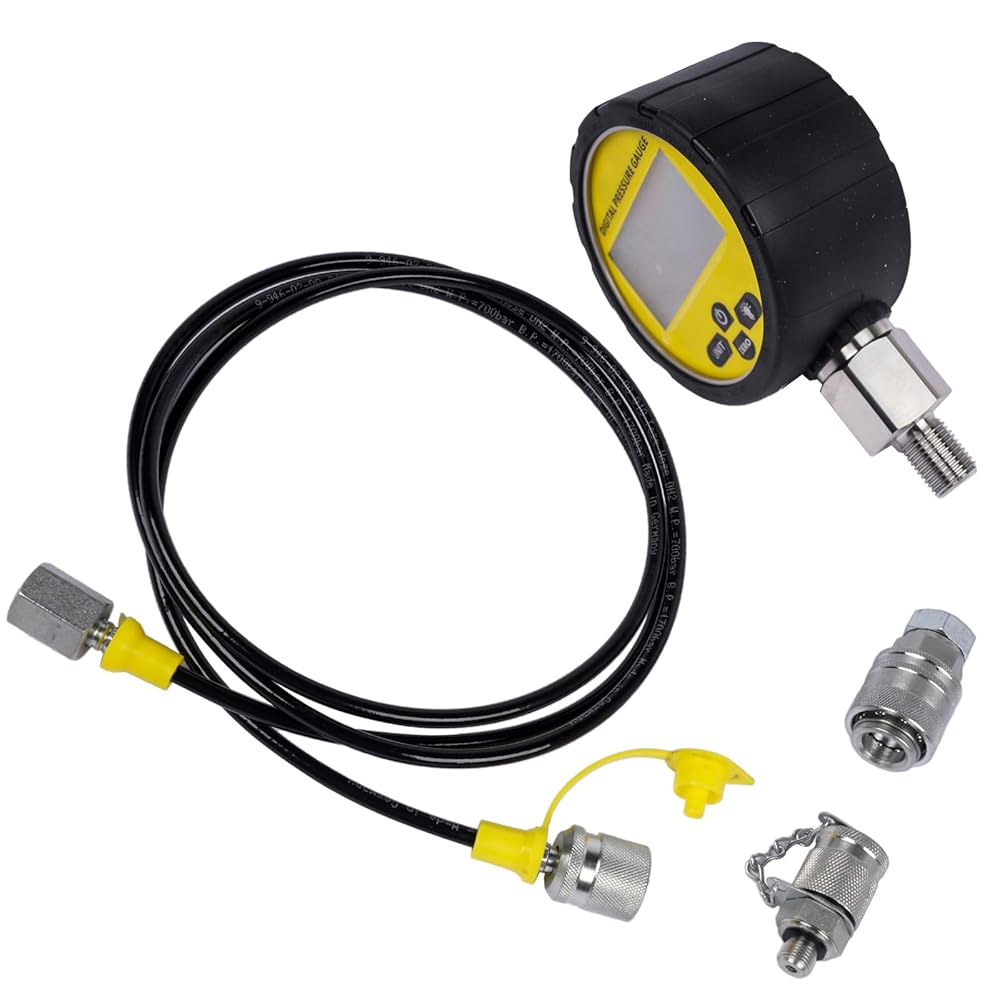

✦Package Included

1 x Intelligent Digital Pressure Gauge
1 x Black Silicone Protector

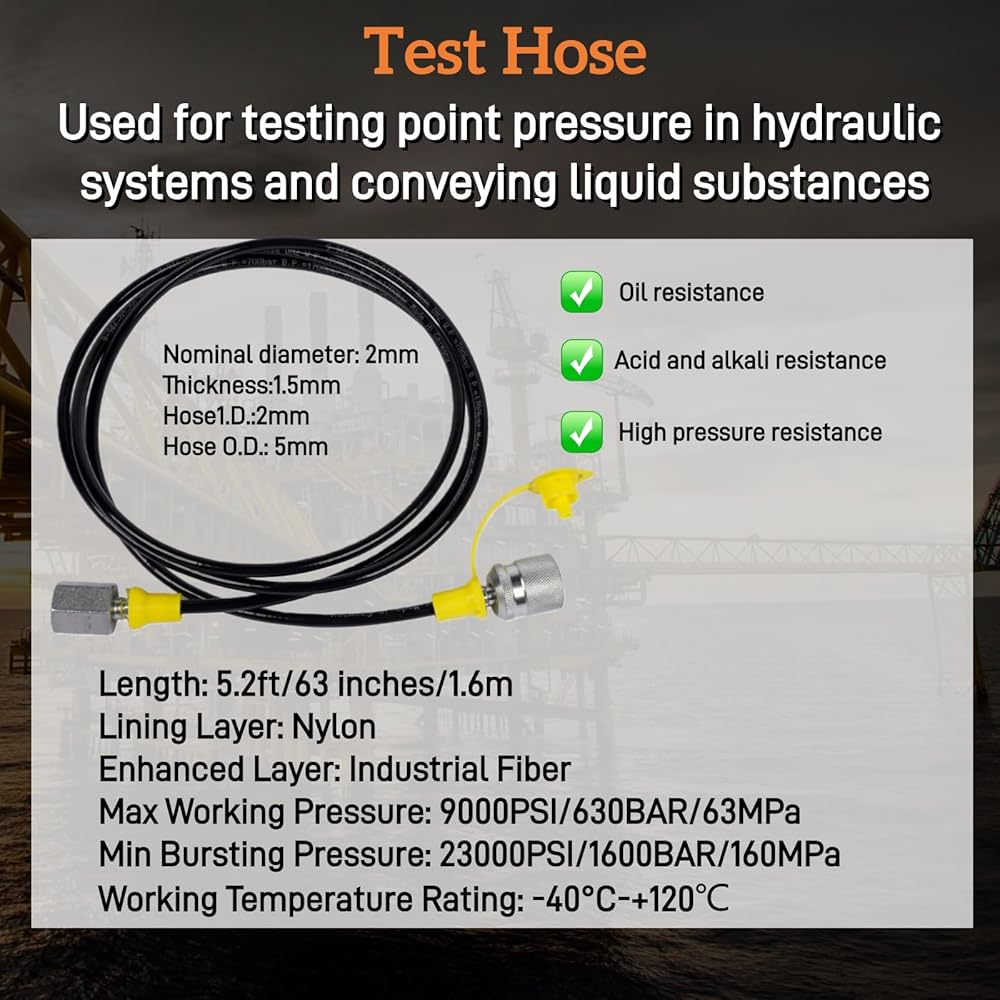

1 x Test Hose 5.2FT/1.6m
2 x Test Couplings
