Measured parameters (for reference):
12v No load current 0.92A Blocking current 2.6A No load 10000rpm, load 8800rpm.
24v no-load current 1.46A blocking current 2.9A no load 20,000rpm, load 17600rpm.

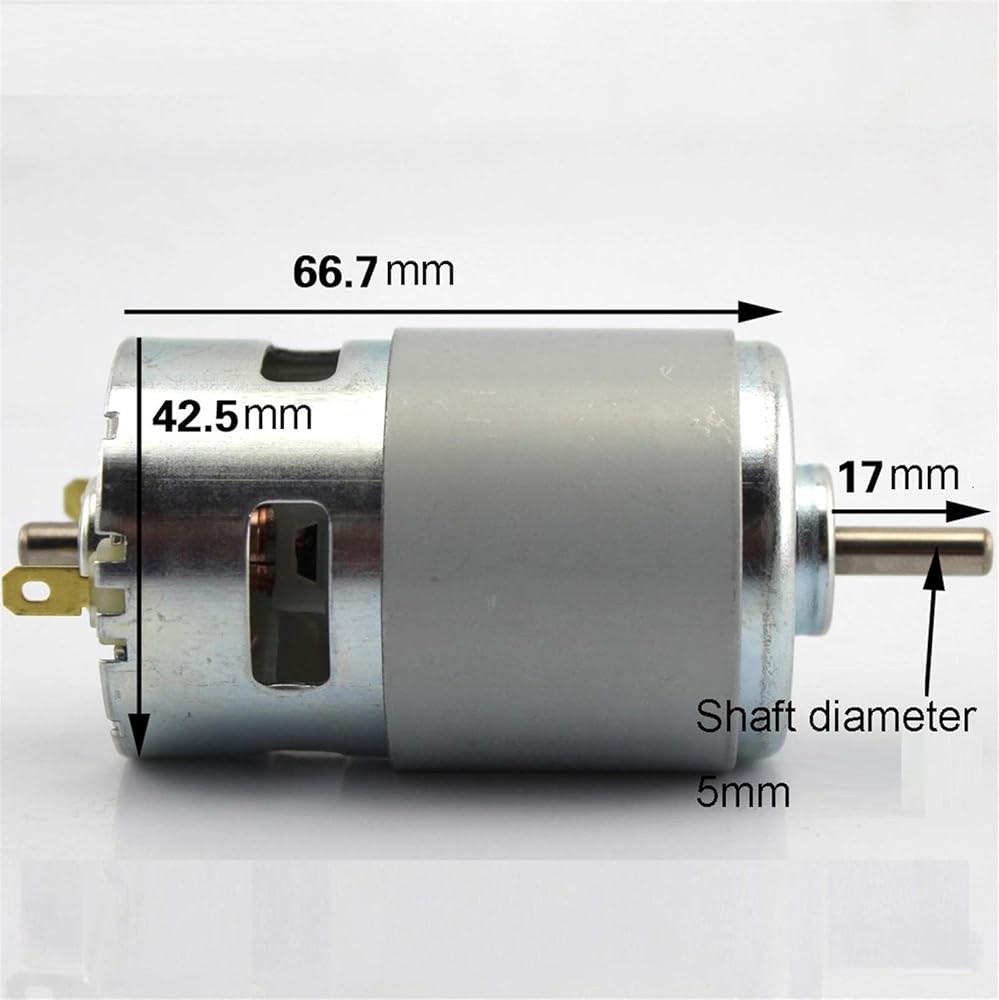

Electronic starter pitch height: 4.5 mm
Electronic starter step diameter: 17.5 mm
Output shaft length: 16mm (shaft length above step level)
Shaft diameter: 5mm shaft
Electronic starter diameter: 42 mm
Electronic starter length: 66.5 mm
Electronic starter tail pitch height: about 4.5mm
Electronic starter rear axle length: approximately 6.5 mm
Mounting hole pitch: approx. 1.14 inches (29mm)
Mounting Hole Diameter: M4 Screw
Power adapter, choose: model 12V2A
24v2a or 24v3a power adapter will appear stuck
Frequently Asked Questions: The electronic starter shakes after the ignition or rotation of a card and a card. This is due to insufficient power supply capacity. It is recommended to replace the larger power adapter. For example, 12V2A is replaced by 12V10A and so on.
