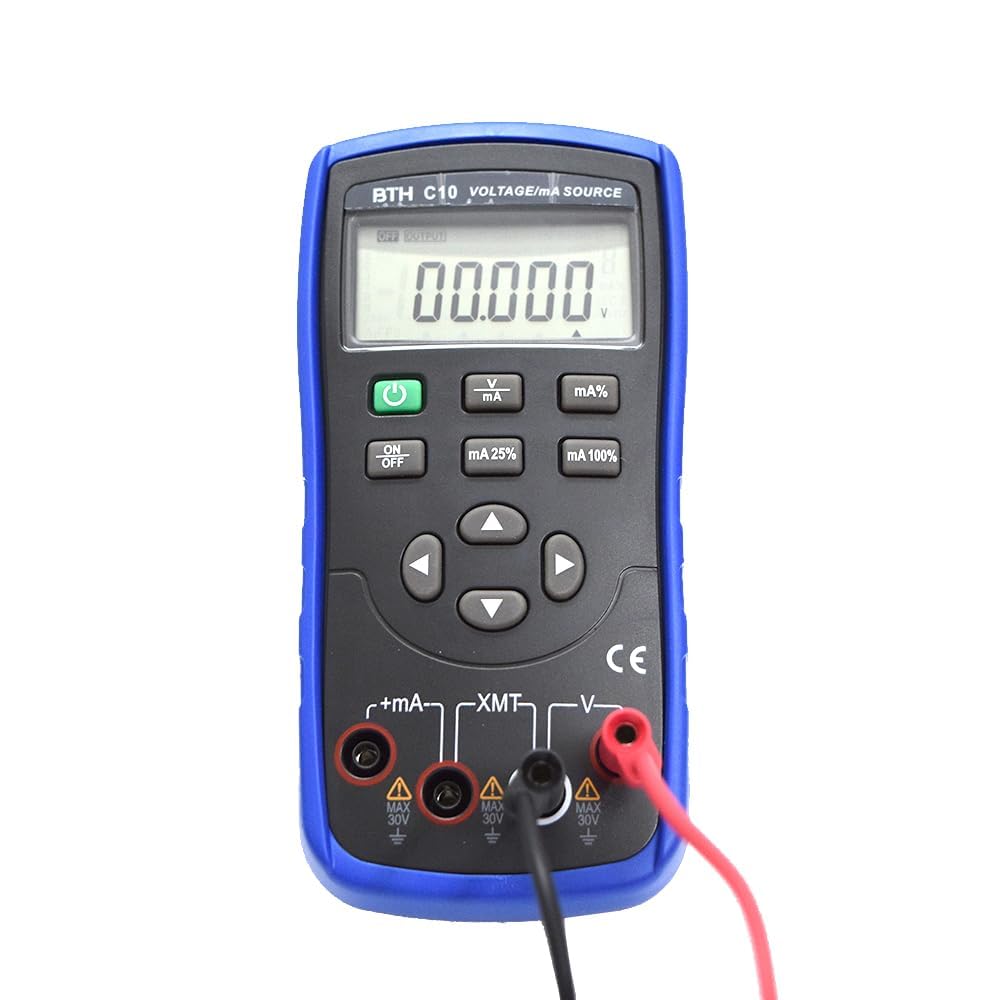

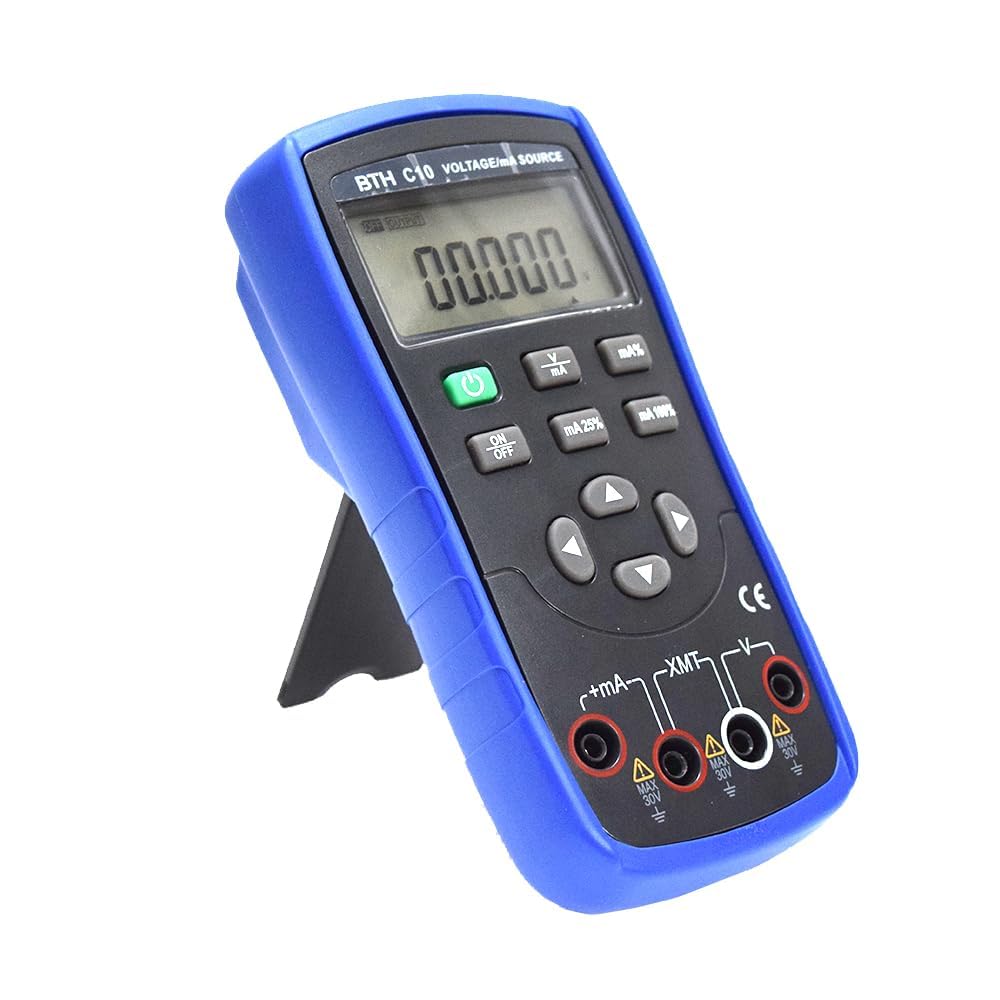

Handheld Source Process Calibrator/Loop/Multifunction Process calibrator – Voltage/mA Sourcing Field Calibration Tool for Process Control System Verification, R&D | Model: BTH-C10

KWD 128.500
Brand
INSTRUKART
Category
Calibration
– 1 +

Special Features

  • DC voltage (DCV) Range: 10V; Output range: 0.000 11.000V; Resolution: 0.001V; Accuracy: 0.05%+2; Illustration: Max output current 5mA | Voltage (DCA) Range: 20mA; Output range: 0.000 22.000mA; Resolution: 0.001mA; Accuracy: 0.05%+4uA; Illustration: 20mA Max. load IKΩ
  • Simulate transmitter (sinking current): Range: -20mA; Output range: 0.000-22.000mA; Resolution: 0.001mA; Accuracy: 0.05%+4uA; Illustration: 20mA Max. Load IKΩ (Note: power supply range: 5-25VDC) | Loop power: Range: 24V; Accuracy: ±10%; Illustration: Max. output current
  • Operating Temperature: 0°C to 50°C | Operating Humidity: <80% RH | Storage Temperature: < -10°C to 55°C | Storage Humidity: < 90% RH | Coeddicient: 5°C to 18°C, 28°C to 40°C | Safety: Complies with IEC 1010 (Safety Standard issued by International Electrician Committee)
  • Power: Two 1.5V Alkaline batteries (LR6)(Not Included) | Power Consumption: 400mA/3V, in condition of 1K Q load and 20mA output | Maximum voltage: 30V (Within terminals or between terminal and earth ground)

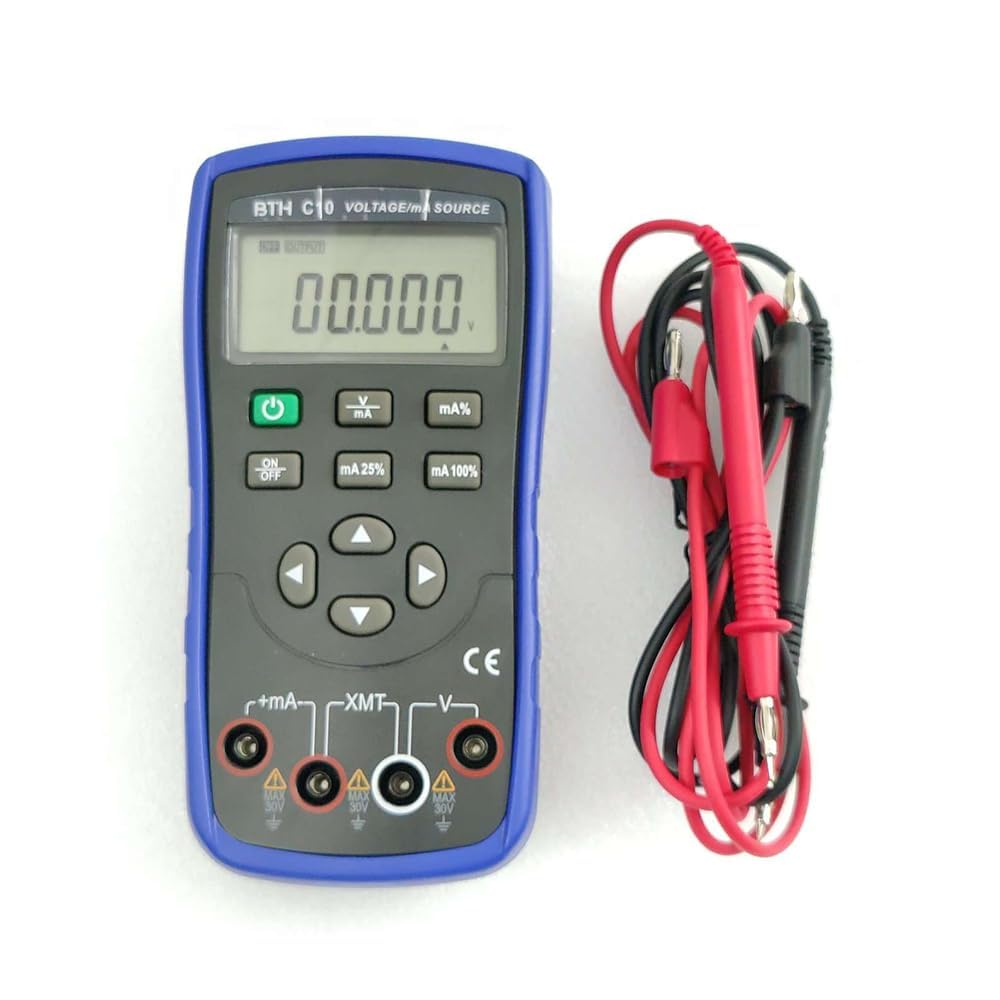

  • Supply Scope: 1 Unit of BTH C-10 Current and Voltage Calibrator, Instruction Manual, Industrial Testing Leads CS-36 (Clips for Probe) | Applications:Process Control System Verification, Field Calibration of Portable Instruments, Research and Development.

Description

Rugged precision universal calibrator specialized in sourcing and measuring DC voltage (0–10 V) and current (0–20 mA), including sinking current simulation. Features 0.05 %+2 mV and 0.05 %+4 µA accuracy, compact ABS housing with IEC 1010 safety compliance, powered by two AA batteries, and capable of loop power up to 24 V. Lightweight and precise solution for on-site calibration of transmitters, sensors, and control loops in industrial settings.
