1 قطعة 10 واط DC-3 جيجا هرتز/4 جيجا هرتز SMA ذكر إلى SMA أنثى وصلة مرفاع المخفف RF 1/2/3/5/6/10/15/20/30db/40db 50 أوم (304 فولاذ ، 2db) in Kuwait

الذهب 15 ديسيبل

KWD 6
اللونذهب
مقاس15 ديسيبل
– 1 +

مميزات خاصة

  • Precise Signal Reduction: This RF attenuator accurately reduces the power level of a signal without significantly distorting its waveform, ensuring clean and reliable signal strength management in your RF circuit.
  • Wide Frequency Range: Engineered to perform consistently across a broad frequency spectrum (e.g., DC to X GHz), making it suitable for a variety of applications from audio to microwave frequencies.
  • Multiple Attenuation Values: Available in a range of standard fixed attenuation values (e.g., 3dB, 6dB, 10dB, 20dB) to provide flexibility for different circuit requirements and power reduction needs.
  • High Power Handling Capability: Built with robust materials to handle high average and peak power levels, preventing damage and ensuring stable performance in demanding RF environments.
  • Outstanding Temperature Stability: Constructed with components that provide stable performance across a wide operating temperature range, guaranteeing consistent attenuation regardless of environmental changes.

وصف

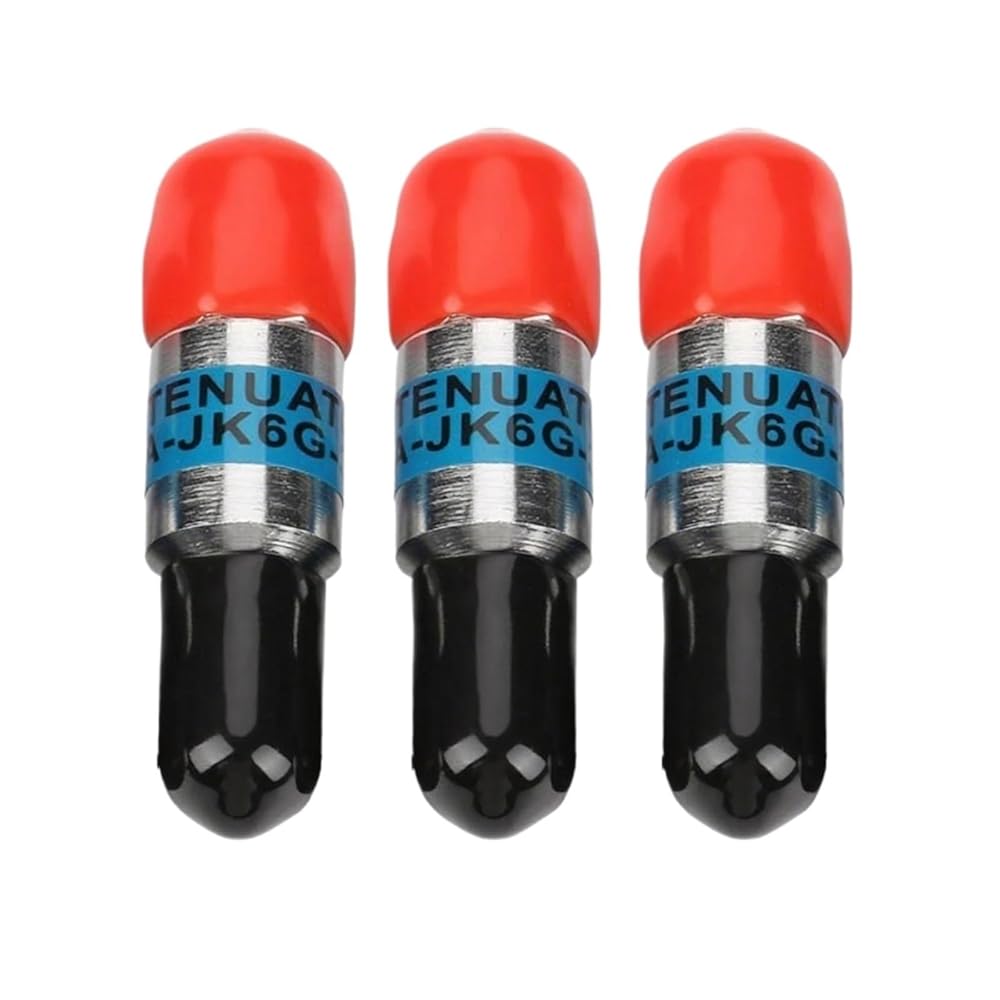

2W DC-6GHz, 50 Ohm, SMA Male to SMA Female Coaxial RF Attenuator 1~30db Attenuator SMA Fixed Connectors Gold/Nikel Plated Or 304 Stainless Steel
Specification:
1. Power: 2w
2. Frequency Range: DC-6.0GHz
3. Standing-wave ratio (SWR): 1.20
4. Connector Type: SMA-J ~ SMA-K
5. Impedance: 50
6. Attenuation: 1-30dB available, and 1-10dB.±0.5dB,15-30dB±1dB
7. Dimension: 30mm*9mm
8. Operating Temperature: -55°C~125°C
1PCS RF Attenuator
Style : Straight
Plating : Nickel/Gold plated/304 Stainless Steel
Application : RF/Communication/Radar/etc
Model Number : SMA Attenuator
Color : Silver/Gold/304 Stainless Steel
