Replacement of Old Parts: We have prepared two styles of truck T handle lock for you to choose and buy, respectively for the right lock and the left lock, if your original lock has been damaged, you may want to replace our truck T handle lock, to restore the normal use of function
Dimensions: The length of our T handle lock from the bottom of the oval cover to the bottom of the locking bar is 2 inch, the distance between the centers of the two mounting posts is 1-1/2 inch, and the diameter of the mounting post is 0.31 inch, please refer to the picture for detailed dimensions
Tips: For left truck topper lock, rotate the lock 90° (counterclockwise) when locking, for right lock, rotate the lock 90° (clockwise) when locking. Unlocking is done by rotating the lock in the opposite direction. The locked state is horizontal and the unlocked state is vertical
Steps to Use: 1. Take out the camper shell lock. 2. Pre-punch holes, camper shell lock aligns with holes and inserts. 3. Take out the screws and fix the camper shell lock. 4. Take out the lock cam, take out the corresponding screws and fix it
Product Specification: Our package specially prepared for you T handle lock*1, lock cam*1, key*2, screw*3 (long*2, short*1), complete accessories, using iron and zinc alloy as the main material of the T handle lock, sturdy and durable, for your long-term use

وصف

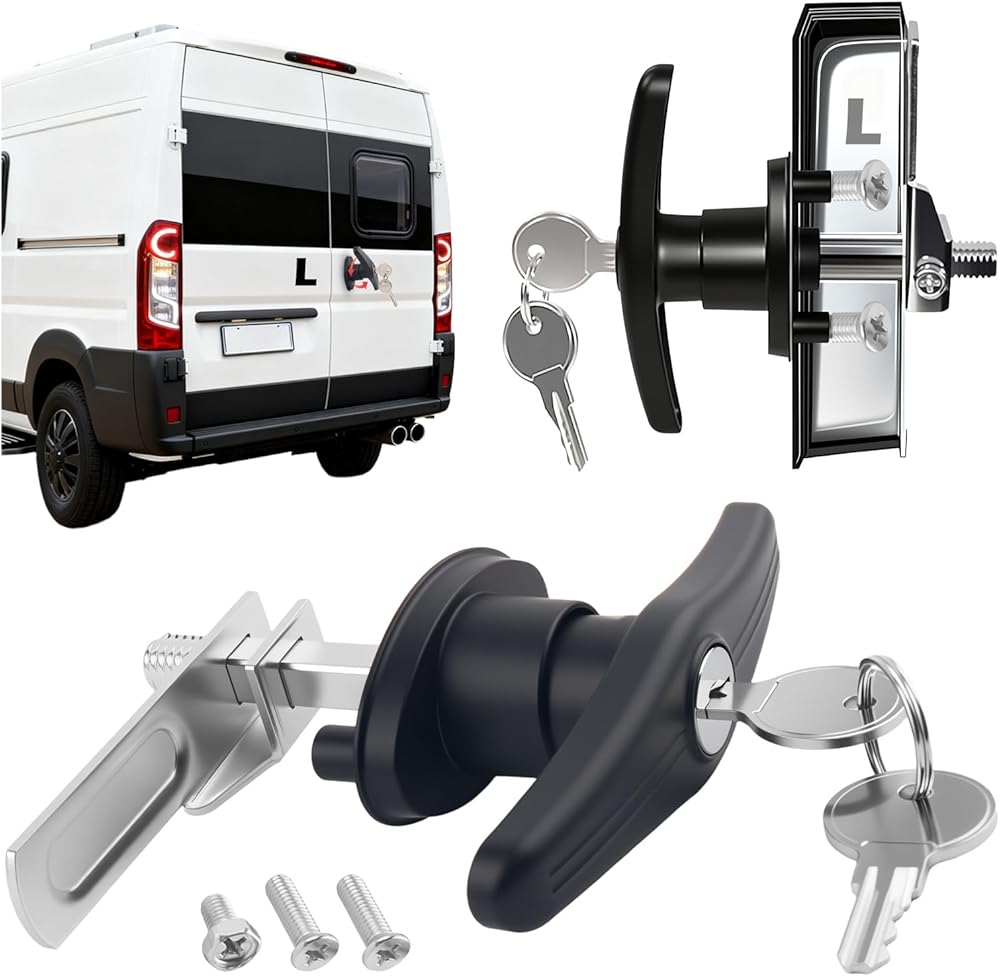

T-HANDLE TRUCK TOPPER LOCK, IDEAL REPLACEMENT ACCESSORY

Product Attributes
Colors: Black
Weight: 9.08 oz
Material: Zinc Alloy, Iron
Packaging: T Handle Lock*1, Lock Cam*1, Key*2, Screw*3 (Long*2, Short*1)

Product Sizes
Long Bolt Thread Length: 1/2 inch
T Handle Lock Sizes:
Total Size: 3.95*3.67*1.34 inch
Length from Bottom of Oval Cover to Bottom of Locking Lever: 2 inch
Distance between Centers of Two Mounting Posts: 1-1/2 inch
Diameter of Mounting Post: 0.31 inch

Mounting Hole Opening Sizes
Center Hole: 5/8 inch
Left and Right Holes: 4 mm

Product Installation
1. Take out the camper shell lock
2. Pre-punch holes, camper shell lock aligns with holes and inserts
3. Take out the screws and fix the camper shell lock
4. Take out the lock cam, take out the corresponding screws and fix it

Product Functions & Features
1. Our truck topper locks are good replacements, please check the style and size carefully before buying, and choose the corresponding left or right lock
2. We use zinc alloy and iron as the main material of truck T handle lock, which gives the lock good sturdiness and durability, enough to support the long-term high-frequency use, and won't be broken accidentally
