Package Includes:

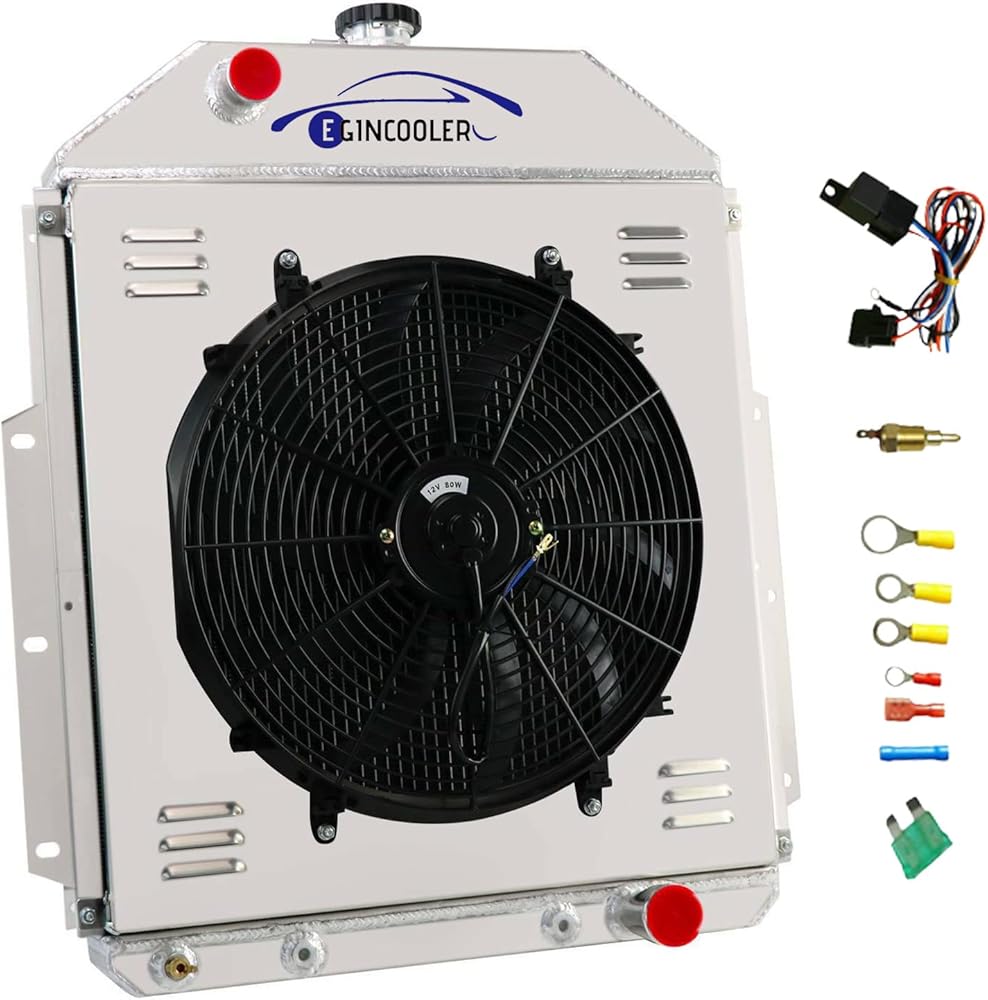

1 X 4-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
1 X 16" Fan (Includes mounting kits)
1 X Thermostat Relay Kit
OE/OEM Part Number: CC4252CH, AE4252CH, EC4252CH
Interchange Part Number: AL091031ANDZ, 091032ANN, 091032AND, 091030SNN
Superseded Part Number: 7-70144, 60305, 70143, 62306, 7-70143, 7-70136, 7-00144
Application:
For Ford F-Series F1 F2 F3 Pickup Chevy V8 Engine 1942-1952
Only For Chevy V8 Engine.Please Check the Inlet & Outlet Location before purchase!

Radiator Configuration:
Material: Full Aluminum
High Performance Racing Spec.
3 Row of tubes Core Racing Design
Core Dimensions : 21 1/2" H x 20 7/8" W
Overall Dimensions : 29 7/8'' x 24 3/4''
Inlet Size: 1 1/2" On Driver Side
Outlet Size: 1 3/4" On Passenger Side
Trans Cooler : ￠26×205×G1/2(P)
OEM style brass petcock drain.
Please Check the Size Before You Buy!

Performance：
T-5057 Aircraft Grade Aluminum
CNC machined filler neck and cap
OEM Style Brass Petcock Drain
Fans Details：
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 16.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Volt ： 12V
Power ：120w
Thermostat Kit:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Advantages:
1. Made from Aircraft 5052 grade aluminum for prolonged lifespan and with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. Billet Aluminum CNC machined fill neck rugged and durable
5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
6. OEM style brass petcock drain much better than other plastic one
7. Carefully crafted to exceptional OE standards for precise fit.
