Products Specifications:

Material:Plastic,Metal
Main Component Size: 225x95x25mm/8.9"x3.7"x1"(L*W*H)
Bracket Height:36mm/1.4"
Bracket Diameter:58mm/2.3"
Bracket Hole Diameter:13mm/0.5"
Positioning Rod Length:40mm/1.6"
Drill Length:49mm/1.9"
Limit Ring Diameter:11mm/0.4"
Wrench Size:102x22mm/4"x0.9" (L*W)
The hinged puncher is suitable for 35mm and 26mm hinge,and supports the mounting screw hole 46-47-48-52 temporarily.
It is easy to use and install,if you are not professional,also you can handle it easily.

Operation method:

1. Insert the hole opener into the bracket and lock the limit ring
2. Adjust the limit file, generally adjust 5 files
3. Insert the limit rod, generally insert the hole on the far side
4. Clamp the main body with a pliers, rotate the bracket clockwise to the main body, and start drilling 35mm holes.
5. Replace the drill bit, the drill bit passes through the small hole on the back side, and the screw hole is drilled.
6. Remove the body and clean the debris
7. Mounting hinges

Please Notes:

All dimensions are measured manually and there may be small deviations.
Keep hands and body clear of sharp edges and moving parts.
Always wear eye protection.
Clamp guide in place during use.

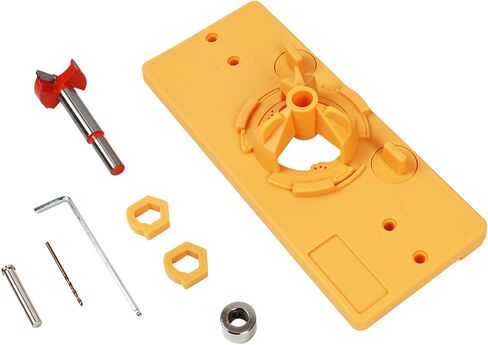

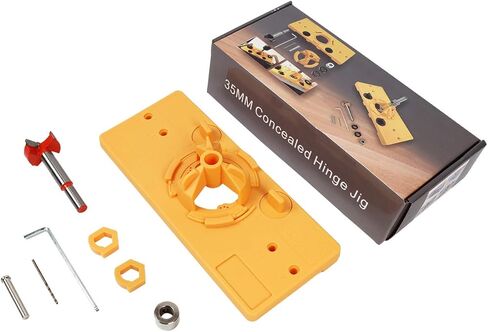

Package Content:

1 x Principal Part
2 x Auxiliary accessories
1 x Bracket
1 x Positioning Rod
1 x Drill
1 x Wrench
1 x 35mm/1.4" Hole Cutter
