HD 52MM 2 IN 1 Dual Digital Gauge Fuel Level Gauge Voltmeter Voltage Meter With Warning Light Fuel Level Sensor 100~525MM For Boat Car Truck 9-32V
PLEASE NOTE
We have Two options
Option 1:1X 2 IN 1 Gauge

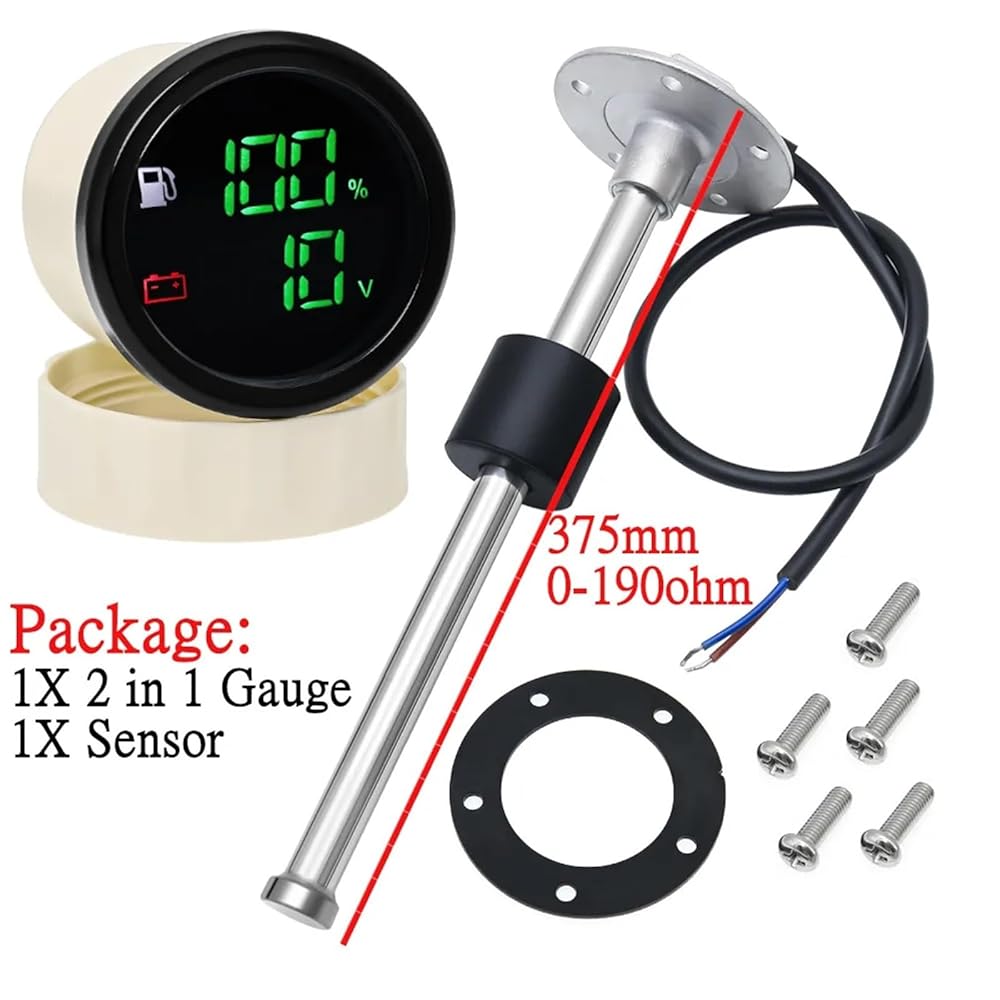

Option 2:Gauge + Sensor

Option 1
1X Gauge
Option 2
1X Fuel Sensor
Dear Friend,If you need to customize other sizes,or other signal, please contact us, thank you very much!
About the Gauge Reading:
The device works, with a little delay (about 20-80 seconds) of changes in the readings. Apparently, it is done in order not to react to the splash of water in the tank.

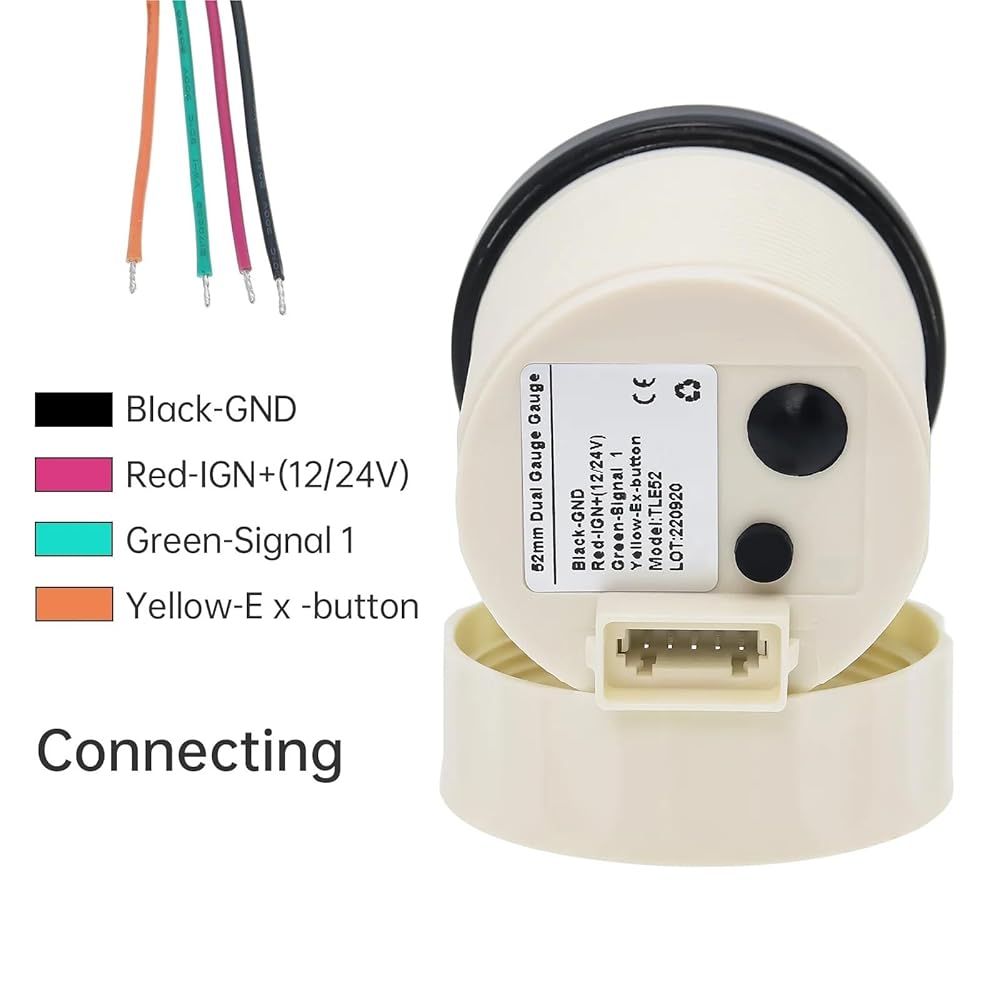

Fuel Water temp Gauge Connection:
black line connect to the negative line,
red line connect to the positive line,
green line connect to the sensor signal line,
yellow line is exchange button line
Feature:
- 52mm diameter Two in One Gauge show with easy installation
- Programmable Input Resistance Ohm Signal to adapt different fuel /water/temperature sensor
0-190, 0-180, 10-180, 240-33, 240-30
- High Resolution View under sunshine

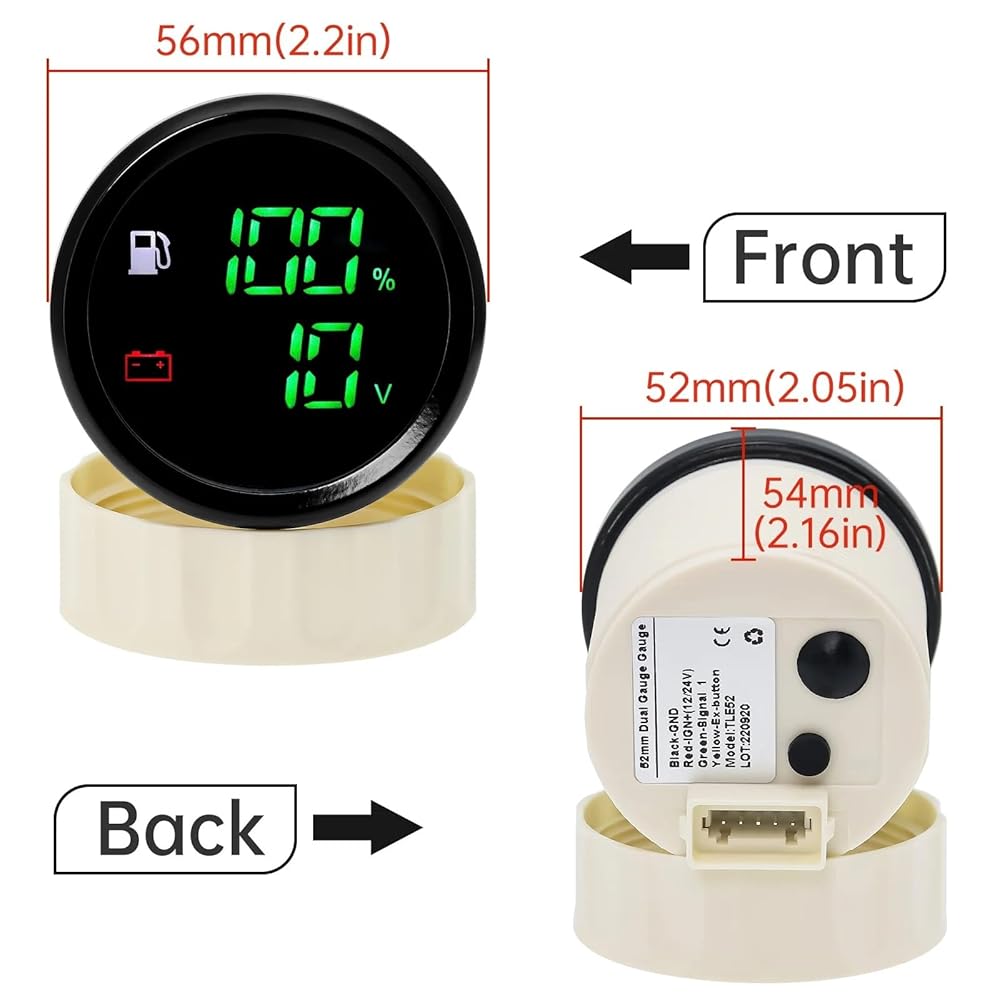

- Installation Diameter: 52mm (2inch)
- Reverse polarity protection and anti-fogging performance
- Working Voltage:12V/24V
- Working temperatures: - 40 to 85°C
- IP66 Waterproof
- Fuel Level Gauge Alarm Set:20%
-Water Temperature Gauge Alarm Set : 98±2
INSTALLATION GUIDE
1. Cut an 52mm (2-1/16") hole in the panel (II) allow a clearance of 55mm (2 3/16"). behind the panel.
2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)
3. Connect cables according to the diagram/label.
Setting Menu:"Unit" "R 1" "R 2"
1.Hold & Press the button Power On Gauge the LED screen will show Switch Show
Unit, R1, R2
2.Unit
Fuel Gauge, Water Level, HTG Sewage Level: %
Water temperature: or
3.R1---Configure Top Row Signal Range
Press Button to switch 000 ~006
For example, LED will show 001, which means 0~180ohm, then release the button and wait digital flash to complete to save setting
4.R2---Configure Top Row Signal Range
Press Button to switch 000 ~006.
For example, LED will show "002" , which means 10~180ohm, then release the button and wait digital flash to complete to save setting

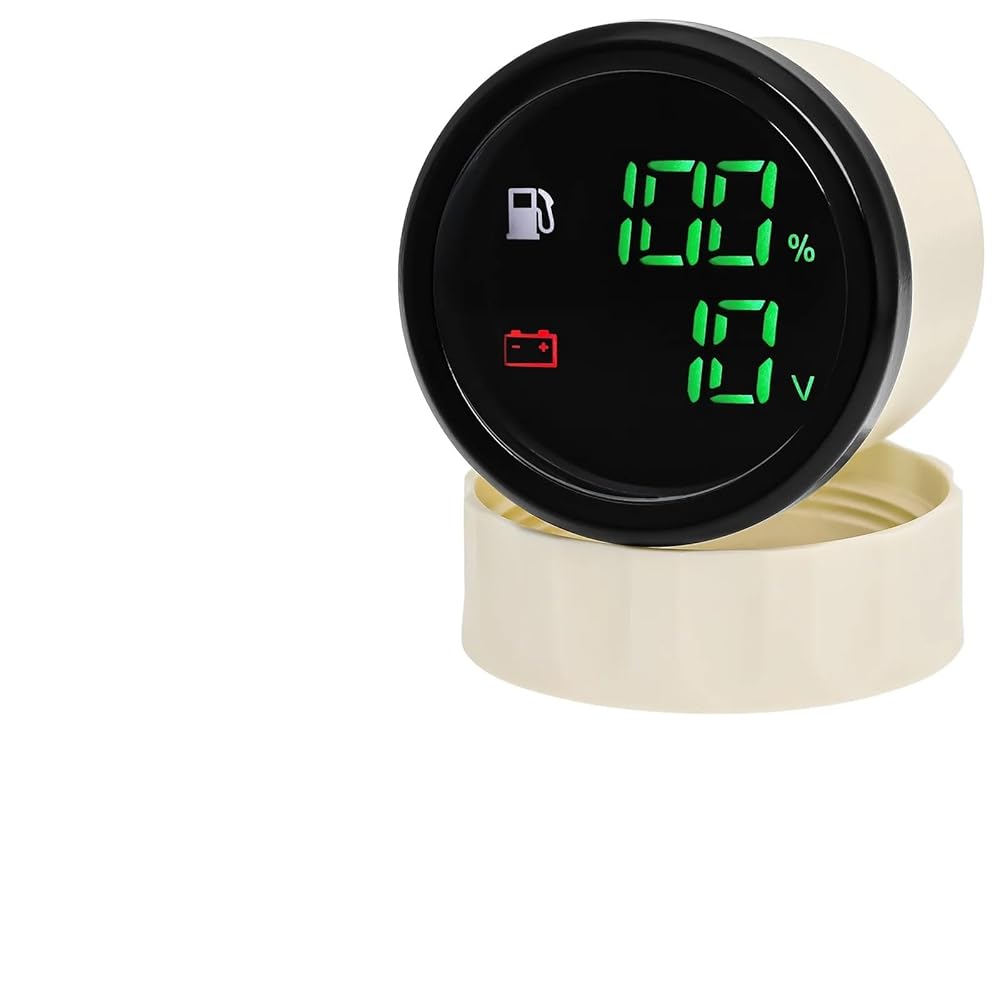

52mm Gauge

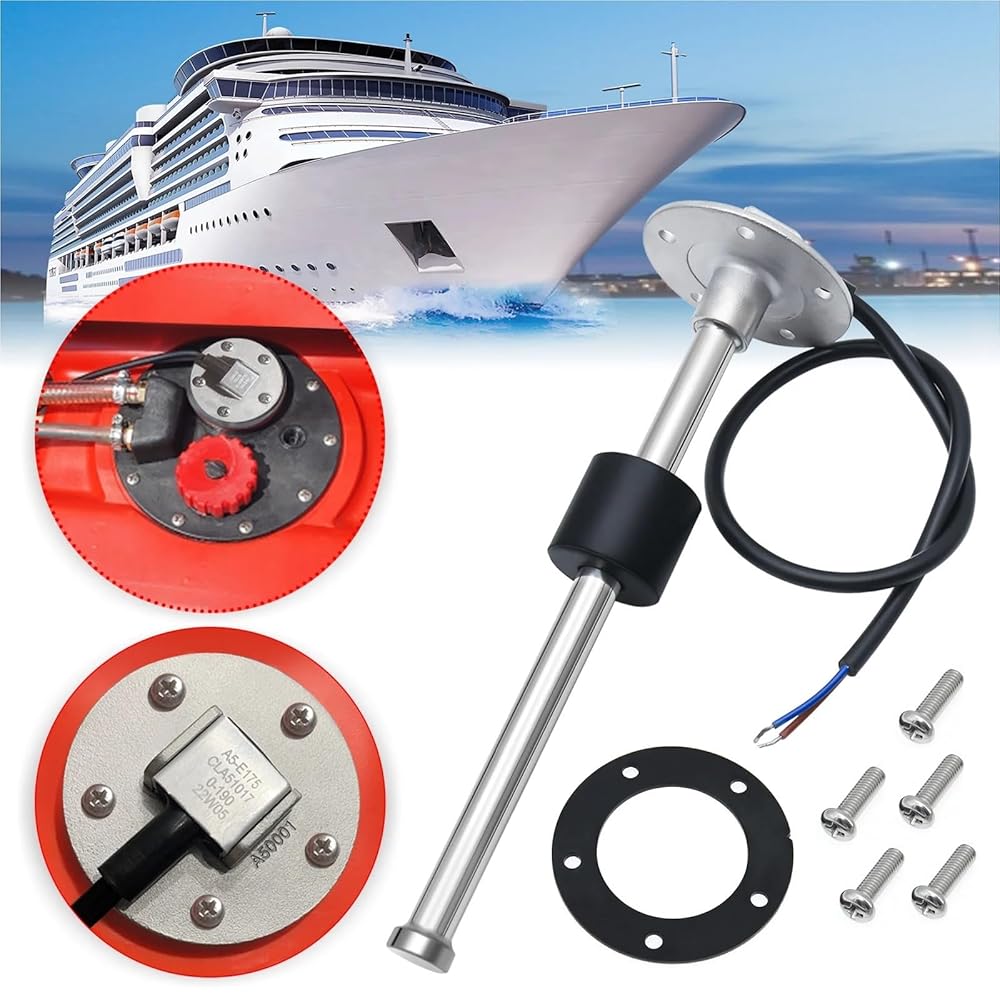

Fuel Level Sensor
How to choose the correct length:
Sensor length = Fuel tank/Water tank height - 10mm
Sensor parameter:
* Resolution range: 21 mm
* Assembly: SAE standard 5 holes
* Operating temperatures: - 40 to 85
* Rated current for alarm switch: 500mA
* Operating temperatures: - 40 to 85 Celsius
* Level Sensor fit for Diesel & Gasoline Engine
Fit for Fuel Level Gauge and Water Level Gauge
Liquid level sensor length:100mm,125mm,150mm,200mm,250mm
300 mm ,350 mm ,400mm,and so on
* Mounting: 5 pieces of M5 screws and 2 mm thick gasket
* Output signal: 0~190 ohm (Standard European), 240~33 ohm (Standard American)
Snesor Package Includes:
1 x Sensor
1 x Gasket
5 x Screws

Sensor length:
100mm,125mm,150mm,175mm,200mm,225mm,250mm,300mm,350mm,400mm,450mm,500mm,550mm,600mm,650mm,and so on
Output signal:
0-190 ohm (Standard European)240-33 ohm (Standard American)Note:

==========
High-concerned chemical : None
Other Part Number : fuel level gauge
Placement on Vehicle : Front

Interchange Part Number : Mini Digital Fuel Meter Motorcycle Gauge
Special Features : 0-190ohm Fuel Gauge
Item Weight : 0.5kg
Item Height : 0
Item Width : 52mm
Item Length : 52mm Boat Fuel Tank Level Gauge
Part Number : Auto Digital Fuel Level Gauge

NO. : Fuel level gauge
Material : stainless steel 316L bezel+anti-fog glass
Item name : 2 In 1 Dual 52mm Fuel Level Temp Gauge
Fuel Level Sensor Signal : 0~190ohm
Type : Fuel Gauges for Auto Boat
feture : Auto Digital Fuel Level Gauge
boat car fuel gauge : fuel level sensor
Application : Car Fuel Gauge for car truck yacht
fuel gauge sending sensor : fit Fuel Level Meter
fuel gauge sending sensor support : Water Liquid Level Gauge Meter
Water Liquid Meter : Car Boat Water Tank Level Gauge
Fuel Sending Unit : fit for Water Level Gauge Fuel level gauge
water level sensor : 100mm~550mm
Assembly : SAE Standard 5 Holes
5 Holes Sensor Support : Fuel Level Gauge, Water Level Gauge
LEVEL SENSOR : boat fuel gauge
water level : fuel level sensor(Optional)
Working VOLT : 9-32V
52mm Fuel Level Gauge : Oil Tank Level Meter Indicator
2" 52mm Dual Gauge : Multi Gauge
52mm Gauge : Green LED Light
car voltmeter : voltage gauge
Fuel Level Sensor Length : 100~525mm(optional)
