مميزات خاصة

【750KV High-Efficiency Performance】Provides an optimal balance of speed and torque for 3-6S LiPo batteries, delivering powerful, efficient thrust for 11-13 inch propellers, ideal for long-range flight, freestyle, and heavy-lift applications.
【Robust Construction & Advanced Cooling】Features a CNC machined aluminum front housing with integrated fan-style cooling holes that actively circulate air during operation, combined with high-temperature NdFeB magnets and 140°C rated windings for reliable, sustained high-power use.
【Precision Engineering for Smooth Flight】Utilizes Japanese shielded ball bearings, a balanced rotor, and epoxy-coated 0.20mm stator laminations to ensure exceptionally smooth, vibration-free operation—critical for stable aerial photography and FPV footage.
【Versatile Mounting & Easy Installation】Includes dual mounting hole patterns (16mm and 19mm spacings) for broad frame compatibility. Comes with pre-soldered, flexible 330mm long silicone wires (16AWG) for easy ESC connection and tidy builds.
【Optimized for Multi-Rotor Payload Drones】With a compact 50x10mm stator size, lightweight 108g design, and high torque output, this motor is perfectly suited for quadcopter, hexacopter, and octocopter builds capable of carrying payloads up to ~1.5kg.

وصف

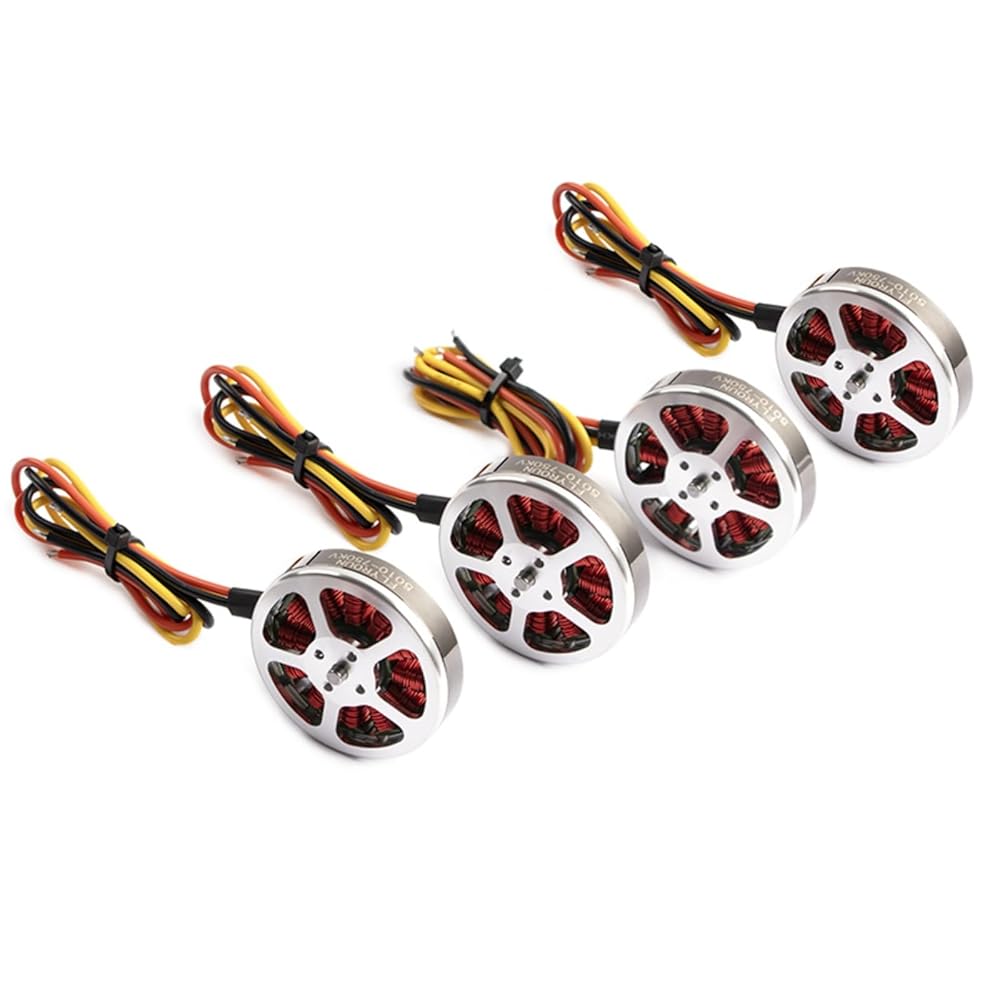

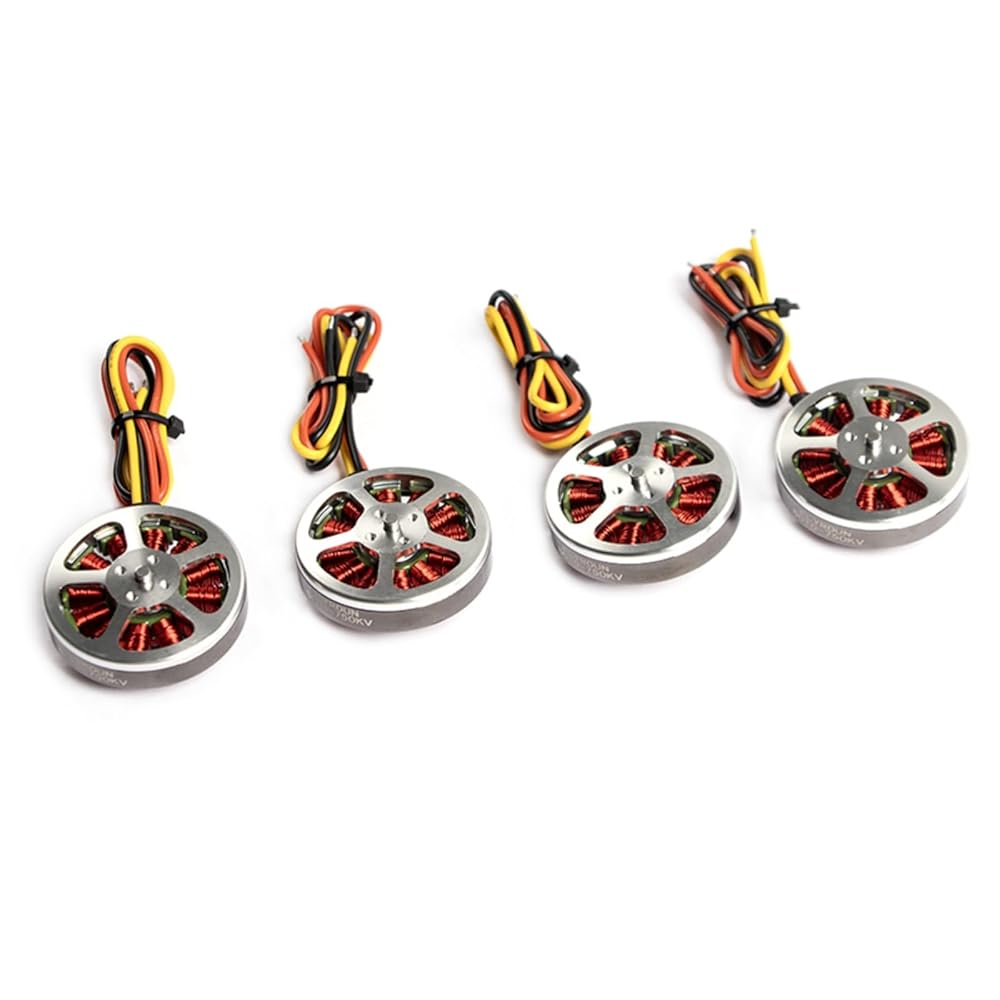

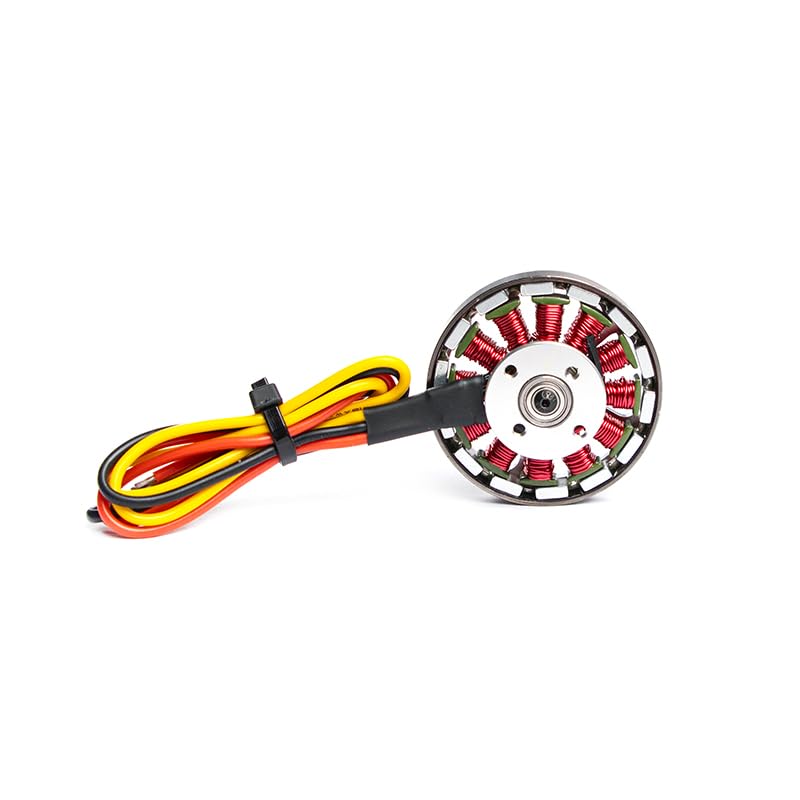

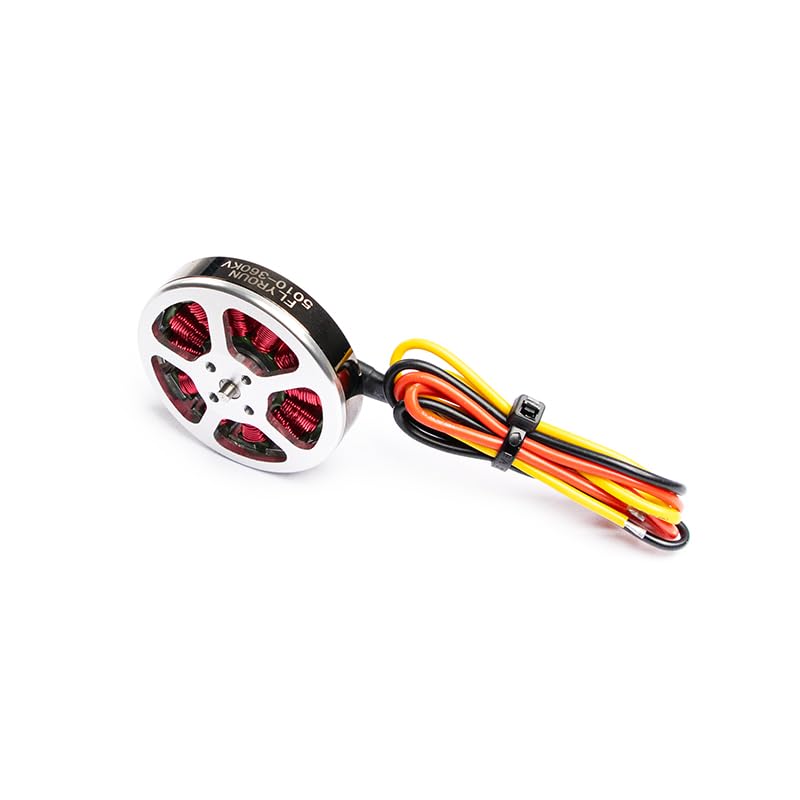

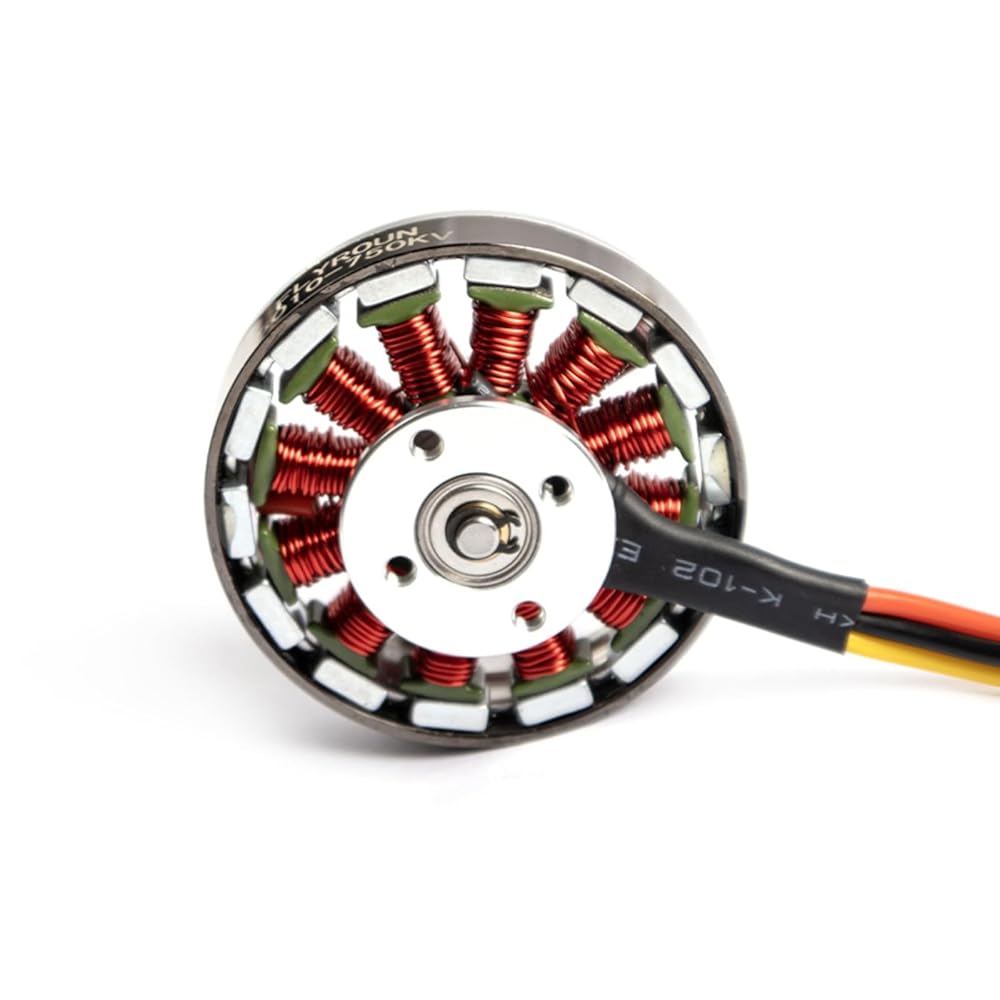

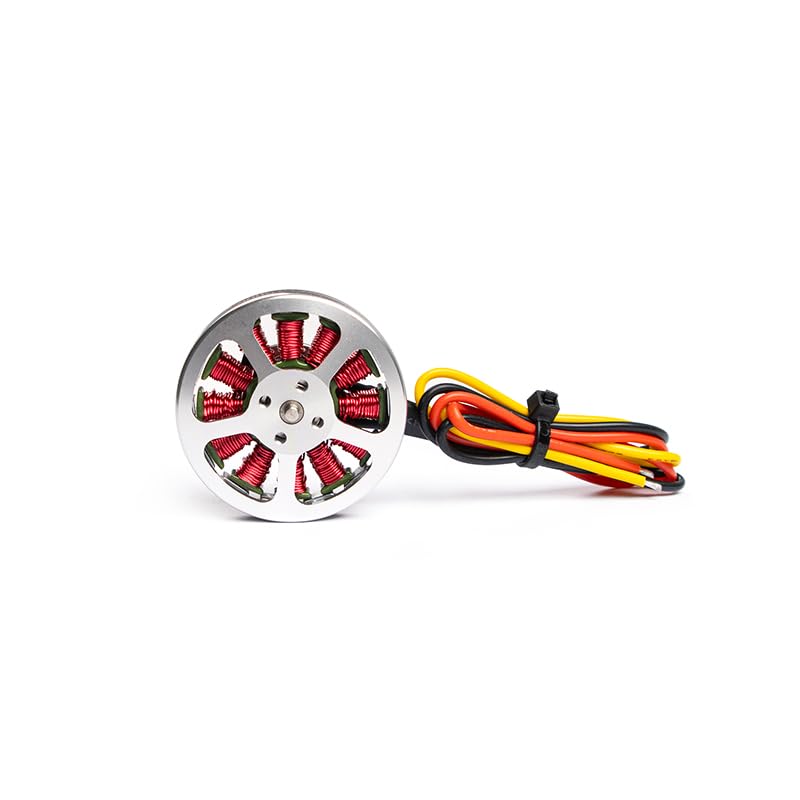

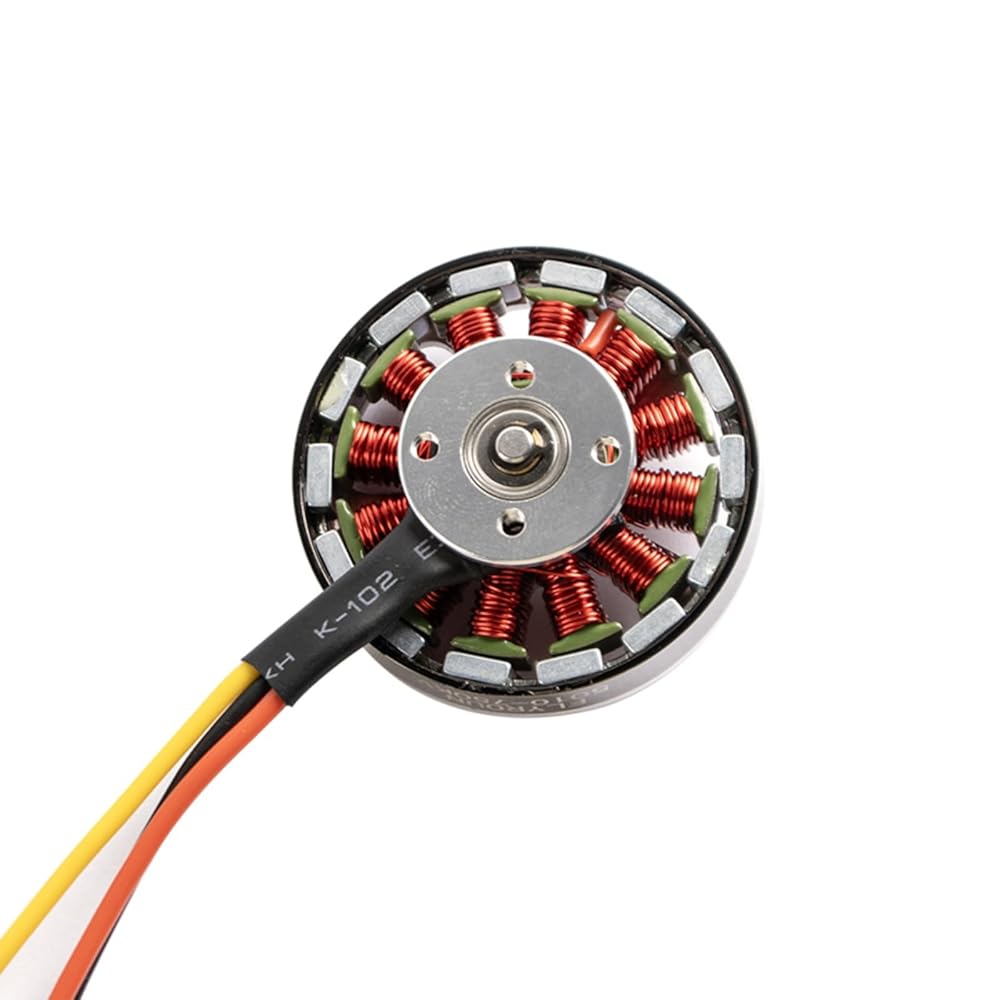

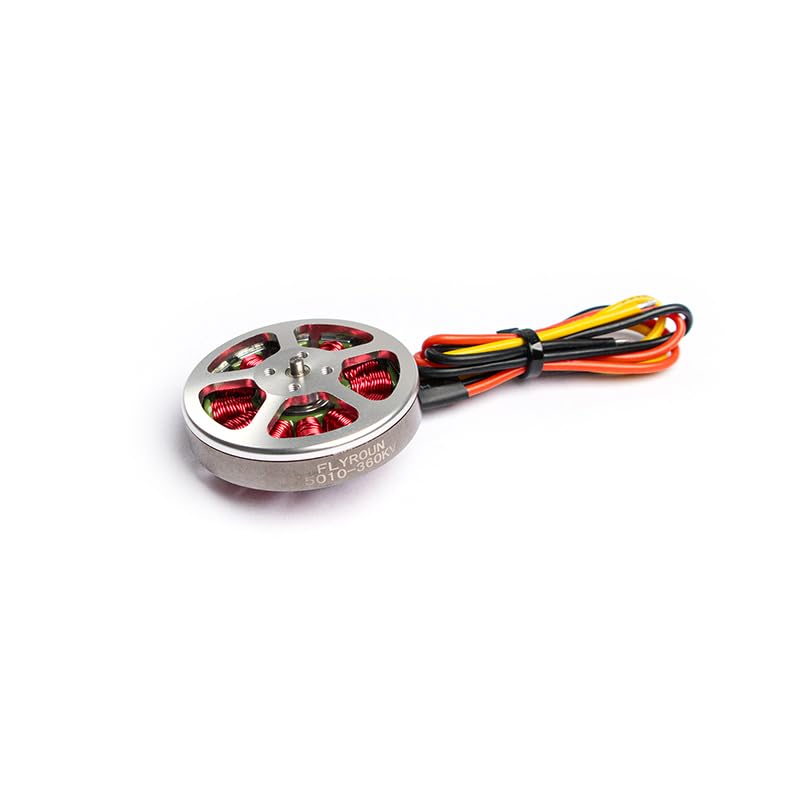

5010 750KV Brushless Motor – The Versatile Powerhouse for Long-Range and Payload Drones

Engineered for pilots who need a reliable, high-torque motor for extended flight and moderate payloads, the 5010 750KV strikes the perfect balance between power, efficiency, and durability. Whether you're building a long-range FPV explorer, a steady aerial photography platform, or a versatile multirotor for light commercial work, this motor delivers consistent performance across a wide range of applications.

Key Features
Intelligent Thermal Management: The unique aluminum housing isn't just for looks—its fan-style holes create an active airflow system, significantly improving heat dissipation during prolonged high-throttle operation and increasing motor longevity.

Professional-Grade Internal Components: From the high-temperature adhesive securing the windings to the precision Japanese bearings, every detail is chosen for reliability. The epoxy-coated stator prevents short circuits, ensuring stable electrical performance.

Plug-and-Play Convenience: The generous 330mm wire length allows for flexible ESC placement, reducing the need for extensions. The dual (16mm & 19mm) mounting pattern ensures compatibility with a vast array of large drone frames.

Payload-Oriented Design: The 750KV rating provides substantial low-RPM torque, making it efficient for lifting payloads (up to approximately 1.5kg total per multirotor) while maintaining good flight times on 4S-6S battery systems.

Technical Specifications
Model: 5010

KV Rating: 750KV

Stator Dimensions: 50mm x 10mm

Weight: Approx. 108g

Shaft Diameter: 4mm

Input Voltage: 3-6S LiPo (11.1V - 25.2V)

Max Current / Recommended ESC: 20-40A (Optimal: 30A)

Mounting Hole Patterns: 16mm x 16mm & 19mm x 19mm

Wire: 16AWG High-Temp Silicone, 330mm length

Max Payload Recommendation (Per Motor): ~1.5kg on a multirotor configuration

Recommended For
Long-range & endurance FPV drones

Aerial photography & cinematography platforms (quad, hexa, octocopter)

Light commercial payload carriers (e.g., mapping, light spraying)

Heavy-lift freestyle and exploration builds

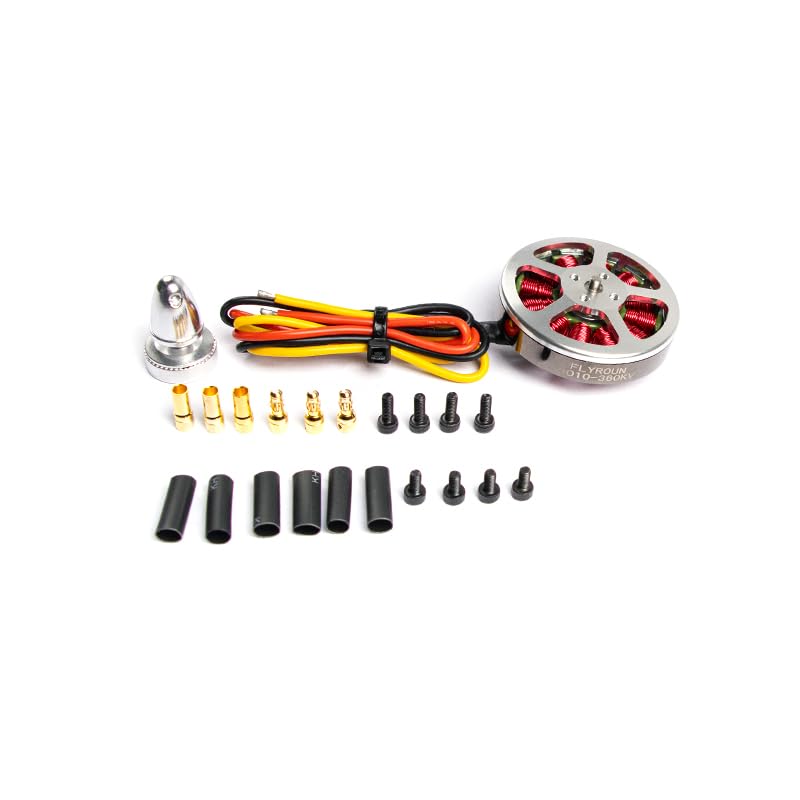

Package Includes
1 x 5010 750KV Brushless Motor
