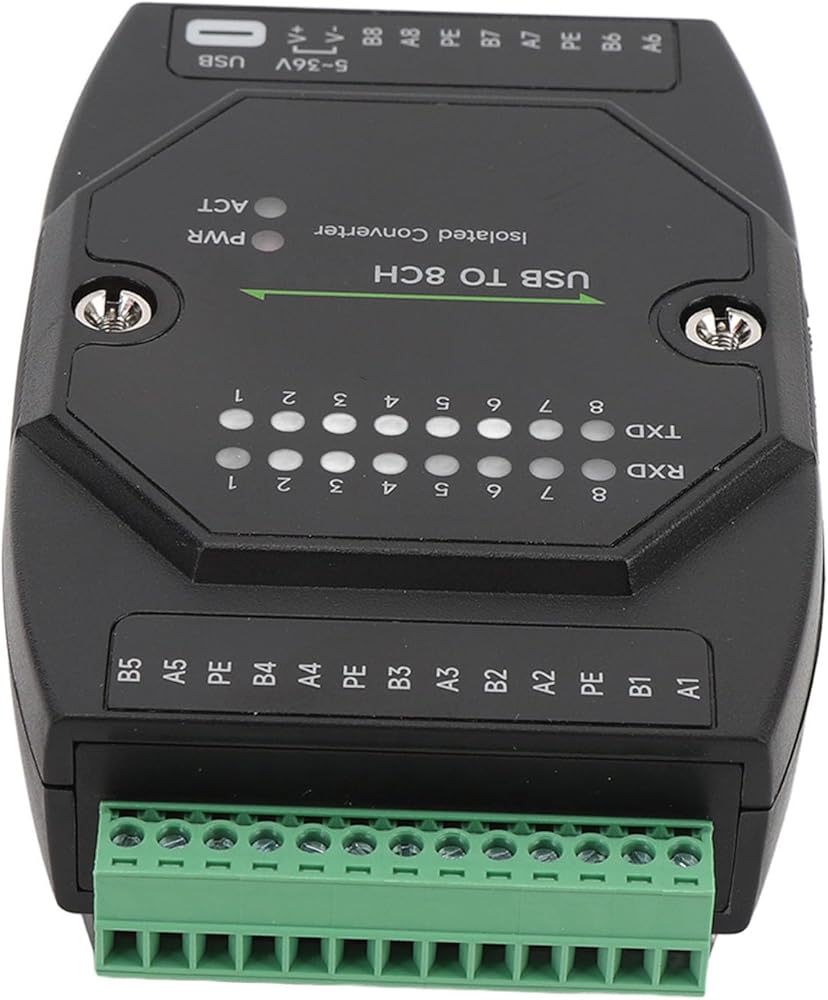

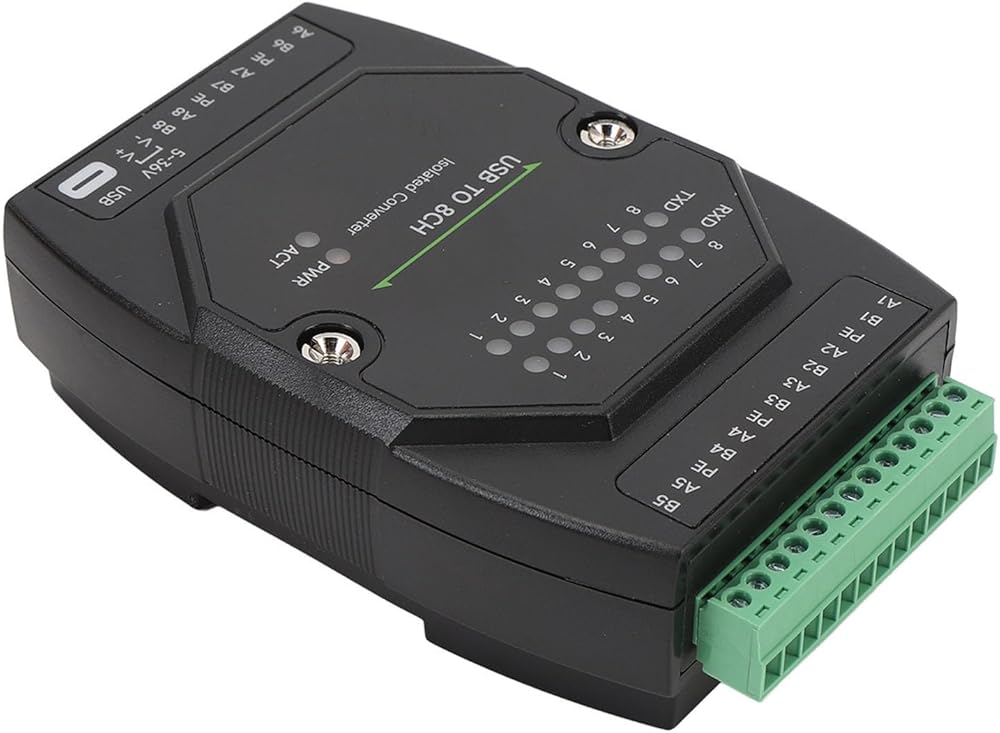

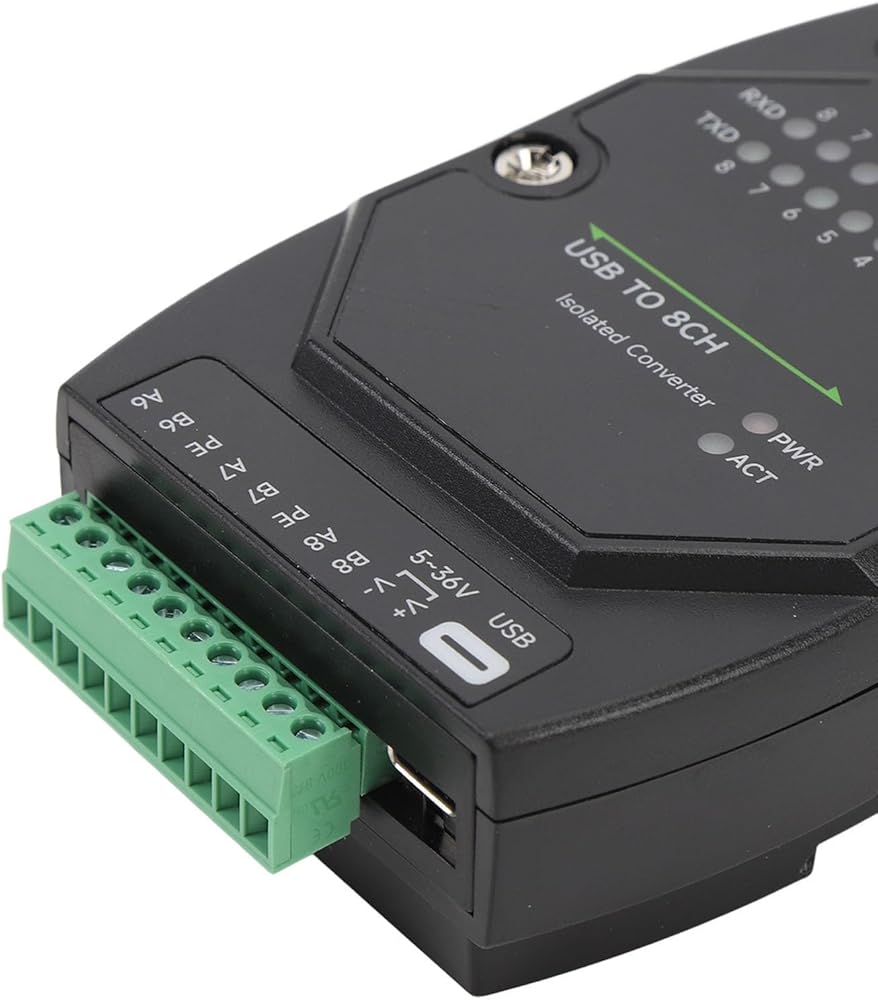

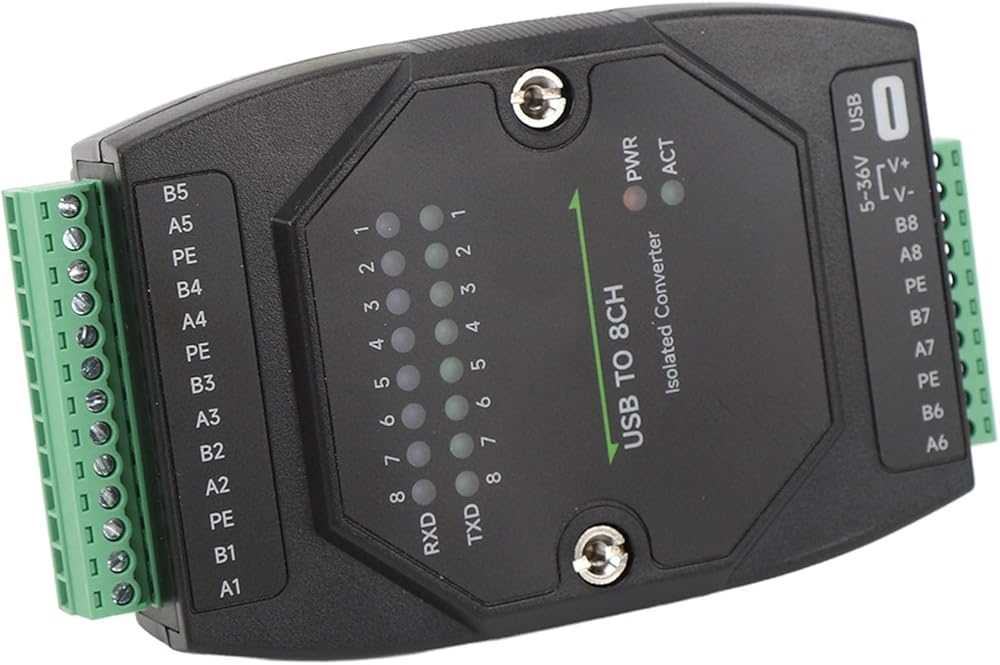

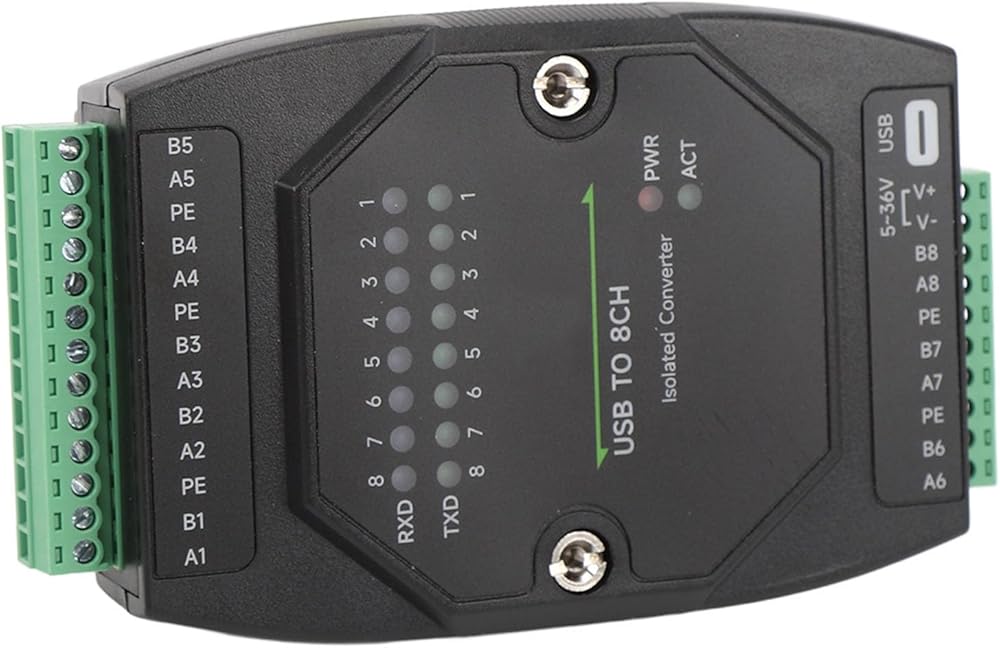

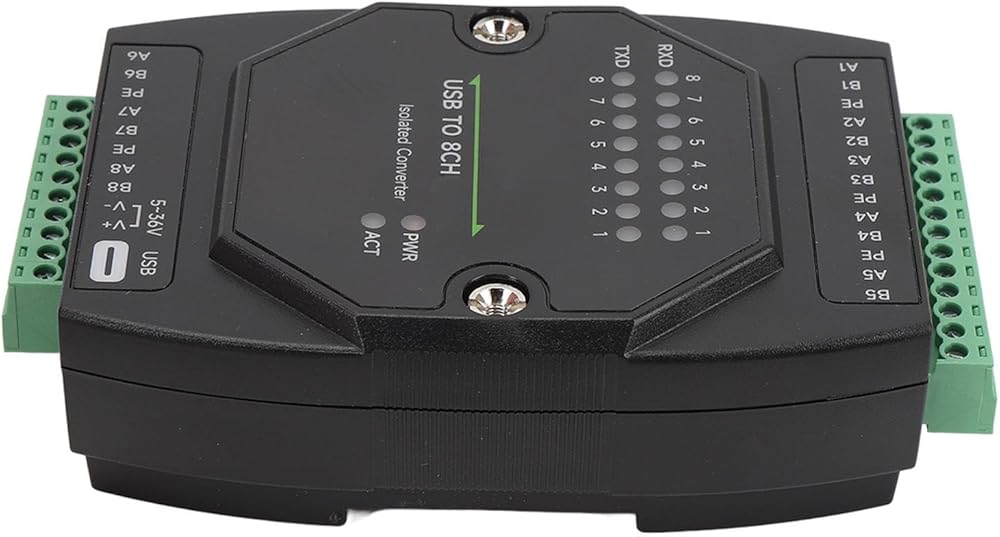

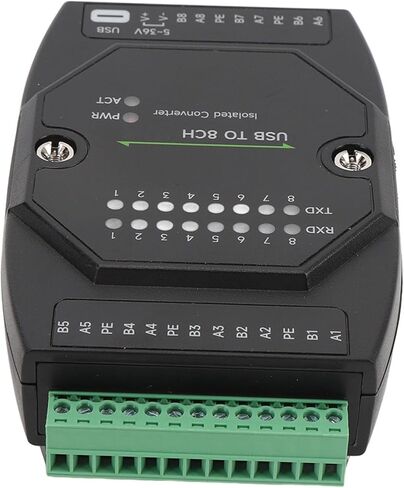

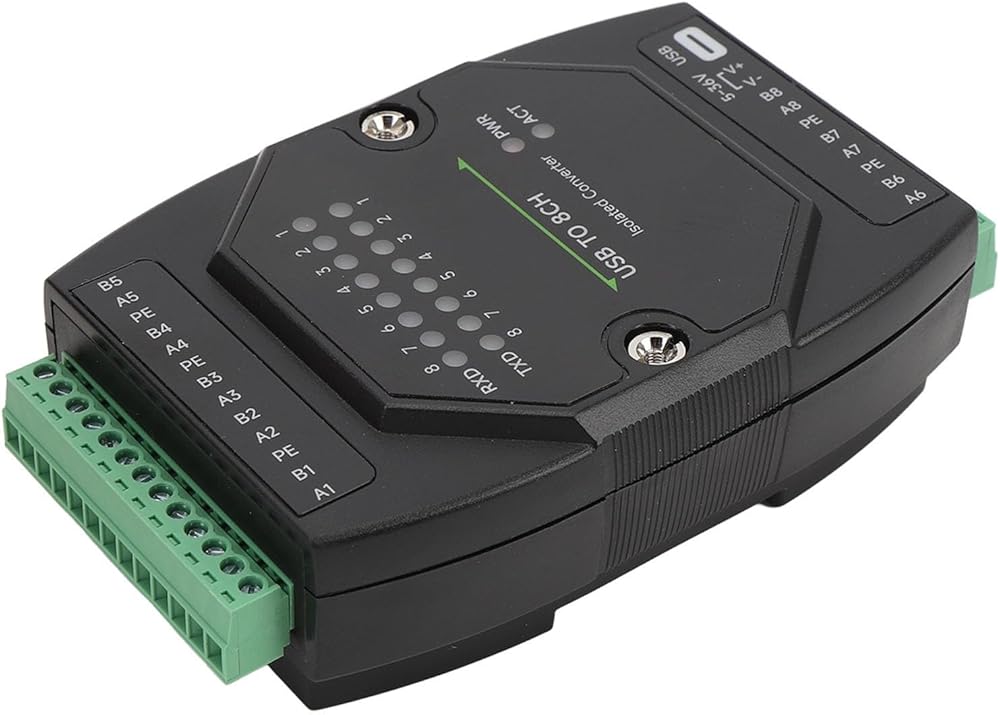

1. 8 Port RS485 Converter: Supports USB expansion with 8 channel isolated RS485 communicating interface, making it convenient for users to access multiple RS485 serial devices.
2. Convenient Power Supply: Supports USB Type C supply, and also reserves 5V to 36V DC wide voltage auxiliary power supply interface.
3. Isolated Design: Onboard integrated power isolation, providing stable isolation voltage; Onboard integrated digital isolation, capable of signal isolation, with high reliability, strong anti interference, low power consumption.

Specification:
Item Type: USB to RS485 Converter
Material: ABS
Operating Voltage: 5V
Interface Type: USB C
Interface Protecting: 200mA self recovery fuse, isolated output
Transfer Distance: About 5 meters
Interface Form: Terminal block
Directional Control: Hardware automatic discrimination and control of data transfer direction
Interface Protecting: Provides 600W surge protecting, and 15KV electrostatic protecting (onboard 120R balance resistor)
Transfer Distance: About 1200 meters (in low speed situations)
Transfer Mode: Point to multi (up to 32 nodes, recommended to add a repeater for more than 16 nodes)
Communicating Speed: 1200bps to 921600bps
PWR: Power indicator light, connected to USB, red light on when voltage is detected
ACT: Status indicator light, green light on when driver is detected
TXD: Send indicator light, green light on when data is sent from the USB port
RXD: Receive indicator light, blue light on when data is sent back from the corresponding device port
Operating System: for OS X, for , for , for 11 10 8.1 8 7

How to Use:
Install and use.

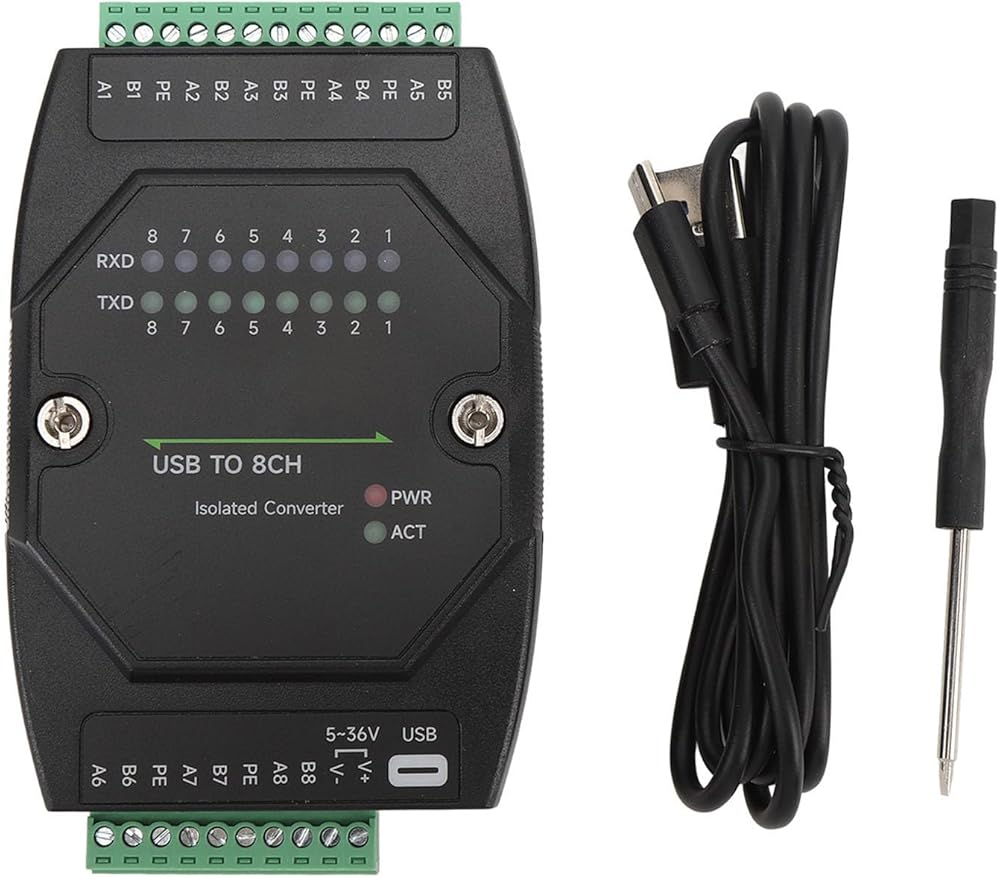

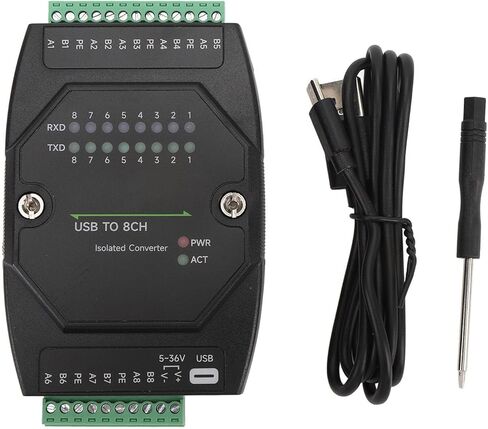

packing list:
1 x USB to RS485 Converter
1 x Screwdriver
1 x USB Cable
