⦁ Reminder:
⦁ Machine model:Nano-N3322
⦁ Chassis color: Metal ash
⦁ Chassis material:High quality all-aluminum alloy
⦁ Processor:On-board Intel Core I7-1255U (10 cores and 12 threads, with a turbo frequency of 4.7GHz)
⦁ Memory: Support 1*DDR5 4800 SODIMM memory slot, up to 32GB
⦁ BIOS:AMI EFI BIOS
⦁ Display chip:Intel(R)UHD Graphics
⦁ Display interface:3*HDMI high-definition display interfaces, supporting synchronous/asynchronous three displays, and the resolution can reach 4096×2160

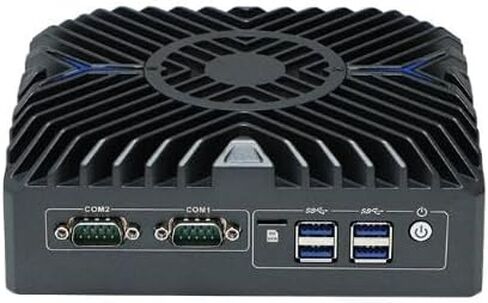

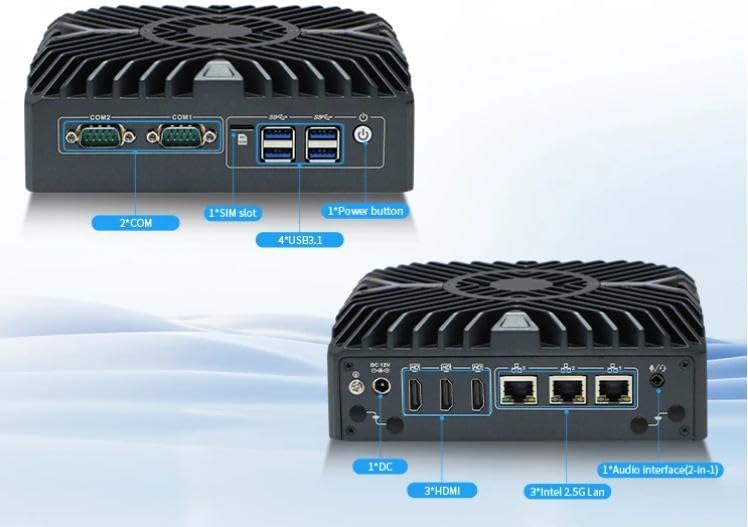

⦁ Front panel l/O port: 2*COM ports (optional RS232/485 mode), 1*SIM card holder, 4*USB3.1, and 1*power-on button

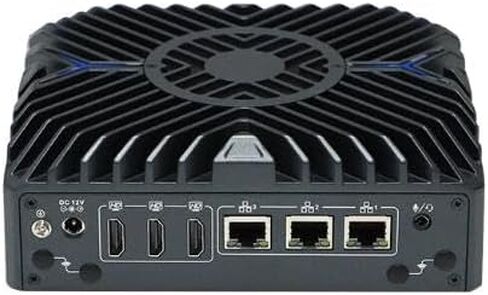

⦁ Back panel I/O port :1*DC interface, 3*HDMI interfaces, 3*2.5G network ports, 1*2-in-1 audio interface and 4*antenna holes.
⦁ Expansion slot :
Support 1* M.2 2280 M-Key slot (NVME protocol)
Support 1*M.2 3052B-key slot (USB3.0 signal, support 4G/5G) and external SIM card slot
Suppor 1*M.2 2230E-key slot (supporting WIFI and bluetooth)
⦁ Network interface:3*lntel i225-V 100/1000/2500M Ethernet
⦁ Memory interface:Support 1*M.2 2280 slot and 1*2.5-inch hard disk
⦁ Input voltage:Support DC12V input
⦁ Other functions:Power-on boot, timed boot, network wake-up, PXE boot, watchdog (level 0 ~ 255), TPM2.0 security encryption

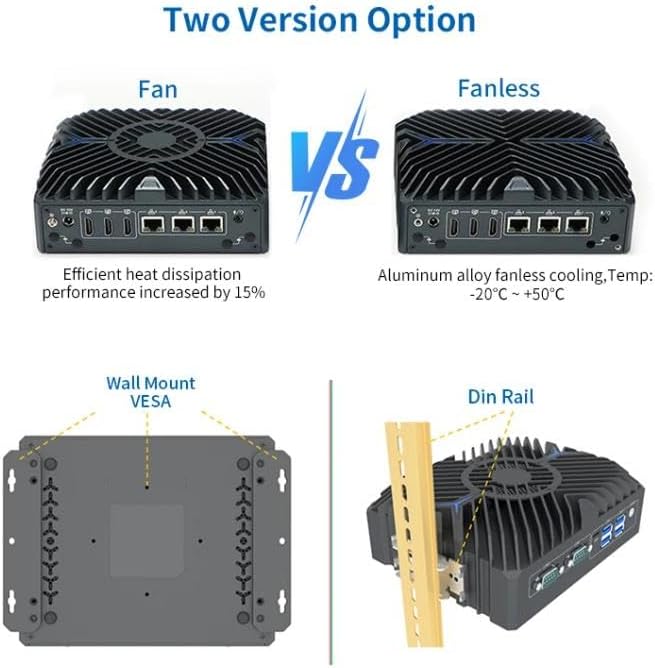

⦁ Working temperature:0C~+40℃ (commercial HDD), -20℃~+50℃ (industrial SSD), with surface air flowing
⦁ Working humidity:5% ~ 95% non-condensed state
⦁ Product size: 170*140*58 mm
⦁ Overall weight:1.1 kg
⦁ Application area:Industrial control, industrial automation, robotics, Internet of Things, edge computing, machine vision, AGV/AMR, etc.
