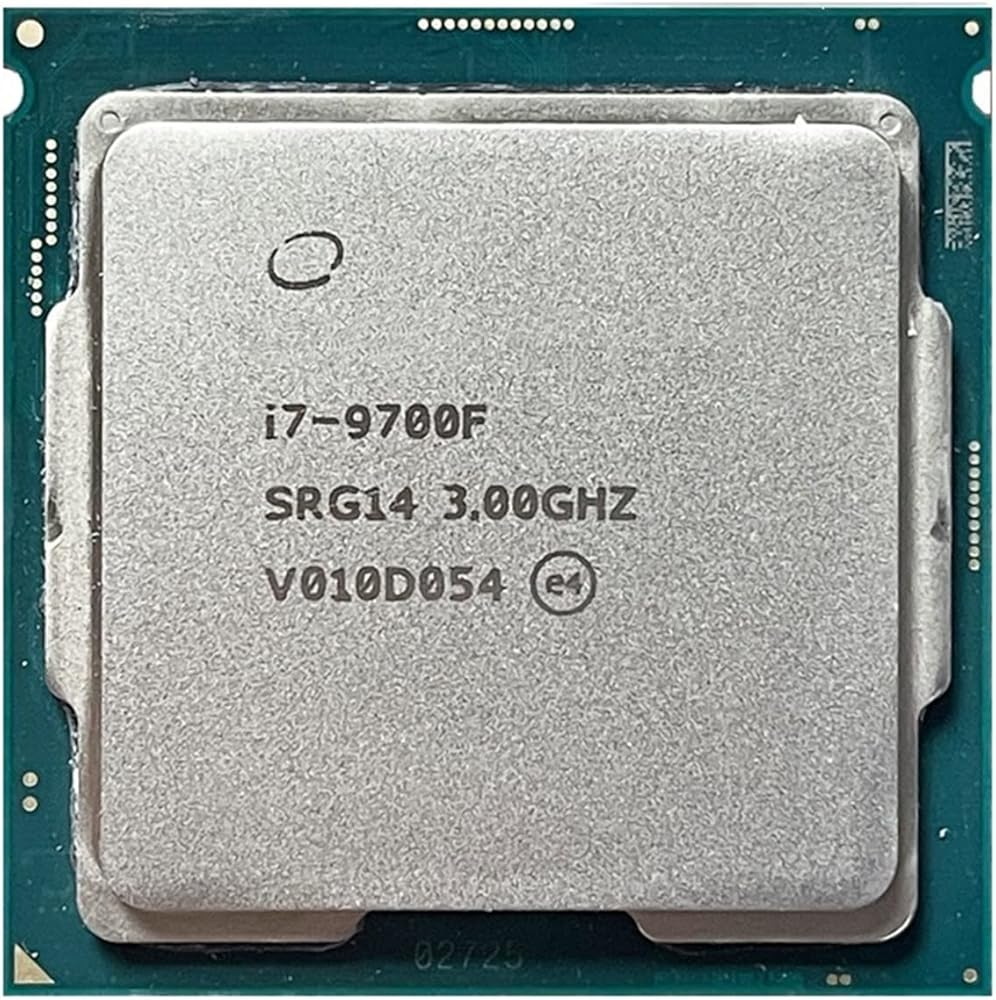

I7-9700F specifications
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
i7
Model number ?
i7-9700F
CPU part numbers
CM8068403874523 is an OEM/tray microprocessor
BX80684I79700F is a boxed processor (English version)
BXC80684I79700F is a boxed processor (Chinese version)
Frequency ?
3000 MHz
Maximum turbo frequency
4700 MHz
Bus speed ?
8 GT/sDMI
Clock multiplier ?
30
Package
1151-land Flip-Chip Land Grid Array
Socket
Socket 1151 / H4 / LGA1151
Size
1.48" x 1.48" / 3.75cm x 3.75cm
Introduction date
2nd quarter 2019
Price at introduction
Part number
ES/QS processors
Architecture / Microarchitecture
Microarchitecture
Coffee Lake
Processor c ?
Coffee Lake-S
c stepping ?
R0 (QRNK, SRG14)
Manufacturing process
0.014 micron
Data width
64 bit
The number of CPU cores
8
The number of threads
8
Floating Point Unit
Integrated
Level 1 cache size ?
8 x 32 KB 8-way set associative instruction caches
8 x 32 KB 8-way set associative data caches
Level 2 cache size ?
8 x 256 KB 4-way set associative caches
Level 3 cache size
12 MB 12-way set associative shared cache
Physical memory
128 GB
Multiprocessing
Uniprocessor
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
EM64T / Extended Memory 64 technology / I 64 ?
VT-x / Virtualization technology ?
VT-d / Virtualization for directed I/O
TBT 2.0 / Turbo Boost technology 2.0 ?
TSX / Transactional Synchronization Extensions
Security Features
NX / XD / Execute disable bit ?
MPX / Memory Protection Extensions
SGX / Software Guard Extensions
SMAP / Supervisor Mode Access Prevention
SMEP / Secure Mode Execution Protection
Low power features
c C1/C1E, C3, C6, C7, C8, C9 and C10 states
Package C2, C3, C6, C7, C8, C9 and C10 states
Enhanced / technology ?
Integrated peripherals / components
Integrated graphics
None
Memory controller
The number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR4-2666
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 42.7
Other peripherals
Direct Media Interface 3.0 (4 lanes)
PCI Express 3.0 interface (16 lanes)
Electrical / Thermal parameters
Maximum operating temperature ?
100°C
Thermal Design Power ?
65 Watt
