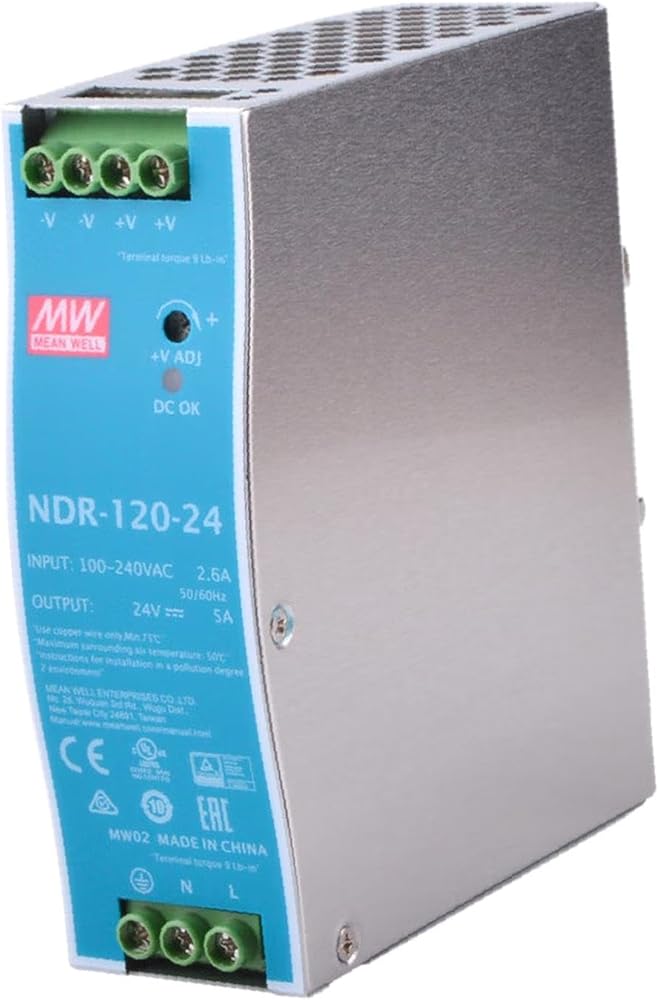

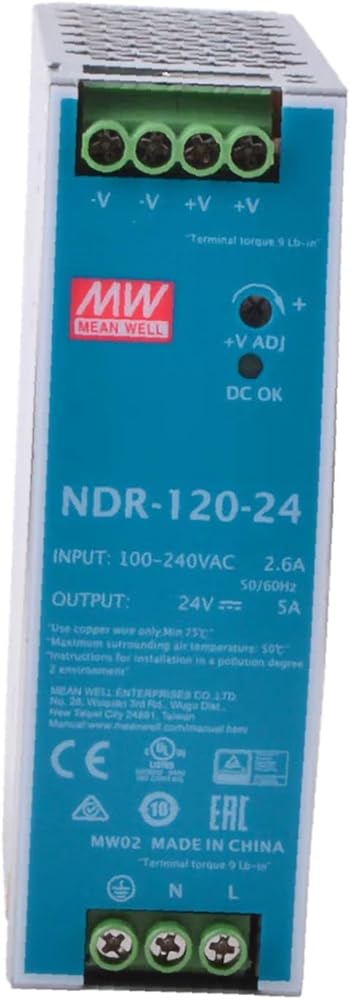

The NDR-120-24 is a professional-grade 120W switching power supply designed for demanding industrial and commercial applications. This AC/DC converter accepts wide-range 85-264VAC input (47-63Hz) and delivers precisely regulated 24VDC output at 5A current with ±1% voltage stability. Engineered with full-protection circuitry including over-voltage (27-30V cutoff), over-current (5.5-7A range), and short-circuit safeguards, it ensures uninterrupted operation for CNC machines, LED video walls, and access control systems.

Featuring a rugged steel enclosure with natural air cooling (fan-assisted at >45°C), the unit achieves IP20 protection against dust ingress. Its compact footprint (7.83×3.86×1.5in) allows installation in space-constrained racks or control cabinets. The power supply demonstrates exceptional efficiency with

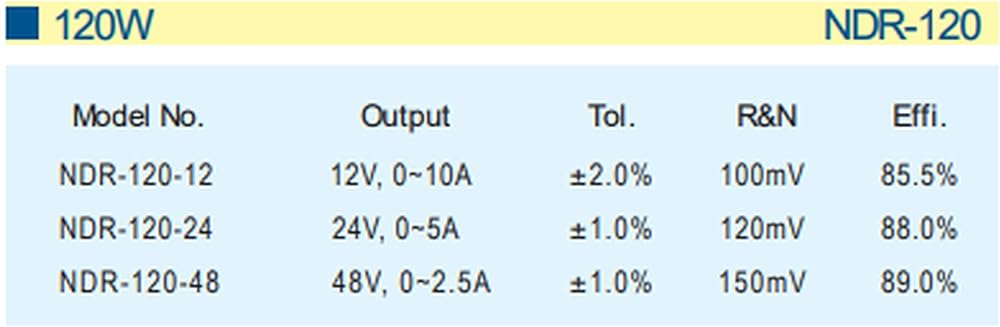

Technical Specifications:

- Input: 85-264VAC/120-370VDC

- Output: 24VDC ±1% (5A continuous, 7A peak)

- Efficiency: 87% typical (230VAC)

- MTBF: >500,000 hours at 25°C

- Safety: UL62368-1, CE, FCC Class B

- Protections: OVP/OCP/SCP/OTP

- Certifications: RoHS, REACH compliant

Ideal for powering industrial PLCs, stage lighting, surveillance NVRs, and MED- devices requiring stable DC power. Includes screw terminals for secure wiring and supports parallel operation for higher power needs. Backed by comprehensive EMC testing and global safety approvals for worry-free integration into professional installations.
