Overview

The RGB Matrix Adapter Board (E) is a high-performance LED panel driver board designed exclusively for the ESP32-S3-DevKitC-1 and ESP32-DevKitC V4 development boards. With optimized
signal transmission and power management, it provides a reliable foundation for building RGB LED matrix displays.

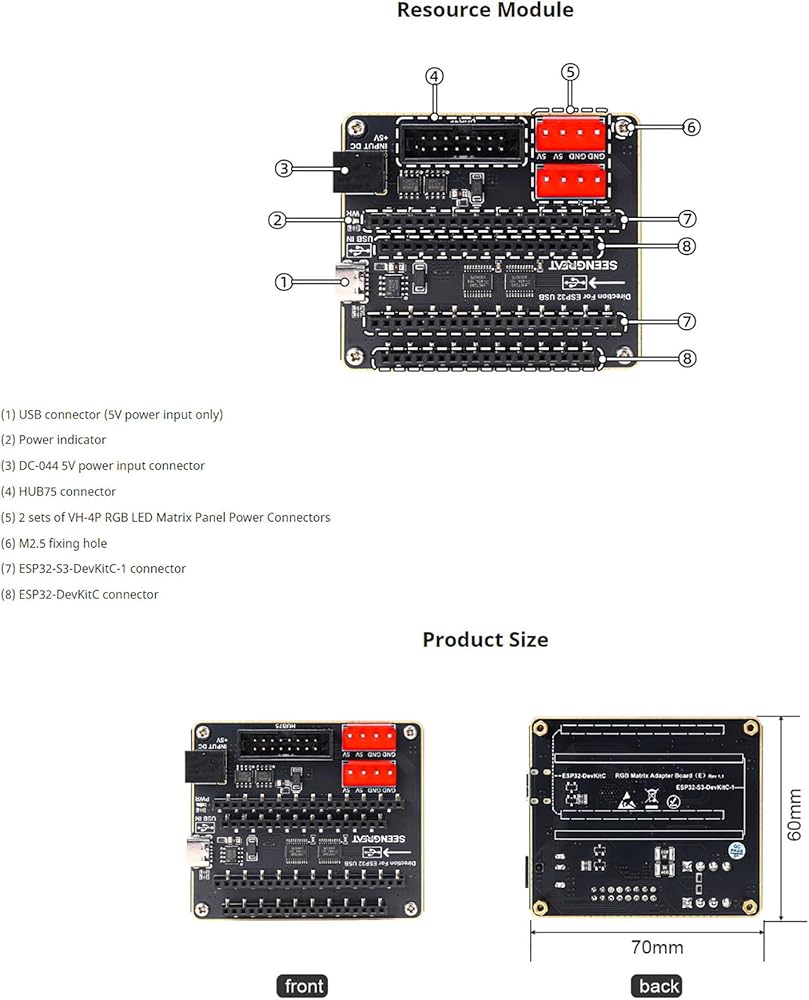

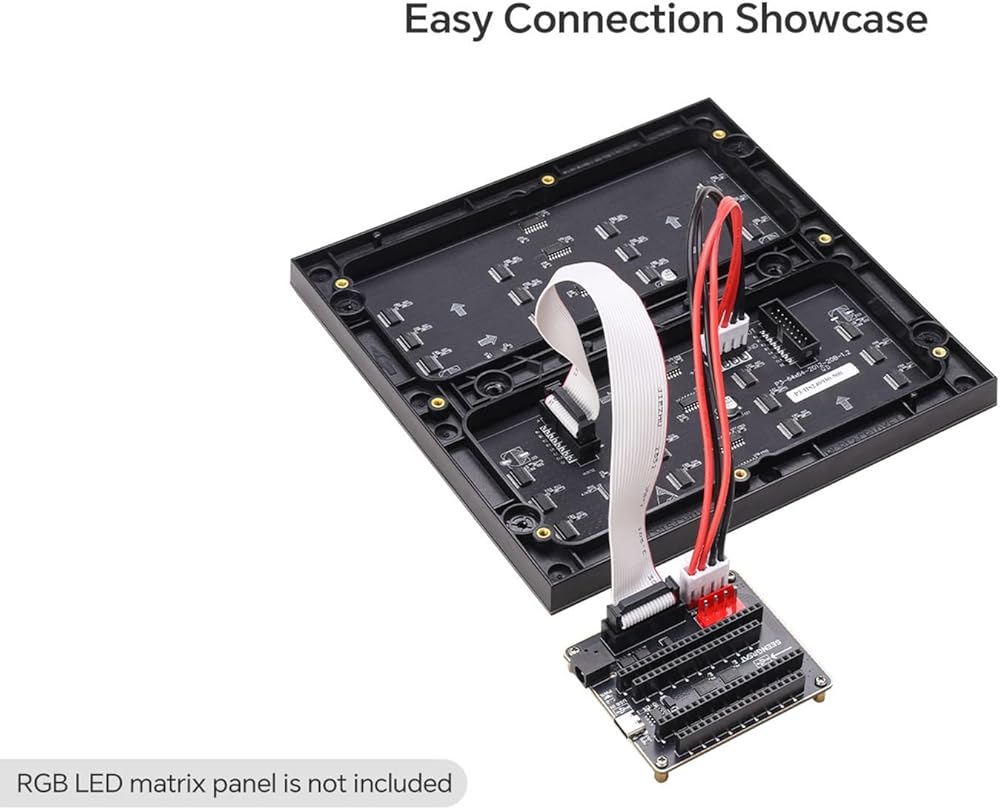

The adapter includes a standard HUB75 connector and dual VH-4P (3.96mm pitch) power connectors, making it compatible with common RGB LED matrix panels. This allows developers to easily
build projects that display text, images, graphics, and animations.

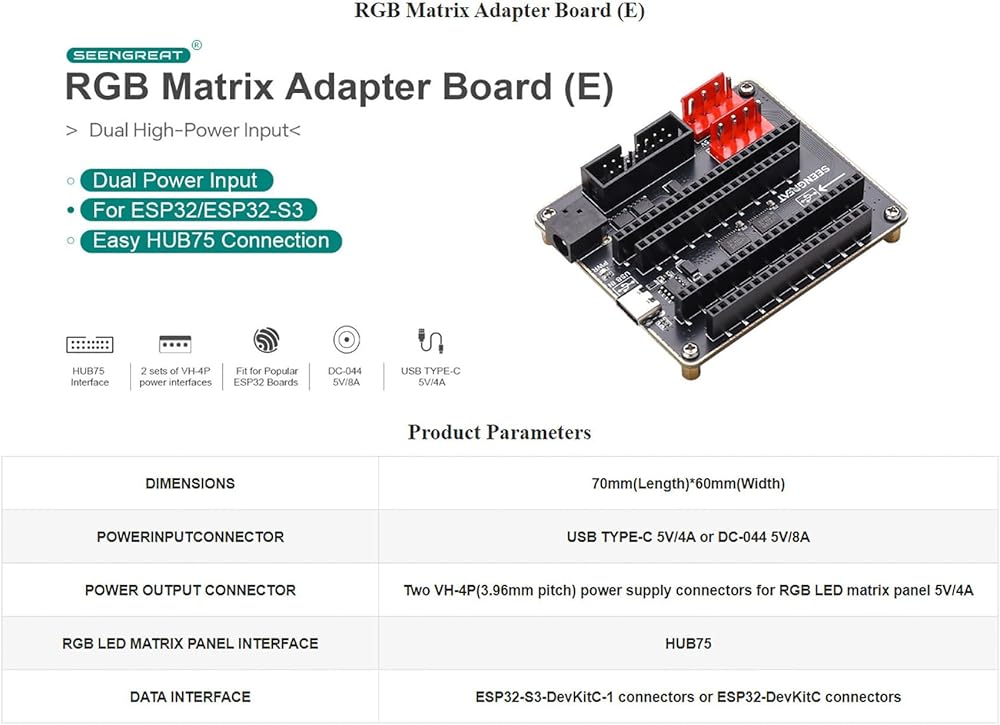

Power stability is a key design feature. The board supports dual input options: USB Type-C (5V/4A) and DC-044 barrel jack (5V/8A), delivering consistent and safe operation even for high-current
RGB panels.

To improve reliability and aesthetics, the RGB matrix adapter board features a gold-plated edge finish, ensuring durability, corrosion resistance, and a professional appearance.

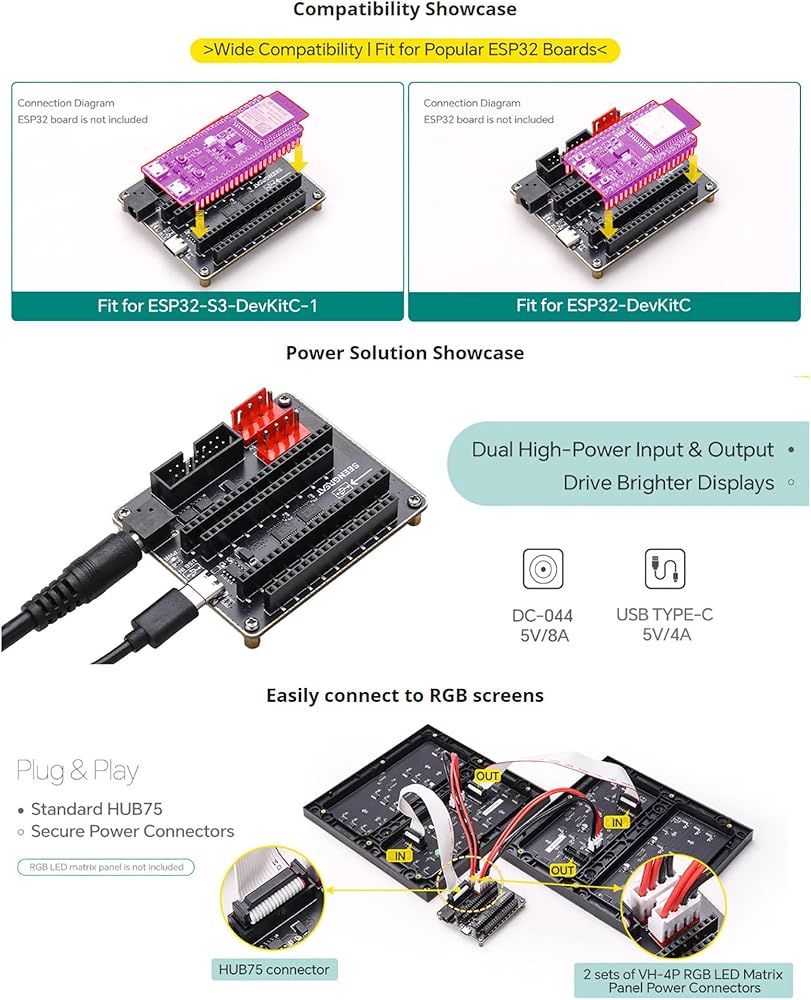

Perfect for makers, developers, and engineers, this board is widely used in DIY LED signage, IoT visual dashboards, creative lighting installations, and interactive displays. With its exclusive ESP32-S3
and ESP32-DevKitC V4 compatibility, the RGB Matrix Adapter Board (E) ensures stable performance and easy integration for your next visual IoT project.

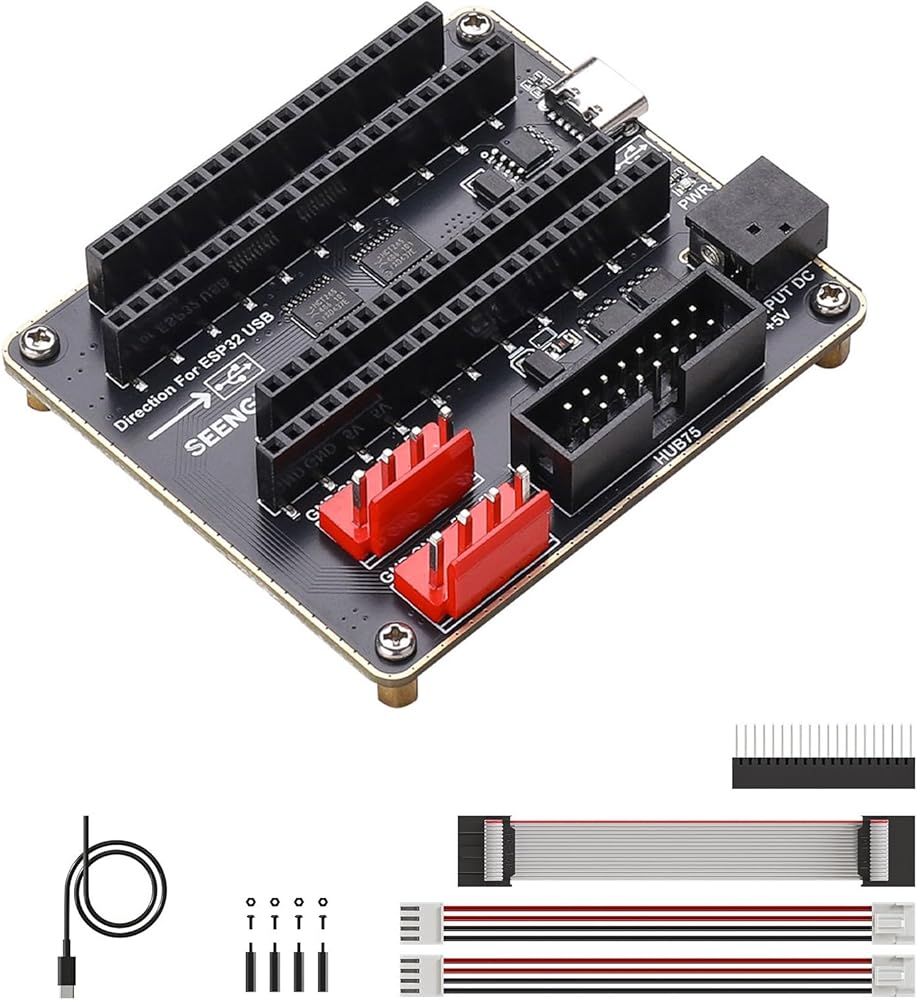

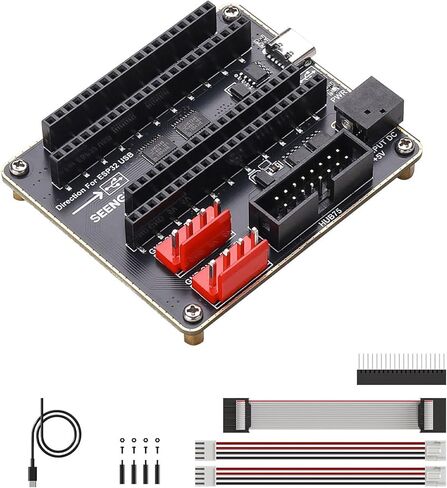

Package Contents

1. RGB Matrix Adapter Board x1
2. 40pin header receptacle x1
3. Signal wire x1
4. Power supply wire x2
5. Accessory pack x1
6.Type-C cable x1
