AITRIP 5 قطع لوحات نانو USB-C، ATmega328P، CH340G Chip 5V 16M متوافقة مع Arduino Nano V3.0 in Kuwait AITRIP 5 قطع لوحات نانو USB-C، ATmega328P، CH340G Chip 5V 16M متوافقة مع Arduino Nano V3.0 in Kuwait AITRIP 5 قطع لوحات نانو USB-C، ATmega328P، CH340G Chip 5V 16M متوافقة مع Arduino Nano V3.0 in Kuwait AITRIP 5 قطع لوحات نانو USB-C، ATmega328P، CH340G Chip 5V 16M متوافقة مع Arduino Nano V3.0 in Kuwait AITRIP 5 قطع لوحات نانو USB-C، ATmega328P، CH340G Chip 5V 16M متوافقة مع Arduino Nano V3.0 in Kuwait AITRIP 5 قطع لوحات نانو USB-C، ATmega328P، CH340G Chip 5V 16M متوافقة مع Arduino Nano V3.0 in Kuwait AITRIP 5 قطع لوحات نانو USB-C، ATmega328P، CH340G Chip 5V 16M متوافقة مع Arduino Nano V3.0 in Kuwait

AITRIP 5 قطع لوحات نانو USB-C، ATmega328P، CH340G Chip 5V 16M متوافقة مع Arduino Nano V3.0

KWD 11.500
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • The Nano can be powered via the Type-C USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
  • Support for external 5V~12V DC power supply, Support power supply by 9V battery.
  • The Nano is using the chips ATmega328P and CH340, Replace FT232RL.
  • It is a smallest, complete, and breadboard friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.
  • Uses the CH340G instead of the FTDI FT232RL IC which can improve the transfer speed, increase the stability in windows and solve the issues with FTDI drivers bricking non-original chips, ATMEGA328P offers even more programming and data memory space. It also has a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one side, power, and ground on the other).

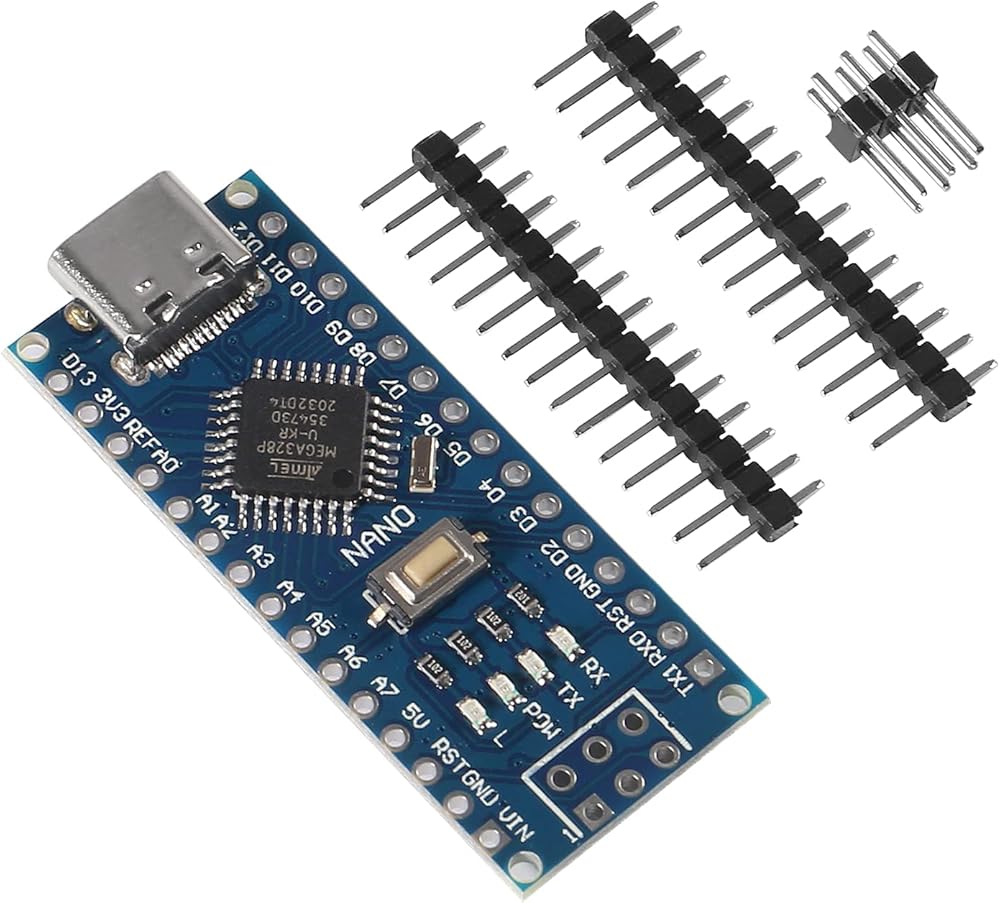

  • Comes with 5packs of Nano V3.0 Micro Controller Module, each Nano V3.0 Micro Controller module is equipped with 3pcs pin headers (2pcs 15pin headers +1pcs 6pin headers), no welding needed.

وصف

Features:

CH340G Replace FT232RL
Operating Voltage(logic level):5V
8 analog inputs ports:A0 ~ A7
14 Digital input / output ports:TX,RX,D2 ~ D13
6 PWM ports:D3, D5, D6, D9, D10, D11
1 pairs of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
Support USB download and Power; external 5V ~ 12V DC power supply;power supply by 9V battery; Support ISP download
Package included:

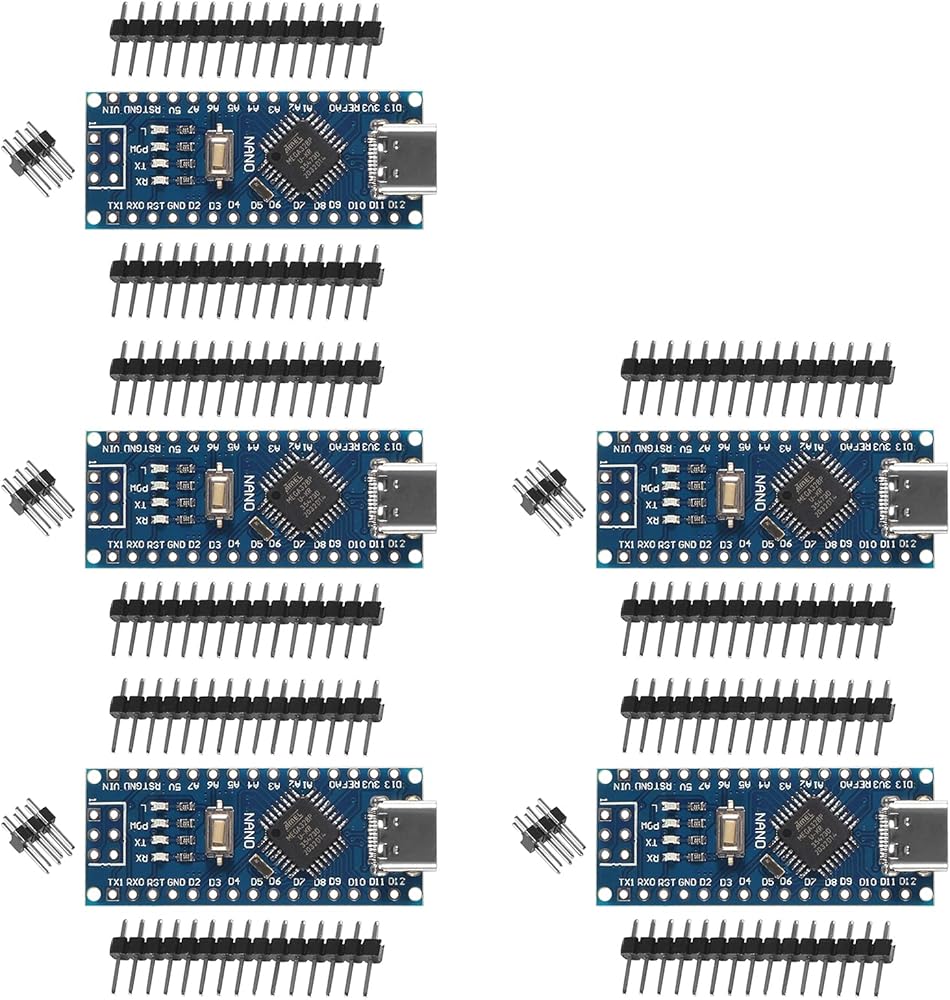

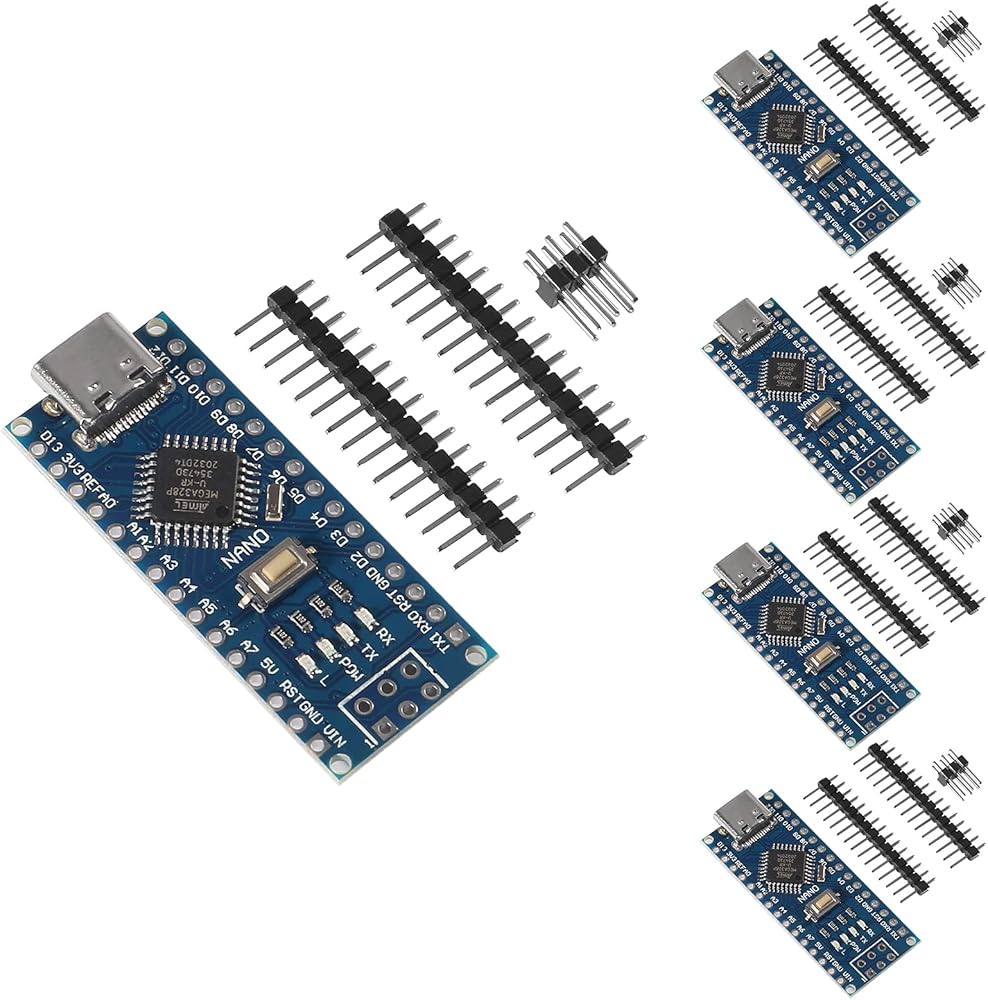

5 pcs USB Type-C Connector for Nano V3.0 ATmega328P CH340G Controller Board(not soldered)
