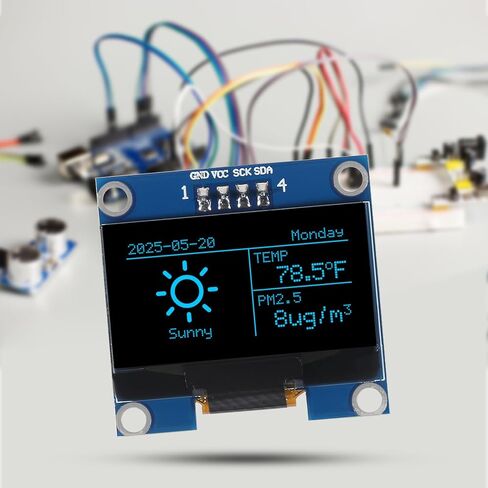

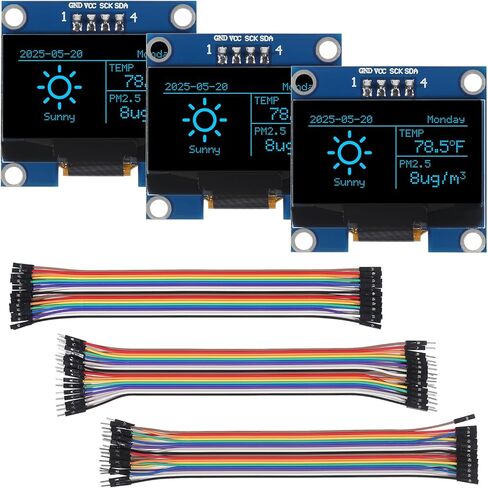

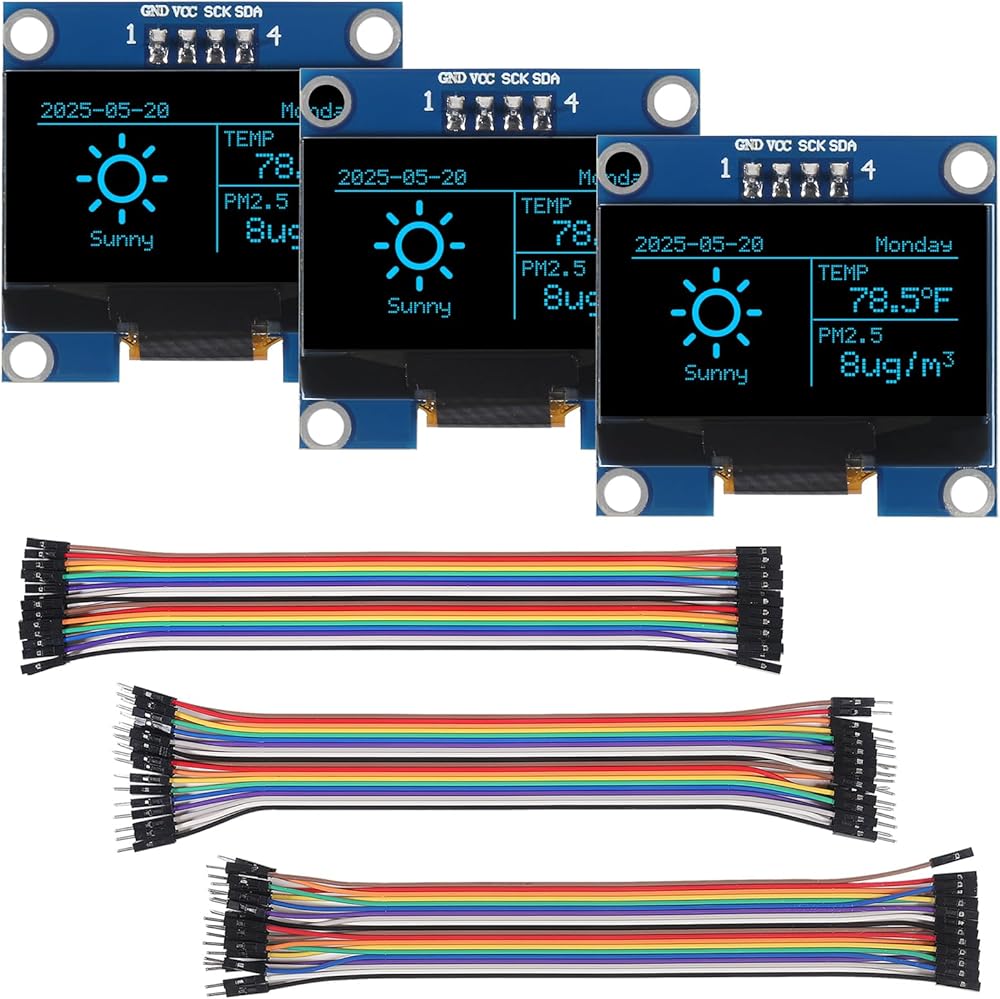

3 قطع 1.3 بوصة IIC I2C OLED وحدة عرض 128x64 بكسل SH1106 وحدة شاشة مع أسلاك توصيل اللوح M/F M/M F/F كابلات شريطية متعددة الألوان متوافقة مع Arduino/Raspberry Pi-Blue in Kuwait

أبيض

KWD 6
اللونأبيض
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)
  • Embedded driver IC: SH1106. Using the IIC/I2C bus, only 2 IOs are needed to light up the display
  • 1.3-inch OLED screen, self-luminous material, no backlight, ultra-low power consumption, normal display is only 0.06W. White display color
  • Super wide viewing angle: more than 160 ° (maximum viewing angle display a screen); 1.3" IIC OLED Display Module White Blue Color Drive Chip SH1106 128X64 1.3 Inch LCD IIC I2C Communicate

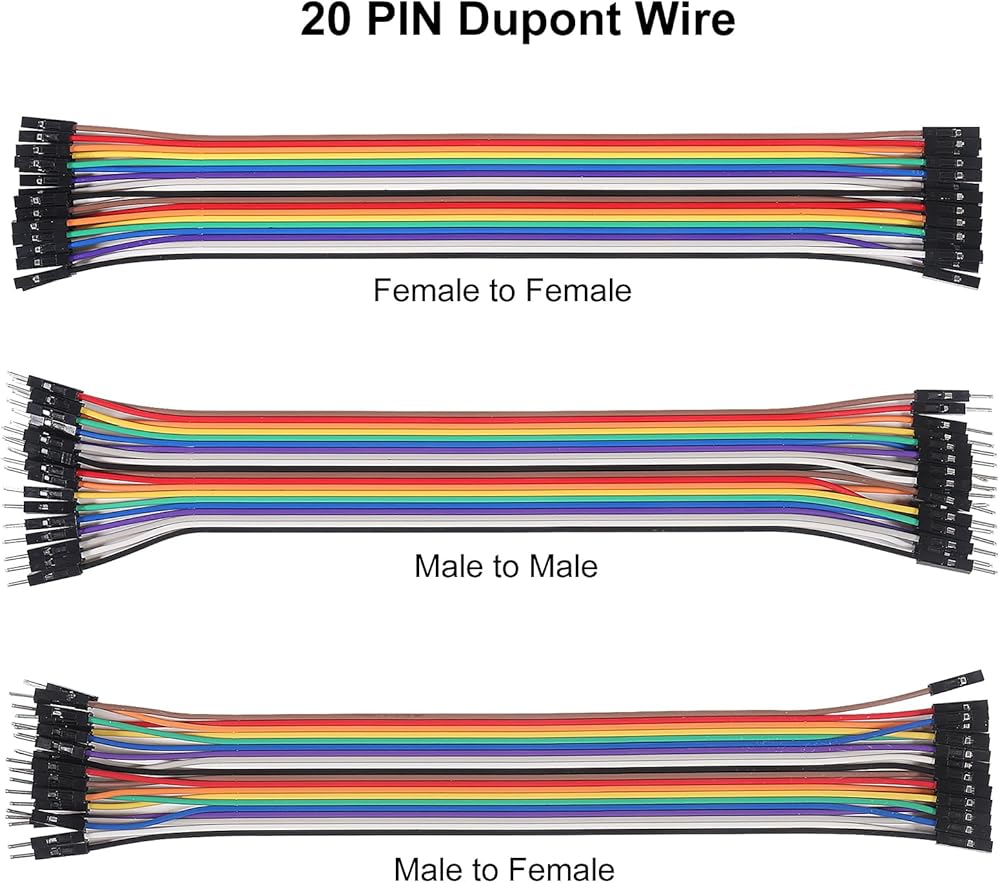

  • 60pcs 20CM Multicolored Dupont Wire 20pin Male to Female, 20pin Male to Male, 20pin Female to Female Breadboard Jumper Ribbon Cables Kit Compatible with Arduino Projects

وصف

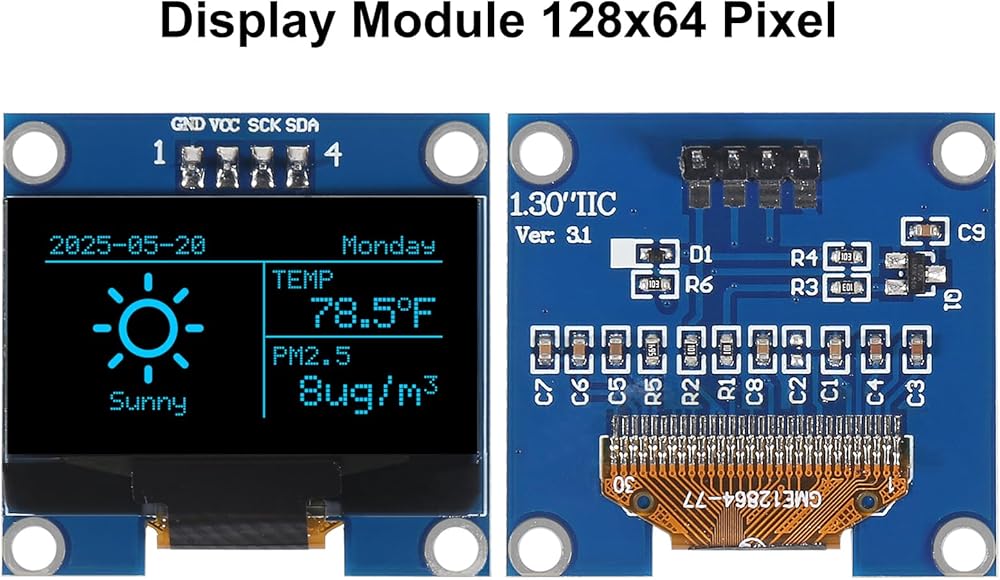

1.3 Inch IIC I2C OLED Display Module 128x64 Pixel SH1106 Screen Module Compatible with R3 board and Mega, Raspberry pi, 51 MCU, STIM 32 etc
Screen Size: 1.3(inch)
Screen Type: OLED
Driver IC: SH1106
Resolution: 128*64 (Pixel)
Module Interface: I2C interface
Active Area: 29.42x14.7(mm)

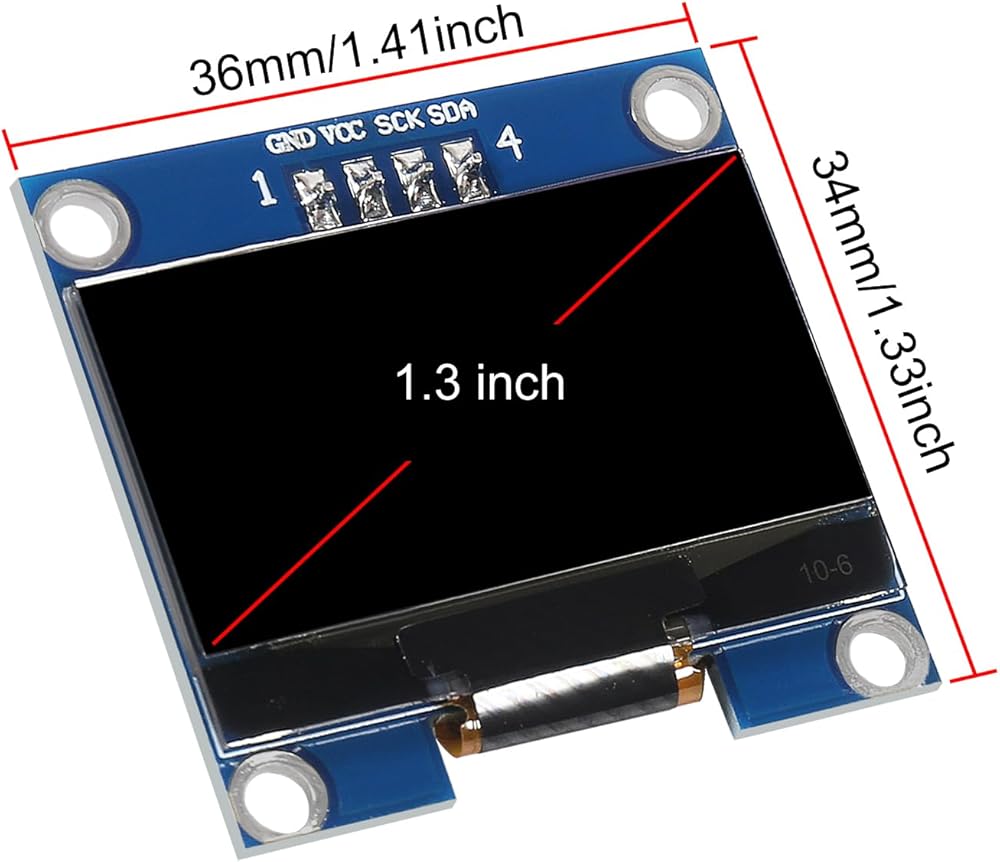

Module PCB Size: 33.7x35.5(mm)
Visual Angle: >160°
Operating Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃
Operating Voltage: 3.3V~5V
Display Color: white or blue
Interface:
VCC: 3.3 - 5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data
Package include:

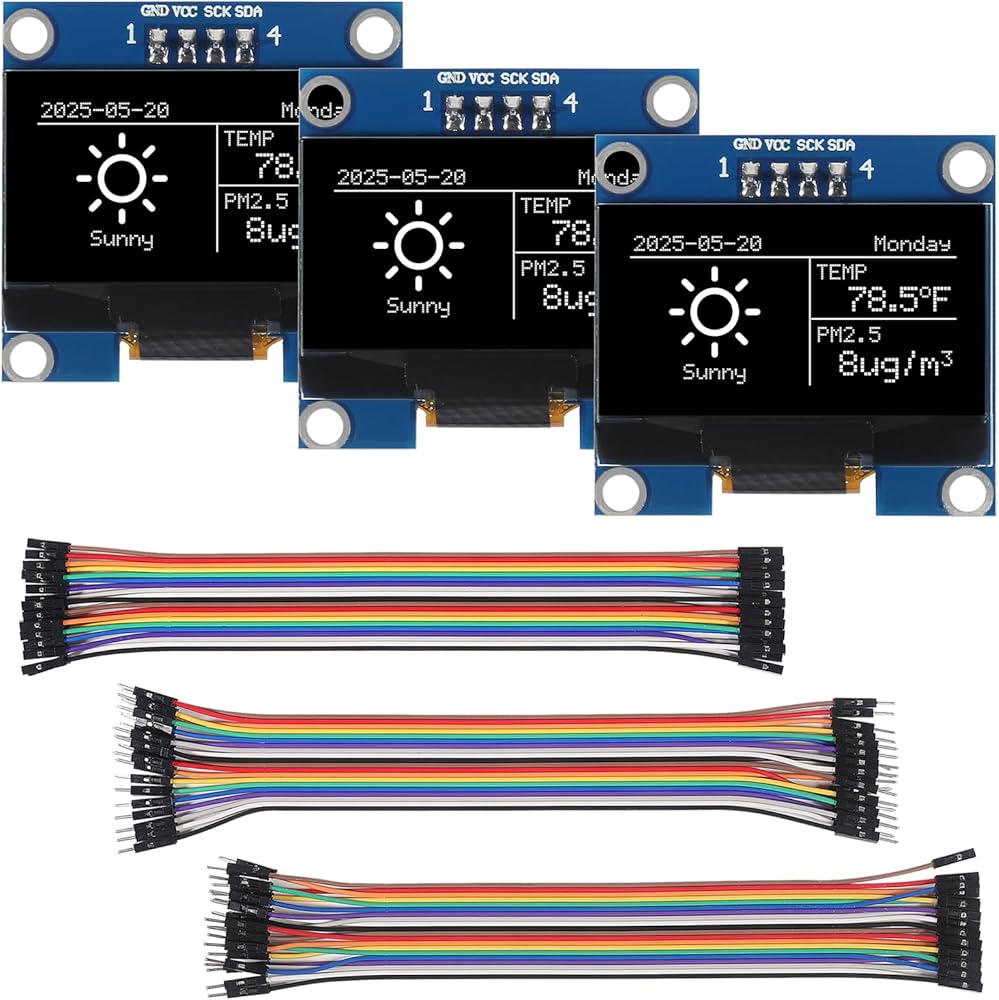

3 x 1.3 inch oled display module(each one with plastic box)
20CM 20pin Male to Female
20CM 20pin Male to Male
20CM 20pin Female to Female Breadboard Jumper
