HDD Cooling Fans

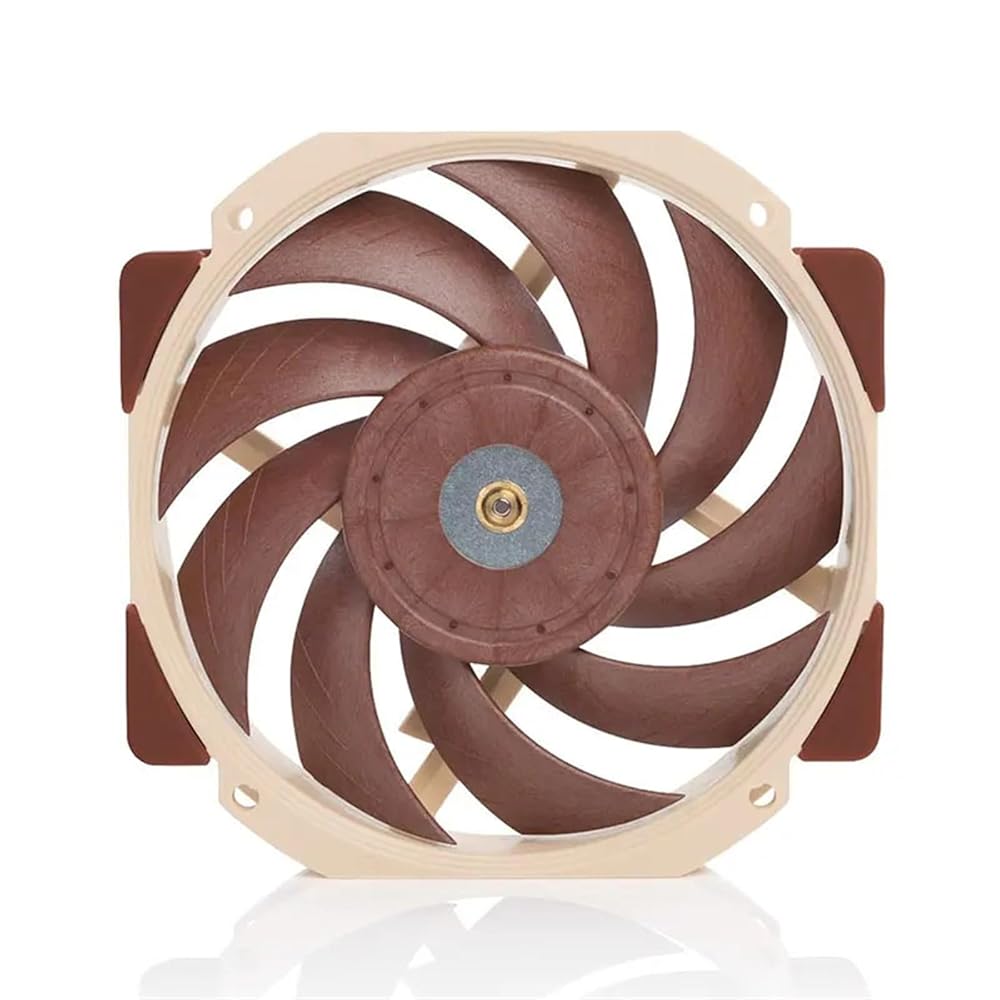

NF-A12X25R PWM
Round frame design
The NF-A12x25r is identical to the NF-A12x25 except for its round frame that allows it to be used in applications where a square-frame 120mm fan would not fit. For example, the NF-A12x25r is ideal for being sunk in between the dual towers of the low-height NH-D12L cooler without causing compatibility problems with tall motherboard heatsinks or shrouds.
Extensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second fan to the same PWM fan header for automatic control.
NF-A12x25PWM CH.BK.S
AAO frame
AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
NF-A12x25 ULN
NF-A12X25 LS-PWM
NF-A12x25 PWM
NF-A12x25 FLX
NF-A12x25 5V PWM
NF-A12x25 5V
SSO2 bearing
The NF-A12x25 features the further optimised second generation of renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
liquid-crystal polymer compound
The NF-A12x25's impeller is made from novel liquid-crystal polymer (LCP) compound that features extreme tensile strength, an exceptionally low thermal expansion coefficient and damping characteristics that are ideal for reducing resonance and vibration phenomena in advanced fan-blade designs.
==========
Model Number : NF-A12X25
Voltage : 12V
Fan Speed : 450 - 2000rpm
Used For : Case
Power Interface : 3PIN,4PIN
Noise : 19dBA
Fan Life : 50000 hrs
Blade Quantity : 9
Bearing : Two Ball Bearing
Air Volume : 23
Fan Size : 120 MM
Power (W) : 1.8W
