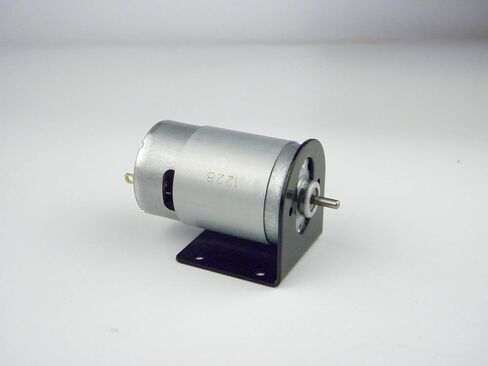

*555 high torque PMDC motor operateds on DC 12-24V. Brushed motor with ventilation holes.Iron case in back which can enhance motor stability. Not very fast,but suit for 24V DC drill. Low noise.

*Replacement your electrical and testing equipment a new lease of life Benefiting from high torque and low noise,solidly constructed, Specially for PCB Jewelry walnut drilling.Suitable for DIY hand drill.

*Motor Diameter: 37mm (1.405")
Size: 37*37*57mm
Shaft Diameter: 3.2mm
Shaft Length: 10mm

*Working Voltage: 12-24V DC
Speed (24V DC): 3500RPM
Rotation: CW/CCW,
No-load current: 70mA,
Load current: 350mA,
Locked Rotor Current: 1.9A,
Load Torque: 0.2 kg.cm,
Locked Rotor Torque: 1.5kg.cm

*Attention:This motor is suitable for electric drill, The speed very low at 12V. If it is used as an electric drill, the voltage is preferably 24V.
