لوحة التصحيح العمودية Elite Cat5e ذات 12 منفذًا صغيرة مع دعامة 89D مدرجة في قائمة UL in Kuwait لوحة التصحيح العمودية Elite Cat5e ذات 12 منفذًا صغيرة مع دعامة 89D مدرجة في قائمة UL in Kuwait لوحة التصحيح العمودية Elite Cat5e ذات 12 منفذًا صغيرة مع دعامة 89D مدرجة في قائمة UL in Kuwait

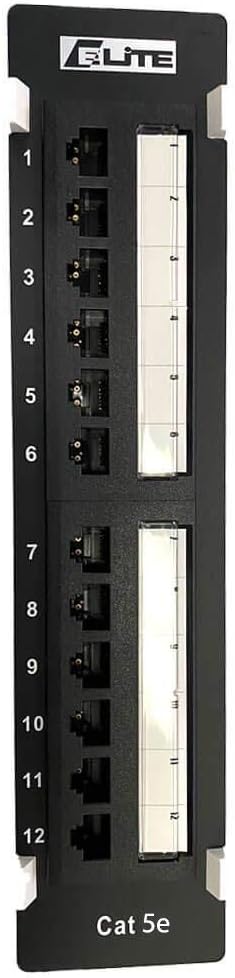

لوحة التصحيح العمودية Elite Cat5e ذات 12 منفذًا صغيرة مع دعامة 89D مدرجة في قائمة UL

KWD 5
ماركة
ELITE
وزن
310 g
– 1 +

مميزات خاصة

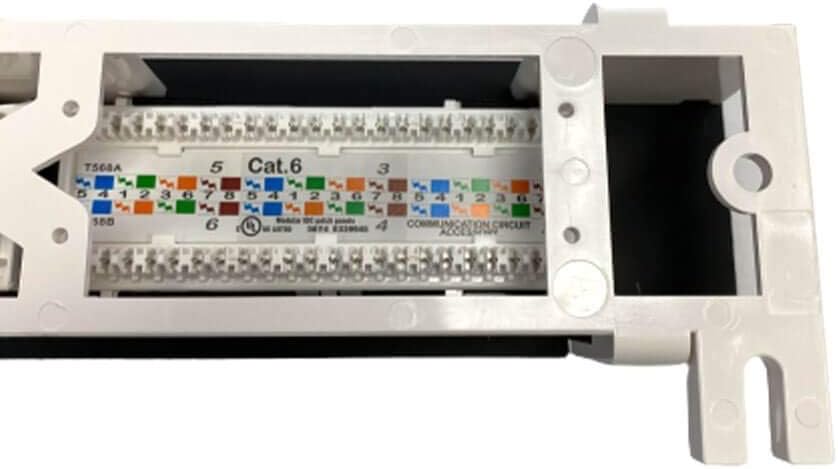

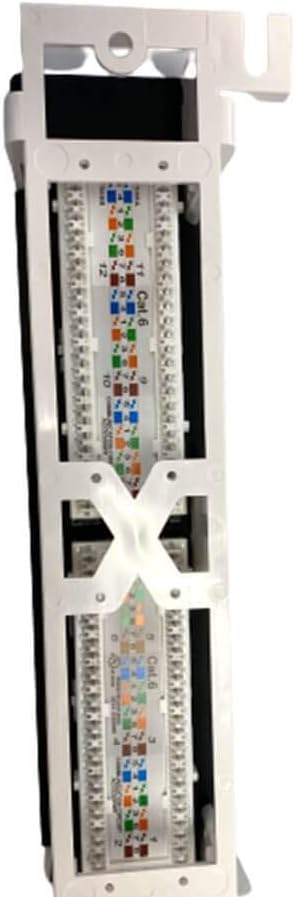

  • Elite Cat5e 12 port patch panel supports UTP (Unshielded Twisted Pair) network cable. Suitable for 22 to 26AWG solid or stranded cables. On the back of this mini patch panel is a 110 block of 180 degree designed jacks. Easily terminate your bulk cable directly on to the back of these patch panels. Small in size this 12 port patch panels can fit in your closet, garage, office or anywhere your network setup is stored. Size is 10 x 2.25 inches.
  • High speed solution getting up to 1Gb. 1 gigabit ethernet (1,000 mbps) rated for use with ethernet cables. A perfect alternative to a 19-inch rack mount. Our Elite 12 port patch panel exceeds TIA 568.2-D standards. Terminate using either T568A or T568B wiring scheme. Color coded on the back. Works with Cat5e cable and forward compatible with Cat6.
  • Easy to use you can simply terminate plug an ethernet patch cable to the front of the patch panels after termination your bulk cable to the back. Great for running solid ethernet cable throughout your home our business then connection your favorite devices out from the front. Connect to your streaming devices, computers, PoE devices, IP cameras and much more!
  • Strong construction this patch panel comes with black-painted steel panels and 50 micron gold-plated RJ45 contacts. Easily organize your setup with up to 12 connections. Label each connection so you know what each cable is used for.
  • Compliance with ANSI/TIA 568-D.2 for hardware and color coded IDC terminations. Safety rated by UL and ETL. RoHS Compliant.

وصف

Feature:
The whole new press-fit Cat.5e Patch Panel performs truly connecting hardware transmission. Fully RoHS compliant, no solder, no lead. Interoperable with standard EIA 19” rack, 12 ports – 1U high density allows you a more cost-saving management. Installation-friendly, just unload the module before terminating, and then fix the terminated module after. You don't need to suffer the inconvenience no more, every time you install in a very rack-density site. Just try, then you'll never want to install any other kinds of patch panel! Backward compatible to Cat.3, Cat.4, Cat.5 application.
Physical Specification:
Panel: SPCC black powder coat finish Plastic frame : ABS high-impact UL94V-0 thermoplastic Spring wire : Phosphor Bronze 5100W temper wire, ø =0.45mm, Au/PdNi over 60u” Nickel undercoat IDC housing : Polycarbonate high-impact UL94V-0 thermoplastic IDC contact : Phosphor Bronze with nickel plated Mating: 750 mating cycles with FCC compliant RJ-45 plug Wire accommodation: accommodates 22~24 solid cable for 200 times termination Operating temperature/humidity: -10~60 degree, 10%~90%RH
Electrical Specification:
Insulation resistance: 500MΩ Dielectric withstanding voltage: 1000V AC DC current rating: 1.5Amps DC resistance:0.1Ω Contact resistance: 20mΩ
Standard Verification:
ANSI TIA 568-B.2 UL 1863 FCC part 68.5, subpart F compliant ISO/IEC 60603-7 compliant ISO/IEC 11801 Class D Compliant
