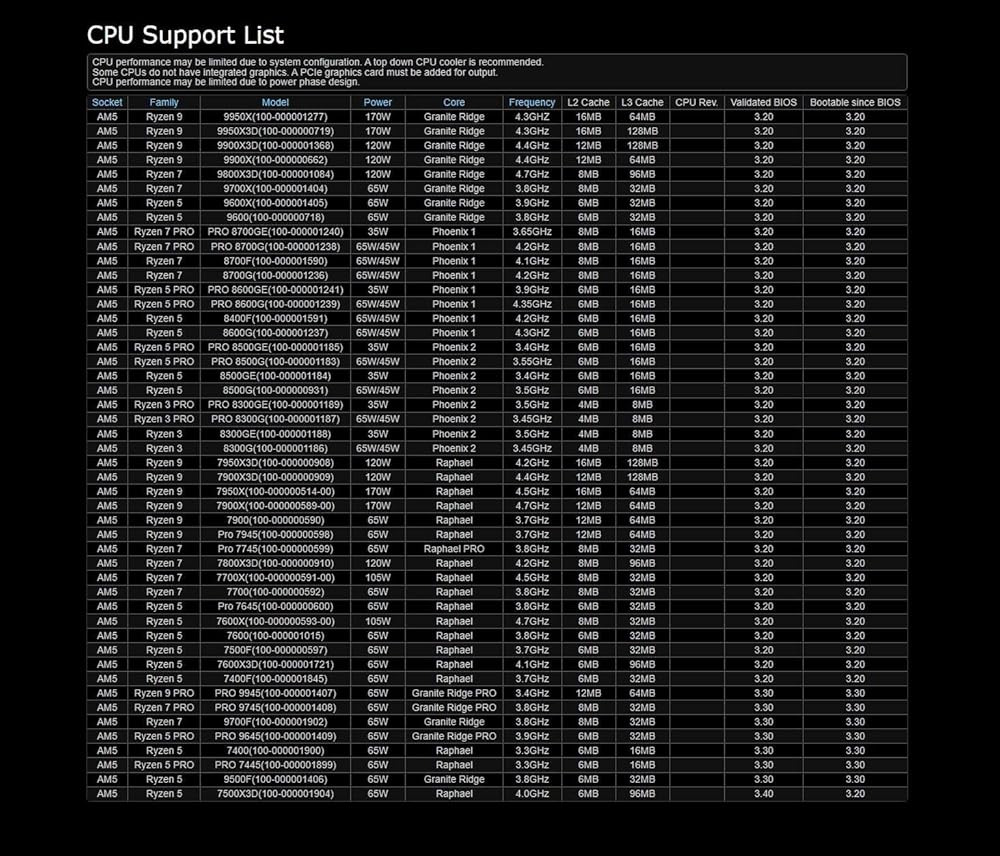

Socket: AM5 Ryzen 9000 / 8000 / 7000 Series Processors
Chipset: AMD A620A

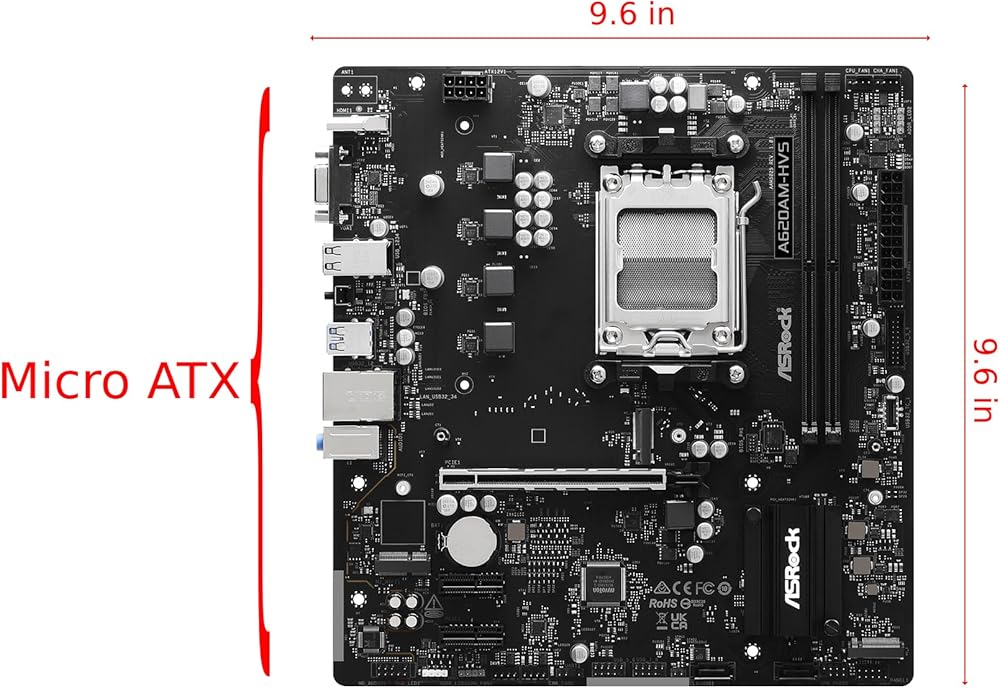

Form Factor: MicroATX
Memory Specifications 1: 2 x DDR5
Memory Specifications 2: Dual Channel DDR5 Memory Technology.
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
- Maximum capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Power Phase: 4+1+1 Power Phase, Dr.MOS for Vcore
GPU functionality: Integrated AMD RDNATM graphics (Actual support may vary by CPU).
Graphics Output: HDMI, D-Sub
[PCIE] 1 PCIe 4.0 x16
【PCIE x 1】2 PCIe 3.0 x1
OC:
[SLI] -
Cross Fire:
Sound Function: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
USB 2.0: 8 USB 2.0 (4 Rear, 4 Front)
USB 3.2 Gen1 (USB3.0) 5Gb/s) 1 x USB 3.2 Gen1 Type-C (Front), 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
【Thunderbolt 4 Header】-
[SATA3] 2
M.2 Slots: 1 x Hyper M.2 (PCIe Gen4x4), 1 x Ultra M.2 (PCIe Gen3x4 & SATA3)
【M.2 Slot Heat Sink】
M.2 Wi-Fi: 1 x M.2 Key E for WiFi
Wireless LAN (Wi-Fi)
LAN: Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H
LED: Polychrome SYNC
