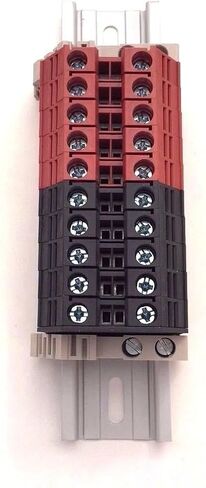

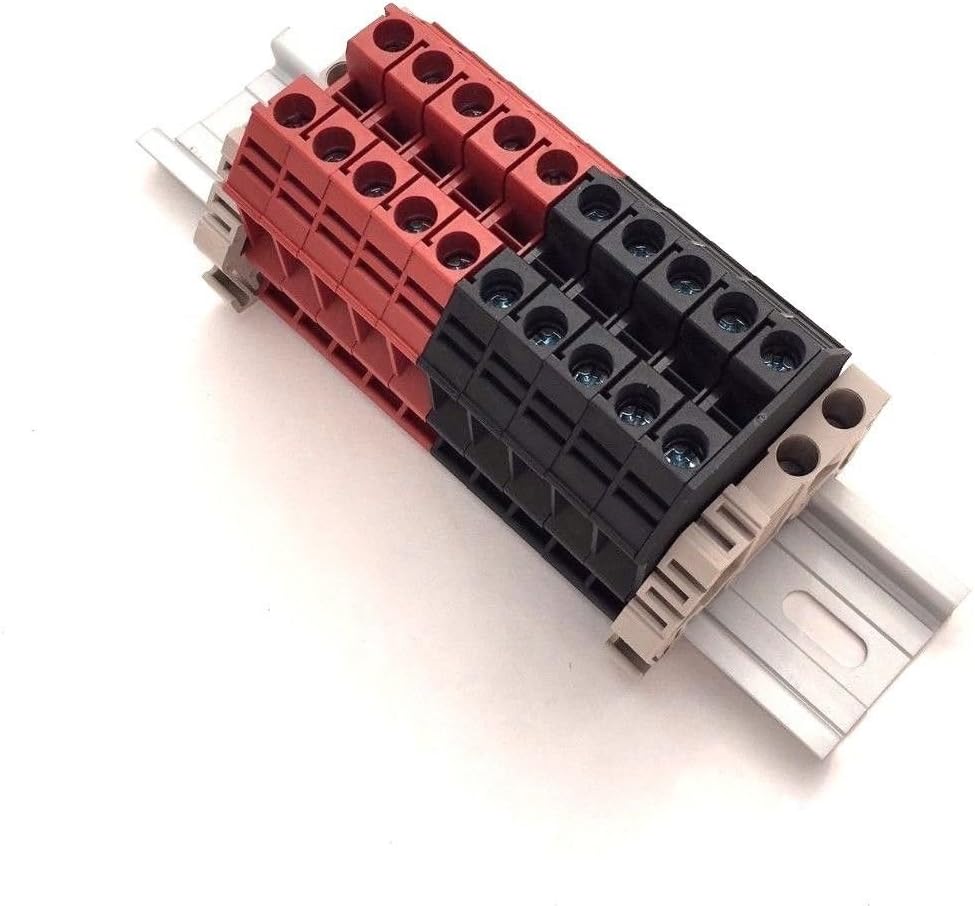

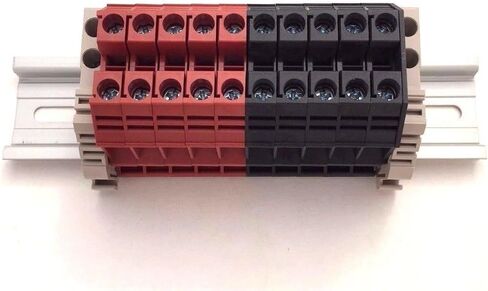

Technical Data (UL) Rated Voltage: 600V Rate Current: 50A Conductor Cross-section, Solid (AWG): 20-8 Conductor Cross-section, Flexible (AWG): 20-8 Rated Impulse Withstand Voltage: 8KV Torque (N-m): 1.2 Screw: M4 Wire Strip Length: 12-14mm Insulating Material: PA TxHxW (mm): 8 x 45 x 41.75 (Individual Blocks) DIN Rail (mm): 35, 32 Jumper/Bridge: Press-fit/Insertion. This assembly includes 5 DK6N-RD Dinkle terminal blocks, 5 DK6N-BK Dinkle terminal blocks, 2 SS2 end brackets, and 1 DK6NC-BK end cover, all mounted on a 6" piece of aluminum RoHS rail. The 10 blocks are all separate circuits.
Dinkle Assembly DK10N Red/Black 10 Gang Box Connector DIN Rail Terminal Blocks, 6-20 AWG, 60 Amp, 600 Volt Separate Circuits
