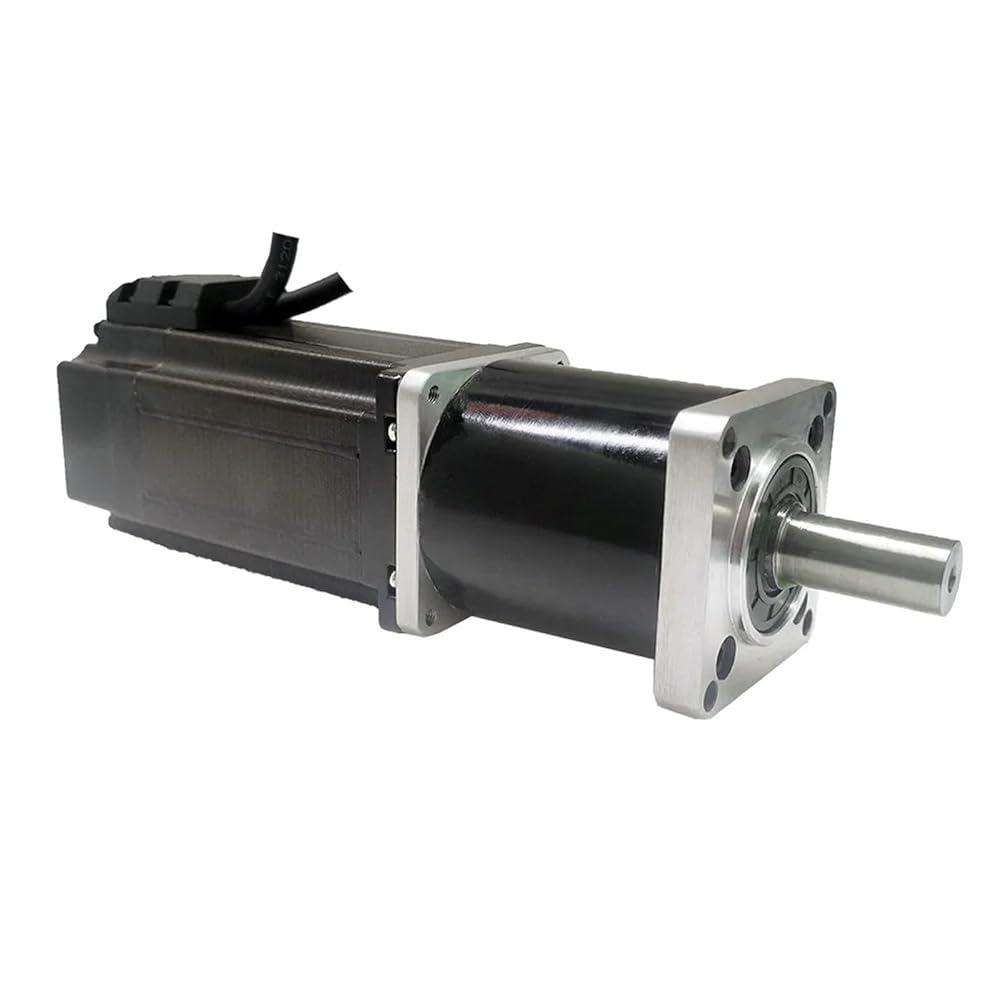

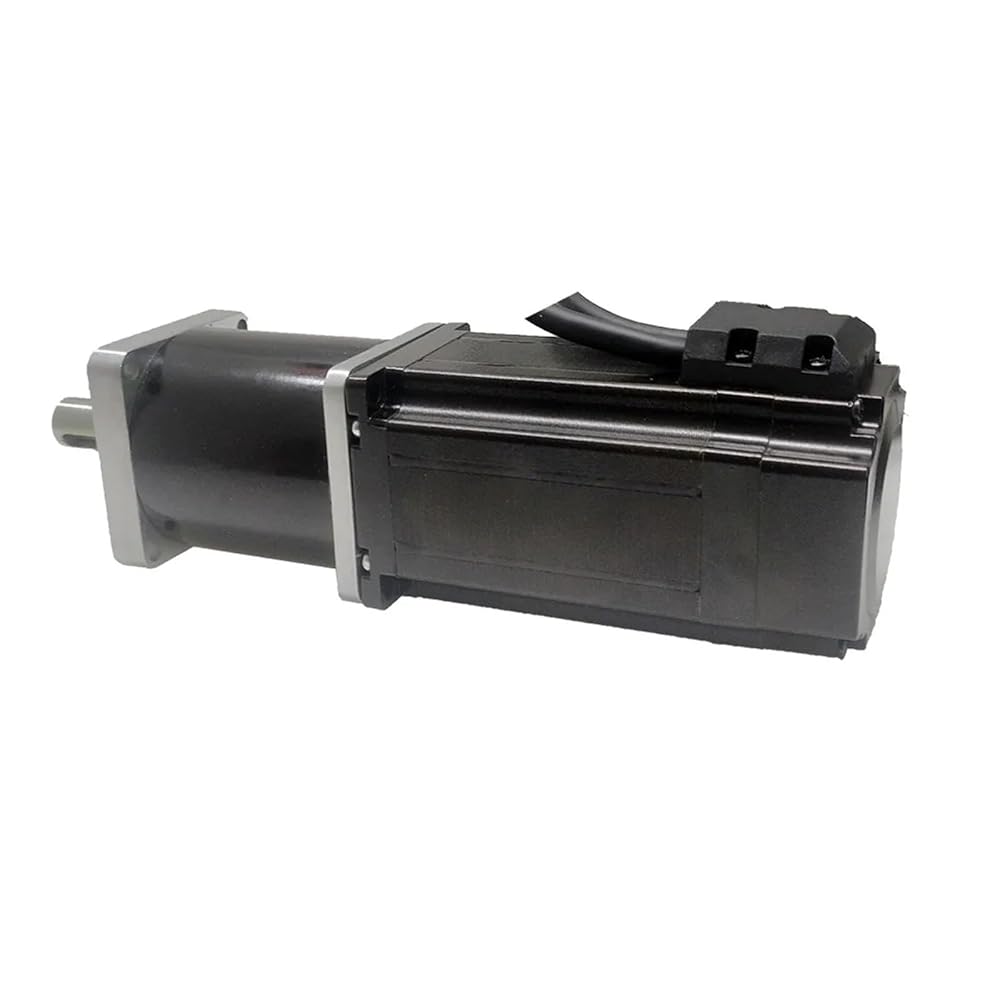

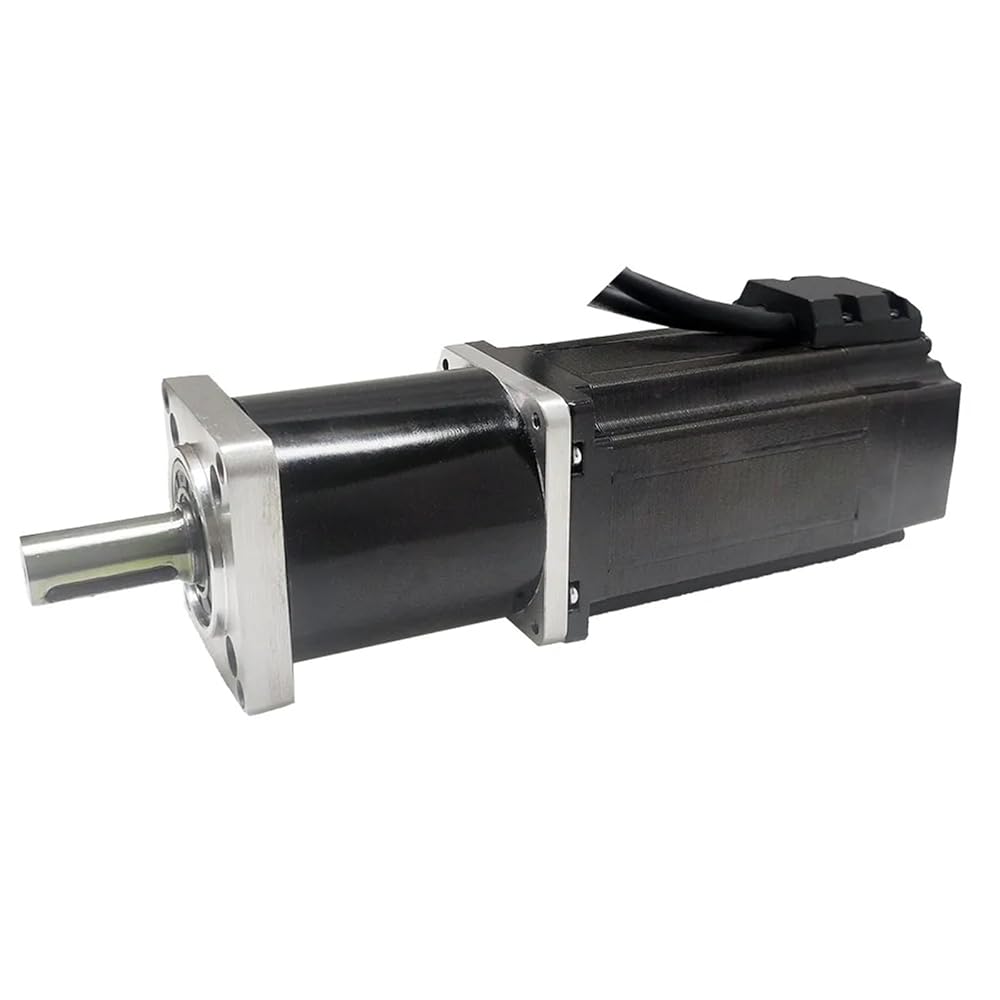

188W57mmBrushlessDCMotor24VwithplanetarygearboxRatio415:1/10:1/16:1/20:1/25:1/40:1/50:1/100:1BLDCmotor3phase
Technicaldata:
Model
Voltage
(VDC)
Motor Rated Parameters
Motor
Peak
Tq
(N.m)
Tq
Constant
(N.m/A)
Back
EMF
(V/k RPM)
Motor
Rotor
Inertia
(kg.mm2)
Length(L:mm)
Weight(kg)
Speed
(rpm)
Tq
(N.m)
Current
(A)
Power
(W)
1-stage
2-stage
1-stage
2-stage
J57BLSPG55-230A
24
3000
0.2
4 63
0.6
0.061
4.54
12
122
139
1.45
1.75
J57BLSPG75-230A
3000
0.4
8 125
1.2
0.060
4.46
17
143
160
1.8
2.1
J57BLSPG95-230A
3000
0.6
11
188
1.8
0.060
4.46
22
164
181
2.2
2.5
PlanetaryGearboxSpecification
TechnicalData
1stage
2stage
Gearratio
4 5 10
16 20 25 40 50 100
LengthL1:
mm
53
70
Ratedload:
Nm
25
40
Efficiency:
% 95
90
Backlash:
arcmin
15
25
Ratedinputspeed:
rpm
3000
3000
Maxinputspeed:
rpm
5000
5000
Safetyclass:
IP
65
65
Lubrication:
Lifegreaselubrication
Noise:
dB
45
45
Servicelife:
h ~20000
~20000

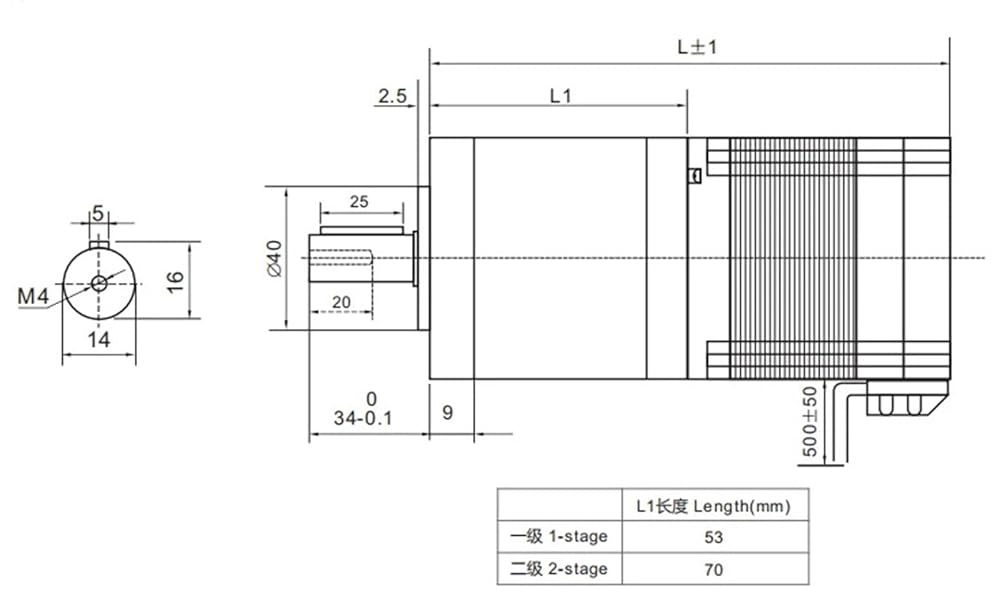

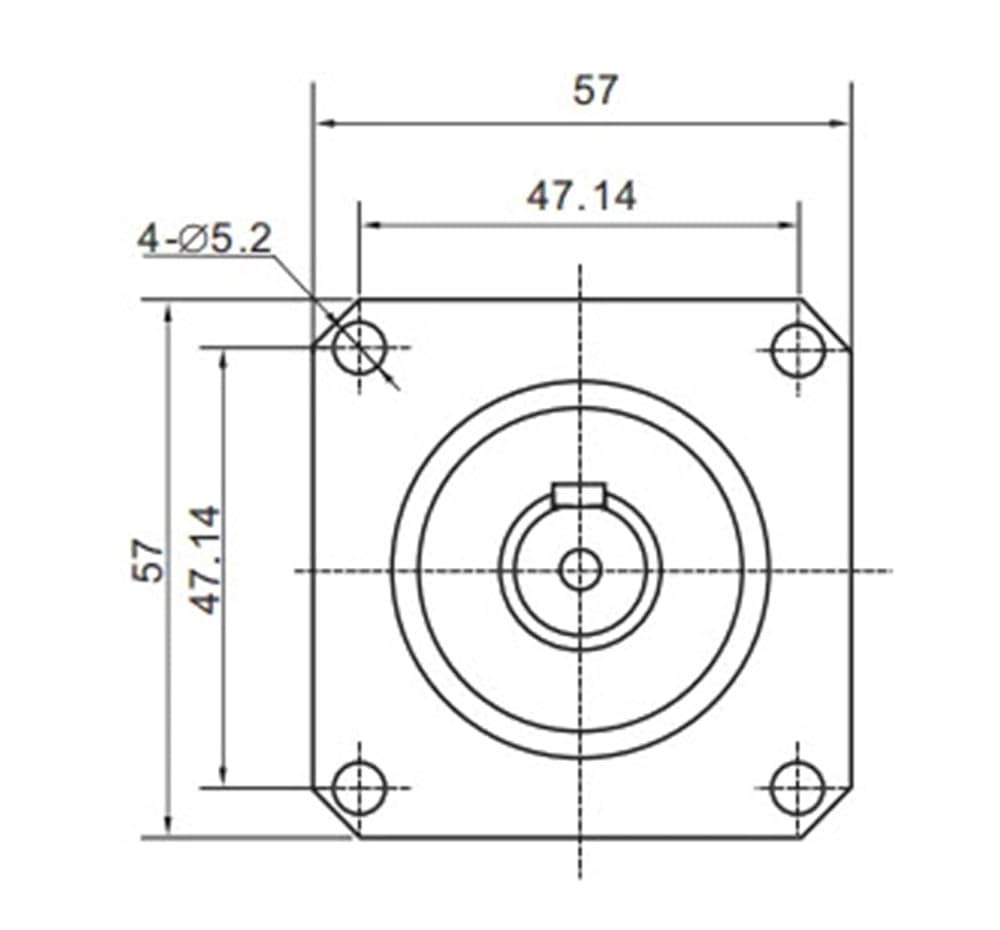

DimensionUnit:mm

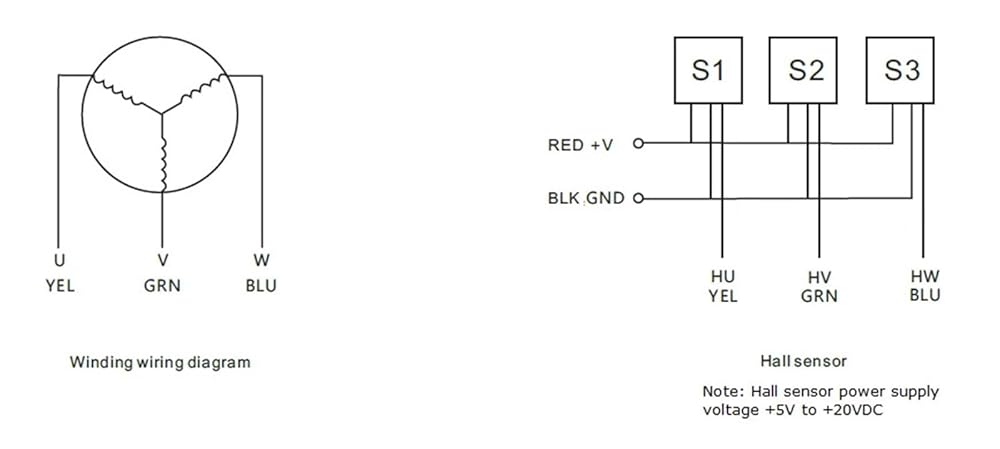

WiringDiagram
