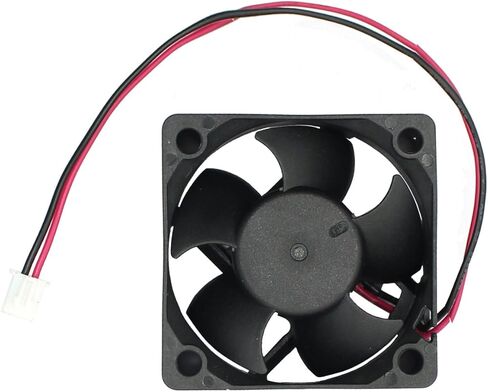

Security-01 50mm x 50mm x 20mm 5020 12V 0.30A Ball Bearing Brushless DC Cooling Fan 2pin AB5020H12 UL (Pack of 2)

KWD 6
Brand
Security-01
Category
Fans & Cooling
– 1 +

Special Features

  • Rated Voltage: DC 12V, current: 0.3A;
  • Bearing Type: Dual Ball Bearing, Speed: 6500 RPM, Air Flow : 18.7 CFM;

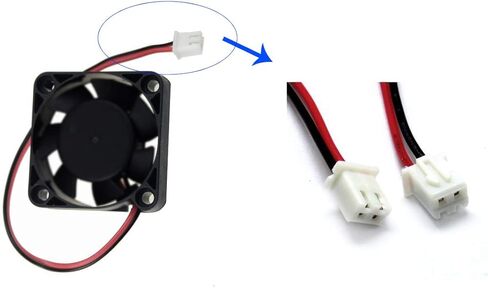

  • Connector: 2 Terminal Connector with 2pin-xh2.54mm; Advantage: Long Life (70000 hours) and High Rotation Rrecition.
  • Certification:UL TUV approved certification.

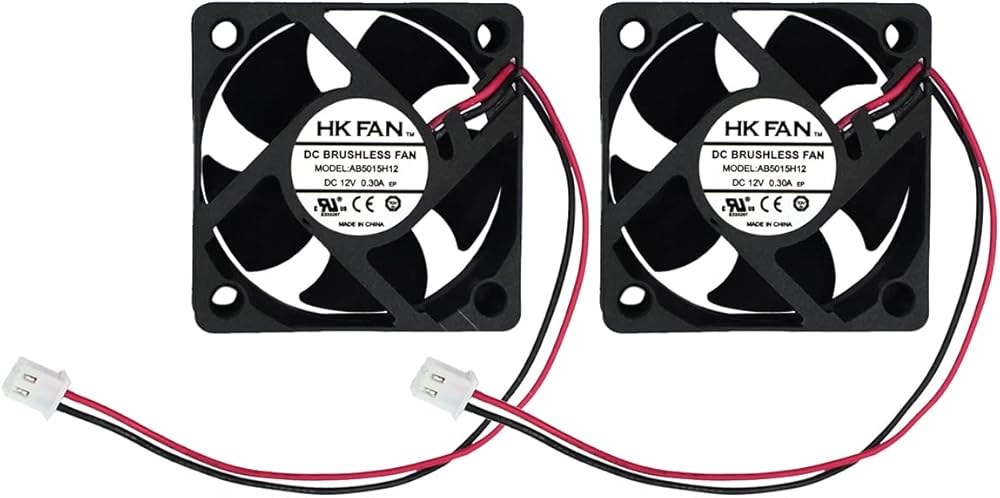

  • Warranty: Two years, Package Content : 2 x DC Brushless Cooling Fan;

Description

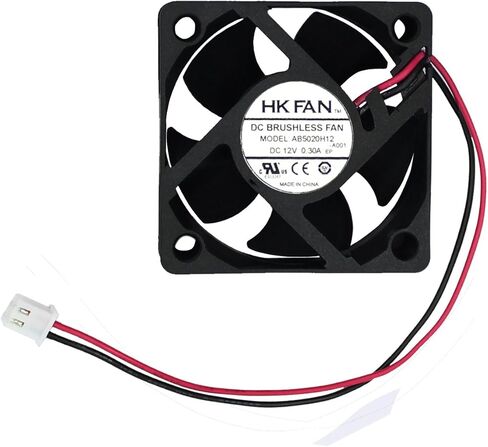

Model: AB5020H12
Name: DC12V BRUSHLESS FAN
Rated Voltage : 12V DC
Operation Voltage: DC 10.8-13.2V
Consuming Current : 0.13A(0.25A Max.)
Consuming Power: 1.6W(3.0 Max.)
Connector: 2pin-ph2.5
Rated Speed: 6500 R.P.M.

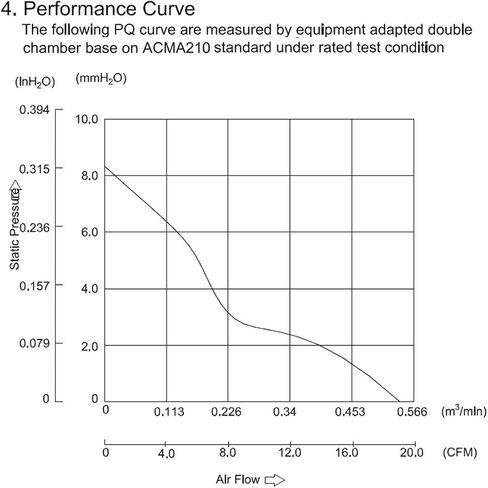

Max. Air Flow: 18.7CFM
Iife Expectance: 70,000 hours at 25 degree
Insulation Level: UL Class A
Certificate: UL,CE,TUV
Acoustic Noise: 39.0dB***
DC Line Length : 120mm
Rotation Direction: Clounter-clockwise

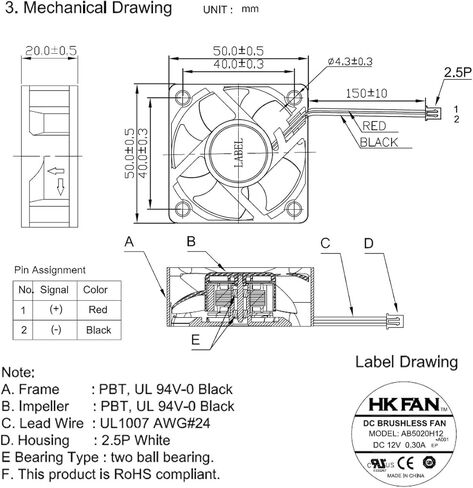

Size:50x50x20mm
Size:20g

***:Noise is measured at rated test condition in semi-anechoic chamber in free air with microphone at a distance of 1m apart from the axis of fan at intake side.
