Parameter
Speed: 200 rpm
Rated current: 1.5a/road
Protection level: IP54
Rated voltage: 220V
Contact materials: Noble metal
Insulation resistance: 500MΩ@500VDC
Shell material: Engineering materials
Electrical noise: 10mΩ @ 6VDC,50mA,5Rpm
Torque: 0.01N.M
Working life: More than 5 million rpm
Working temperature: -40℃ ～ +80℃
Wire specification: AWG#28 Teflon wire
Relative humidity: 60%
Conductor length: 250mm

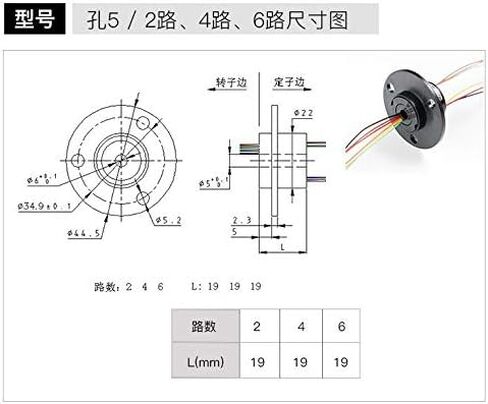

Inner diameter * Outer diameter: 7mm* 22mm

Conductor color code table
Ring code and Color code#1 black #2 red

Some application fields
Yuntai
Electrical test equipment
Rotary table
Medical equipment
CCTV security monitoring equipment
Robot
Exhibition / display equipment
Manufacturing and handling control equipment
Small wind turbine
Radar antenna
