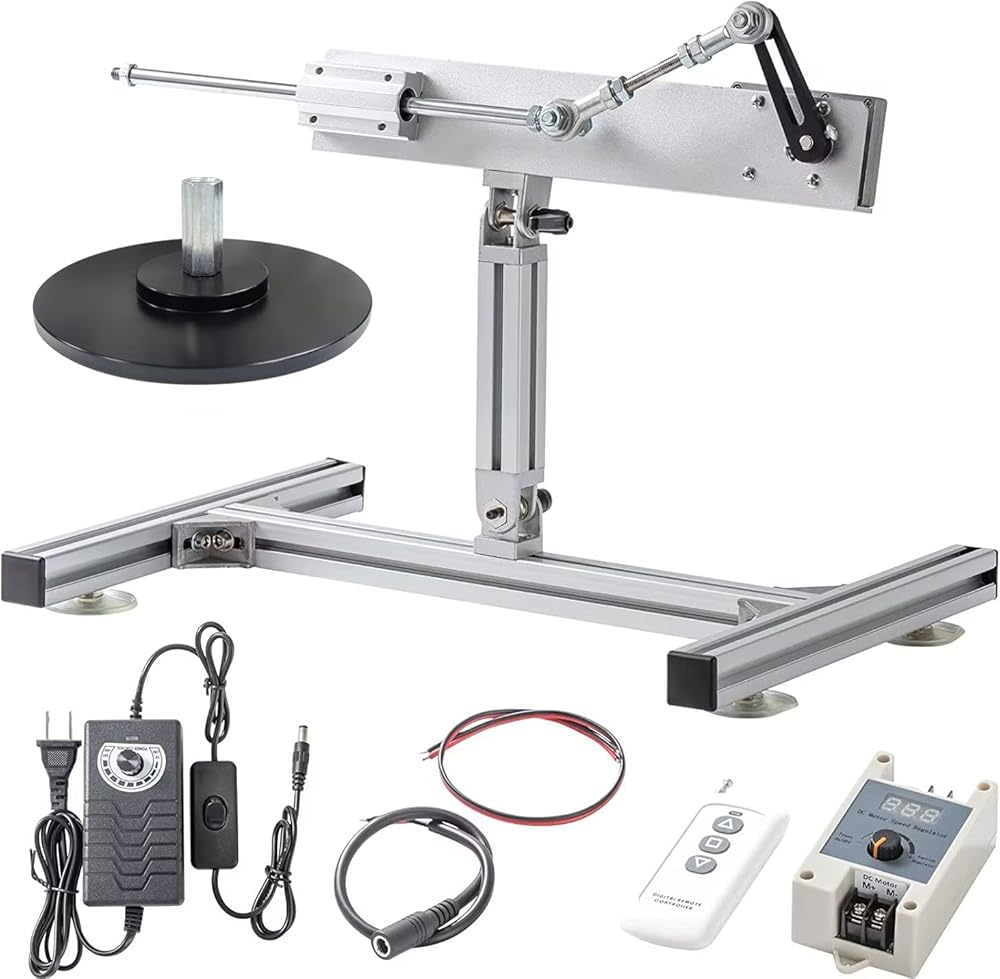

DIY Reciprocating Linear Motor DC 24V Long Stroke 1.18"-6" Adjustable Telescopic Motor 160rpm Variable Speed Pushing Force 30 lbs Max, with Stand Remote Controller Suction Cup (24V150mm160rpm)

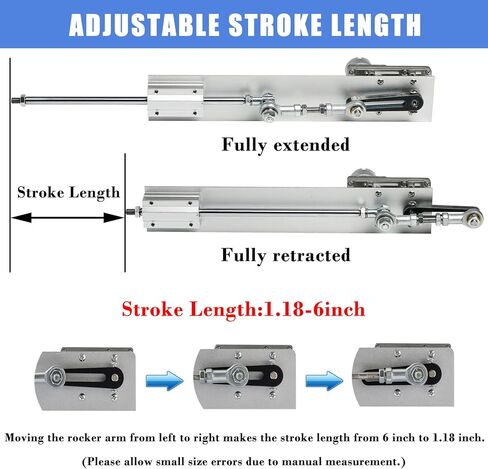

【Basic information】: Stroke adjustable from 1.18“ to 6" . Rated Voltage: DC 24V.Variable Speed: 30rpm to 160rpm.Pushing Force: 3 lbs to 30 lbs.

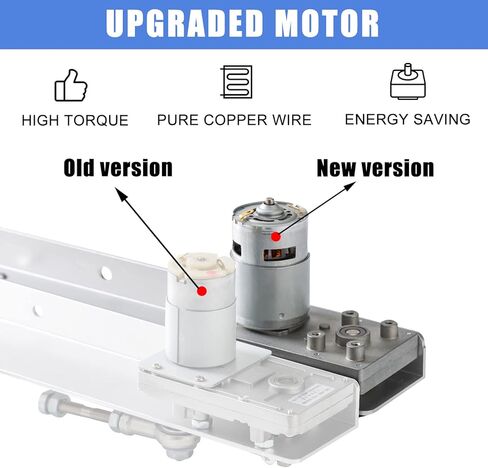

【Aluminum Alloy Material】: The surface has been polished 27 times, the aluminum body efficiently dissipated the DC motor heat, it can make the motor stays cool to the touch even under load.

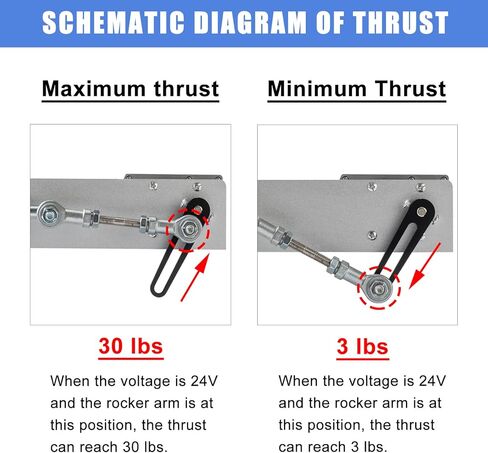

【Pushing Force】: When the rocker arm is closest to the axis, the maximum pushing force can reach 30 lbs when the voltage is maximum. And with the decrease of voltage, the pushing force will decrease accordingly.

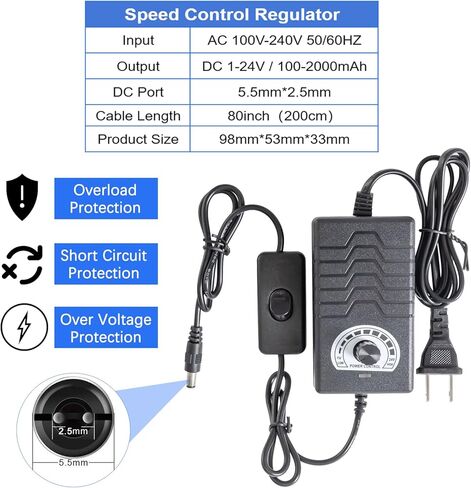

【DC Power Adapter】: Linear movement speed can be achieved by adjusting the voltage of the motor. There is a button for voltage adjustable on the adapter. From 1-24V.
【Suction Cup】: M8 Screw, 3.94 inch Diameter, DIY Suction Cup Connector for Reciprocating Linear Actuator
JQDML DIY Cycle Reciprocating Linear Actuator Motor DC 24V Stroke 1.18"-6" Adjustable, Variable Speed 120rpm Max, Max Torque 17lbs,with Remote Controller,Speed Control Regulator(24V150mm120rpm)
KWD 43.500
JQDML Reciprocating Cycle Linear Actuator Telescopic Motor 24V 160rpm High Torque 30lbs Stroke 30mm-150mm Adjustable,with Stand,Remote Controller,Suction Cup,Big End Connector(24V150mm160rpm)
KWD 87.500
JQDML DIY Cycle Reciprocating Linear Actuator Motor DC 24V, Stronger Power Max 17 lbs, Adjustable Stroke 1.18“ to 6", Variable Speed from 25-120rpm,with AC to DC Speed Controller(24V150mm120rpm)
KWD 35.500
JQDML Mini Micro Linear Actuator Metal Gear 12V, Stroke 4 inch, Pushing Force 4.3 lbs Speed 2"/sec, Weight: 0.18lbs, for Cabinets Robotics Home Automation and Toys (4 inch, 4.3 lbs)
KWD 15.500
