Technical Parameters
Output Power(DC):6 A at 63 Vdc maximum continuous with a 240 Vac input.
Max Output Current(DC) :15 A maximum, 1 minute
Exciter Field DC Resistance:6.0 ohms minimum.
Input(AC):180 to 300 Vac, single-phase, 50/60 Hertz.
Burden:1000 VA maximum at 240 Vac power.
Sensing Voltage(AC):
180 to 277 Vac at 220 Vac single-phase system;
312 to 480 at 400 Vac three phase system, 50/60 Hertz.
Burden:5 VA.
Voltage Adjust Range:180 to 277 Vac using the internal voltage adjust. just provides ±10%

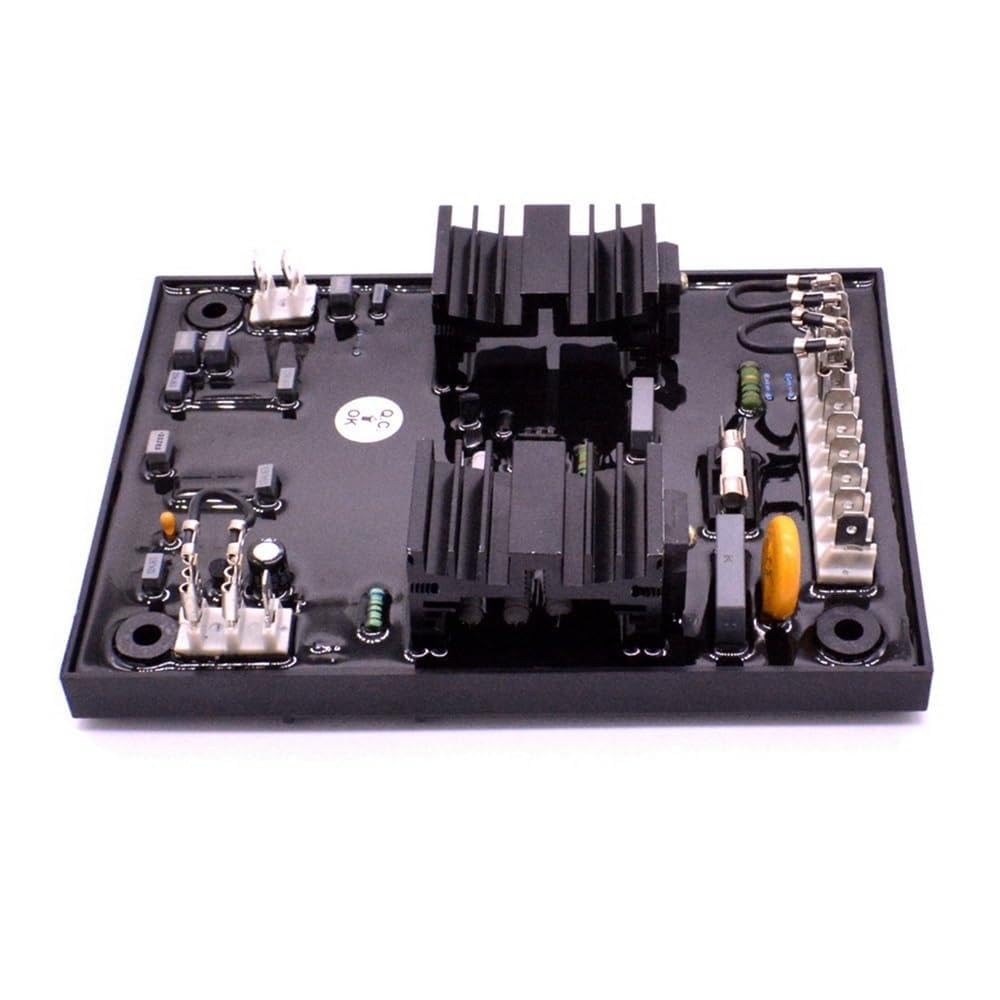

AVR WT-3
Technical Parameters
Applicable to 170~510VAC Brushless Generator
Can be used in grid-connected units
12ADC High Output Current
Applicable frequency 50/60 Hz
Low Frequency Protection and Slow Voltage Establishment
Compensation with Load Current
Voltage input (X1, X2) INPUT: 180V-250Vac 45-60Hz
Detection input (0V-220V) terminal input 180-250Vac. (0V-380V) terminal input 370-450Vac.50/60Hz
Voltage Output (E+, E-): 90Vdc 6A (220Vac)
