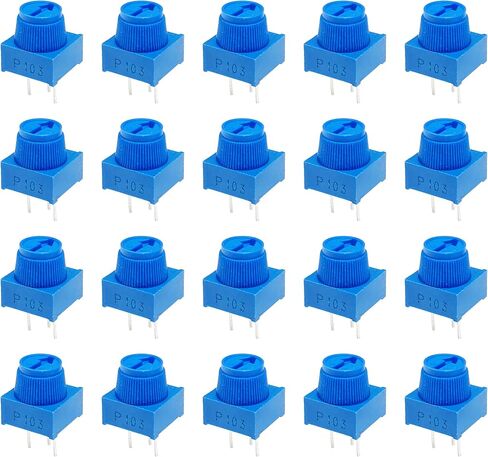

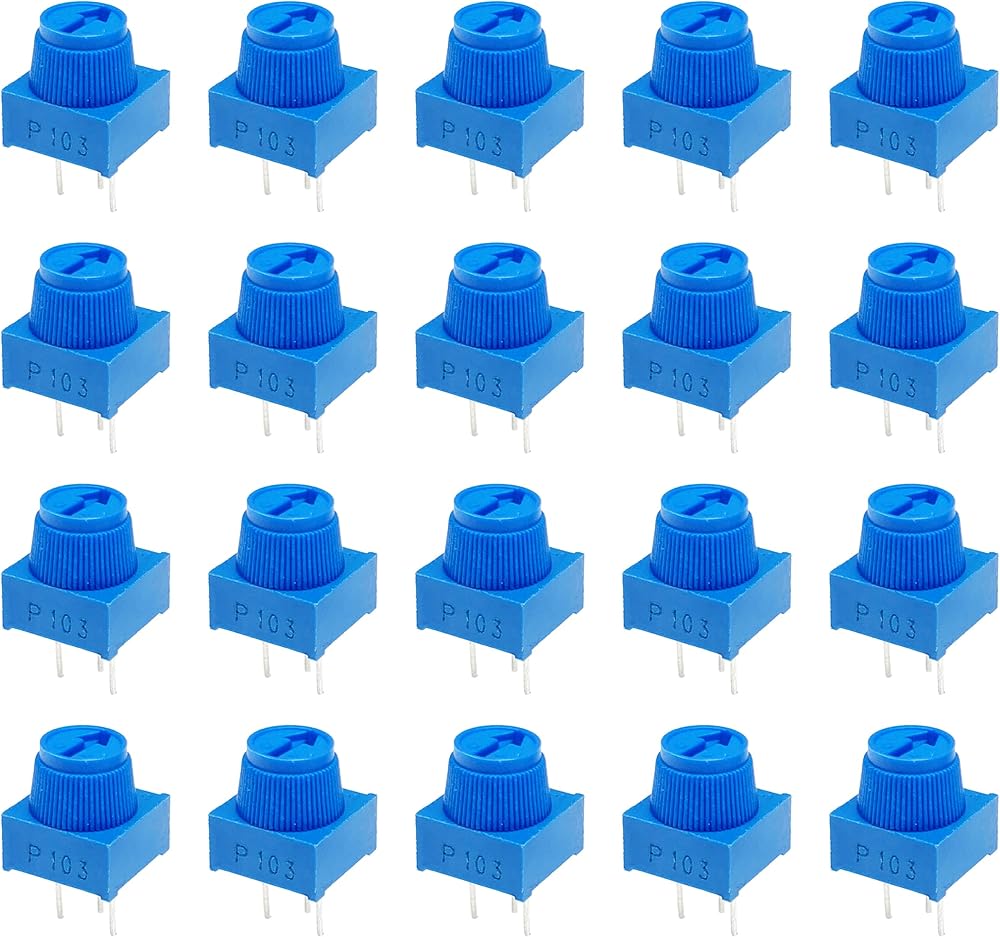

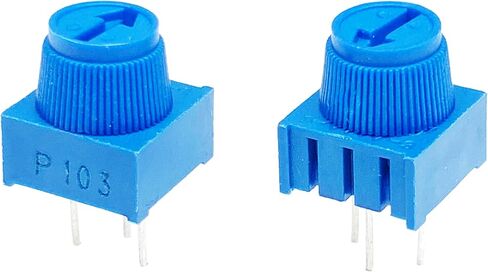

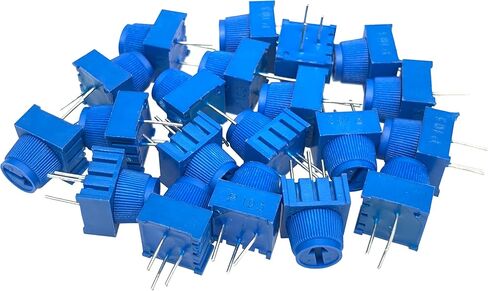

Cermant 10K Ohm(103) 3386P 20Pcs Trim Potentiometer Breadboard Trim Potentiometer Kit with Blue Knob Variable Resistors Trimmer Potentiometer Assortment Kit Compatible with Arduino

KWD 4.500
Brand
Cermant
Weight
54 g
Size20Pcs 10K Ohm
– 1 +

Special Features

  • Product name : Breadboard Trim Potentiometer With Knob;Model : 3386P 10K(103); Type : rotary potentiometer
  • Specification: these trim potentiometers adopt linear resistance change mode, the rotation angle is 270 degrees, and adjustable range is 0-10K ohm, which are easy to connect and can work well
  • Body size: 9.5x9.5x5 mm/0.375x0.375x0.19 inch

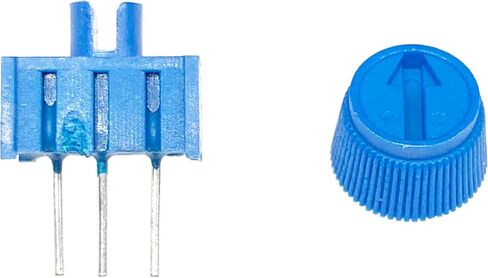

  • They have a long grippy adjustment knob and with 0.1" spacing they plug into breadboards or perfboards with ease.
  • Applications: Arduino, Industrial controls, robotics, photographic lenses, computer input devices such as optomechanical mice and trackballs, controlled stress rheometers, and rotating radar platforms

Description

Specification:
Category: Potentiometers, Variable Resistors
Family: Trimmer Potentiometers
Adjustment Type: Top Adjustment
Resistive Material: Cermet
Mounting Type: Through Hole
Termination Style: PC Pins
Standard Resistance Range：10 to 2 megohms
Resistance Tolerance：±10 % std.
Absolute Minimum Resistance:2 ohm max
Contact Resistance Variation:2 % or 3 ohms max.(whichever is greater)
Voltage:±0.05 %
Resistance:±0.15 %
Resolution:Infinite
Insulation Resistance“500 vdc. 1,000 megohms min.
Power Rating(300 volts max.)
85 °C：0.5 watt
150 °C：0 watt
Temperature Range：-55 °C to +125 °C
Temperature Coefficient：±100 ppm/°C
Torque：5.0 oz-in. max.

Feature:
Single Turn, cermet, industrial, sealed
Available with knob for finger adjust
For trimmer applications/processing

Features:
These variable resistors are easy to connect and have a long grippy adjustment knob, can easily plug into breadboards or perforated boards.
These potentiometer assortment kits are made of quality material, lightweight an
