Product Description

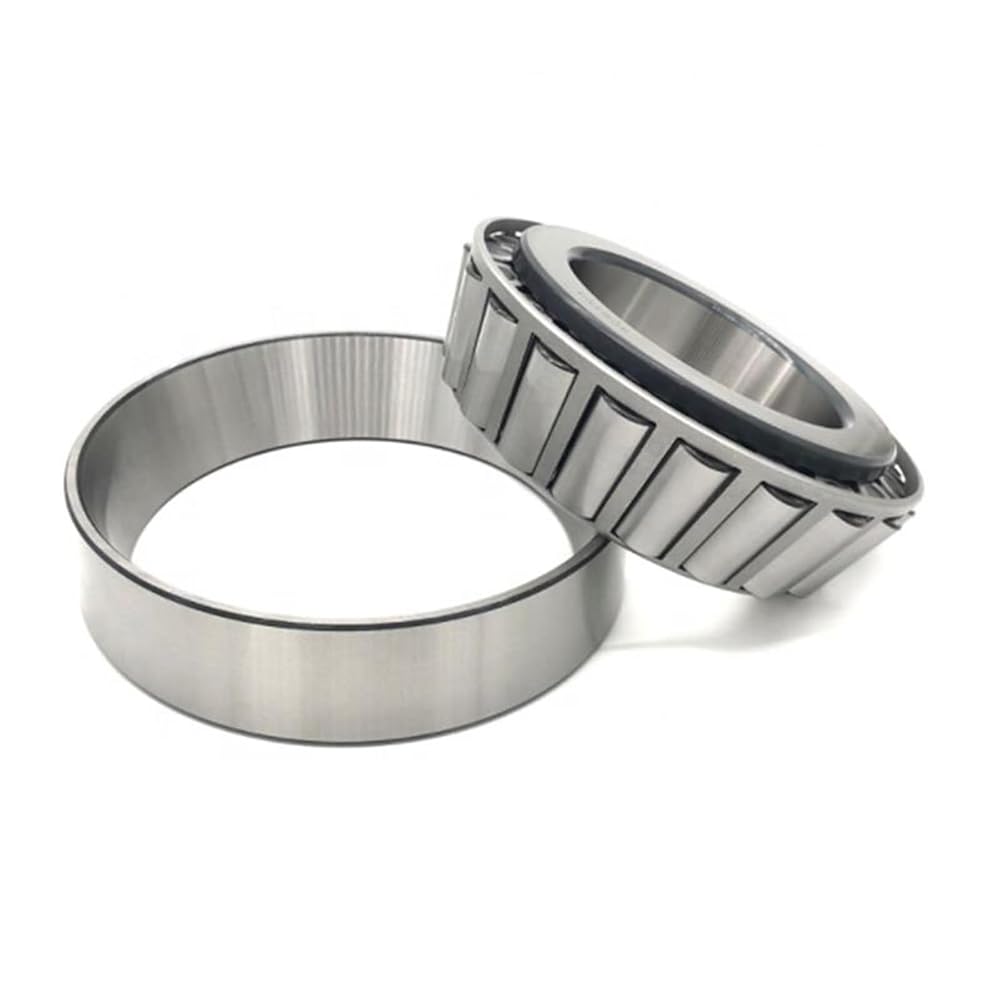

Tapered Roller Bearing:
Tapered roller bearings are separable bearings. Both the inner and outer rings of the bearing have tapered raceways. This type of bearing is divided into single-row double-row and four-row tapered roller bearings according to the number of rows installed. Single row tapered roller bearings can bear radial load and single direction axial load. When the bearing bears radial load it will produce an axial component force so when it needs another bearing that can bear the axial force in the opposite direction to balance it.
Application:
Automobile rolling mill mining metallurgy plastic machinery and other industries.
Suffix definition:
A Internal structure changes
B Increased angle
X External dimensions adopt international standards
CD Double outer ring with oil hole or groove
TD Double inner ring with tapered hole
Details:
Product Name Tapered Roller Bearing
Bearing Material Chrome Steel GCR15
Precision Grade P0 P6 P5 P4 P2
Bearing Seal OPEN
Package box
Clearance C0 C2 C3 C4 C5
