TIP41C TIP42C is an NPN PNP complementary silicon power transistor. Suitable for audio, linear power and switching applications.
Part Status:Active
Current - Collector (Ic) (Max):6A
Voltage - Collector Emitter Breakdown (Max):100V
Vce Saturation (Max) @ Ib, Ic:1.5V @ 600mA, 6A
Current - Collector Cutoff (Max):700µA
DC Current Gain (hFE) (Min) @ Ic, Vce:15 @ 3A, 4V
Power - Max:2W
Frequency - Transition:3MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole

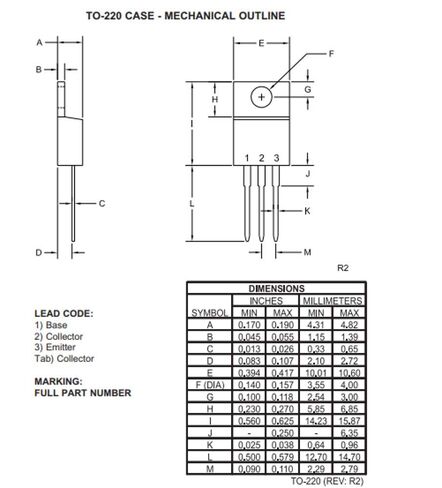

Package / Case:TO-220-3
Package include:

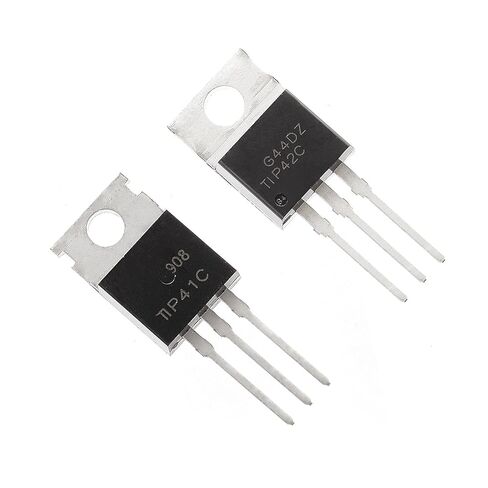

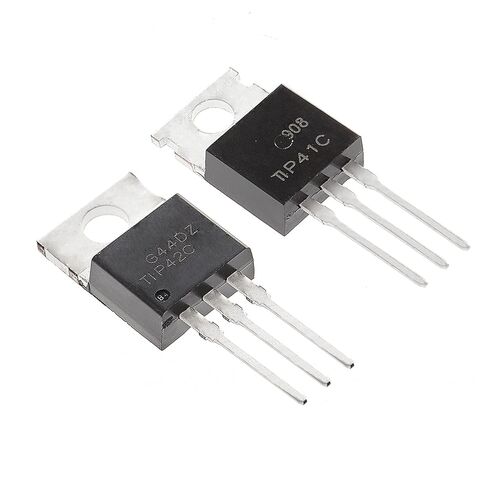

20pcs(10pcs*TIP41C+10pcs*TIP42C)
