Name: CNLINKO LP12 2-Pin Circular Connector with 1 Meter Cable Assemblies, IP68 Waterproof Industrial Electrical Connector for Outdoor Equipment Automotive Machinery M12 Cylindrical Connectors (2 Pin)
Brand: CNLINKO
Availability: InStock

Special Features

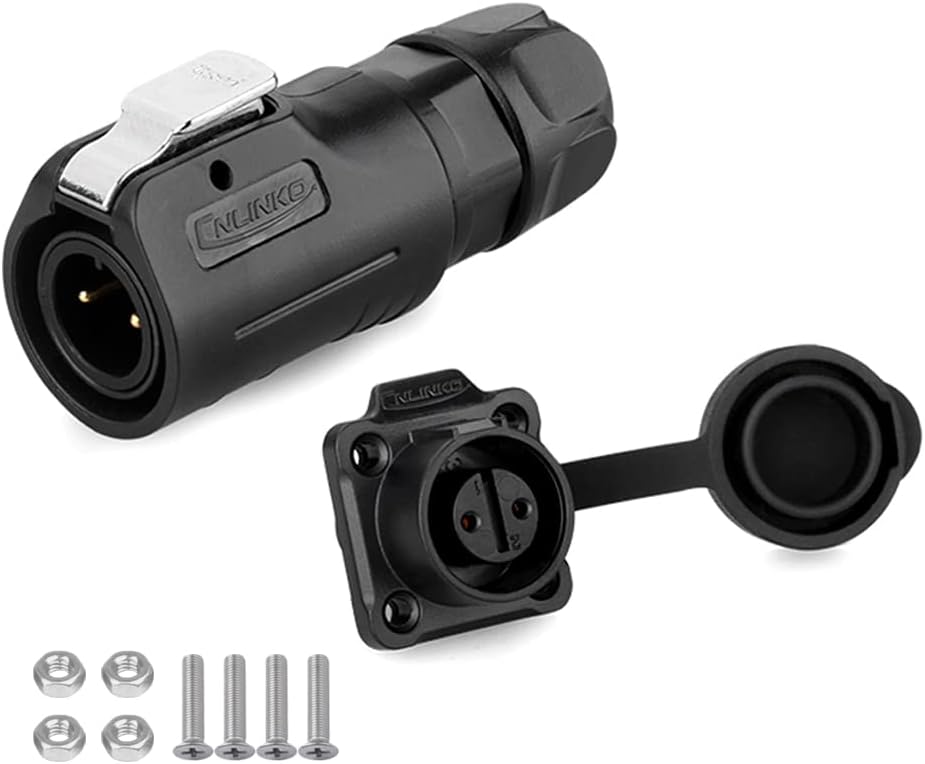

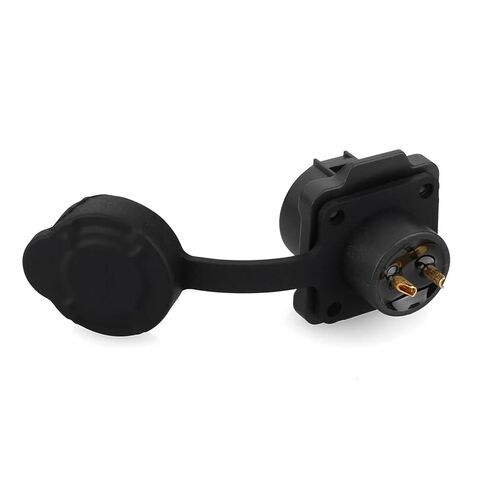

LP-12-C04PE-02-001 + LP-12-J04SX-02-401 ; Male Plug + Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67(Mated) ;
【Standard】 Cable Specification: 0.3-0.5mm²/22-20AWG ; Cable Diameter Range: Ф3.0~Ф6.0mm ; Contact Diameter × Number: Φ1.0x4 ; Durability: ≥500 Mating/Unmating Cycle ; Temperature Rating: -40°C ~ 80°C ; Assembly Style: Solder ;

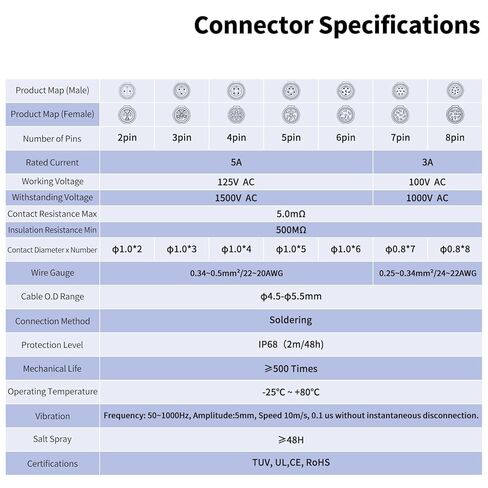

【Specifications】 Rated Current: 5A ; Operating Voltage (AC.V.rms): 125V ; Withstanding Voltage (AC.V),1 Minute: 1500V ; Contact Resistance: <5.0mΩ ; Insulation Resistance: ＞500MΩ ; Prohibited To Charged Inserted ;
【Material】 Shell & Insulated Parts: High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated) ; Sealing: Silica Gel ;

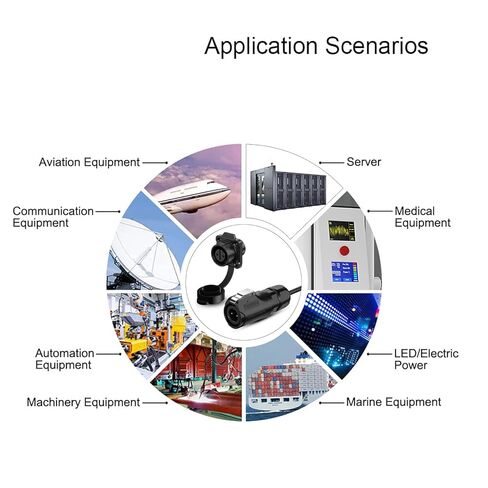

【Application】 Medical Equipment ; Server ; Communications Equipment ; Solar Energy Equipment ; The Smart Grid ; Electric Power Equipment ; Stage Equipment ; Ship Equipment ; Vehicle Equipment ; Heavy Machin ;

Description

CNLINKO LP12 2-Pin Circular Connector with 1 Meter Cable Assemblies, IP68 Waterproof Industrial Electrical Connector for Outdoor Equipment Automotive Machinery M12 Cylindrical Connectors (2 Pin)
