GINTOOYUN 5 Sets 3.81mm Phoenix Connector 4 Pin, 300V 15EDGRK 4-Pole 3.81mm Ground Circuit Terminal Blocks, 3.81mm Pitch 4P PCB Screw Terminals (Green-4P) in Kuwait GINTOOYUN 5 Sets 3.81mm Phoenix Connector 4 Pin, 300V 15EDGRK 4-Pole 3.81mm Ground Circuit Terminal Blocks, 3.81mm Pitch 4P PCB Screw Terminals (Green-4P) in Kuwait GINTOOYUN 5 Sets 3.81mm Phoenix Connector 4 Pin, 300V 15EDGRK 4-Pole 3.81mm Ground Circuit Terminal Blocks, 3.81mm Pitch 4P PCB Screw Terminals (Green-4P) in Kuwait GINTOOYUN 5 Sets 3.81mm Phoenix Connector 4 Pin, 300V 15EDGRK 4-Pole 3.81mm Ground Circuit Terminal Blocks, 3.81mm Pitch 4P PCB Screw Terminals (Green-4P) in Kuwait GINTOOYUN 5 Sets 3.81mm Phoenix Connector 4 Pin, 300V 15EDGRK 4-Pole 3.81mm Ground Circuit Terminal Blocks, 3.81mm Pitch 4P PCB Screw Terminals (Green-4P) in Kuwait GINTOOYUN 5 Sets 3.81mm Phoenix Connector 4 Pin, 300V 15EDGRK 4-Pole 3.81mm Ground Circuit Terminal Blocks, 3.81mm Pitch 4P PCB Screw Terminals (Green-4P) in Kuwait

GINTOOYUN 5 Sets 3.81mm Phoenix Connector 4P, 300V 8A Green Ground Circuit Terminal Blocks, 3.81mm Pitch 4P PCB Screw Terminals

KWD 4.500
Brand
GINTOOYUN
Weight
30 g
ColorGreen-4P
– 1 +

Special Features

  • 15EDGRK 4-Pole terminal pitch: 3.81mm. Plug-in terminal, non-welding butt. One set: socket + wiring female head. Suitable for electrical connection, bid farewell to traditional wiring, bid farewell to dangerous, safe wiring
  • 3.81mm 4P ground circuit terminal blocks. Rated voltage & current: 300V 8A. Wire range: 28-16AWG. They are widely used in electronics,communication equipment,instruments,computers,automatic control systems and alarm equipment,etc
  • 3.81mm phoenix connector, anti-vibration design to ensure the long-term airtight connection, low control signal loss, high switching frequency, no mechanical contact jitter, not affected by position and long service life
  • Use high-quality environmental protection plastic PA66 high temperature resistant V0 flame retardant material, temperature range is -40℃ - +105℃. Steel screw environmentally friendly electroplating,no slippage. Surface nickel plating treatment,corrosion resistance,high stability
  • PCB din rail adapter, easy to install and detach, just need to loosen the screws to land the wires. The quick disconnect connecting block that makes these terminals easy to swap out another device without unscrewing all the wires

Description

1.3.81mm 4P phoenix connectors are widely used in electronics,communication equipment,instruments,computers,automatic control systems and alarm equipment,etc
2. Description:
Pitch:3.81mm
Poles:4P
Rated Voltage:300V
Rated Current:8A
Wire Range: 28-16AWG
Screw:M2,Steel,Zinc plated
Contact Material:Phosphor bronze,Nickel plating
Wire Cage:Brass,Nickel plating
Plastic Parts:PA66 UL94V-0
Temperature Range:-40℃ - +105℃
Wire Stripping Length:7-8mm
Color: Green
3. Package includes:

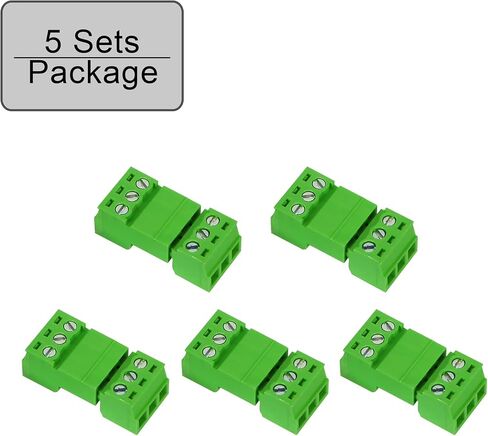

5 Sets x 3.81 mm Male Female Plug Terminals
